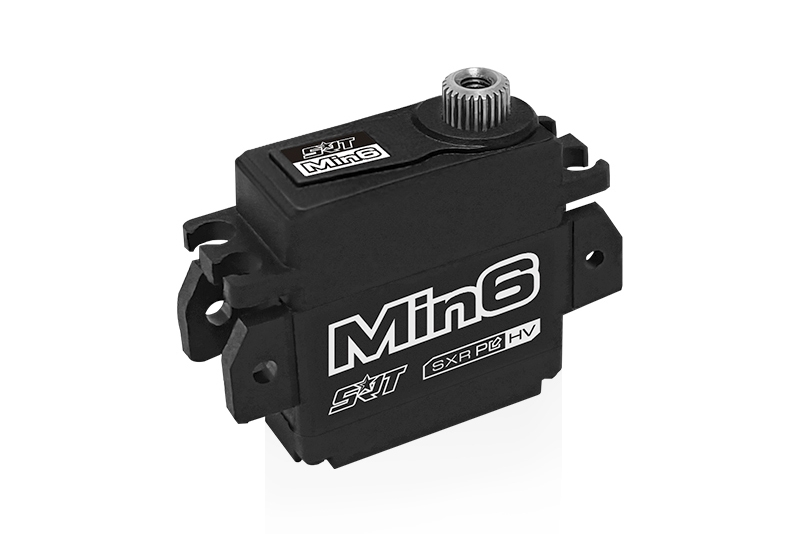

MIN6 HiVOLT CORELESS Digital servo for 1/12 Pancar (9kg-0.062s/60°)

The Min6 Pancar servo can be mounted directly, contributing to lowering the center of gravity of the chassis, with greater precision and locking force for smooth cornering control.

All-plastic, lighter weight, the servo weighs only 18 grams.

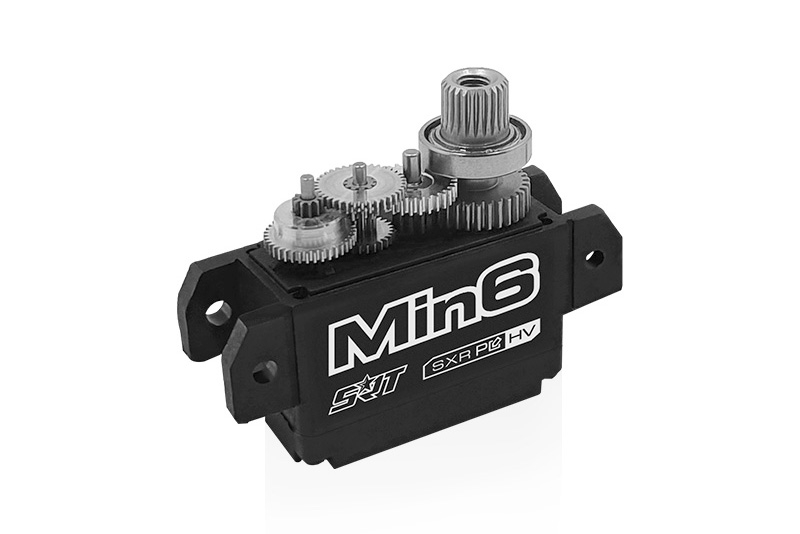

25T stainless steel + 7075 aluminum gears are set to a high strength level for racing, with the latest PCBA, supports SSR, SUR, SXR, SR, SFR multiple ultra-high-speed modes.

The Min6 can be programmed with SRT program box SP-MX082 for different tracks, achieving better lap time and steering.

KEY FEATURES

• Special 1/12 pancar servo
• Supporting SXR, SFR, SR, SSR multiple ultra high speed modes
• Incredible efficiency and low power consumption
• 2 μsec Dead Band

• Type: Digital
• Bearing: 2BB
• Motor Type: Coreless
• Gear Type: Metal
• Gear Material: 7075 Aluminum
• Control system: Pulse width control
• Working frequence: 1520 μs / 333 Hz
• Operating voltage: DC 4.8 - 8.4 V
• Operating temperature range: -10 to + 60 degrees
• Operating speed (4.8v): 0.100 sec/60 degrees at no load
• Operating speed (6.0v): 0.080 sec/60 degrees at no load
• Operating speed (7.4v): 0.070 sec/60 degrees at no load
• Operating speed (8.4v): 0.062 sec/60 degrees at no load
• Stall torque (4.8v): 5.0kg.cm (69.4 oz/in)
• Stall torque (6.0v): 6.8kg.cm (94.4 oz/in)
• Stall torque (7.4v): 8.0kg.cm (111.1 oz/in)
• Stall torque (8.4v): 9.0kg.cm (125.0 oz/in)
• Potentiometer drive: Direct drive

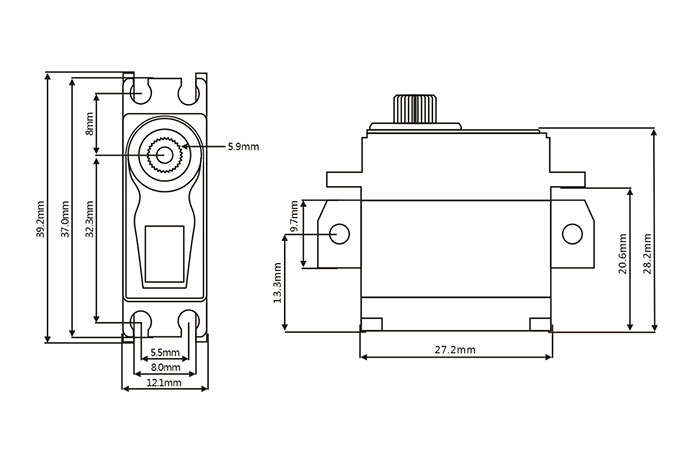

• Dimensions: 27.2x12.1x28.2 mm /1.07x0.48x1.11 in
• Weight: 18.0g (0.63 oz)
• Connector wire length: JR 170 mm
