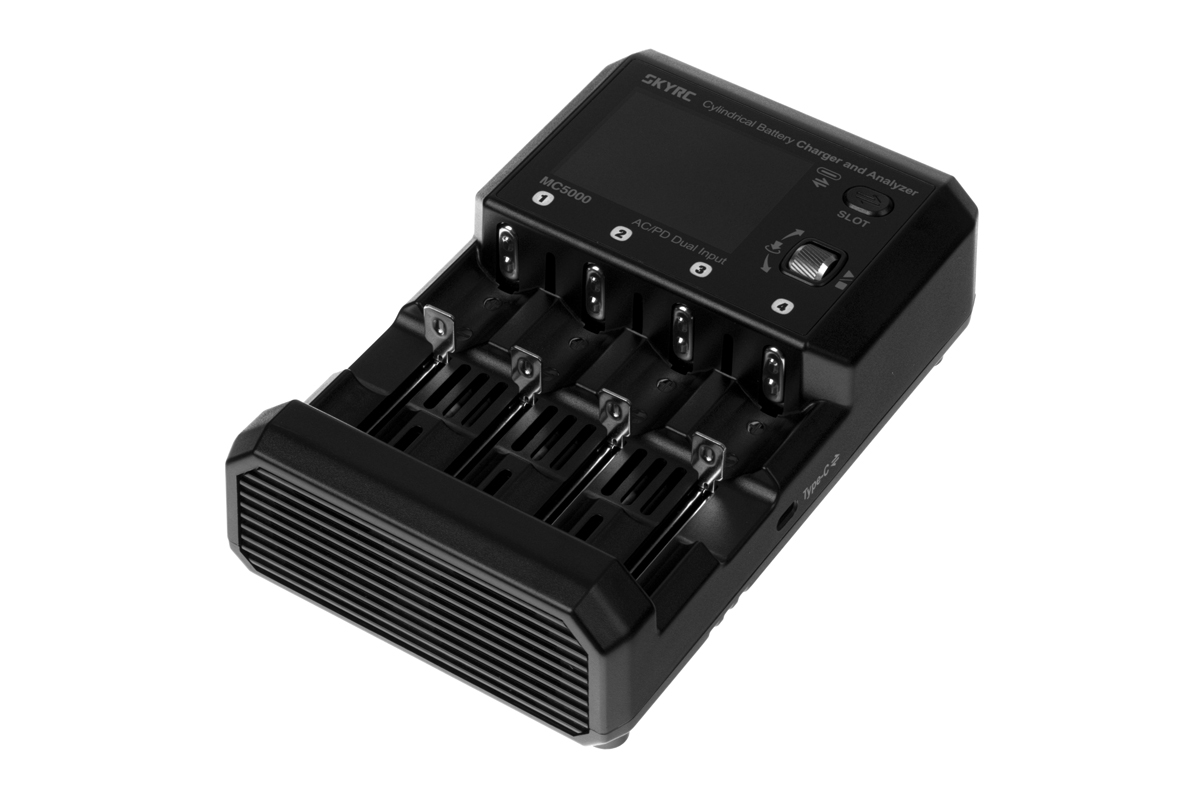

MC5000 Cylindrical Battery Charger and Analyzer

A multifunctional, four-channel, AC-powered charger/discharger that provides comprehensive and truly convenient care for your batteries in cylindrical cases of all common types (NiMH, NiMH – Eneloop, NiCd, NiZn, Li-ion, Li-ion HV, LiFePO4, NiZn, RAM, LTO, Na-ion). The charger’s intelligent programs take care of your batteries, from initial formatting with a low current, through regular (fast) charging or discharging, cyclic charging/discharging, trickle charging, storage charging/discharging, all the way to capacity testing and revitalizing cells that have been in long-term use or, conversely, in long-term storage.

The M53000 allows you to simultaneously—and independently—charge or discharge up to four different batteries in cylindrical cases. A synchronous mode is also available for charging cells of the same type—simply enter the charging parameters for one channel, and the others will operate with the same settings.

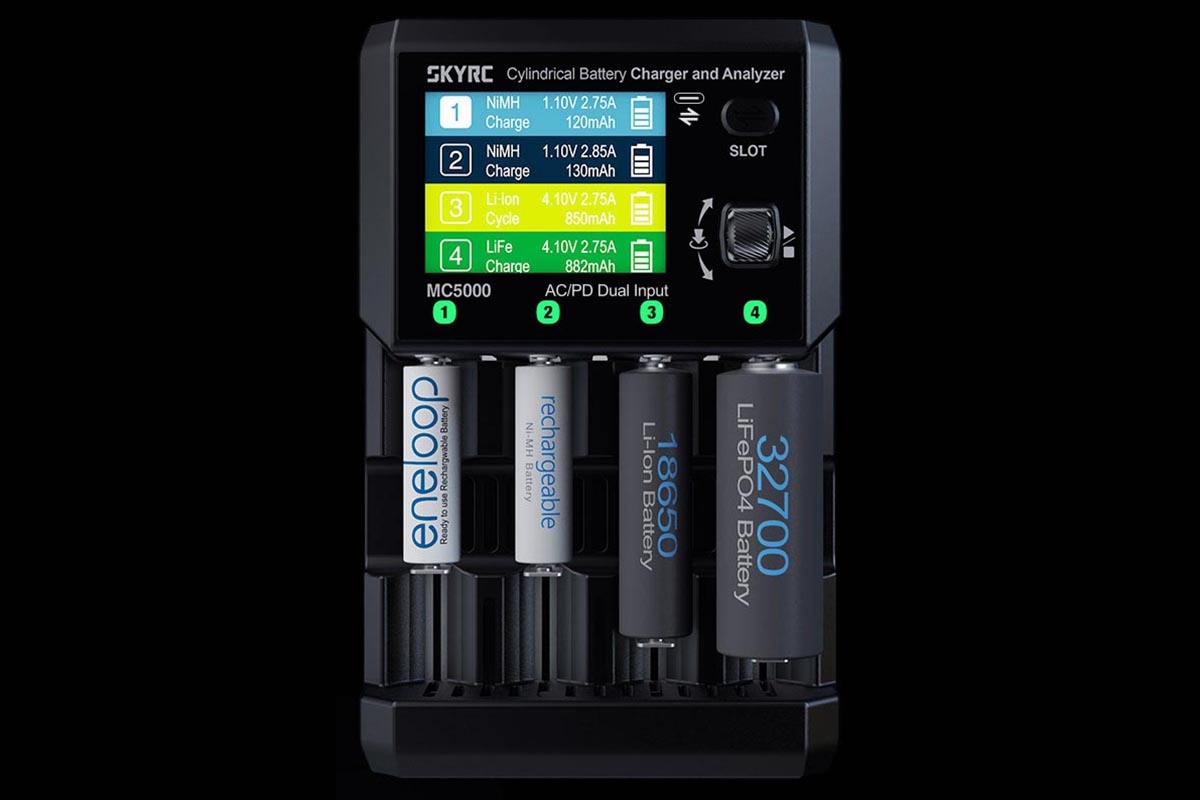

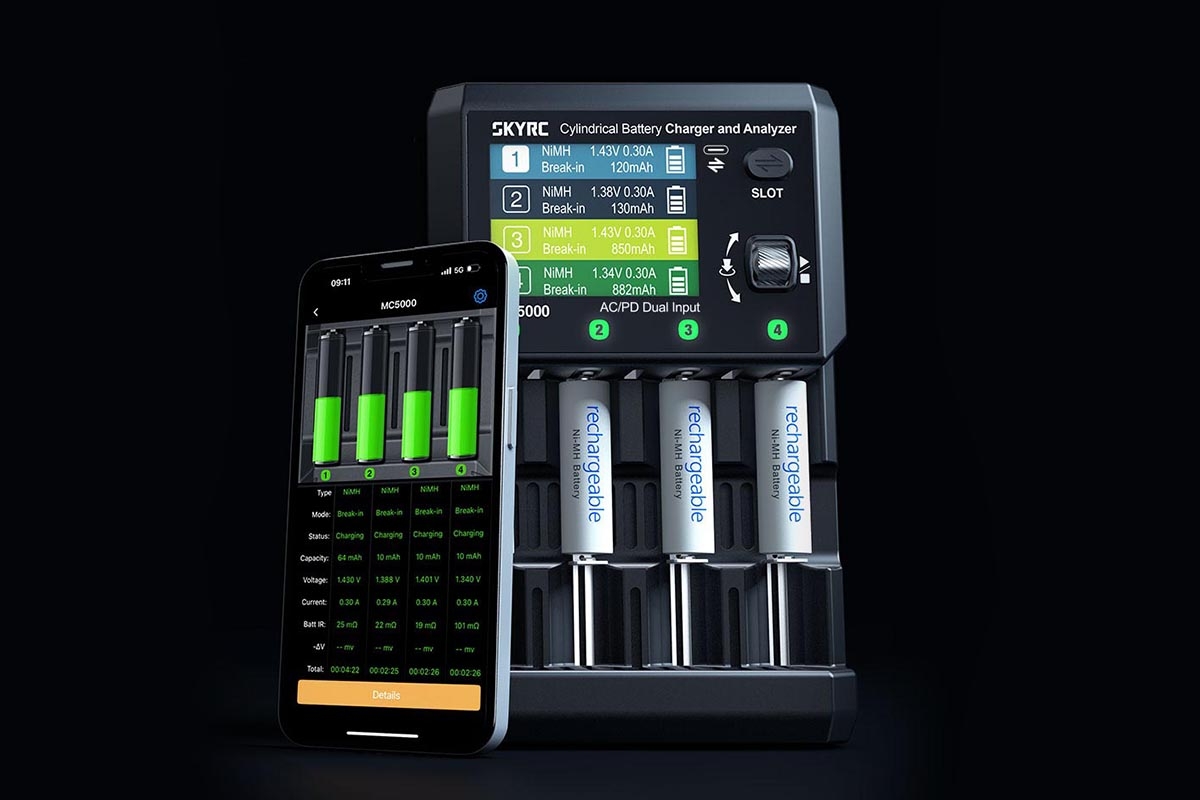

Parameters of the ongoing process (charge/discharge current, state of charge, battery voltage) are continuously displayed for all channels on the LCD screen. A graphical display of the charge/discharge curve is also available. The built-in Bluetooth module allows you to configure and monitor the charging process in the SkyCharger mobile app (iOS and Android), as well as update the charger’s firmware.

A detailed manual describing the principles of proper battery charging and operation will make it easier for you to operate the charger and use your batteries.

Basic Functions

• Input voltage: 100–240 V/50–60 Hz AC power supply
• For charging and discharging up to four cells in a cylindrical case (NiMH, NiMH – Eneloop, NiCd, NiZn, Li-ion, Li-ion HV, LiFePO4, NiZn, RAM, LTO, Na-ion) with a capacity of 100–10,000 mAh
• Compatible with battery sizes: up to four AAAA, AAA, AA, Sub-C, C, 10340, 10350, 10440, 10500, 12340, 12500, 12650, 13450, 13500, 13650, 14350, 14430, 14500, 14650, 16340, RCR123, 16500, 16650, 17350, 17500, 17650, 17670, 18350, 18490, 18500, 18650, 18700, 20700, 21700,
22500, 22650, 25500, 26500, 26650, 26700, up to two D cells together with up to 2 other cells, up to two 32600, 32650, 32700 cells together with up to 2 cells smaller than C
• Adjustable charging current: 0.05 A – 5.00 A
• Adjustable discharging current: 0.05 A – 2.00 A
• Max. charging power: 80 W
• Max. discharging power: 20 W
• Operating modes: Charge, Discharge, Storage, Cycle, Refresh, Break-in
• Automatic charge termination via delta-peak detection for NiMH and NiCd; constant current/constant voltage charging for other types
• Adjustable end-of-charge and end-of-discharge voltages and currents
• Adjustable delta-peak detection sensitivity: 3–12 mV for NiMH/NiCd
• Repeated charge/discharge or discharge/charge cycles (1 to 3 cycles) for NiMH/NiCd
• Termination of charging or discharging when the set time is exceeded (30–1,440 min)
• Battery conditioning (charging and discharging at low current)
• Trickle charging: 50–300 mA
• Parameter settings and menu navigation via buttons on the charger or through the mobile app on a smartphone (iOS or Android) via Bluetooth

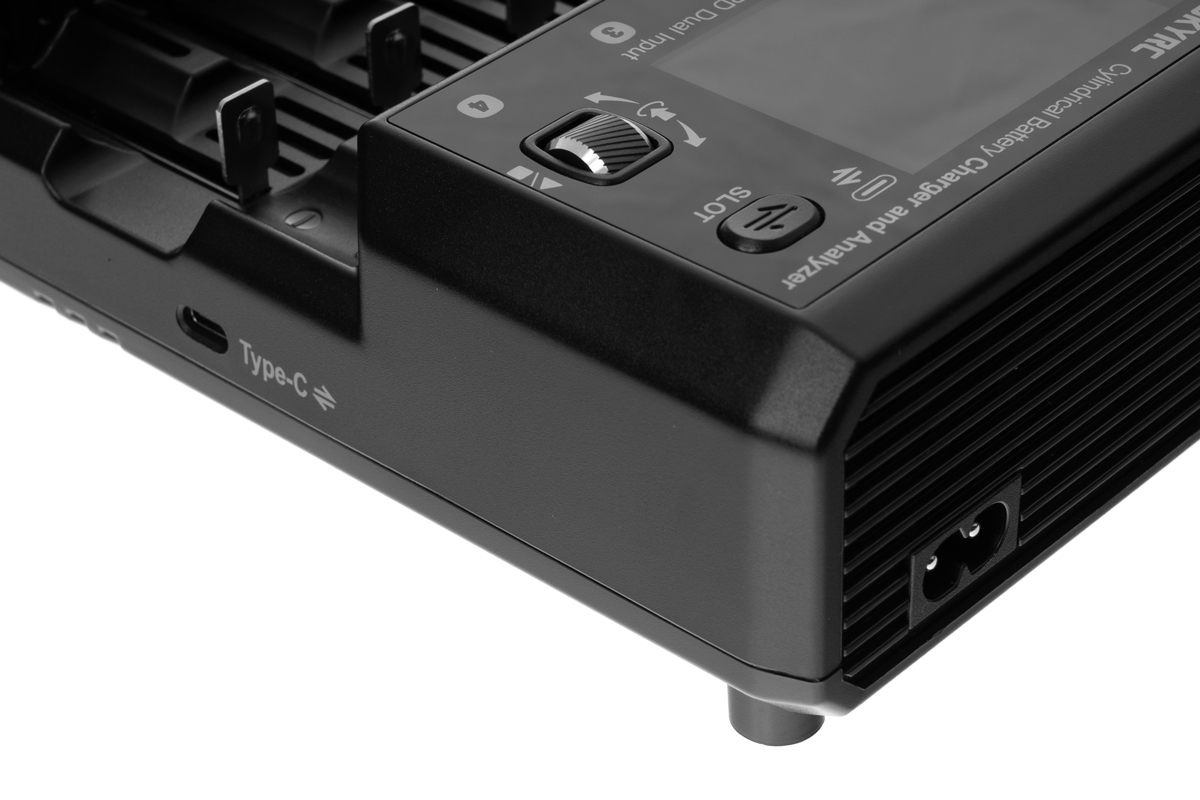

• USB-C power port with PD3.0 support (up to 65 W) for powering/charging smartphones, tablets, digital cameras, etc.
• Backlit 320x240-pixel LCD display with a simple, intuitive menu and real-time parameter display during charging
• Forced-air cooling with intelligent fan control
• Compact, sturdy plastic housing

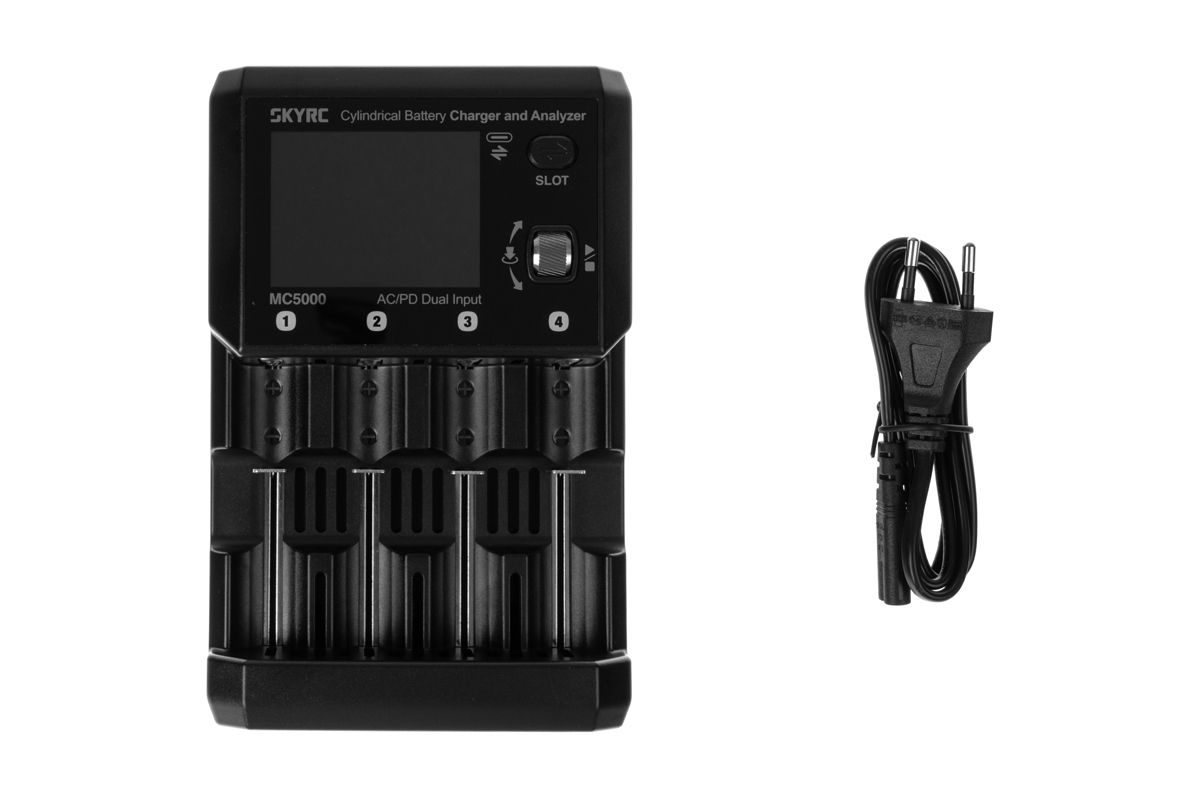

Charger set includes: MC5000, power cord (EU), user manual.
