MAV Sense SE4

Miniature 4-channel servo expander/serial bus decoder converting the serial bus signal to individual PWM servo outputs. Compatible serial protocols: Futaba S.BUS/S.BUS2, Graupner SUMD, HoTT telemetry, JETI EX Bus, Multiplex SRXL 12/16CH, PowerBox P2Bus; assignable outputs. Input voltage 5-8.4V, current drain up to 15A. Dimensions 34x14x9mm, weight 4g, input connector MR30. Adjustable with transmitters, Jetibox or MAV Sense PC USB interface.

This item is not available in you region (United States)

The Servo Expander SE4 is a device that converts serial bus signal to standard PWM servo outputs. It offers up to four configurable servo outputs with optional period and fail-safe setting. The SE4 is a perfect choice for models with complex wing or tail mechanics where multiple servos may be connected to a primary receiver using just a single cable.

MAV Sense products are designed and manufactured in the Czech Republic

Supported protocols:

Futaba: S.Bus/S.Bus2
Graupner: SUMD, Hott telemetry for setting
JETI: EX Bus
Multiplex: SRXL 12ch, SRXL 16ch
PowerBox: P2Bus

Features

Small dimensions and high current throughput via the integrated MR30 power connector.
4-channel servo/EX Bus sensor expander.
Automatic detection of serial data/telemetry after startup.
Configuration through the transmitter, external terminal (JETIBOX/SMART-BOX) or MAV Manager PC software.v
Firmware updates via USB interface.

The set contents: SE4 Servo Expander, instruction manual.

Power supply [V]	4.8 - 8.4
Current load capacity [mA]	15
Length [mm]	33
Width [mm]	14
Height [mm]	9
Weight [g]	4

Accessories (3)

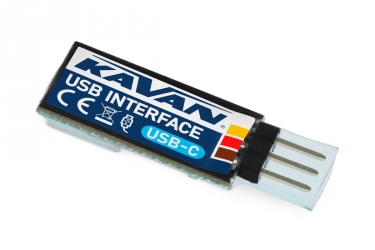

MAV Sense USB interface

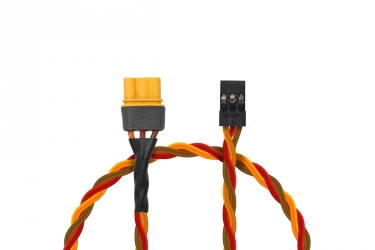

MAV Sense MR30-JR 150mm

MAV Sense MR30-JR 300mm
