Code:MAX1009
Barcode:8596450119482
Brand:ManiaX

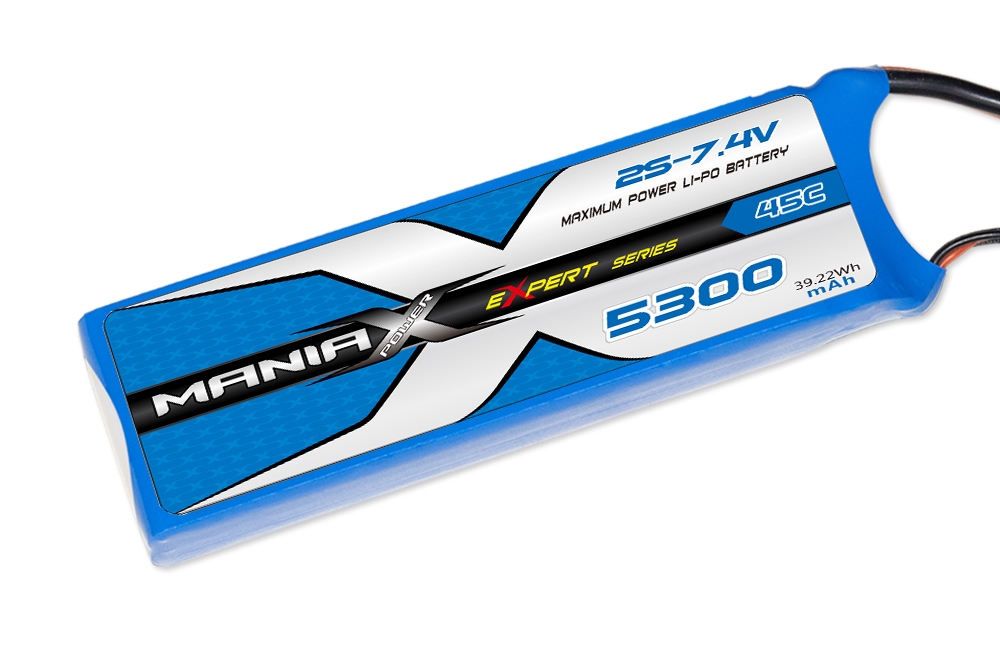

ManiaX Lipol 7.4V 5300mAh 45C RX

ManiaX LiPo receiver pack 45/90C, charge rate 1-3C, max. 5C. Two-cell pack 2S 7.4V 5300 mAh, dimensions: 135x43x21mm, weight: 261g, MPX6 + JR + JST-XH balance connector.
In Stock
€47.60
Description

The specific conditions of the receiver operation call for a dedicated type of LiPo batteries – there is no need for extremely high discharge rates but low self-discharge and tolerance to irregular charging cycles and long term storage in fully charged state are essential. We are happy to introduce a special line of 5/10C, resp. 15/30C ManiaX LiPo batteries optimized for receiver use.

Do not use a charge rate higher than 2C, the recommended charge rate is 1C. We recommend using a balancer during every charge. ManiaX transmitter LiPo batteries do not require any initial forming; however, the initial three charging cycles should be performed at a rate not higher than 0.5C. There is no need to discharge the LiPo batteries before the charging - you can charge partly discharged packs.

The batteries are supplied as packs optimized for models featuring high torque/high speed servos. The packs feature heavy duty silicone power (charging) cables with the MPX(6) connectors and balance cables with JST-XH connectors that could be connected directly to the balance sockets of the most of KAVAN, SkyRC, GT Power etc. chargers.

The package contents: ManiaX battery pack, instruction manual.

Capacity [mAh]5300
Voltage [V]7.4
Charging current [A]5.3 - 15.9
Max. charging current [A]26.5
Discharging current [A]238.5
Max. discharging current [A]477
Energy [Wh]39.2
Length [mm]135
Width [mm]43
Height [mm]21
Weight [g]261
