The specific conditions of the receiver operation call for a dedicated type of LiPo batteries – there is no need for extremely high discharge rates but low self-discharge and tolerance to irregular charging cycles and long term storage in fully charged state are essential. We are happy to introduce a special line of 5/10C, resp. 15/30C ManiaX LiPo batteries optimized for receiver use.
Do not use a charge rate higher than 2C, the recommended charge rate is 1C. We recommend using a balancer during every charge. ManiaX transmitter LiPo batteries do not require any initial forming; however, the initial three charging cycles should be performed at a rate not higher than 0.5C. There is no need to discharge the LiPo batteries before the charging - you can charge partly discharged packs.

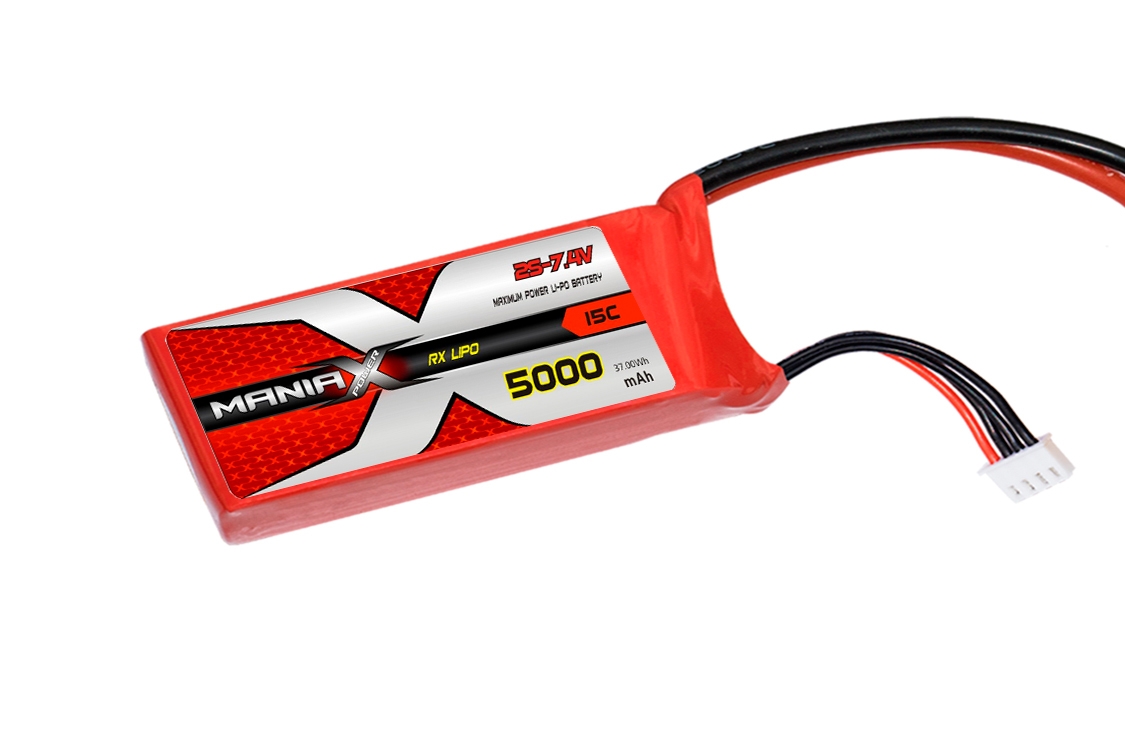

The batteries are supplied as packs optimized for models featuring high torque/high speed servos. The packs feature heavy duty silicone power (charging) cables with the XT60 connectors and balance cables with JST-XH connectors that could be connected directly to the balance sockets of the most of KAVAN, SkyRC, GT Power etc. chargers.
The package contents: ManiaX battery pack, instruction manual.
| Capacity [mAh] | 5000 |
| Voltage [V] | 7.4 |
| Charging current [A] | 1.2 - 2.5 |
| Max. charging current [A] | 5 |
| Discharging current [A] | 12.5 |
| Max. discharging current [A] | 25 |
| Energy [Wh] | 18.5 |
| Length [mm] | 95 |
| Width [mm] | 30 |
| Height [mm] | 16 |
| Weight [g] | 105 |
