Code:SUN0002
Barcode:8596450073456
Brand:Sunnysky

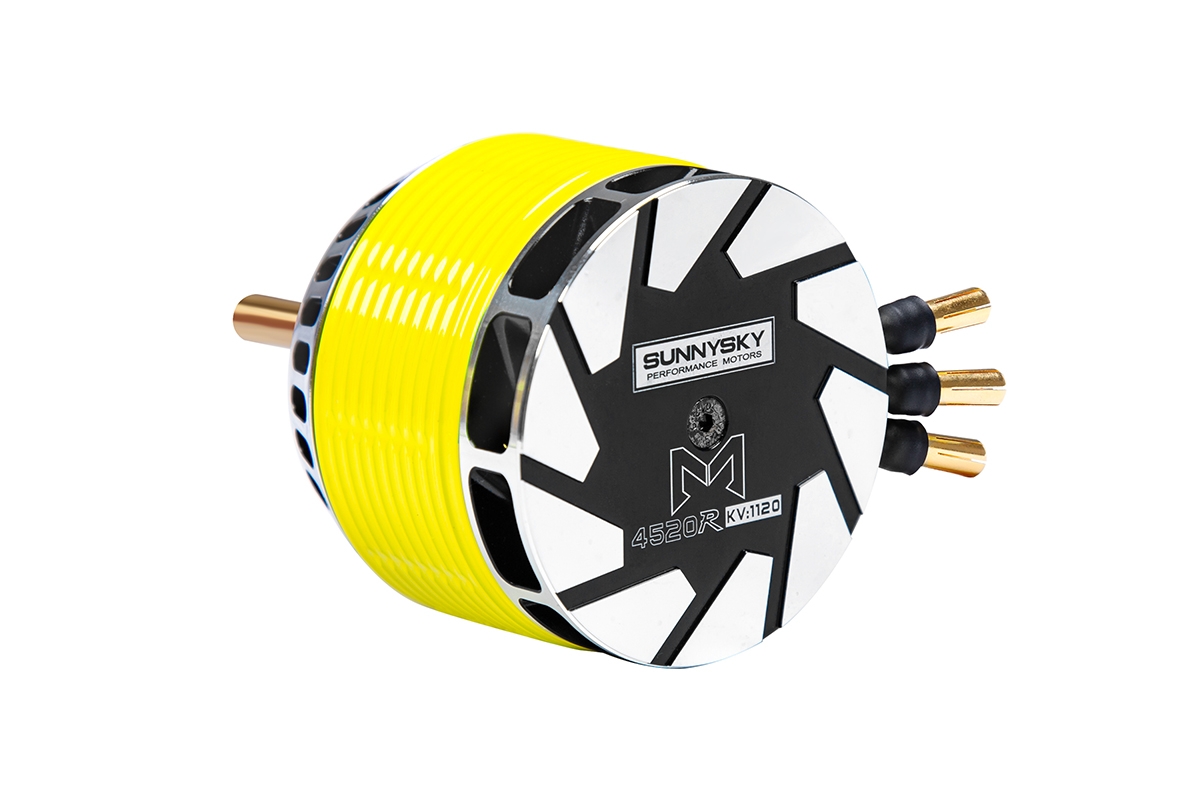

M4520R 1120kV Heli BLS motor

This item is not available in you region (United States)
Description

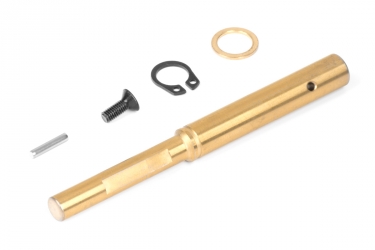

Spare parts
Powering LiXX cells4 - 6
RPM/V [ot./min/V]1120
Max. power (trvalý) [W]2280
Max. power (špičkový) [W]2760
Internal resistance [mOhm]3.5
Open-circuit current (při 10 V) [A]7
Max. current (trvalý) [A]95
Max. peak current [A]115

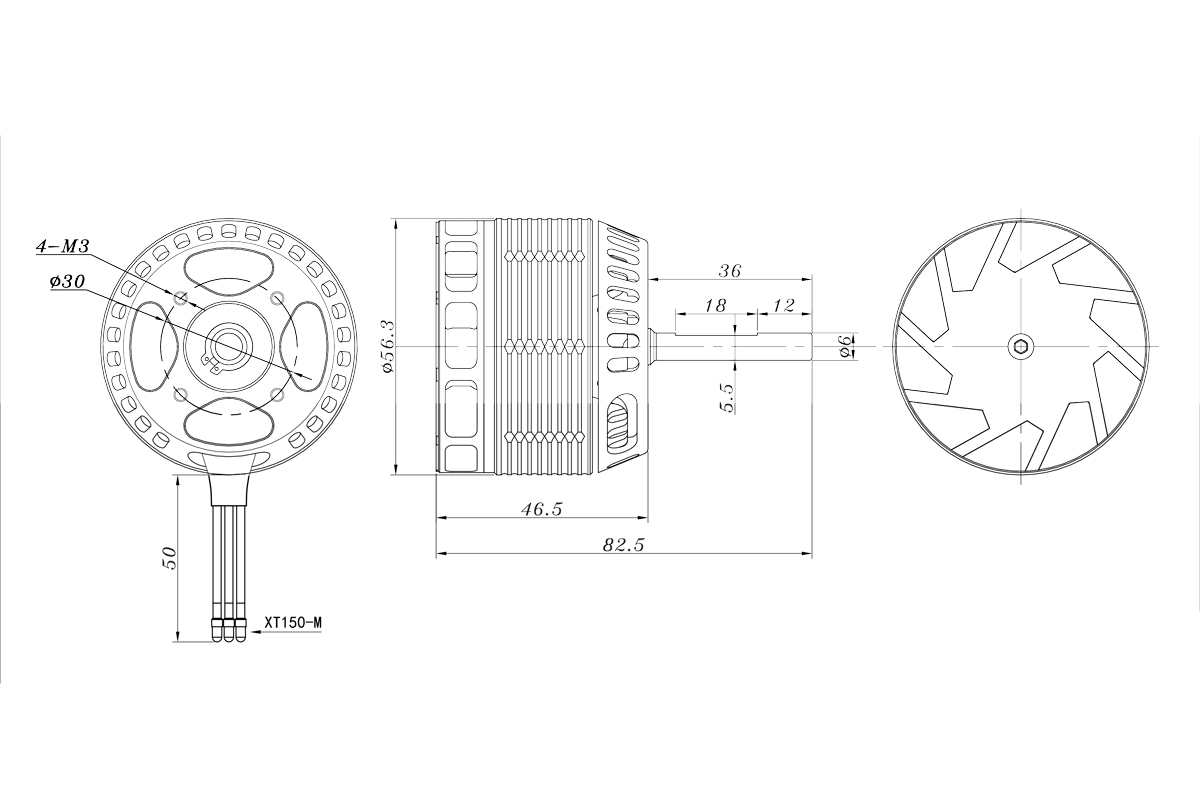

Diameter [mm]56.3
Length [mm]47
Length volné hřídele [mm]36
Shaft diameter [mm]6
Weight [g]406
Poles count10
ESC [A] 120 - 160
Helicopter Class [mm]520 - 600
