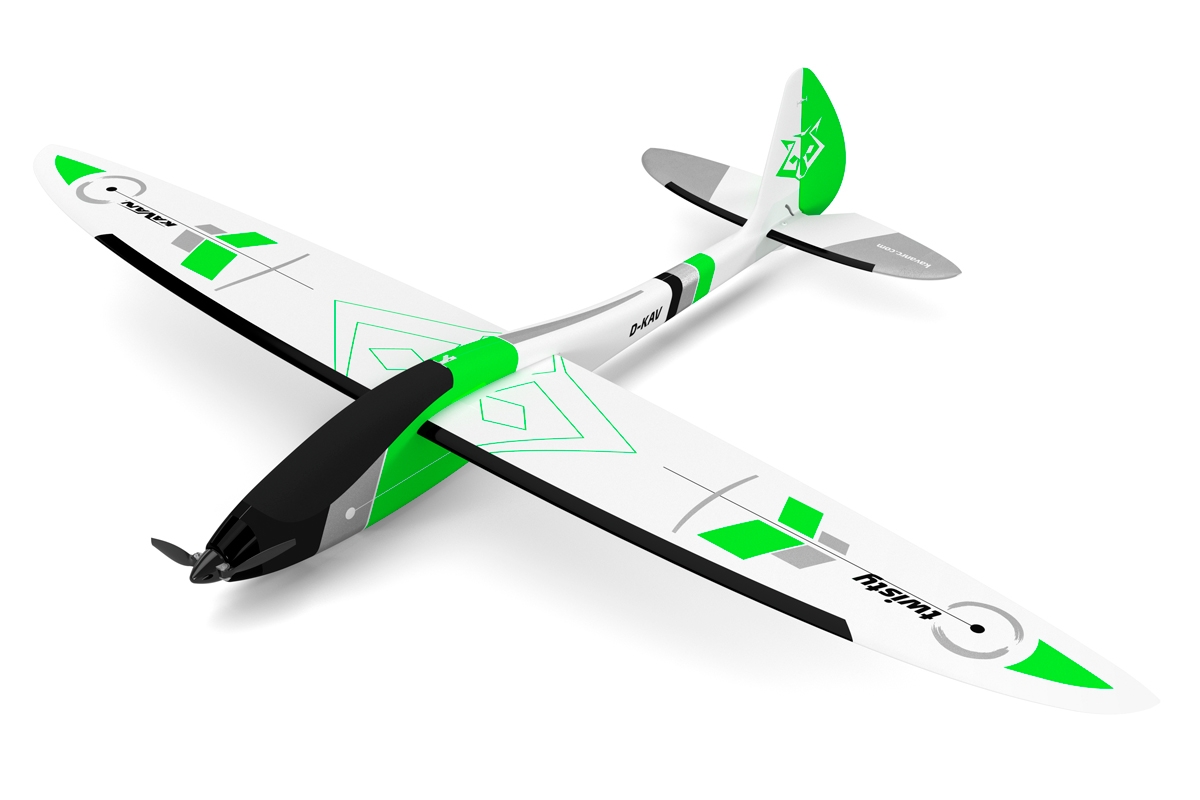

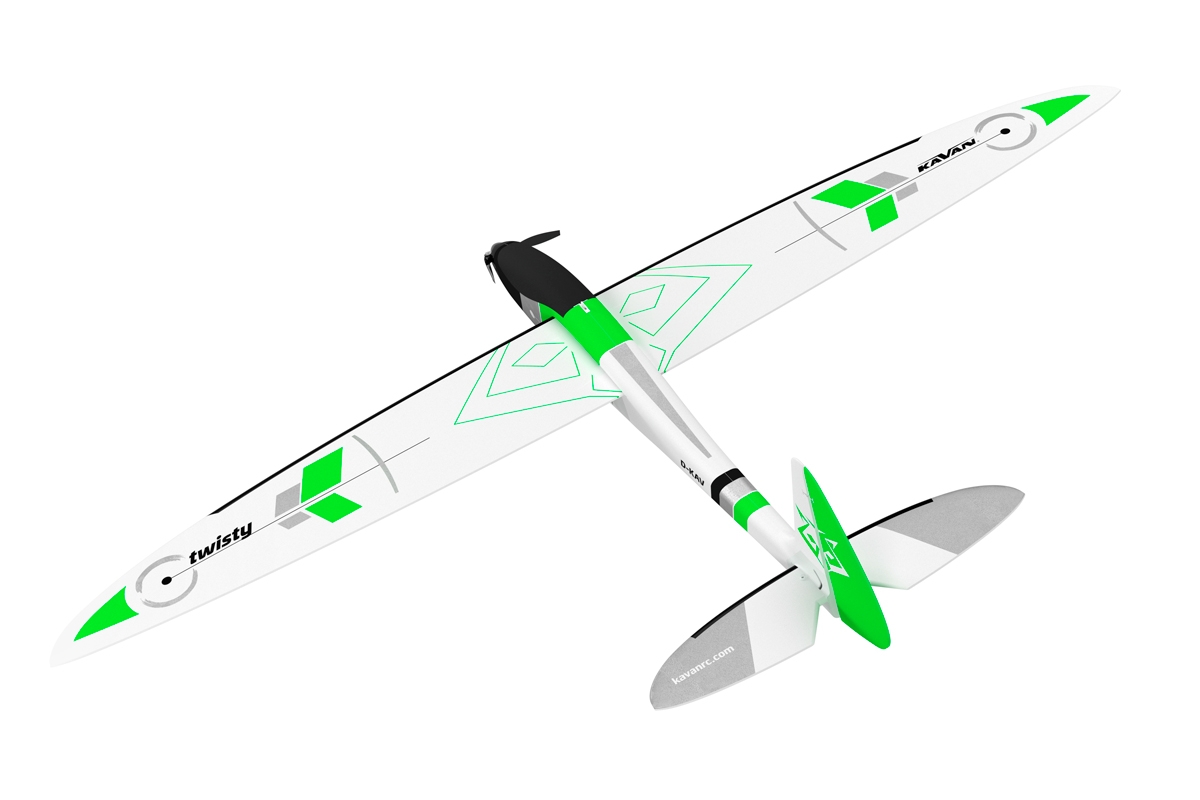

KAVAN Twisty 1512mm - green

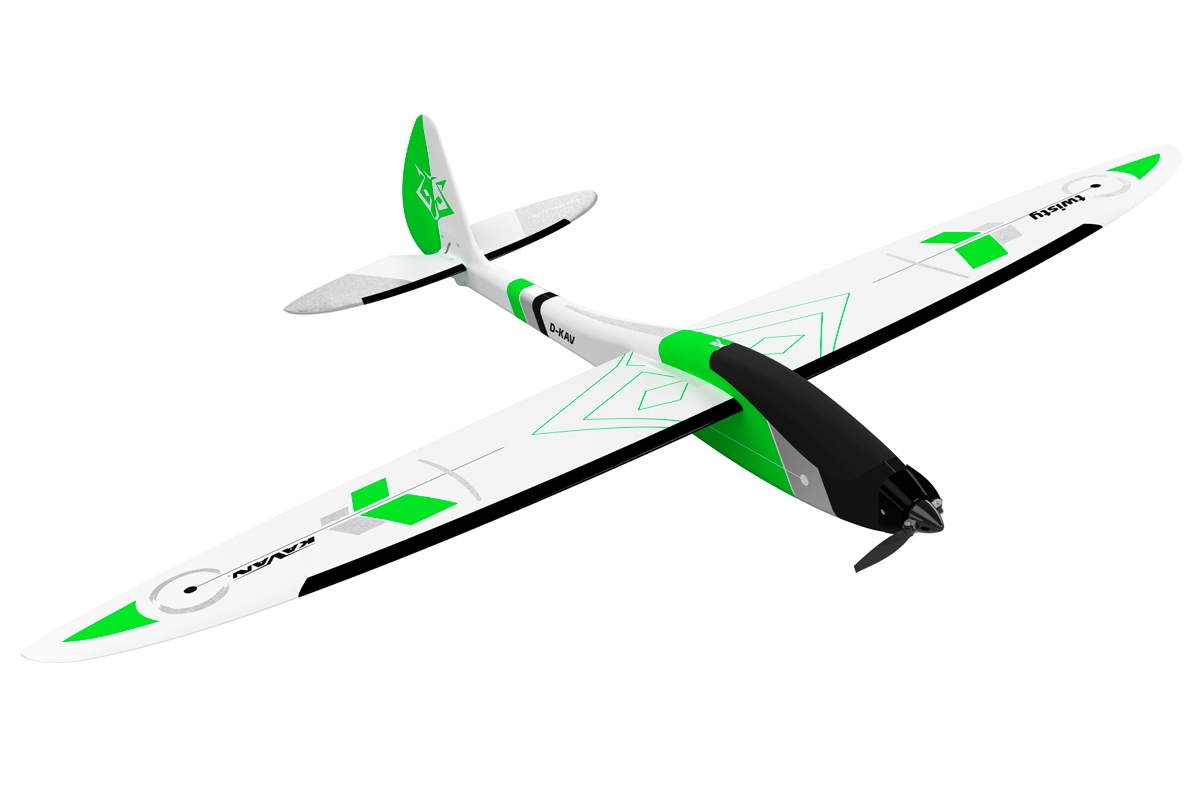

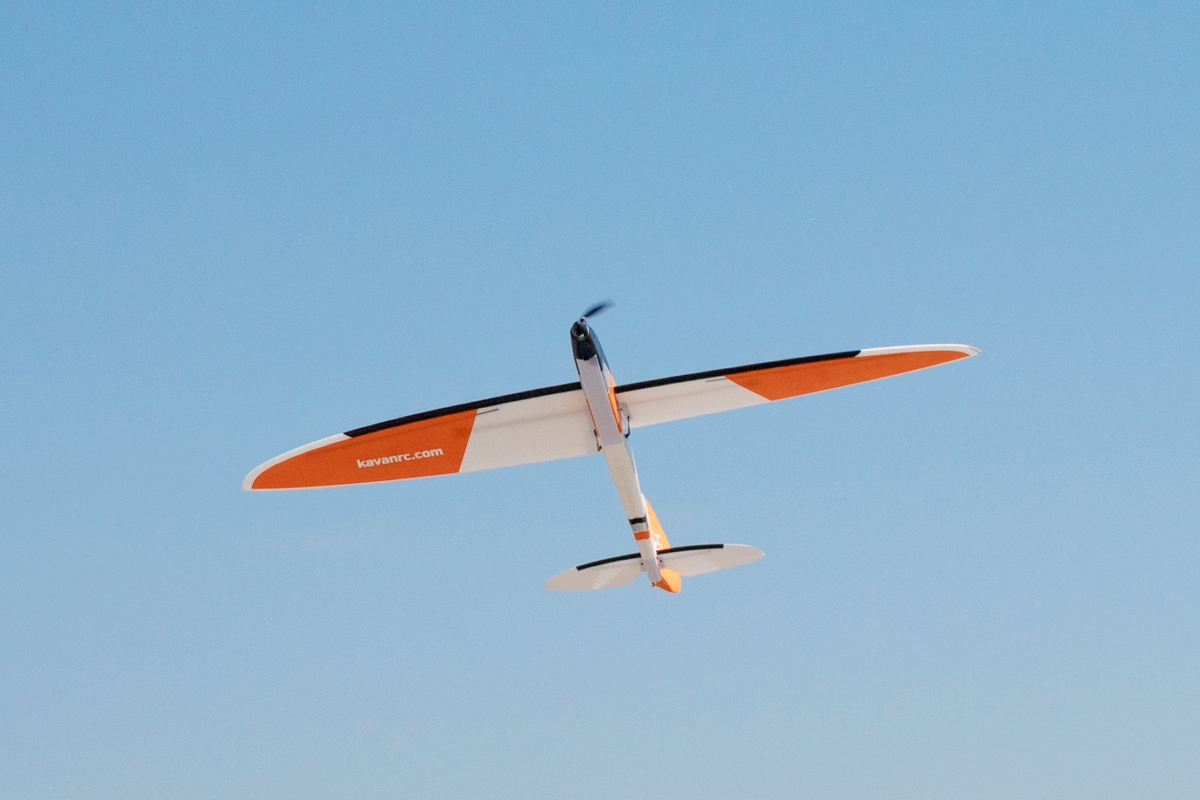

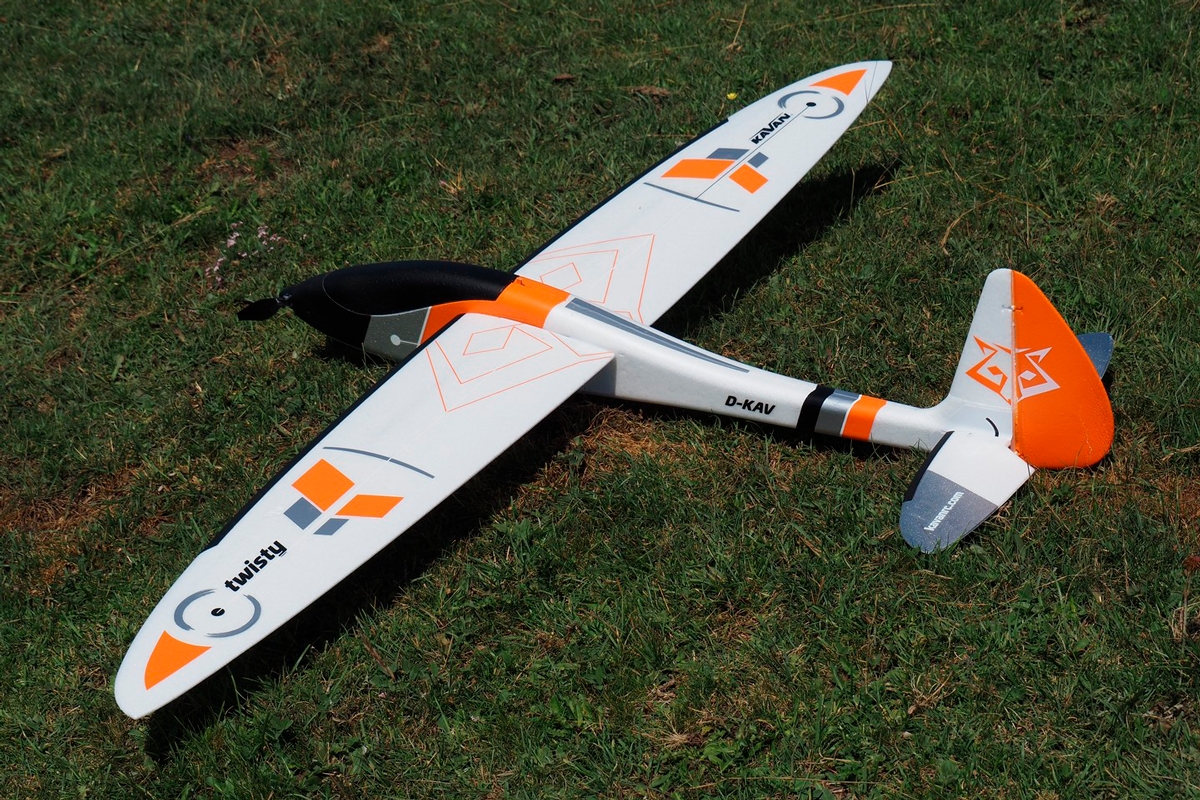

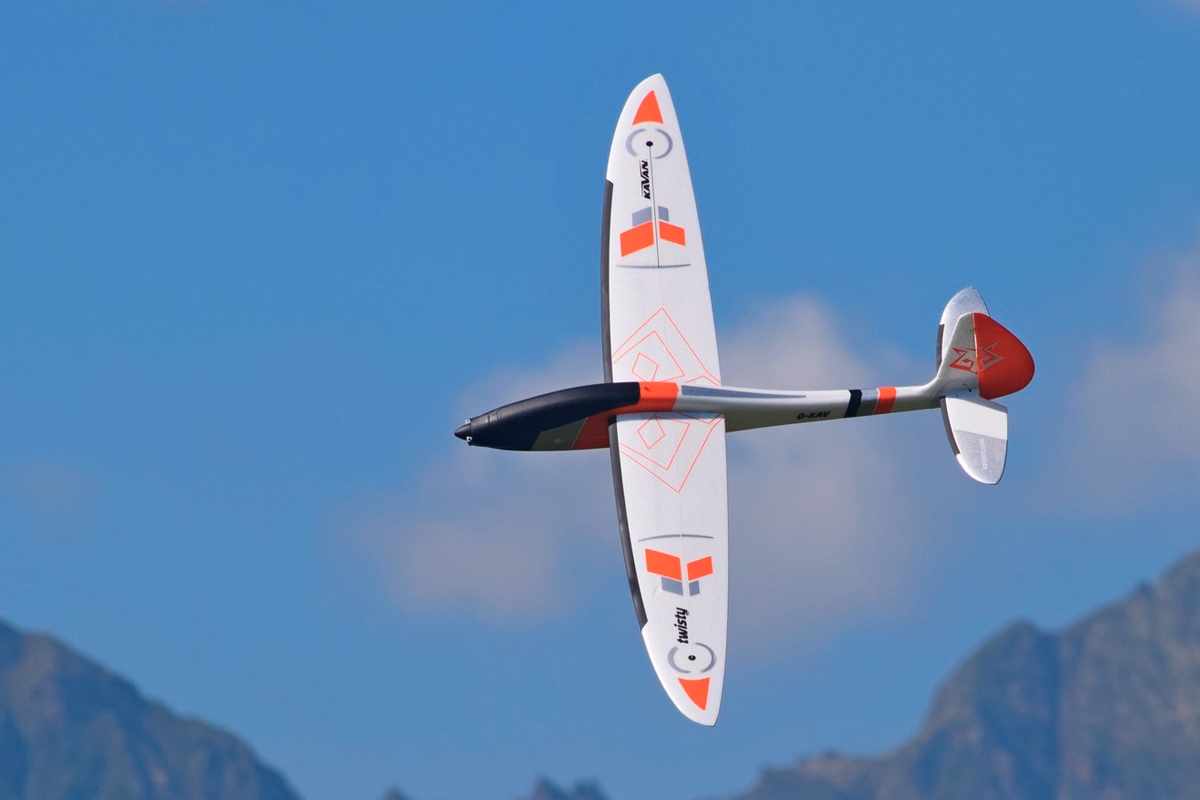

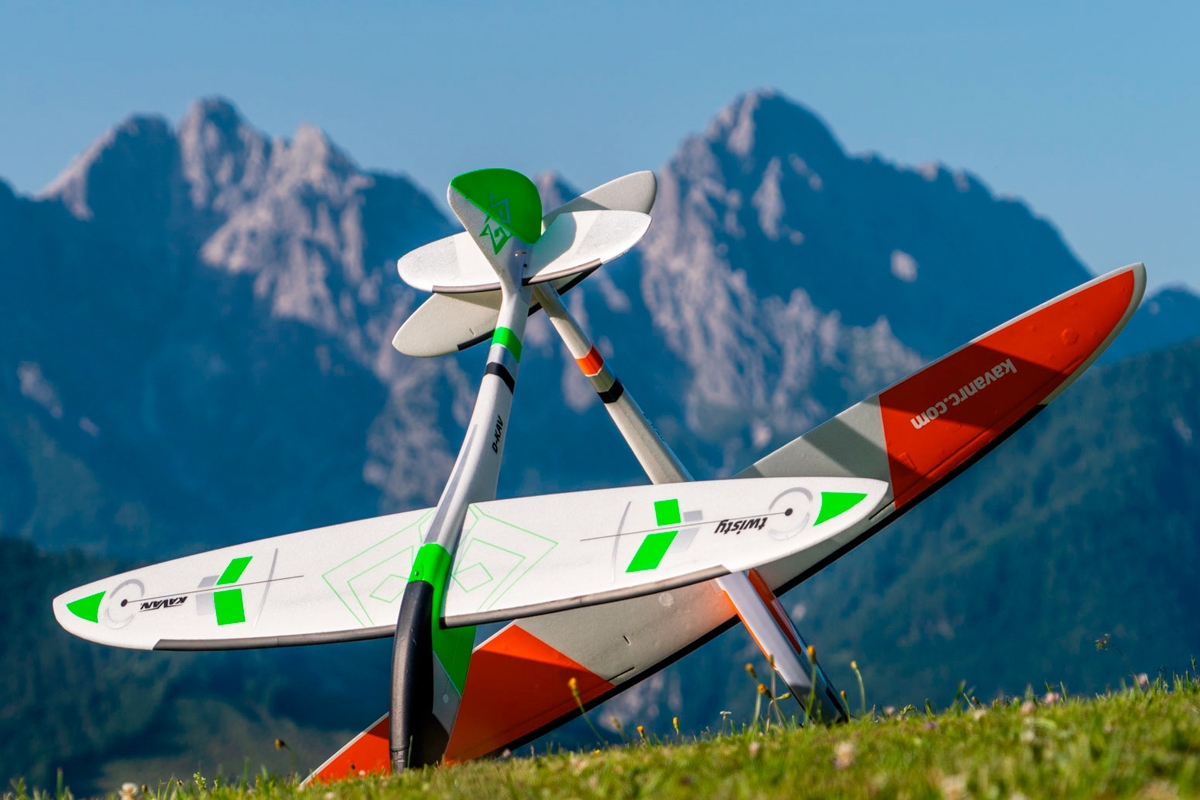

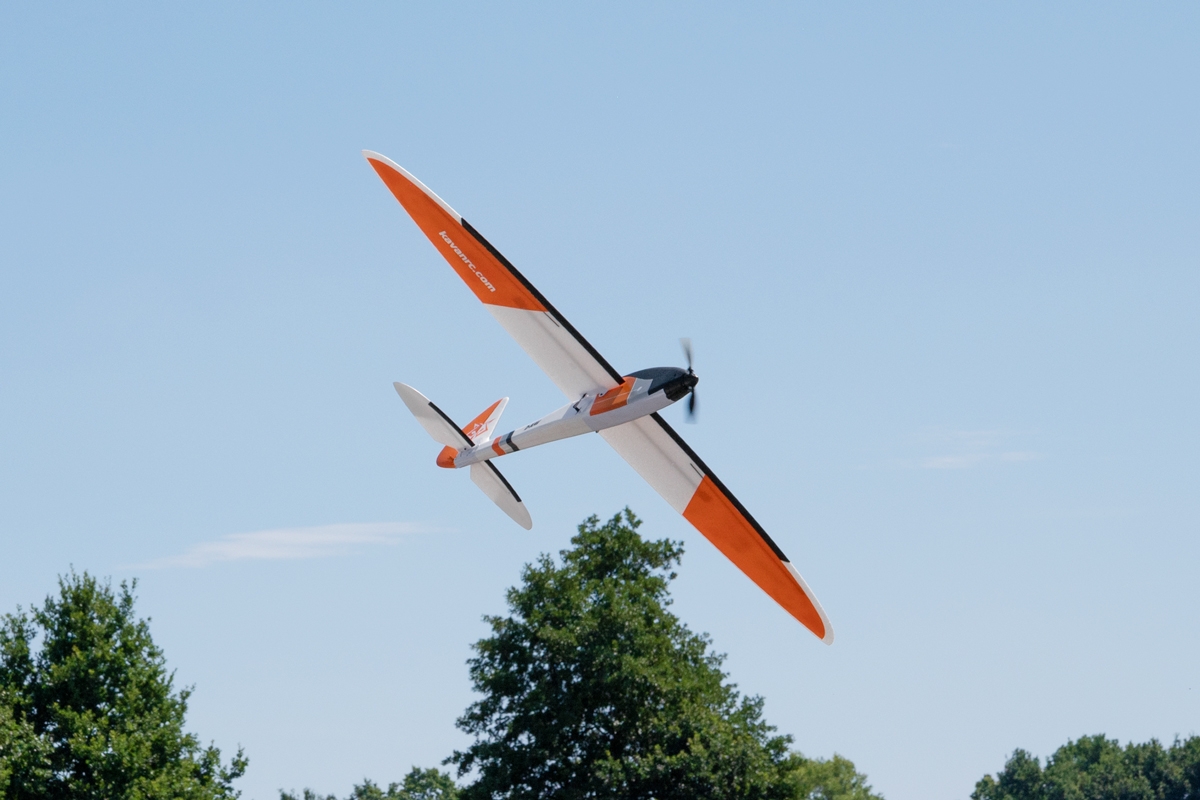

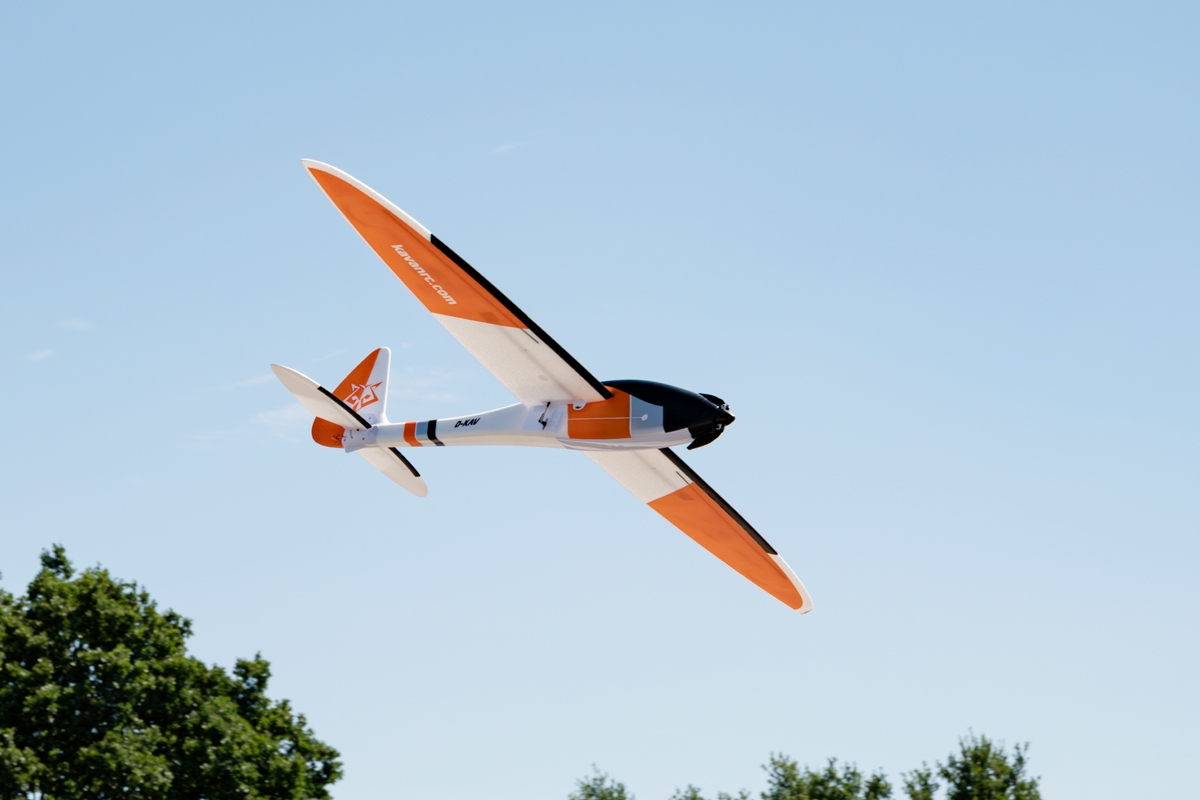

Our new 3D aerobatic motor-powered glider TWISTY is here for everybody who likes it hot. Not only does it have large control surfaces as usual with 3D models; not only does it have an all-moving tailplane - it’s got an all-moving wing as well! TWISTY is an unbeatable entertainer at mountain slopes, seaside cliffs and dunes challenging the strong and steady breeze. We also added a powerful brushless motor so that you could enjoy your TWISTY simply everywhere. Have a ball!

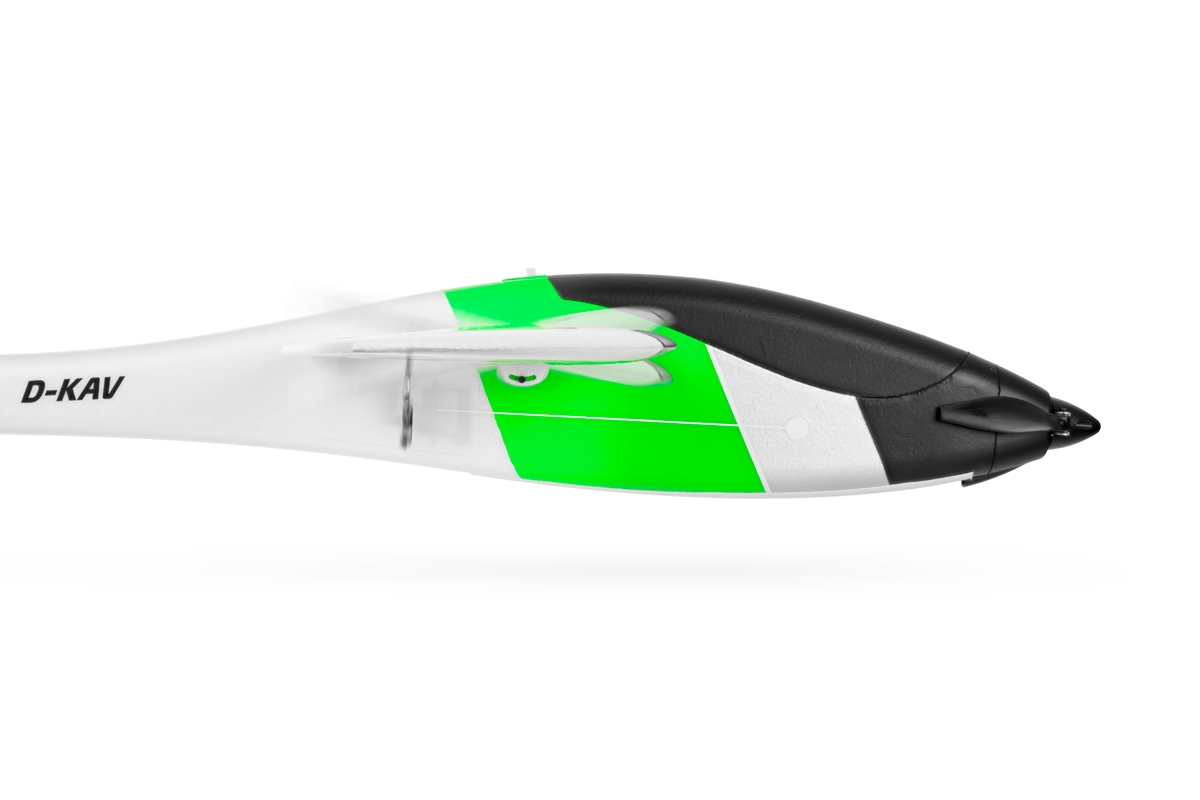

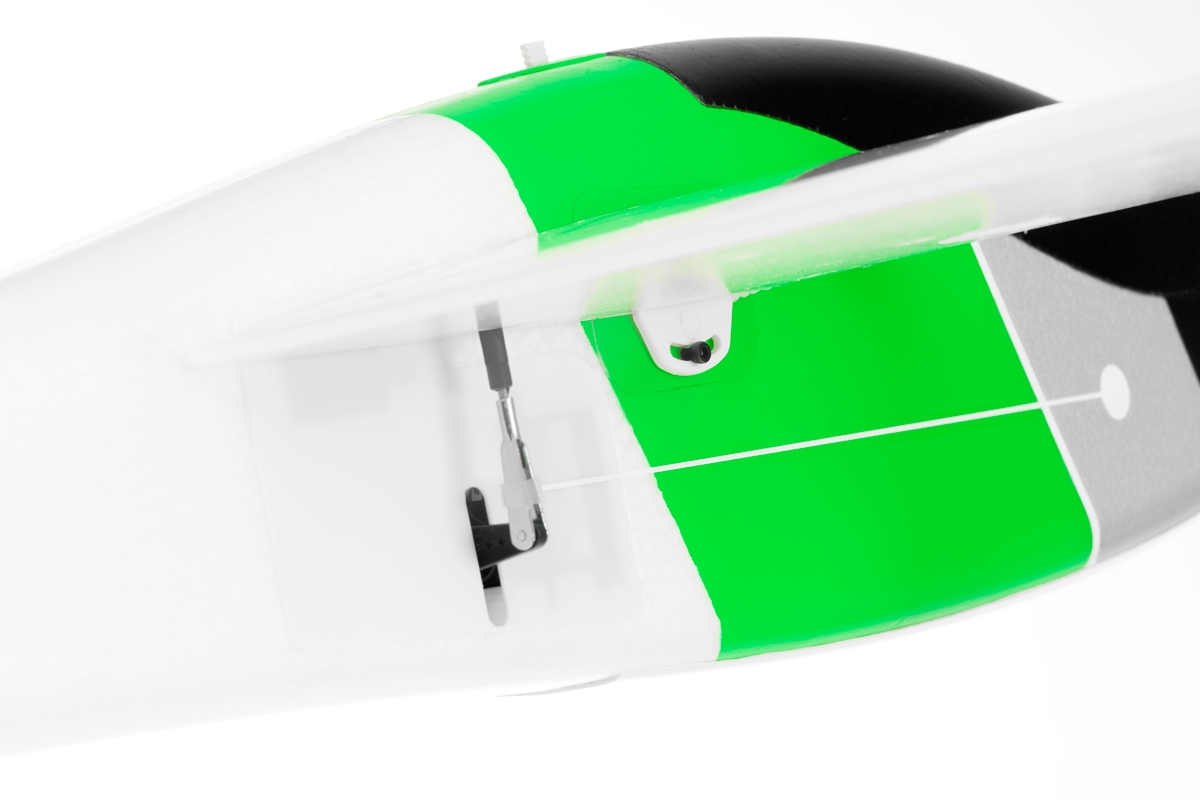

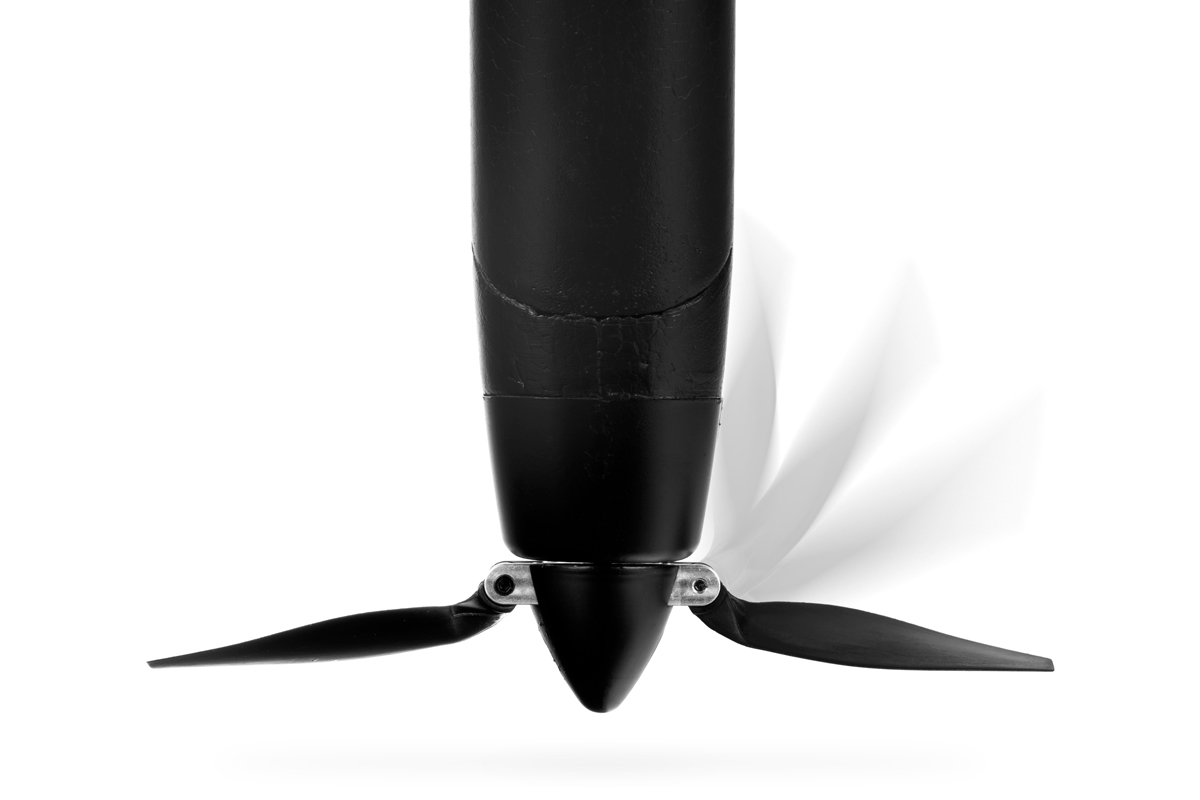

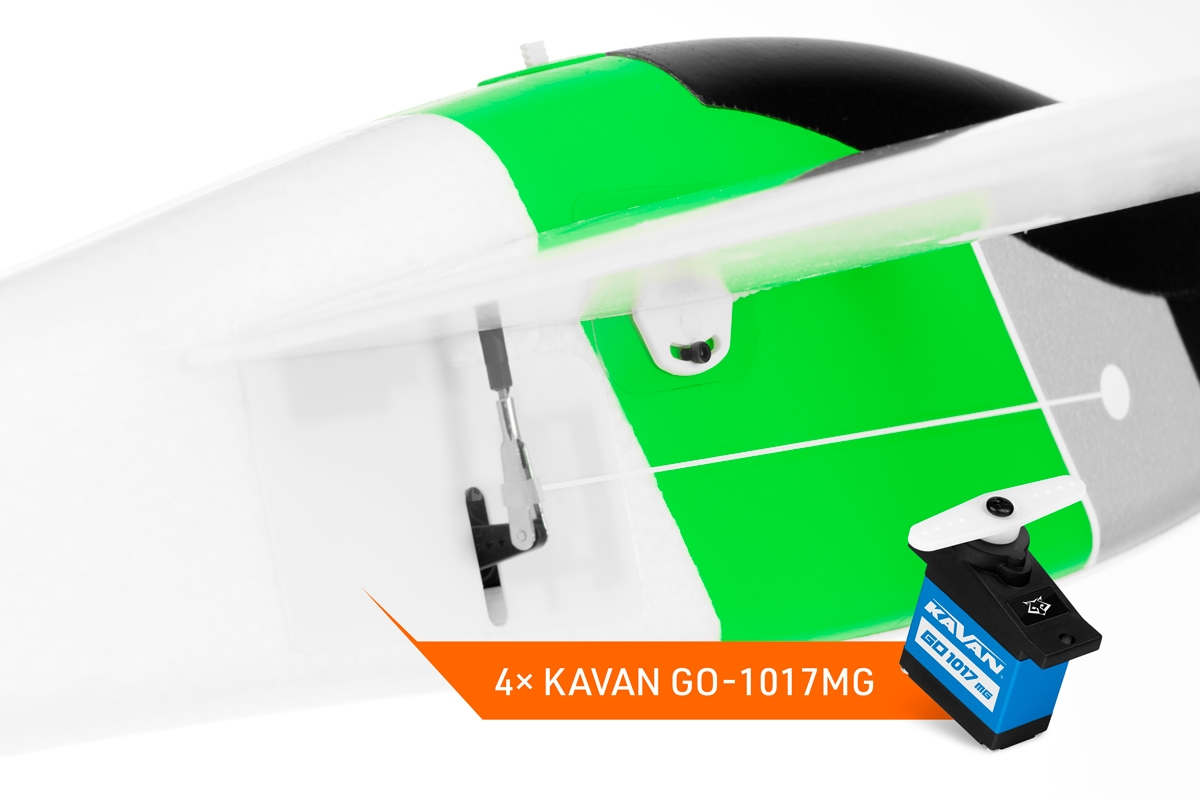

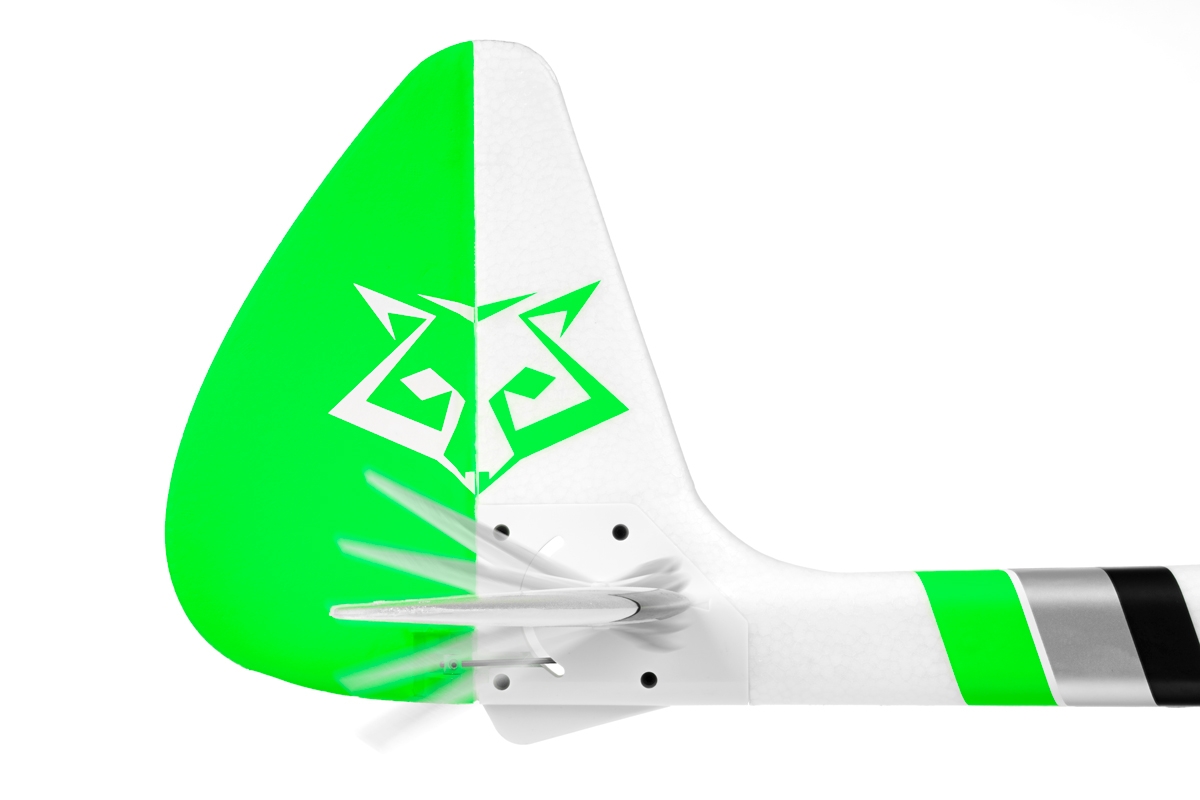

The EPO foam fuselage, thoroughly carbon-reinforced, comes with the KAVAN C2820-1450 brushless motor, 7x6” folding propeller and KAVAR R-20B Plus ESC. The detachable canopy is secured with a mechanic lock. The cockpit compartment offers a lot of space for your receiver and flight pack. The wing control servos as well as the elevator and rudder servos (all with metal gears) are installed in the fuselage under the wing. The elevator and rudder are controlled by wire push rods, and the wing halves are via short adjustable push rods with ball links.

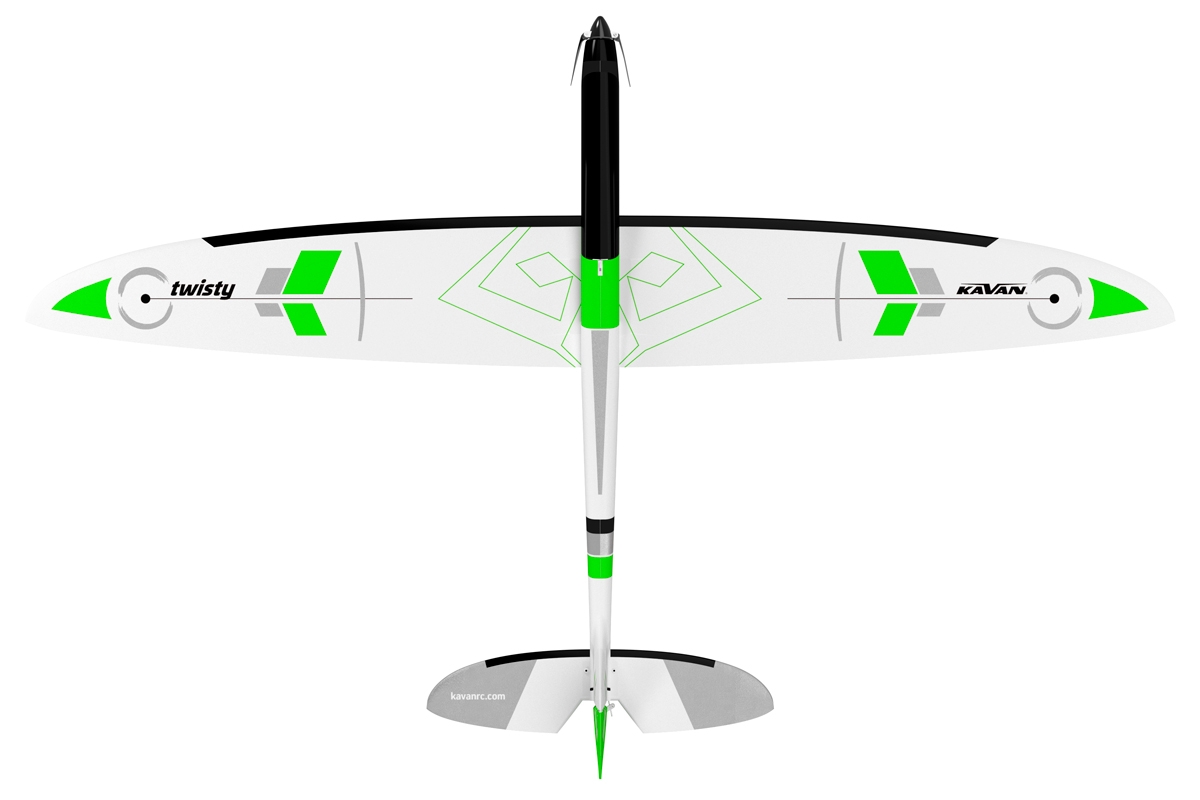

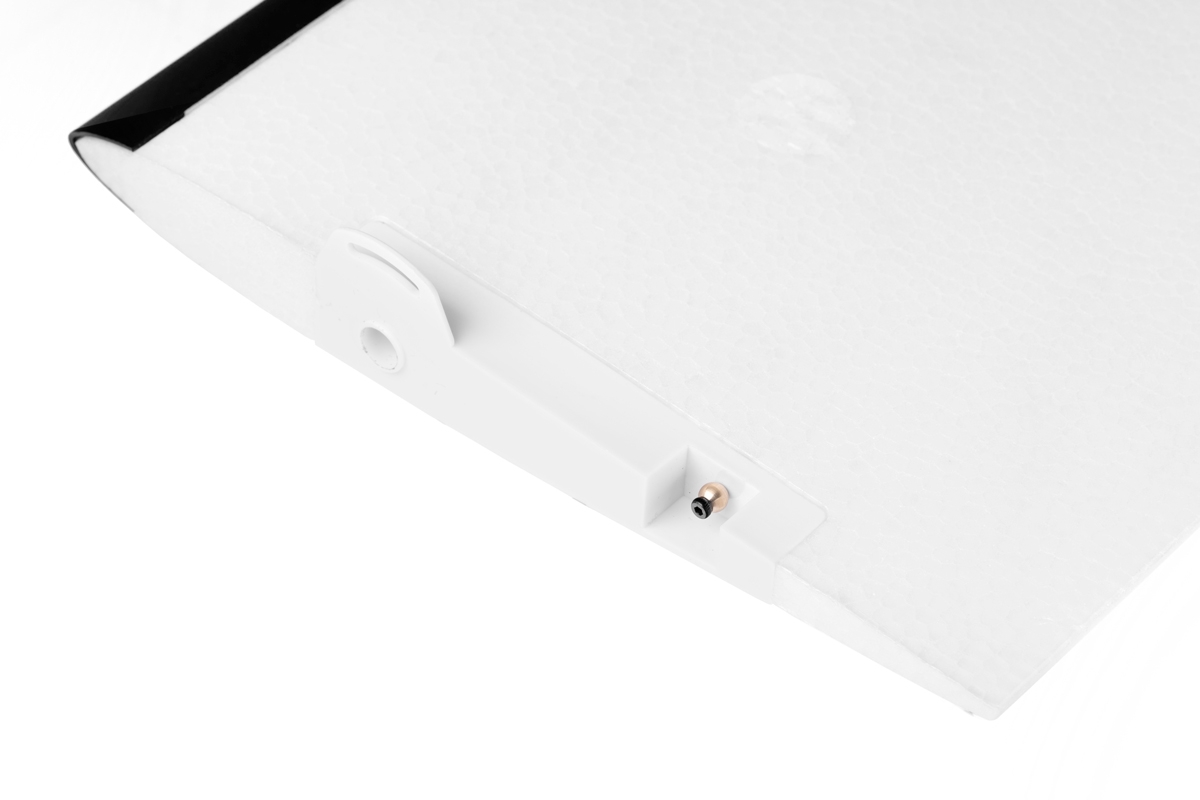

The two-piece EPO wing is reinforced by carbon spars. The wing halves are mounted on a carbon tube joiner and secured by screws. The wing halves are controlled by two servos installed fuselage driven with short push rods. You will find triangular marks on the fuselage making the correct alignment of the neutral position of the wing trailing edge really easy.

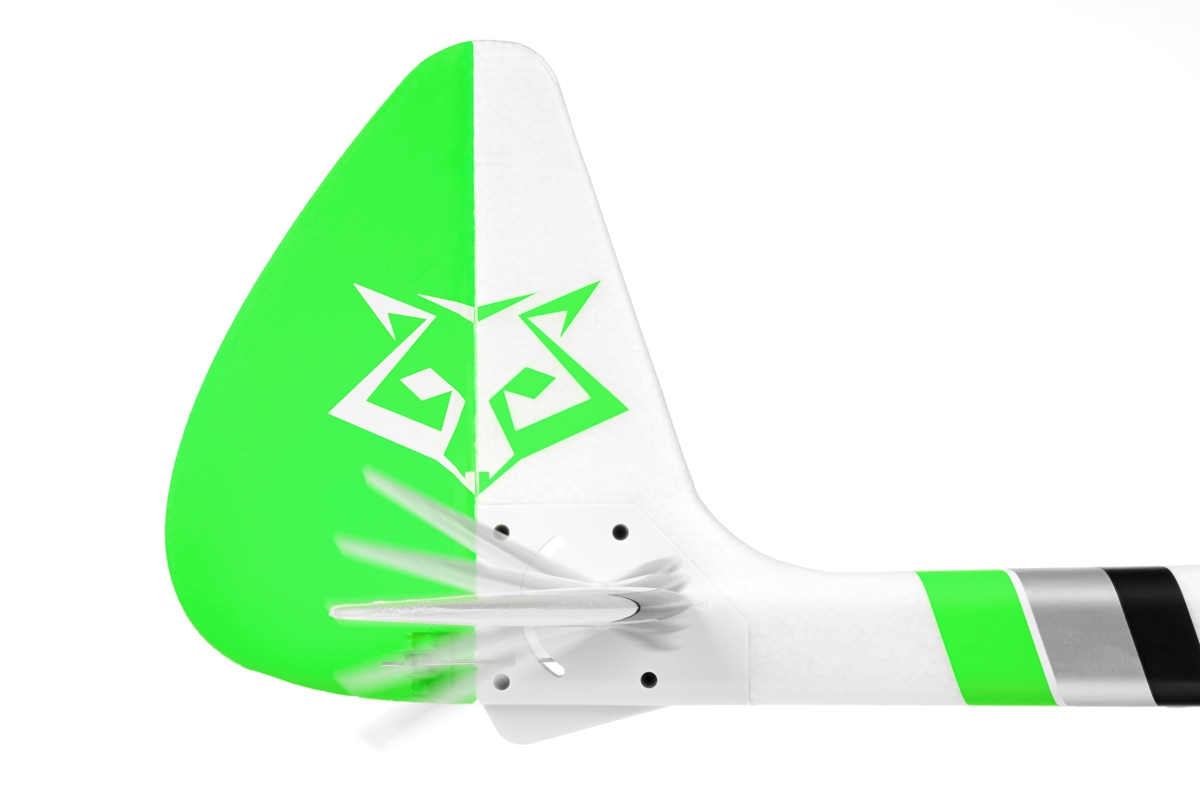

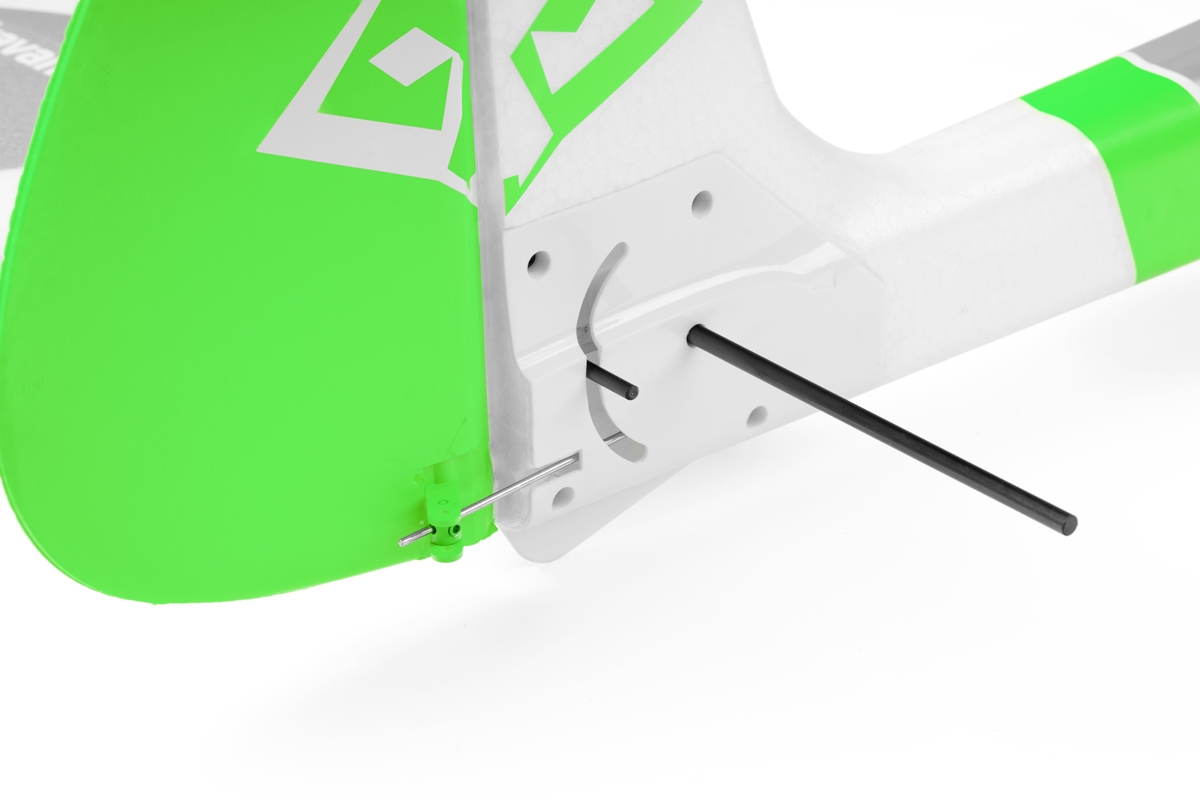

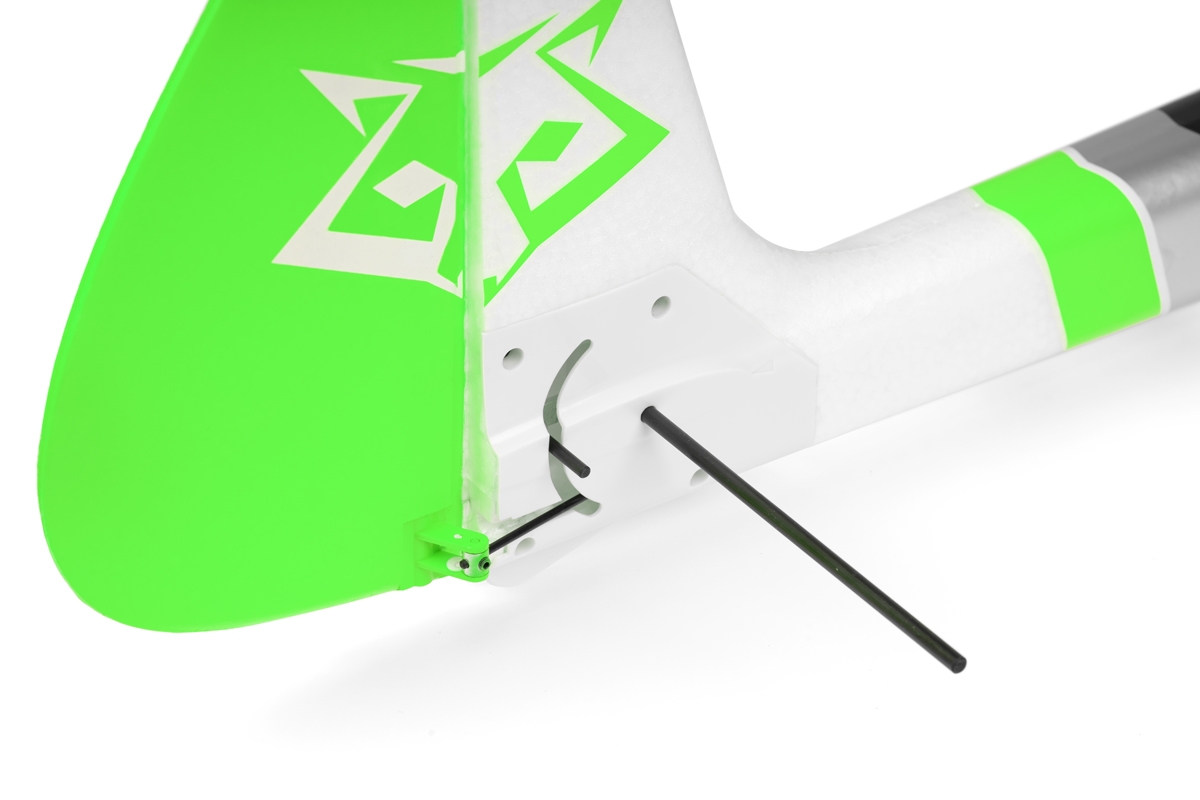

The carbon-reinforced EPO all-moving horizontal tailplane is detachable; secured with two bolts to the carbon tube joiner. You will find triangular marks on the fuselage making the correct alignment of the neutral position of the tailplane leading edge really easy.

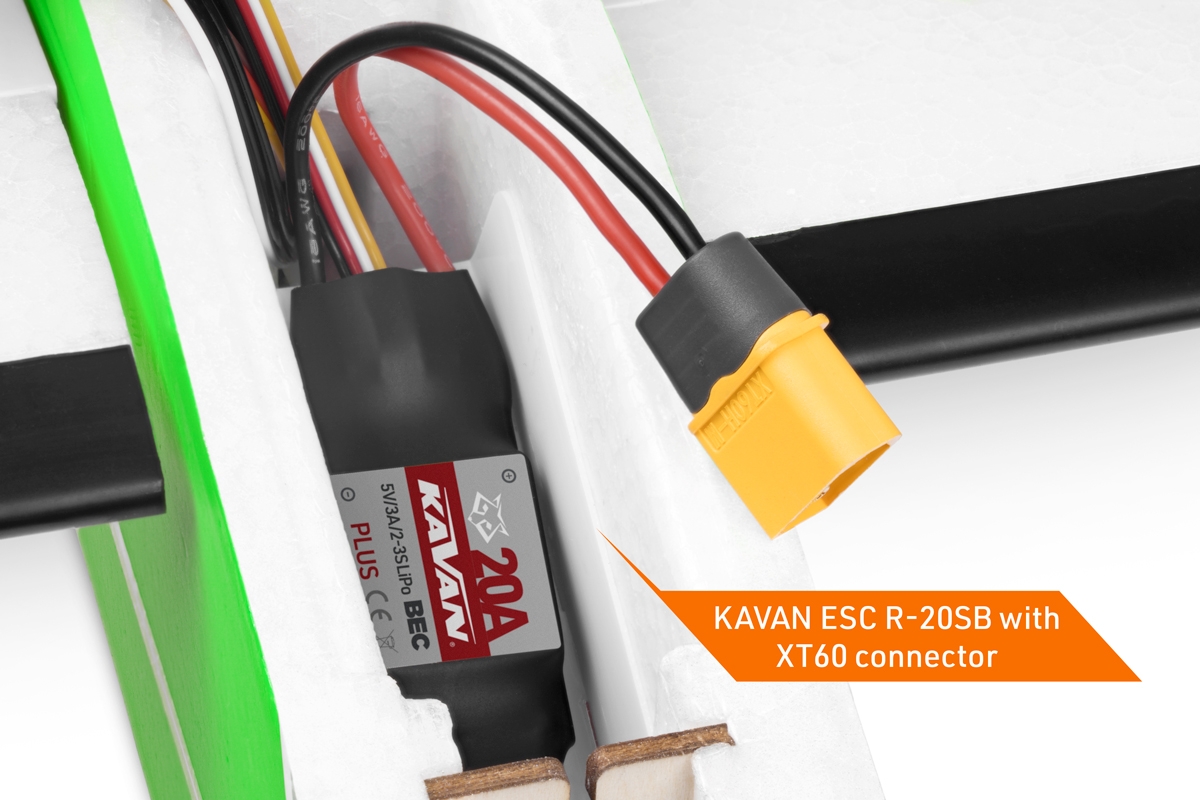

TWISTY is powered by the KAVAN C2820-1450 brushless motor with the KAVAN R-20SB Plus 20A ESC.

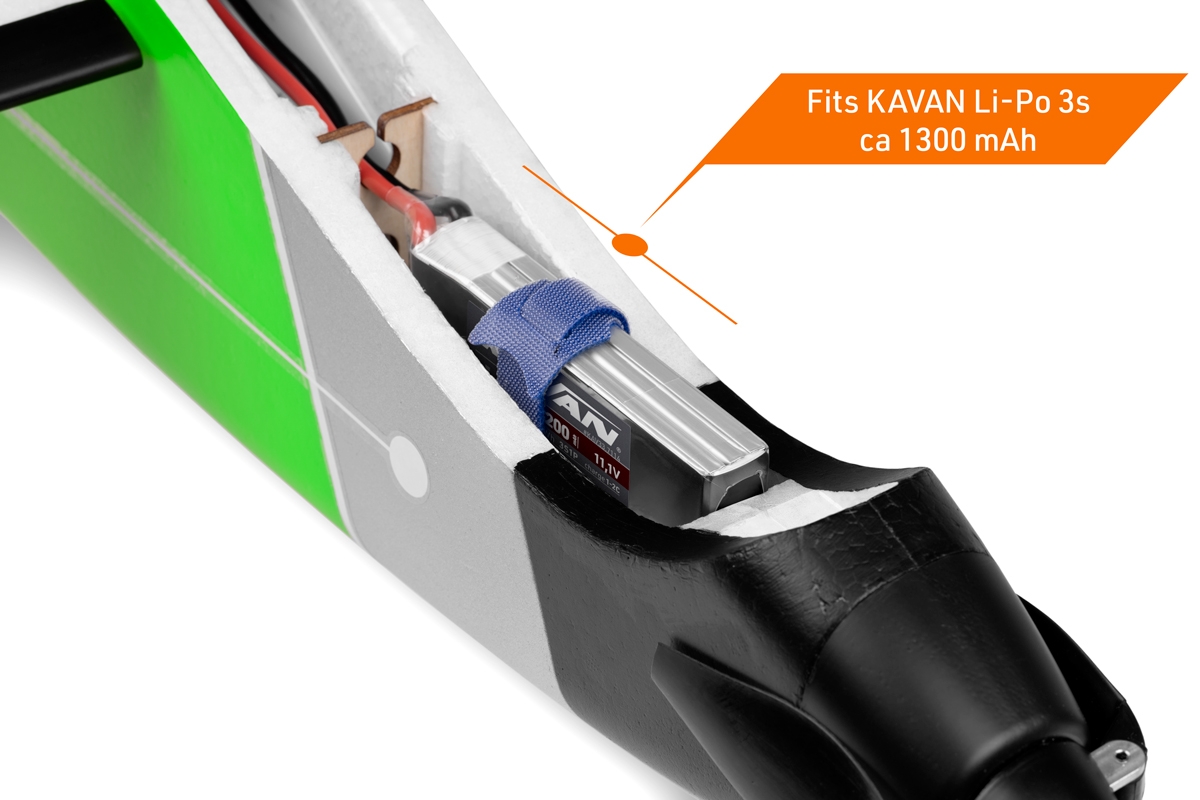

You will need 11.18 V 1300 mAh flight pack (at least 30C) to fly your TWISTY.

You will need at least 6-channel computer RC set to control your Twisty; independent aileron servo control and elevator -> flaperon (camber) mixer for more „square“ and tight turns and loops will help you to enjoy your TWISTY to the fullest. The instruction manual contains thoroughly tested set-up table in order to help you setting up the model easily.

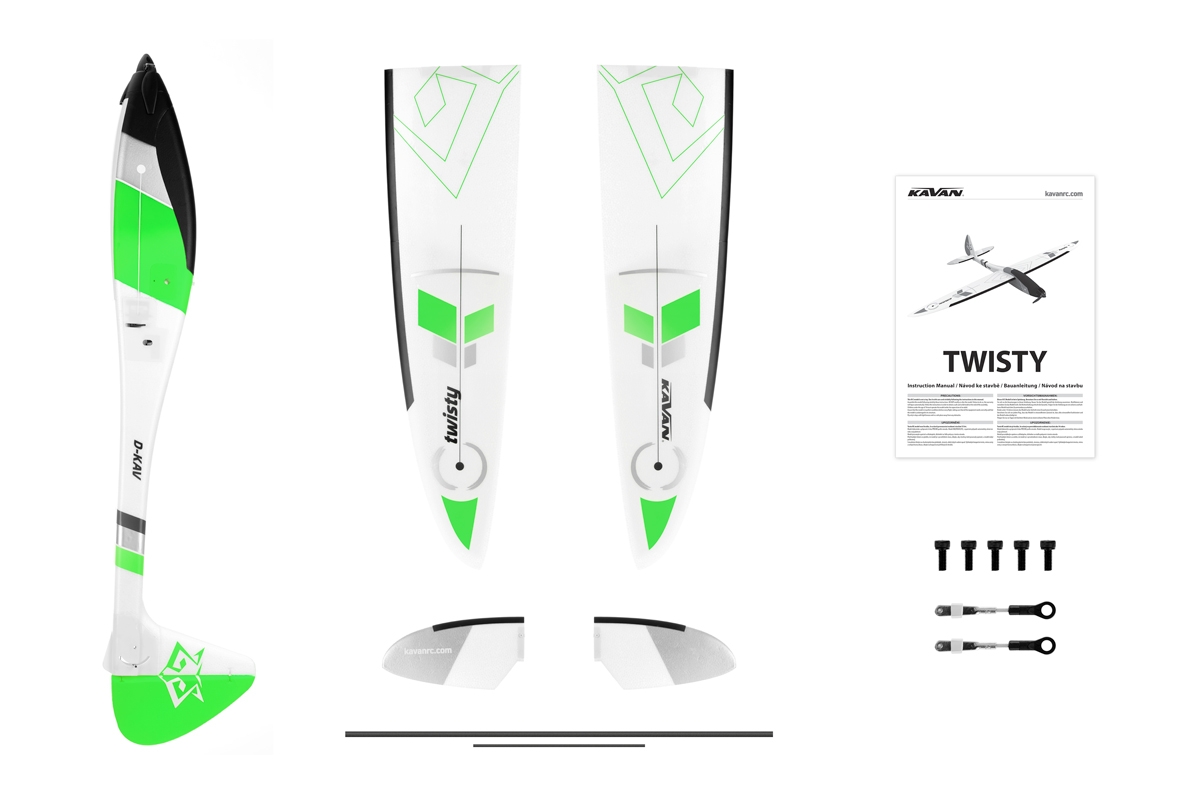

ARF set contents: EPO fuselage with the brushless motor, 20A ESC, 7x6" folding propeller and 4 servos installed, EPO wing, EPO horizontal tailplane, and instruction manual.

Online instruction manual: [https://wiki.kavanrc.com/KAVAN_Twisty_1512mm_-_Instruction_manual]
