Code:KAV16.21530
Barcode:8596450087903
Brand:KAVAN

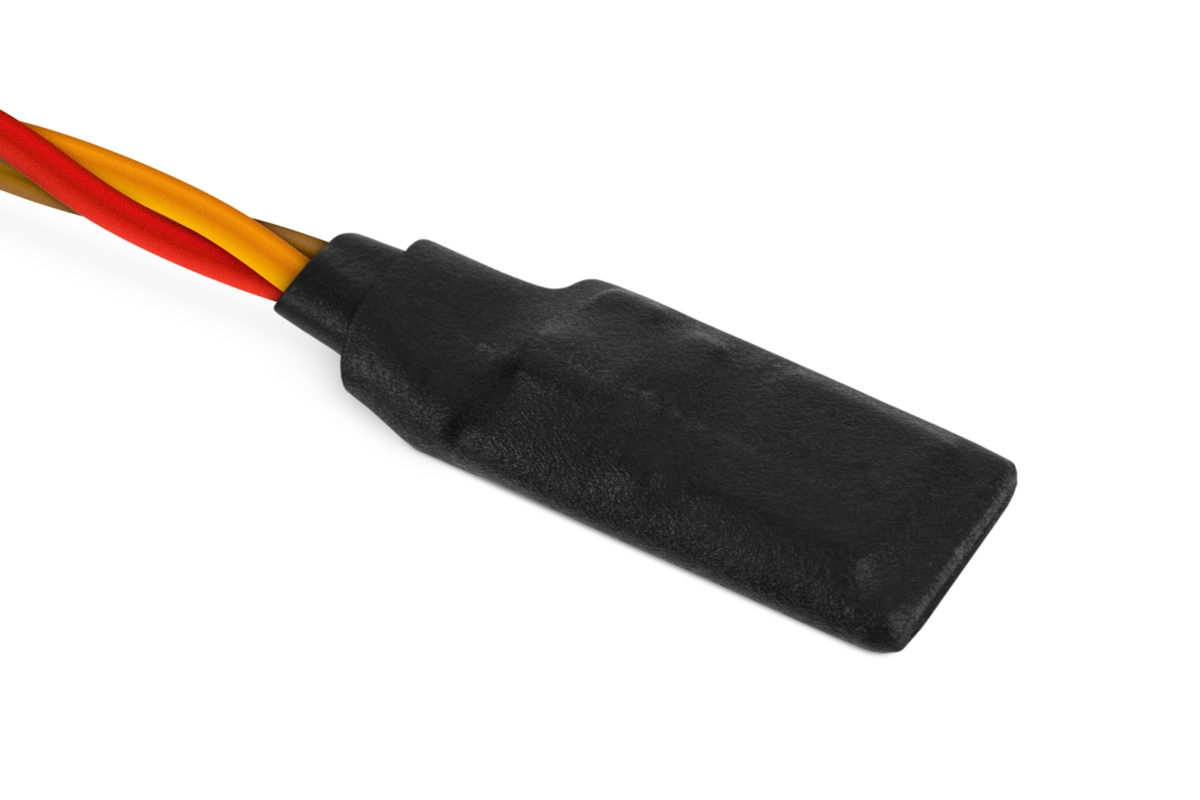

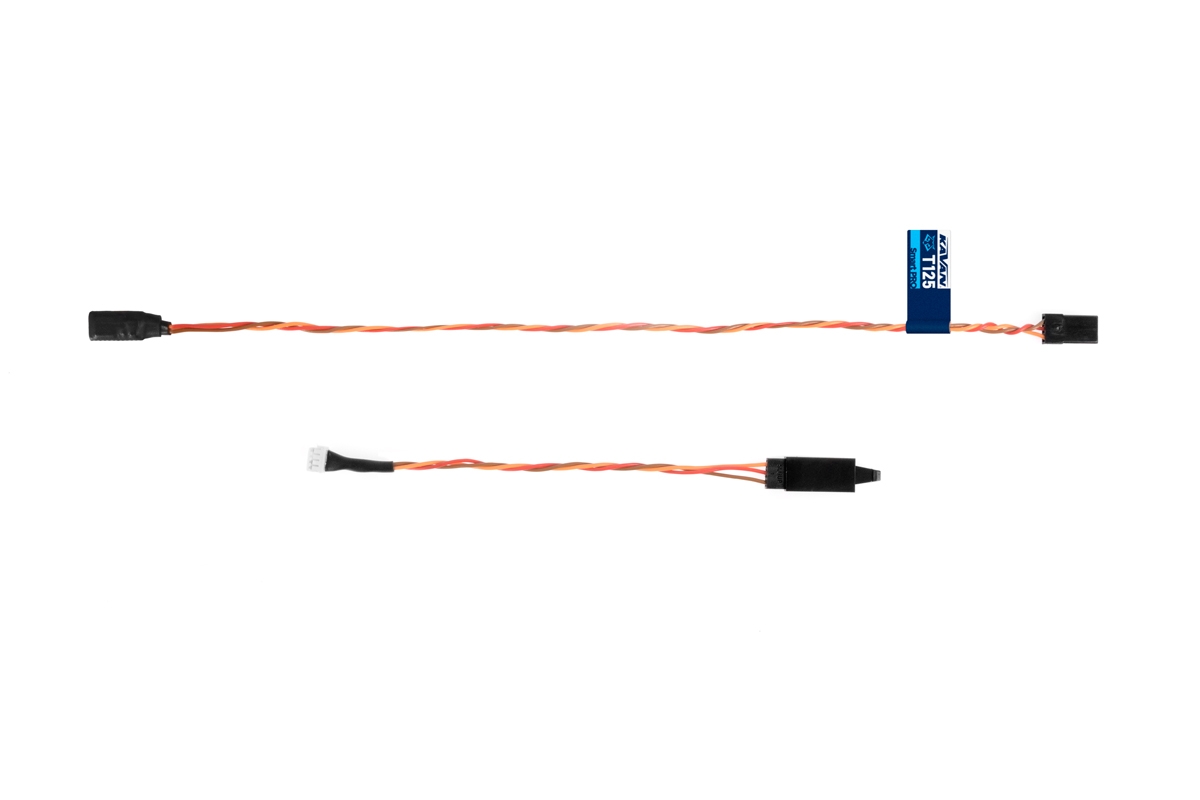

KAVAN Smart PRO Temp125SP Temperature sensor
A miniature telemetry temperature sensor for temperature measurement of electric motors; for the KAVAN Smart PRO line ESCs. Compatible telemetry systems: KAVAN/FrSky FPort, Futaba S.BUS2, JETI Duplex EX, Multiplex MSB, Graupner HoTT, Powerbox P2Bus. Setting up with transmitters, Jetibox or KAVAN PC USB interface. Dimensions 21.5×10×4 mm, weight 1 g.
Not on stock
Description
The Temp125SP is a miniature temperature sensor that supports multiple telemetry protocols. It can read the motor temperature from -10 to 125 °C. The Temp125SP can communicate with the KAVAN Smart PRO controllers as it offers direct temperature readings of the motor temperature to the controller. It also contains some memory space for predefined motor parameters. In case you don’t want to play with the KAVAN Smart PRO ESC settings, use the Temp125SP sensor to store the motor parameters. As a result, the controller will read the motor settings and adjust its own settings accordingly.
- Small dimensions. The sensor is connected directly to the KAVAN Smart PRO ESC port.
- Temperature min/max values are logged.
- Automatic telemetry detection: FrSky/KAVAN FPort, JETI Duplex EX, Graupner Hott, Multiplex MSB, Futaba S.Bus2, PowerBox P²Bus.
- Configurable alarms on high temperatures.
- Configuration through the transmitter or MAV Manager PC software.
- Firmware updates.
- Communication with the KAVAN Smart PRO controllers.
The set contents: Temp125SP temperature sensor, instruction manual.
KAVAN Smart PRO Temp125SP Temperature sensor is manufactured in Czechia by the company MAV Sense s.r.o.
Online instruction manual: wiki.kavanrc.com
| Power supply [V] | 3.5 - 12 |
| Length [mm] | 21 |
| Width [mm] | 10 |
| Height [mm] | 4 |
| Weight [g] | 1 |
