Code:KAV16.21529
Barcode:8596450087897
Brand:KAVAN

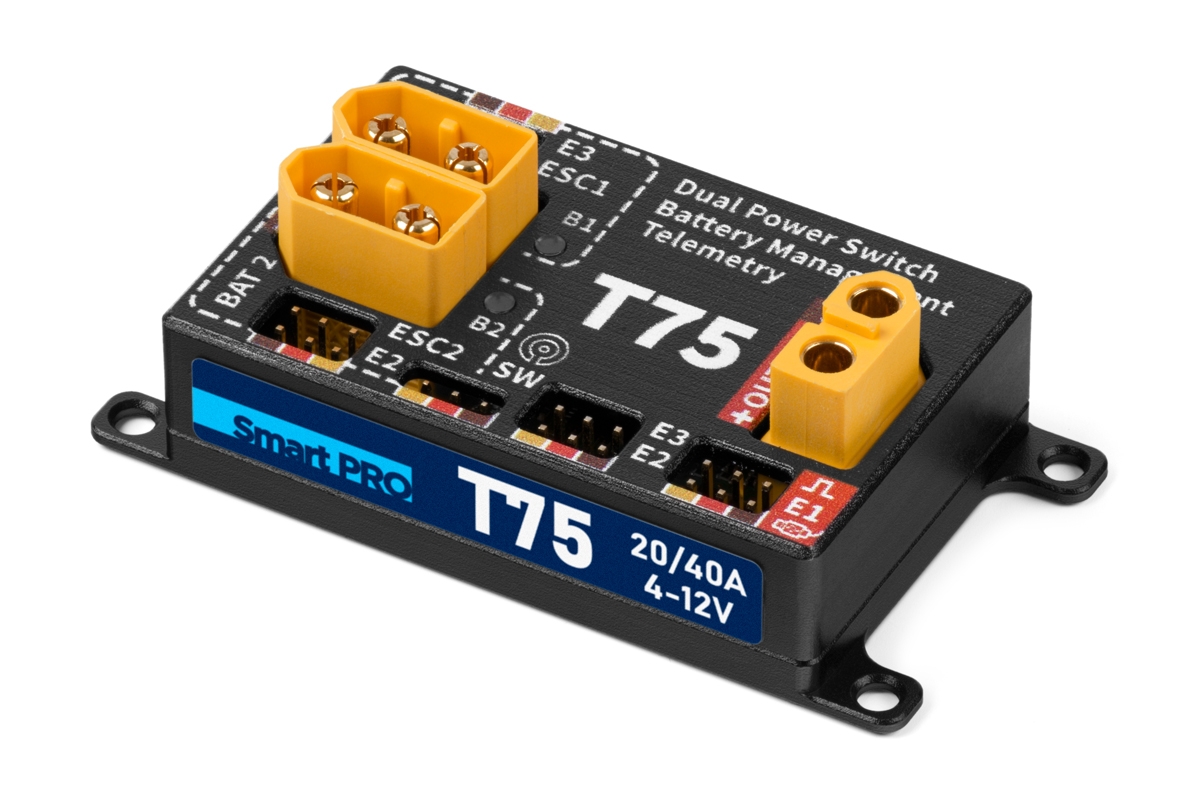

KAVAN Smart PRO T75 Dual battery switch w/ telemetry expander

Dual battery (or BEC/battery) electronic switch/back-up system (5–8.4 V, up to 20 A continuous) for RC models supporting multiple telemetry protocols like KAVAN/FrSky Fport, Duplex EX, Futaba S.BUS2, Multiplex MSB, Graupner Hott, PowerBox P2Bus (current, voltage, capacity for both inputs). Touch sensor arming switch, input/output XT60 connectors, dimensions 56×36×16 mm, weight 55 g.
On Stock
€139.60
Description

The T75 is a high-performance digital dual battery backer (5–8.4 V, up to 20 A continuous) with advanced telemetry features. It contains a charging circuit and touch switch functionality. The device is ideal for mid-size models where high-voltage servos are used without voltage stabilization.

The T75 is suitable for models equipped either with dual receiver batteries or with an ESC battery eliminator circuit (BEC) used as a primary power source, combined with a small backup battery. The device prefers its primary battery input, while in case of voltage drop it automatically switches to the secondary input. The charging circuit may be optionally enabled to charge the secondary battery from the primary input/BEC.

The T75 is designed to turn on/off the electronics in your model, it can replace a mechanical switch as well. The device remembers its last operating state, and if the battery is accidentally disconnected, the T75 will automatically boot up again as soon as the battery is connected again.


Features

  • Intelligent dual battery backer/multiplexer with configurable voltage switchover threshold.
  • Fully aluminium enclosure for maximum durability.
  • Integrated XT60 connectors.
  • Touch switch function. Optionally, the possibility of connecting a magnetic, mechanical or electronic switch or button.
  • KAVAN/FrSky FPort, JETI Duplex EX, Futaba S.Bus2, Multiplex MSB, Graupner Hott, PowerBox P²Bus telemetry support (current, voltage, capacity of both battery inputs).
  • Optional charging of the secondary battery.
  • Remembers the last operating state.
  • Two expansion ports that allow connecting additional Duplex EX/EX Bus sensors. Alternatively, the ports offer digital inputs/outputs functionality.
  • Configuration through the transmitter or MAV Manager PC software.
  • Firmware updates.

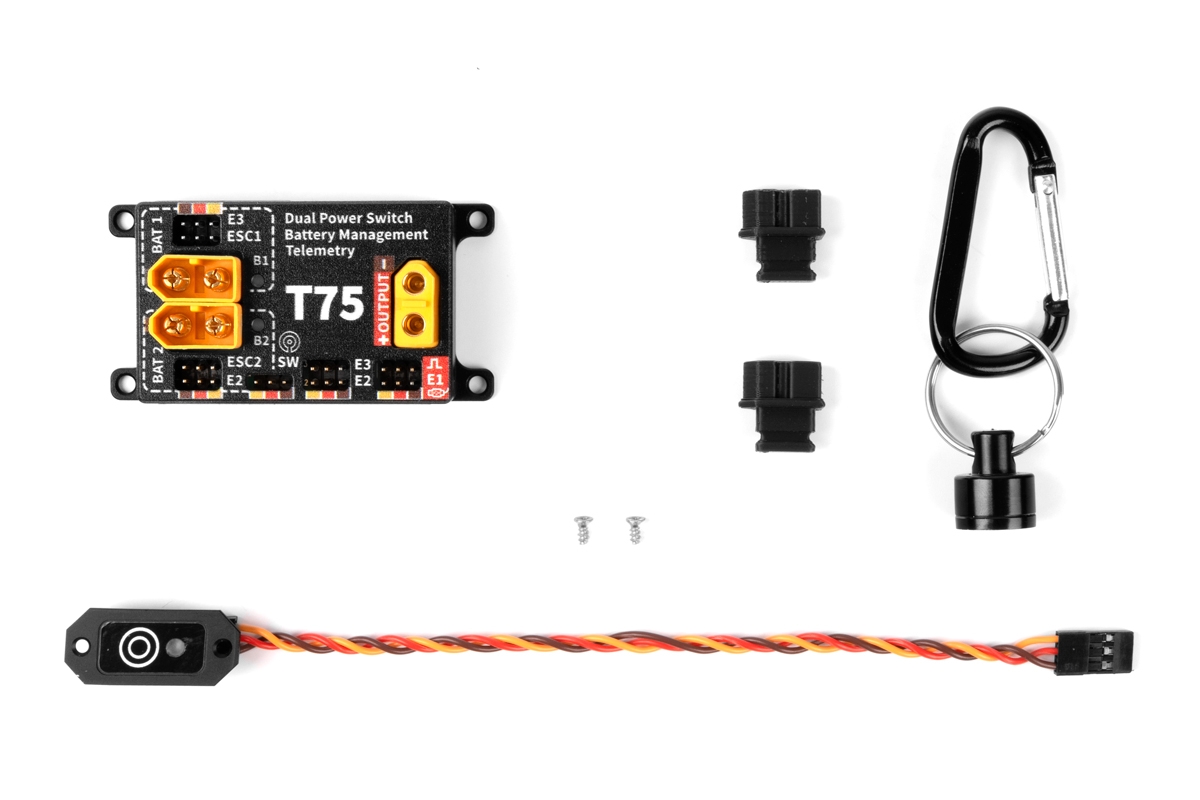

The set contains: T75, manual.

Online instruction manual: wiki.kavanrc.com

Power supply [V]5 - 8.4
Constant current [A]20
Max. current (2 s) [A]40
Current draw [mA]40
Length [mm]56
Width [mm]36
Height [mm]16
Weight [g]55
