Code:KAV16.21532
Barcode:8596450087927
Brand:KAVAN

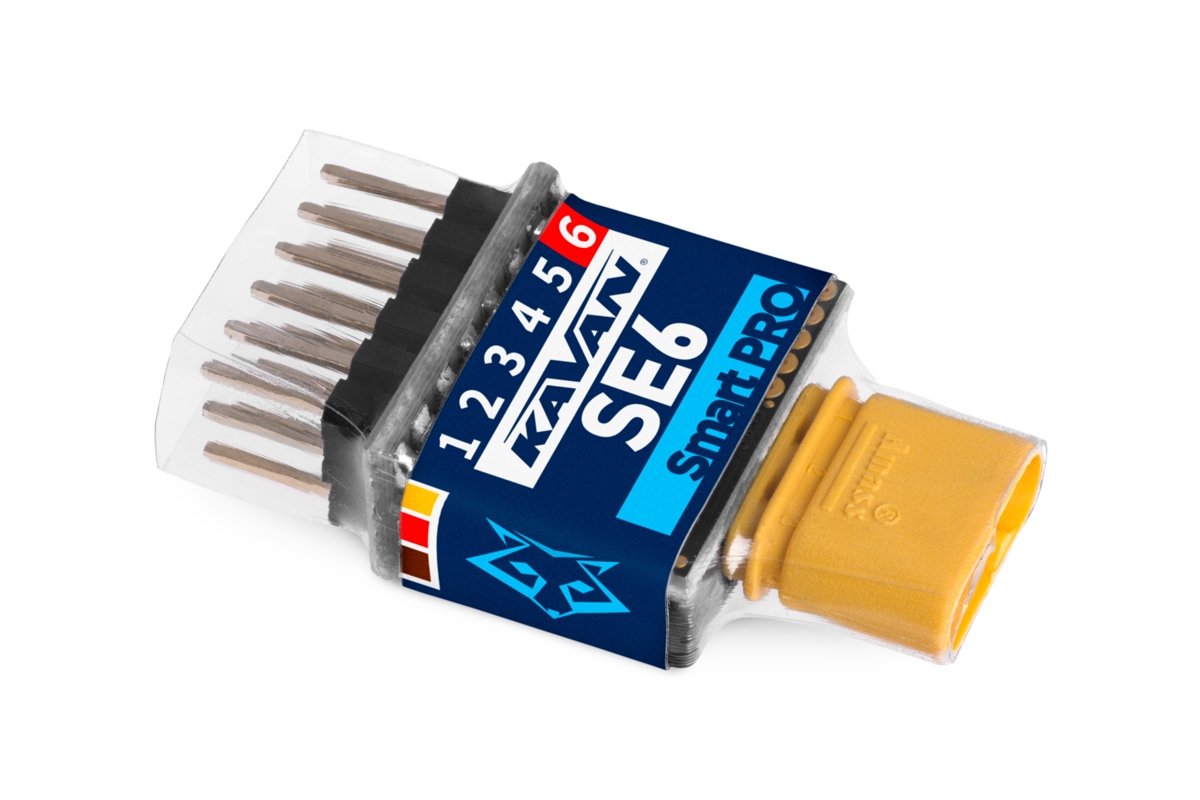

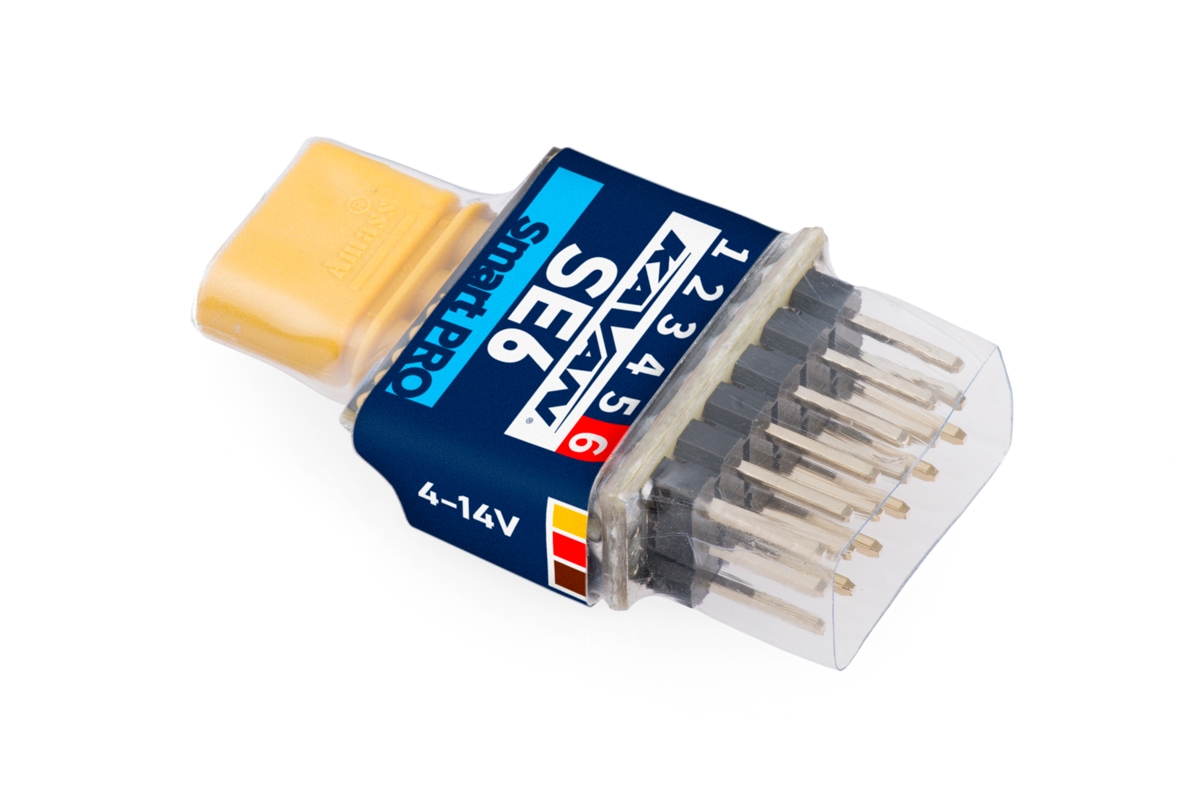

KAVAN Smart PRO SE6M 6ch BUS servo decoder
Miniature 6-channel servo expander/serial bus decoder converting the serial bus signal to individual PWM servo outputs. Compatible serial protocols: KAVAN/FrSky FPort, Futaba S.BUS/S.BUS2, Graupner SUMD, HoTT telemetry, JETI EX Bus, Multiplex SRXL 12/16CH, PowerBox P2Bus; assignable outputs. Input voltage 5–8.4 V, current drain up to 15 A. Dimensions 34×19×8 mm, weight 4.5 g, input connector MR30. Adjustable with transmitters, Jetibox or KAVAN/MAV Sense PC USB interface.
On Stock
Description
The Servo Expander SE6M is a device that converts serial bus signals to standard PWM servo outputs. It offers up to six configurable servo outputs with optional period and fail-safe settings. The SE6M is a perfect choice for models with complex wing or tail mechanics where multiple servos may be connected to a primary receiver using just a single cable.
Supported protocols:
- KAVAN/FrSky FPort
- Futaba: S.Bus/S.Bus2
- Graupner: SUMD, Hott telemetry for setting
- JETI: EX Bus
- Multiplex: SRXL 12ch, SRXL 16ch
- PowerBox: P²Bus
Features
- Small dimensions and high current throughput via the integrated MR30 power connector.
- 6-channel servo/EX Bus sensor expander.
- Automatic detection of serial data/telemetry after startup.
- Configuration through the transmitter, external terminal (JETIBOX/SMART-BOX) or MAV Manager PC software.
- Firmware updates via USB interface.
The set contents: SE6M Servo decoder/expander, instruction manual.
Online instruction manual: wiki.kavanrc.com
| Power supply [V] | 4.8 - 8.4 |
| Current load capacity [mA] | 15 |
| Length [mm] | 34 |
| Width [mm] | 19 |
| Height [mm] | 8 |
| Weight [g] | 4.5 |
