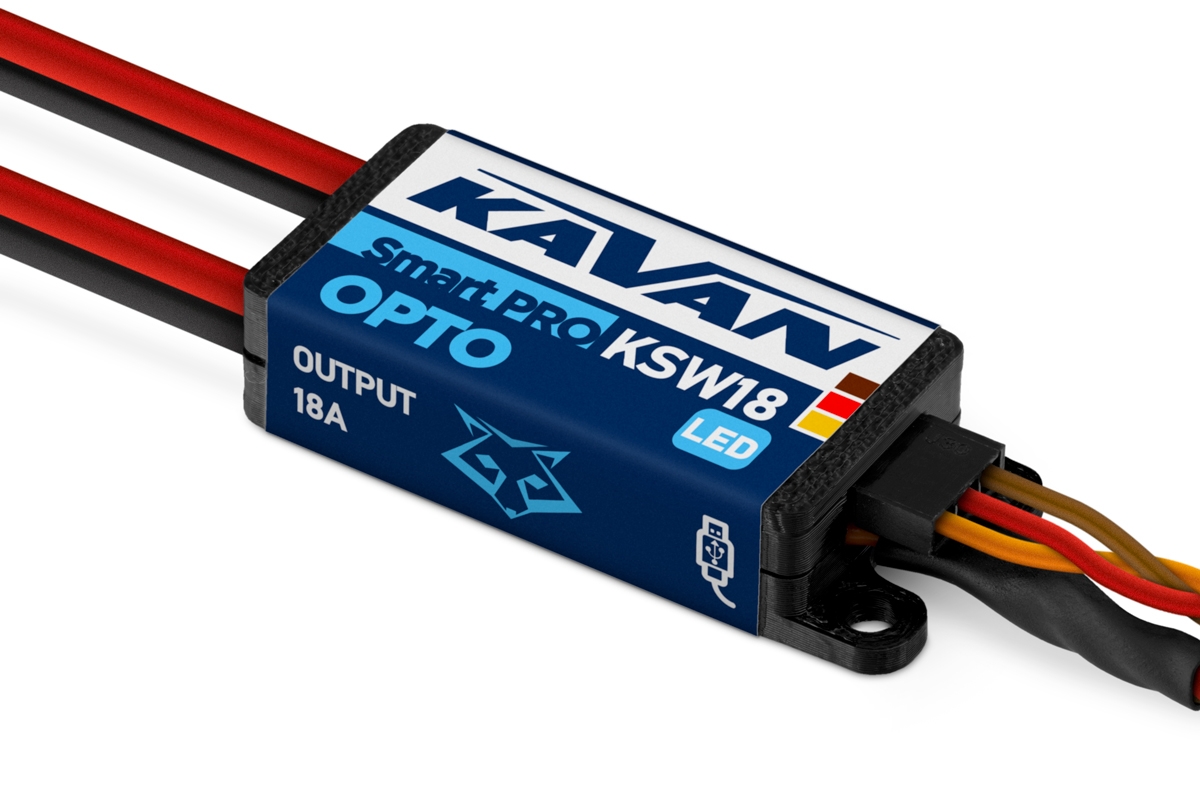

KAVAN Smart PRO KSW18 Kill switch

High-performance digital switch featuring an optically isolated switching circuit. Thanks to its excellent noise immunity and signal separation, it is ideal for use as an independent ignition switch. It can be controlled via an RC channel, a mechanical switch, or both. The device offers a range of configurable options for flexibility in various setups.

Features:

• Optically isolated switching circuit with independent power supply
• Supports a variety of loads: motors, relays, lights, heaters
• Compatible with additional magnetic, mechanical, or electronic switches or buttons (optional touch switch support)
• Dual switch inputs for enhanced safety
• Supports Duplex EX and FrSky telemetry for configuration
• Configurable via transmitter or MAV Manager PC software
• Firmware update capability

Technical specifications:

• Dimensions: 50×19×10 mm
• Weight (incl. cables): 19 g

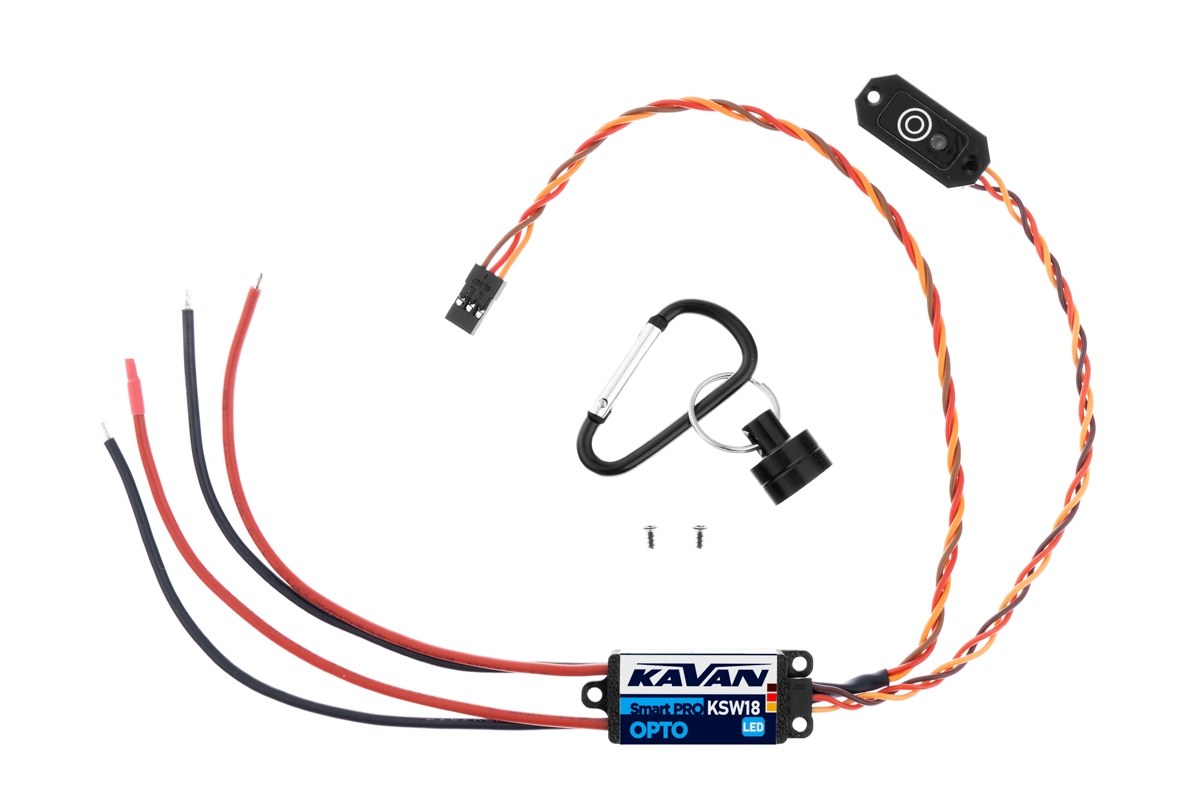

• Weight (incl. cables and Magnetic/Touch switch): 24 g
• Cables: 3×1 mm² (17AWG)
• Connectors: –
• Continuous current: 18 A
• Peak current (2s): 30 A
• Operating current: < 10 mA
• Operating temperature: (-20)-85 °C
• Supply Voltage (Rx input): 4–16 V
• Supply Voltage (Isolated switching circuit): 5-26
• Telemetry: FrSky (configuration only), Duplex
• Touch switch support: Yes
• BEC: No
• Selectable touch/mechanical switch/button: Yes
• Status LED: Yes

KAVAN Smart PRO KSW18 Kill switch is made in Czechia by MAV Sense s.r.o.

Online instruction manual: wiki.kavanrc.com
