Code:KAV16.21524
Barcode:8596450087842
Brand:KAVAN

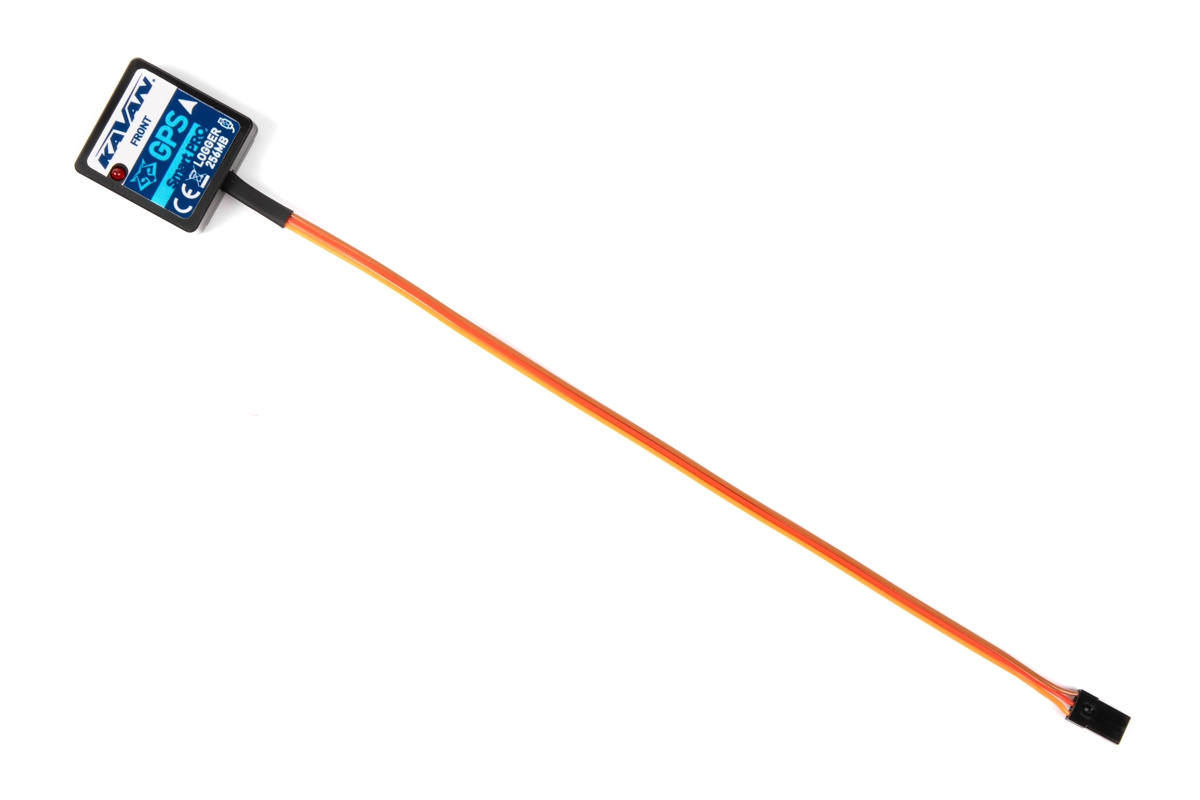

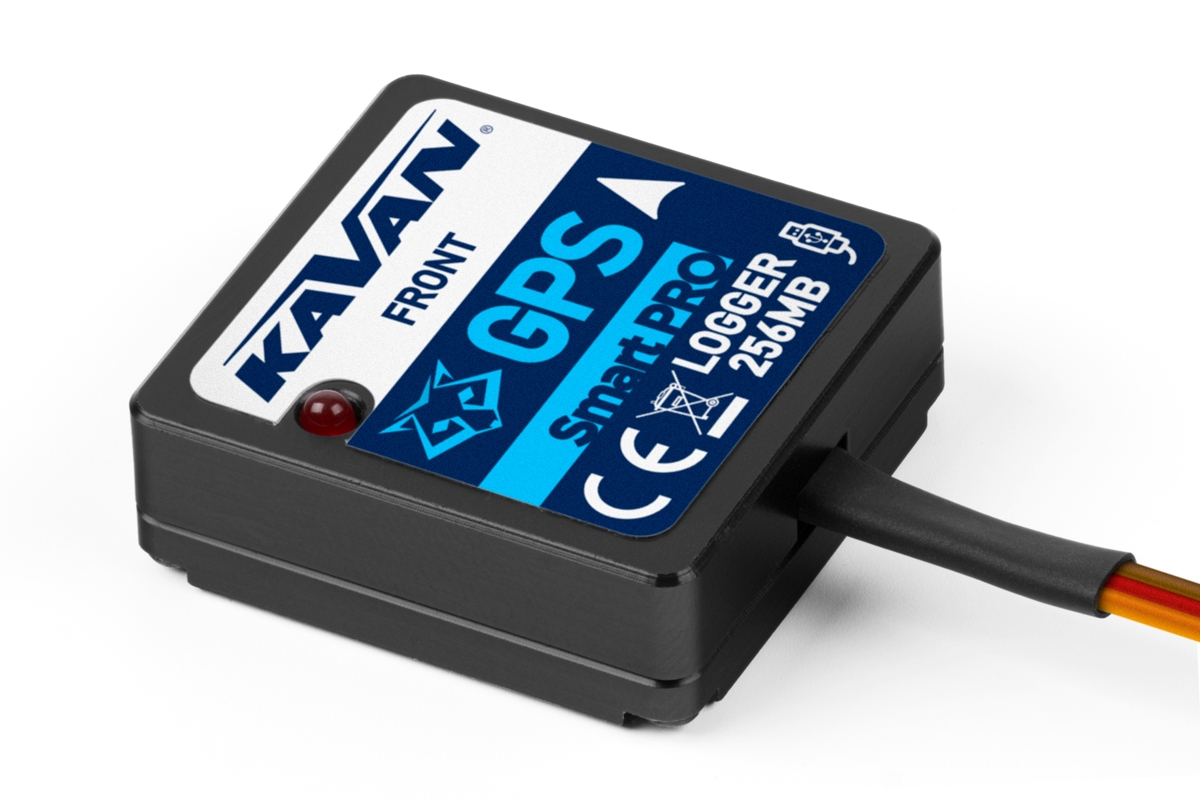

KAVAN Smart PRO GPS2 Logger
GPS telemetry sensor/logger for accurate real-time position detection; works with GPS, GALILEO, GLONASS satellite systems. Compatible with FrSky/KAVAN V20 FPort, JETI Duplex EX, Graupner Hott, Multiplex MSB, Futaba S.BUS2, PowerBox P2Bus telemetry systems. Dimensions 30×31×11 mm, weight 18 g, input voltage 3.5–8.4 V.
On Stock
€107.60
The GPS2 Logger is a telemetry device that offers fast and accurate real-time position detection and feedback. It uses multiple satellite navigation systems to achieve maximum precision and resolution. Logging of all the data is possible due to its large integrated Flash memory. The logged data can be downloaded and analyzed on a computer using the free MAV Manager software.
Features
- Small dimensions, high measurement accuracy.
- Large industrial memory for data logging.
- Latest generation GPS chipset supporting multiple satellite systems: GPS, GALILEO, GLONASS.
- 3-axis magnetometer/compass for external navigation purposes.
- Backup supercapacitor for fast position fix after powering off.
- Voltage measurement and logging.
- Automatic telemetry detection: FrSky/KAVAN FPort, JETI Duplex EX, Graupner Hott, Multiplex MSB, Futaba S.BUS2, PowerBox P²Bus.
- Automatic timezone detection.
- Configuration through the transmitter and the MAV Manager software.
- Firmware updates.
The set contains: GPS2 logger, manual.
Online instruction manual: wiki.kavanrc.com
Power supply [V] | 3.5 - 8.4 |
Length [mm] | 30 |
Width [mm] | 31 |
Height [mm] | 11 |
Weight [g] | 18 |
