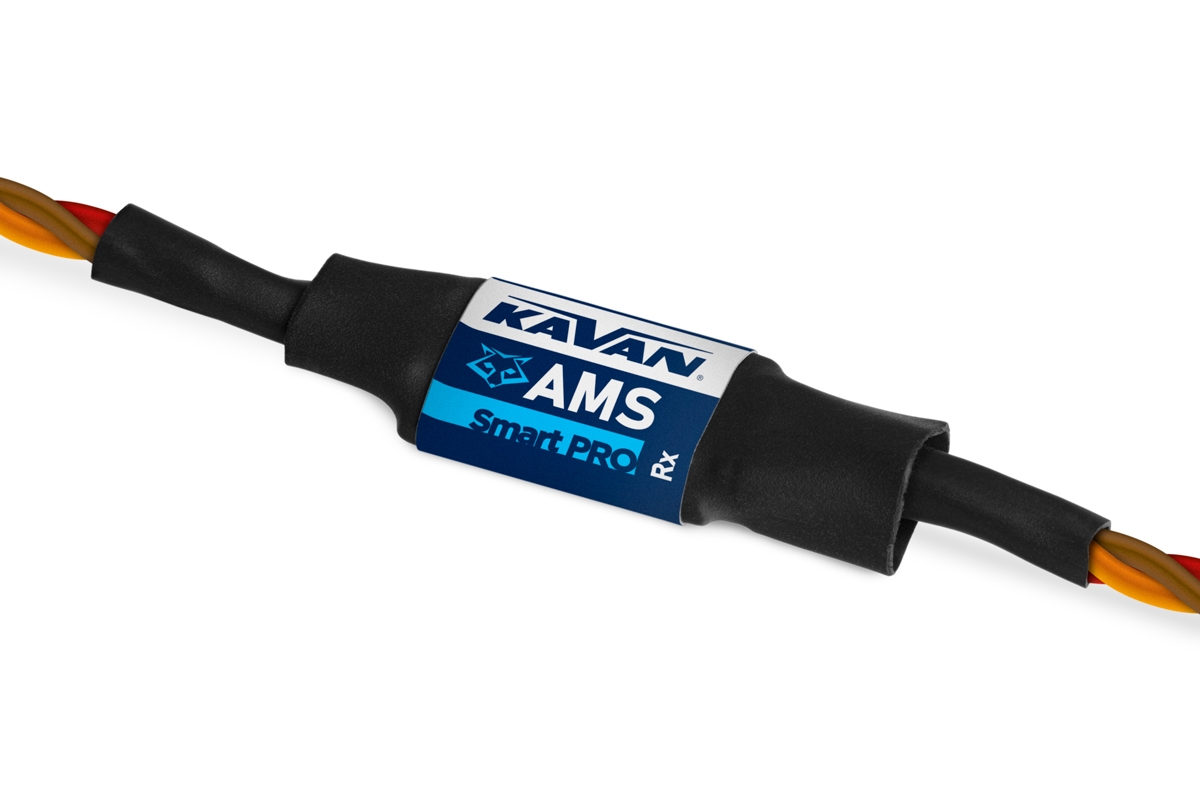

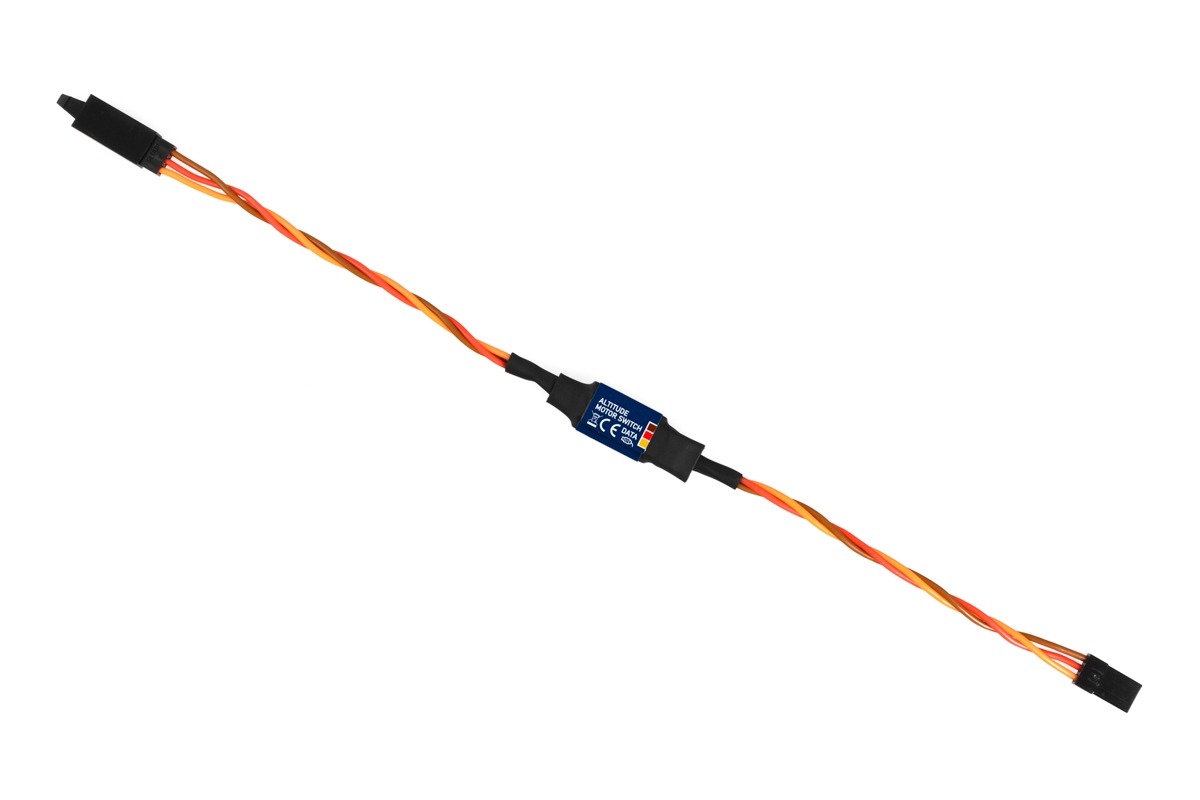

KAVAN Smart PRO AMS Alti motor switch

The Altitude Motor Switch (AMS) Alti is a versatile device suitable for several competition categories where the altitude or motor run time shall be limited. It can also be used as a standalone telemetric variometer. The sensor is usually connected between the receiver throttle channel and the appropriate signal input of the electronic speed controller.

The AMS Alti contains a sensitive barometric altimeter/variometer which uses the latest MEMS technology to achieve a high level of accuracy while preserving miniature dimensions. The sensor is able to detect tiny changes in atmospheric pressure to indicate the change in altitude with a resolution of 0.1 m. Using the integrated high-power cables you can directly power the receiver and servos through the AMS from a BEC circuit of the speed controller.

Features

• Small dimensions.
• Possibility to power the receiver and servos through the AMS.
• Accurate measurement of absolute/relative altitude and climb/sink rate.
• Automatic telemetry detection: FrSky/KAVAN FPort, JETI Duplex EX, Graupner Hott, Multiplex MSB, Futaba S.Bus2, PowerBox P²Bus.
• Configurable alarms on altitude and climb rate.
• Configurable shutdown altitude.
• Configuration through the transmitter.
• Firmware updates.
• Supported competition categories: FAI F5J (training mode with telemetry/contest mode without telemetry), ALES (altitude limited electric soaring), LMR (limited motor runtime) and all possible derivatives.

The set contains: AMS Alti motor switch, manual.

KAVAN Smart PRO AMS Alti motor switch is manufactured in Czechia by the company MAV Sense s.r.o.

Online instruction manual: wiki.kavanrc.com
