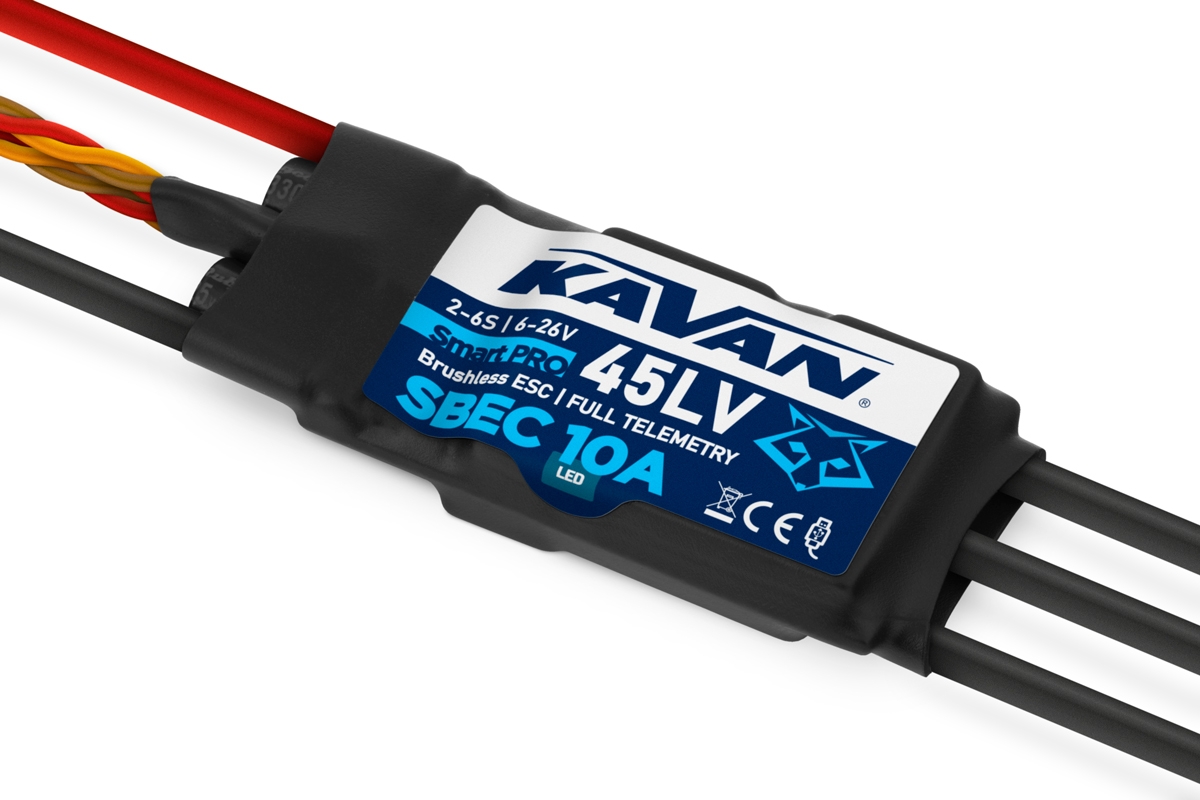

KAVAN Smart PRO-45LV SBEC

High-power BLDC controller offers continuous current up to 40 A at a voltage of up to 26 V (6S LiPo). It offers a high-quality stabilized voltage output (BEC) with a continuous current of up to 10 A. It is suitable for smaller RC models - typically electric gliders. With a load capacity of up to 60 A for 30 s, it is perfectly suitable for F5J competition models.

The Smart PRO product line represents advanced speed controllers for use exclusively in RC aeroplane models. With integrated telemetry and various possibilities of optional user configuration, the controllers offer high efficiency, low weight and precise motor control.

Features:

• Small dimensions combined with high-power motor control.
• A powerful switching BEC that offers a continuous current of 10 A (20 A max). BEC circuit protection against overcurrent and overheating is included.
• BEC voltage setting in steps of 0.1 V.
• Over- and undervoltage protection, overtemperature protection, motor-stall protection.
• Configurable current limiter.
• Safety shutdown when the throttle impulse is lost.
• Configurable acceleration, timing, electromagnetic brake etc.
• Configuration directly in KAVAN transmitter with ETHOS operating system using Lua scripts
• Low acoustic noise due to high-frequency switching.
• Automatic telemetry detection: FrSky/KAVAN FPort, JETI Duplex EX, Graupner Hott, Multiplex MSB, Futaba S.Bus2, PowerBox P²Bus. Alternative firmware with Spektrum SRXL2 telemetry support.
• Telemetry (RC system dependent): voltage, current, power, capacity, temperature, RPM, energy.
• Telemetry min/max values are logged.
• Configuration through the transmitter or external terminal (JETIBOX/SMART-BOX).
• Firmware updates via USB interface using the MAV Manager software.
• Languages: CZ/DE/EN/FR/IT.

• Option to activate the synchronous rectification (Active Freewheeling) for more accurate motor response and less heating of the controller during aerobatics.
• Flawless operation with high-power multi-pole motors and the vast majority of all other motor types.
• Optional connection of backup battery without additional adapters.
• Does not offer the propeller positioning function, external on-off switch or motor temperature sensor.

The set contents: KAVAN Smart PRO speed controller, instruction manual.

KAVAN Smart PRO-45LV SBEC is manufactured in Czechia by the company MAV Sense s.r.o.

Online manual: wiki.kavanrc.com
