The process of self-discharge - residual capacity in% of supplied charge (charging 0.1 C / discharge 1C).
0°C | 20°C | 40°C | |
5 days | 98% | 95% | 82% |
10 days | 96% | 90% | 65% |
20 days | 92% | 80% | 35% |
30 days | 87% | 70% | 15% |
40 days | 82% | 66% | 5% |
50 days | 77% | 60% | 1% |
Note: The residual charge data is based on the charge supplied during charging.

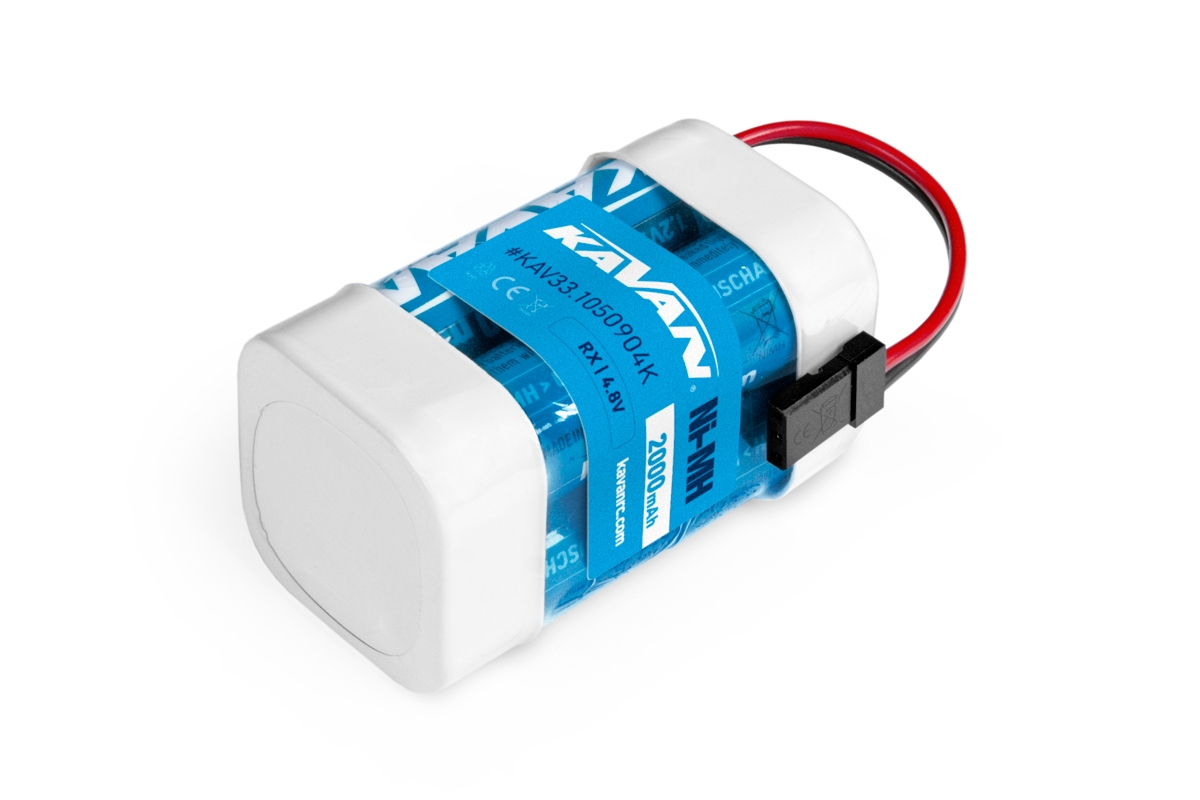

KAVAN NiMh AA 2000mAh/4.8V Rx
Four-cell NiMH battery receiver pack 4.8 V 2000 mAh with cable and JR/UNI connector. KAVAN 1.2V 2000 mAh low self-discharge cells, max. discharging current 6A, max. charging current 1A. Hump pack configuration. Dimensions: 55x30x30mm. Weight: 118 g.
Low self-discharge | Yes |
Capacity [mAh] | 2000 |
Voltage [V] | 4.8 |
Charging current [mA] | 200 |
Max. charging current [A] | 1 |
Max. discharging current [A] | 6 |
Length [mm] | 55 |
Width [mm] | 30 |
Height [mm] | 30 |
Weight [g] | 118 |
