KAVAN high-end six-cell lithium-polymer 30/60C battery packs pump fresh energy into the veins of your giant models! Thanks to the advanced technology applied in their manufacture, they guarantee extremely high load capacity when discharging, enable fast charging with long service life and favourable purchase price.
KAVAN batteries have a standard discharge current of 30C, peak current up to 60C, and a fast-charging opinion (1–2C). They are specially designed for high-performance aerobatic specials and scale models powered by brushless electric motors, RC helicopters and drones. The high current load capacity ensures maximum motor power utilization and allows for an aggressive flying style while maintaining a very long service life.
Don't charge the KAVAN batteries with currents higher than 2C, for normal operation, we recommend currents between 1–2C. We recommend using a balancer with every charge. KAVAN batteries don't require initial formation, but if you intend to charge the pack by a current greater than 1C, we recommend not exceeding 1C for the first three charge cycles. There is no need to fully discharge the battery before charging - e.g. you can safely charge batteries that are only 50% discharged.)
The battery is supplied as an "Air Pack" designed primarily for powering models of aeroplanes and helicopters. It is equipped with silicone power (charging) cables with a diameter dimensioned for the expected current loads (without connectors). The service connector is a type of the standard JST-XH system - they have the advantage of small size and weight (which will be especially appreciated by users of packs with a low capacity), they have simple pin connections and can even be plugged directly into the balancer sockets on RAYTRONIC, SkyRC and other chargers without the use of an adapter.
The package includes: KAVAN 30/60C battery, user manual.
Capacity [mAh] | 8000 |
Voltage [V] | 25.9 |
Charging current [A] | 8 - 16 |
Max. charging current [A] | 16 |
Discharging current [A] | 240 |
Max. discharging current [A] | 480 |
Energy [Wh] | 207.2 |

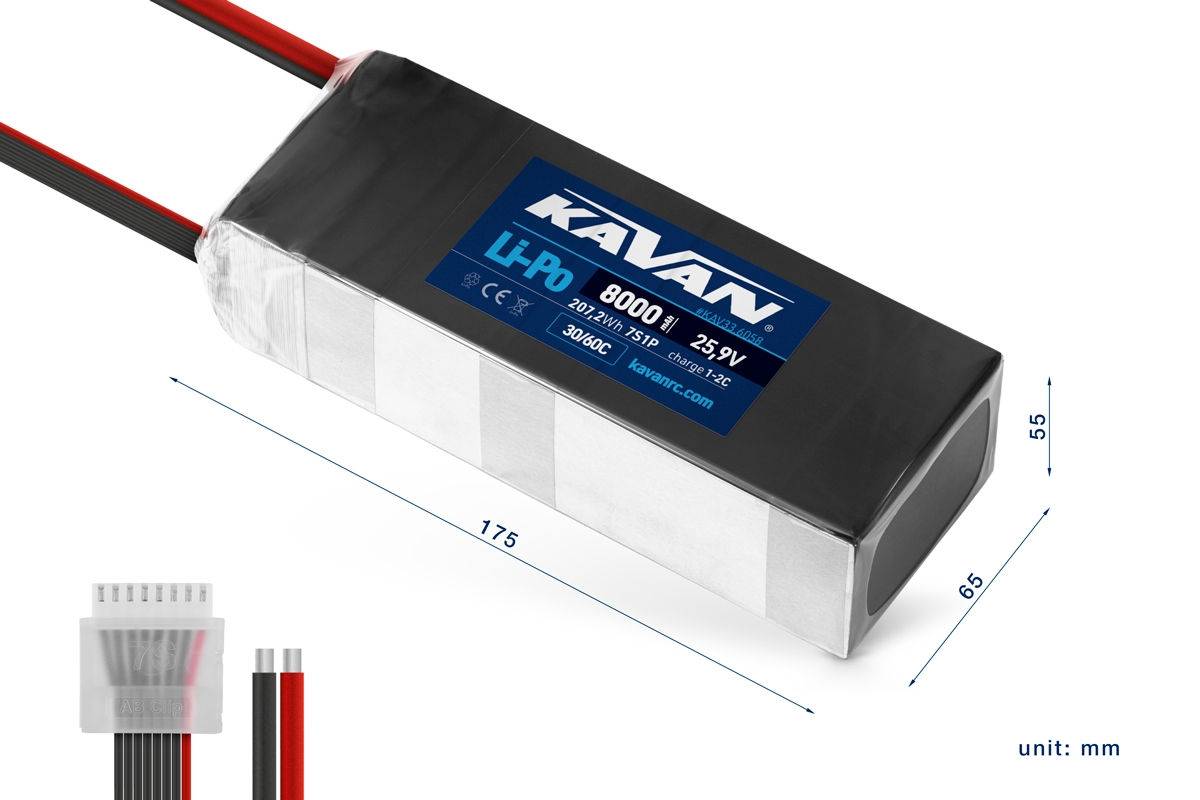

Length [mm] | 175 |
Width [mm] | 65 |
Height [mm] | 55 |
Weight [g] | 1205 |
