Code:KAV30.2021
Barcode:8596450022591
Brand:KAVAN

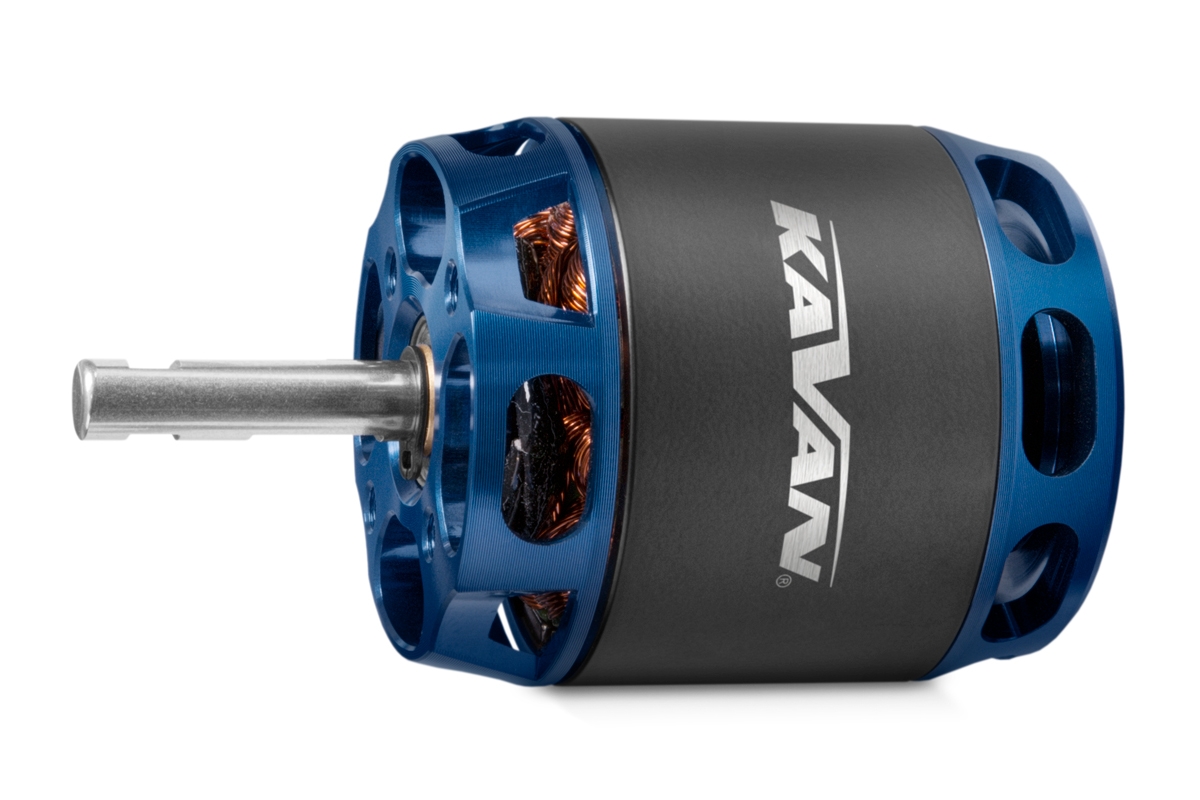

KAVAN Brushless Motor PRO 3542-1150

Outrunner brushless electric motor for model aeroplanes: glider 2200g, trainer 2100g, acro 1800g, 3D 1200g, KV1150 RPM/V, input voltage 3-4S Lixx. 5.0mm shaft. Alternative designation based on the stator dimension: 2820-1150.
Not on stock
€45.96
Description
Spare parts
Download

KAVAN PRO series motors are high performance 14-pole brushless outrunners. State-of-the-art design, hardened steel shafts, high quality ball bearings, High grade material used for stators and rotors ensure long lifetime and unbeatable performance and high efficiency. KAVAN PRO series motors are low revolution/high torque electric motors capable of swinging large diameter propellers without need for a gearbox.

Motor Designation System: PRO xxYY-zzzz
PRO - brushless outrunner electric motor
xx - motor diameter in mm
YY - motor length in mm
zzzz - revolution per minute per Volt (RPM/V), “KV“

KAVAN PRO 3542-1150

KAVAN PRO 3542-1150 is a motor for model aeroplanes up to 2200 g all-up weight powered by 3-4S LiPo flight battery pack. It is great for faster 2000-2500 mm electric powered gliders, 1400-1500 mm high wing trainers, scale and aerobatic models.

Motor installation: KAVAN 3542-1150 has been designed both for the front and radial mount installation. Front mount: Use four M3 screws; these may not go deeper than 3-4 mm into the front case. Radial mount: Use four M3 screws to secure the mounting cross to the firewall. The firewall should be made of 4.0-5.0 mm plywood. The radial mount set is supplied with the motor.

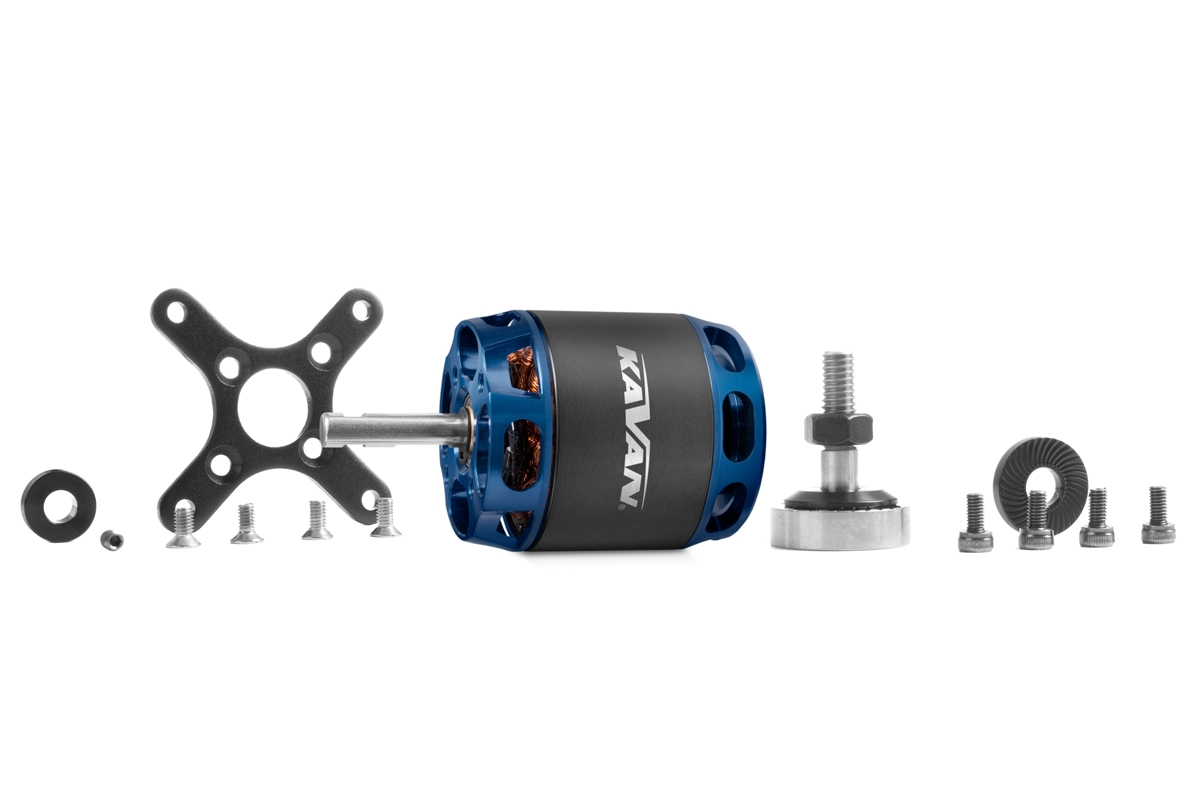

The motor set contents: KAVAN PRO 3542-1150 motor w. cables (3.5 mm gold-plated connectors), radial mount set accessories. The full instruction manual can be downloaded here: KAVAN PRO Brushless Motors Instruction Manual

Note: Alternative designation based on the stator dimensions: 2820-1150.

Powering LiXX cells3 - 4
RPM/V [ot./min/V]1150
Max. power (180 s) [W]1000
Internal resistance [mOhm]16
Open-circuit current (při 10 V) [A]2.7
Max. peak current (180 s) [A]70

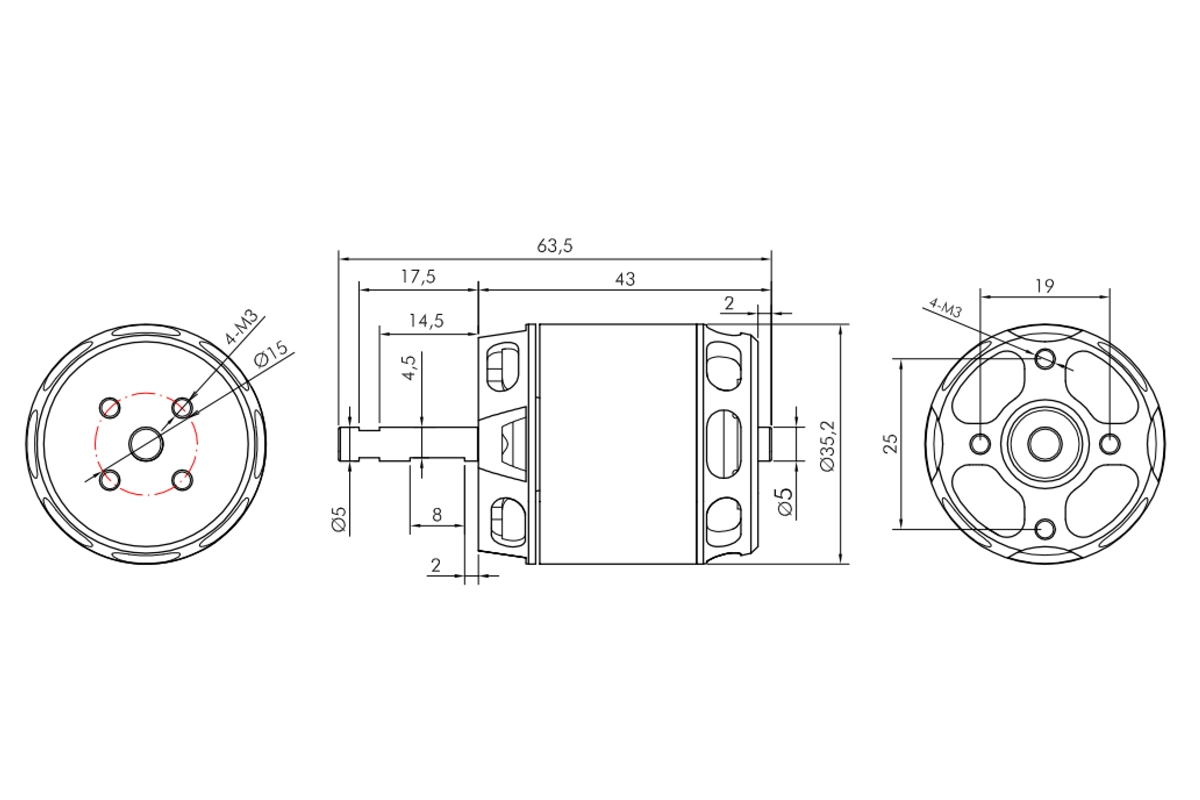

Diameter [mm]35.2
Length [mm]41
Length celková [mm]63.5
Shaft diameter [mm]5
Weight [g]141
Poles count14
Timing [°]20 - 25
ESC [A] 70 - 80
Weight of glider (up-to) [g]2200
Weight of trainer (up-to) [g]2100
Weight of acrobat (up-to) [g]1800
Weight of 3D (up-to) [g]1200
