KAVAN Brushless Motor PRO 2809-1620

KAVAN PRO series motors are high performance 14-pole brushless outrunners. State-of-the-art design, hardened steel shafts, high quality ball bearings, High grade material used for stators and rotors ensure long lifetime and unbeatable performance and high efficiency. KAVAN PRO series motors are low revolution/high torque electric motors capable of swinging large diameter propellers without need for a gearbox.

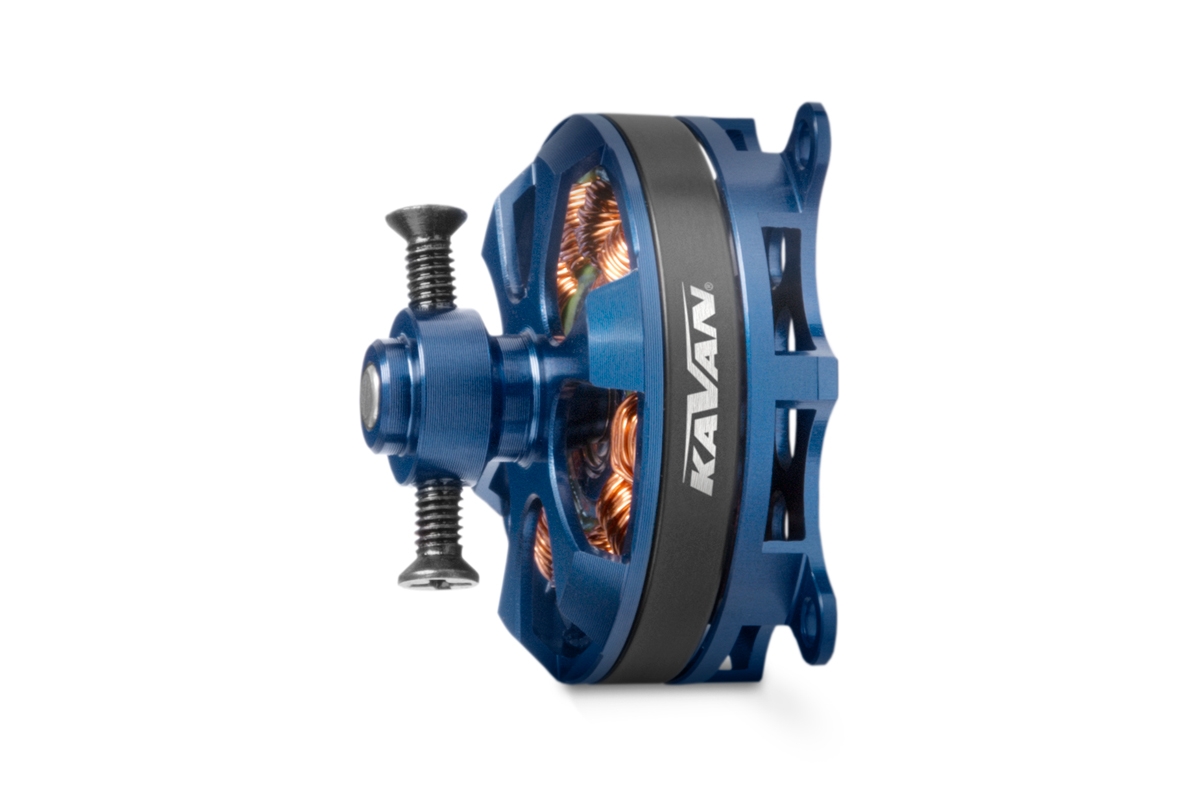

KAVAN PRO 2809-1620

KAVAN PRO 2809-1620 is a miniature motor for small model aeroplanes up to 220 g all-up weight powered by 2-3S LiPo flight battery pack. It could used be for “electrification” of rubber powered planes from of Guillow’s or Dumas kits (up to 1000 mm wingspan), it works great with indoor models and park-flyers.

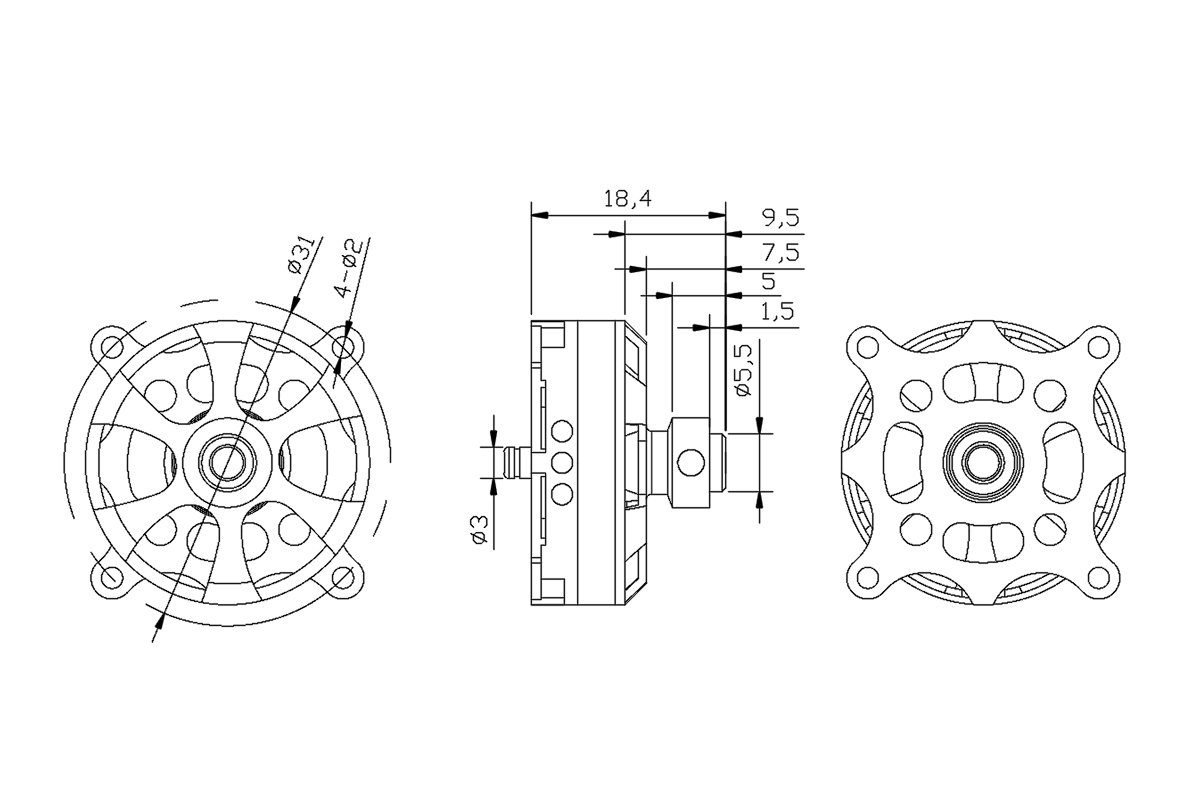

Motor installation: KAVAN 2809-1620 has been designed for the radial mount installation only using 5.5 mm prop saver. Use at least two (opposite) or four M2 screws; the firewall should be made of 1.0-1.5 mm plywood. The cross mounting lugs are an integral part of the motor.

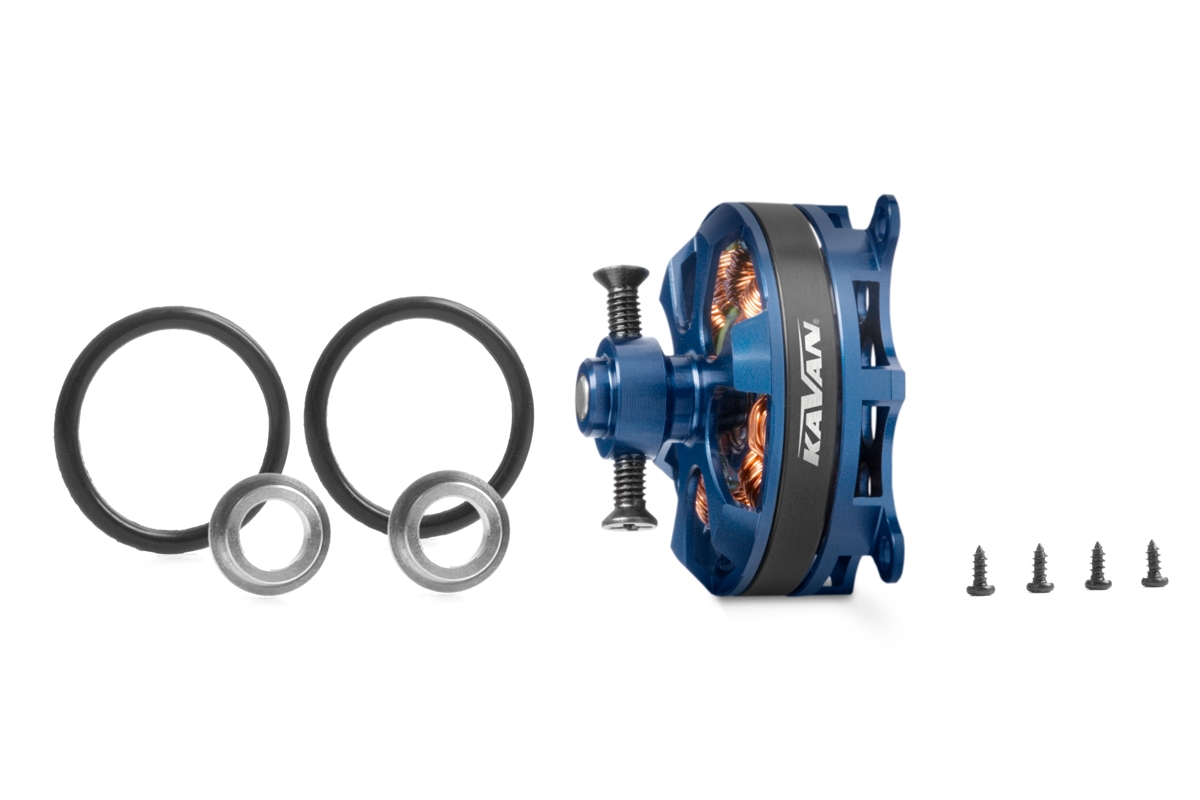

The motor set contents: KAVAN PRO 2809-1620 motor w. cables (no connectors), prop saver set accessories. The full instruction manual can be downloaded here: KAVAN PRO Brushless Motors Instruction Manual

Note: Alternative designation based on the stator dimensions: 2202-1620.
