Code:ISDT1017
Barcode:6971337050805
Brand:iSDT

iSDT SP3060

High-power switched-mode stabilized power supply 24V/60 A. Max. power 1800 W. Dimensions: 116x111x258 mm, weight 3,2 kg.
This item is not available in you region (United States)
Description

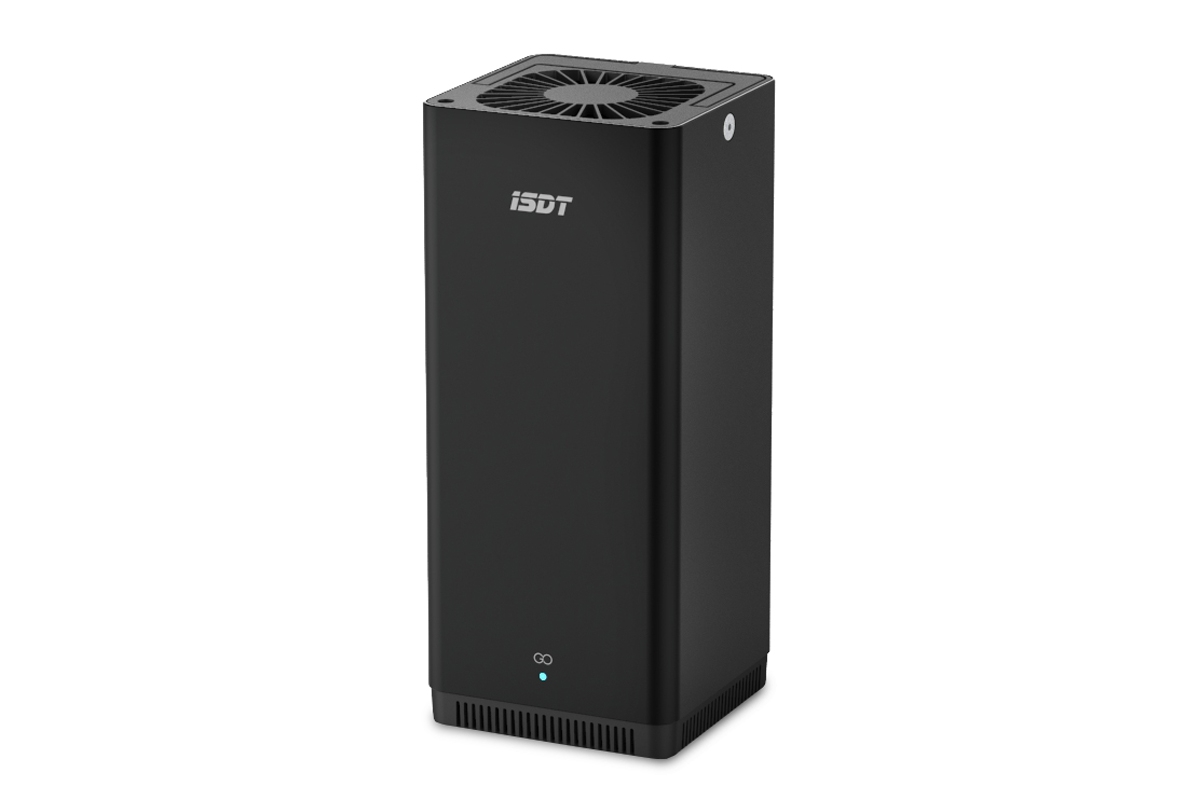

Compact and lightweight even if its high power output, in a durable aluminium "tower" housing that takes up minimal space - the ISDT SP3060 1800W Stabilized Power Supply is ideal for powering high power model chargers and other devices requiring 24V DC power.

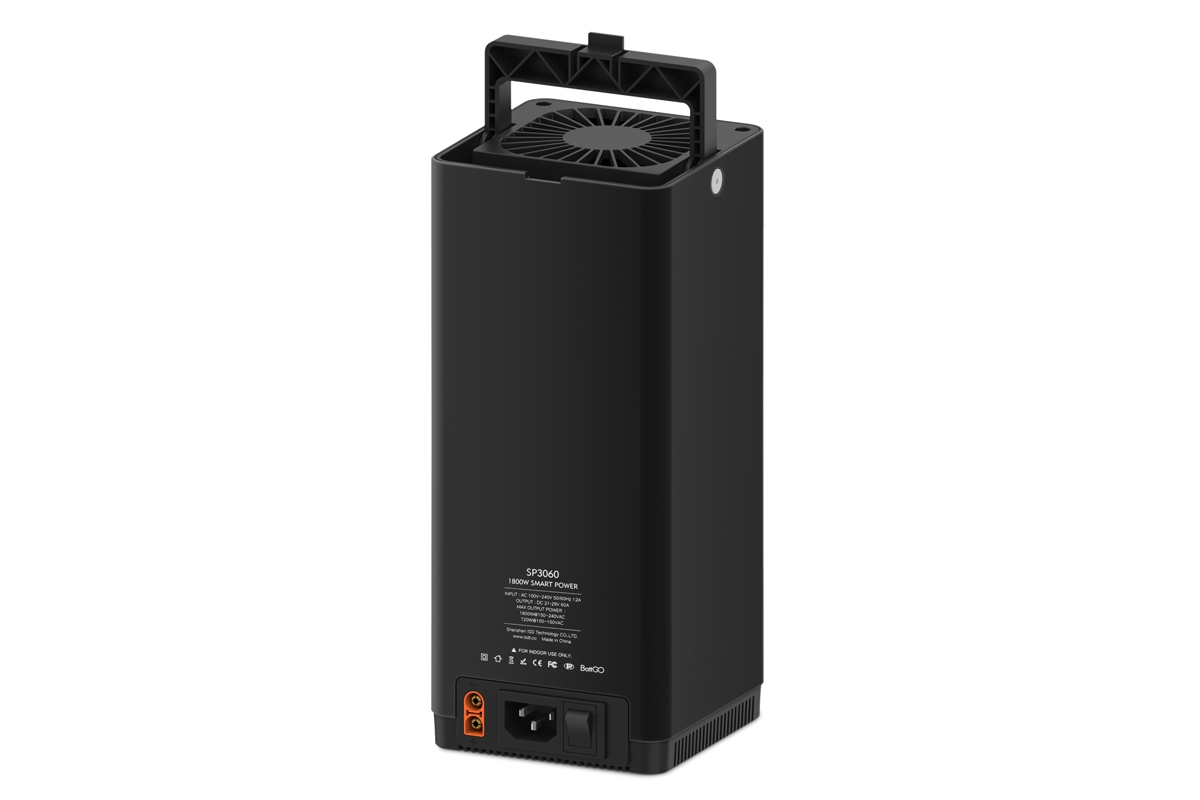

The 24V/60A output of the power supply is fitted with an IC5 type socket (also compatible with EC5 connectors). Output load and possibly power supply overload and other error conditions are indicated by an LED indicator.

The output voltage of the power supply is adjustable between 21 and 29 V after connection of a smart device (e.g. charger) of the BattGo system.

The power supply is equipped with protection against current and thermal overload and short circuit at the output. It is equipped with a forced cooling system with a fan to guarantee constant stable operating conditions and to protect against overheating.

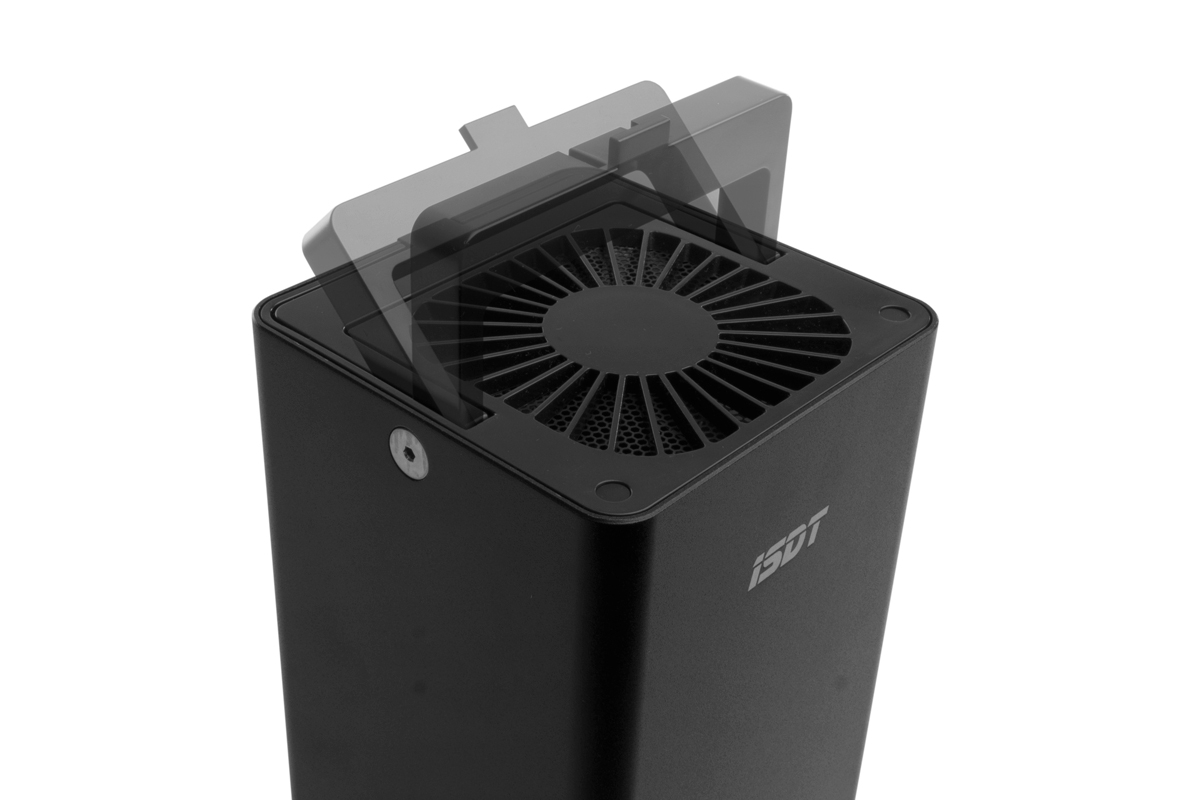

Concealed hinged handle for easy and convenient carrying.

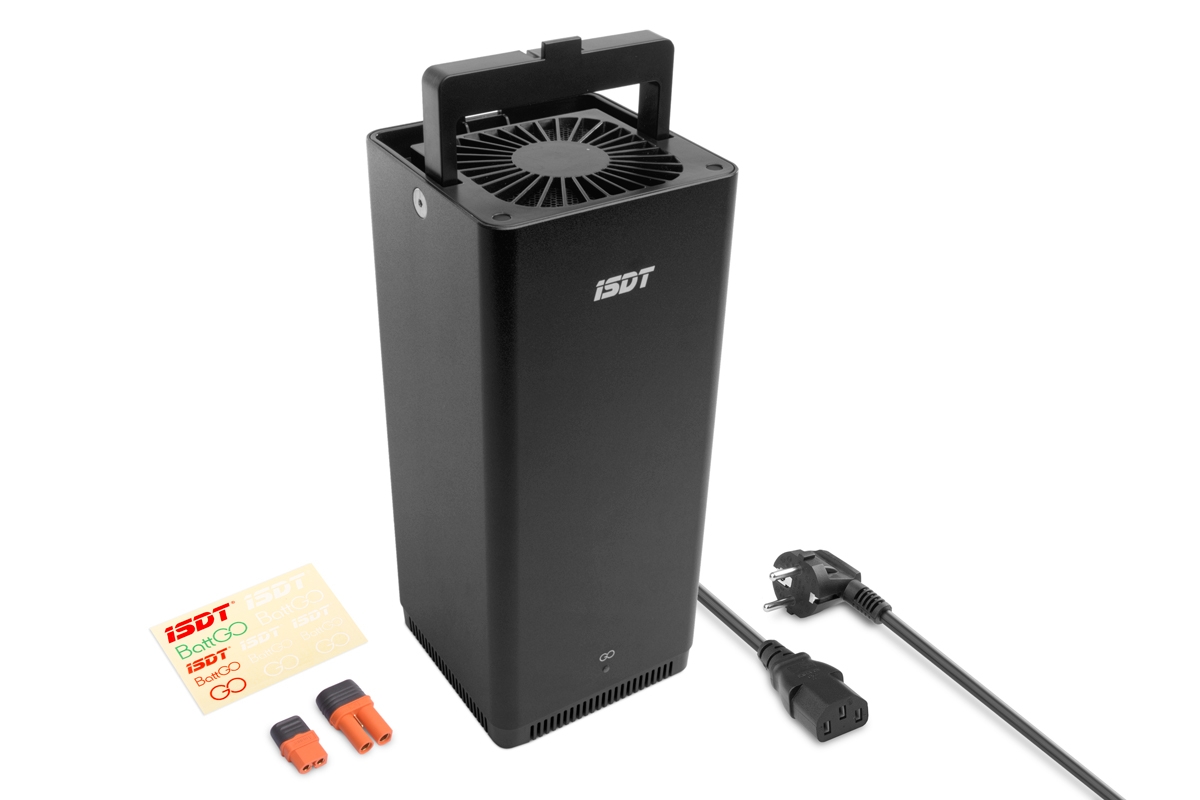

The power supply kit includes: Stabilized power supply SP3060 1800W, power cable and instructions.

Input voltage (síťové - AC) [V]100 - 240
Output voltage [V]24
Output current [A]60
Power [W]1800
Channels1
RegulatedYes
DisplayNo
Length [mm]116
Width [mm]111
Height [mm]258
Weight [g]3200
