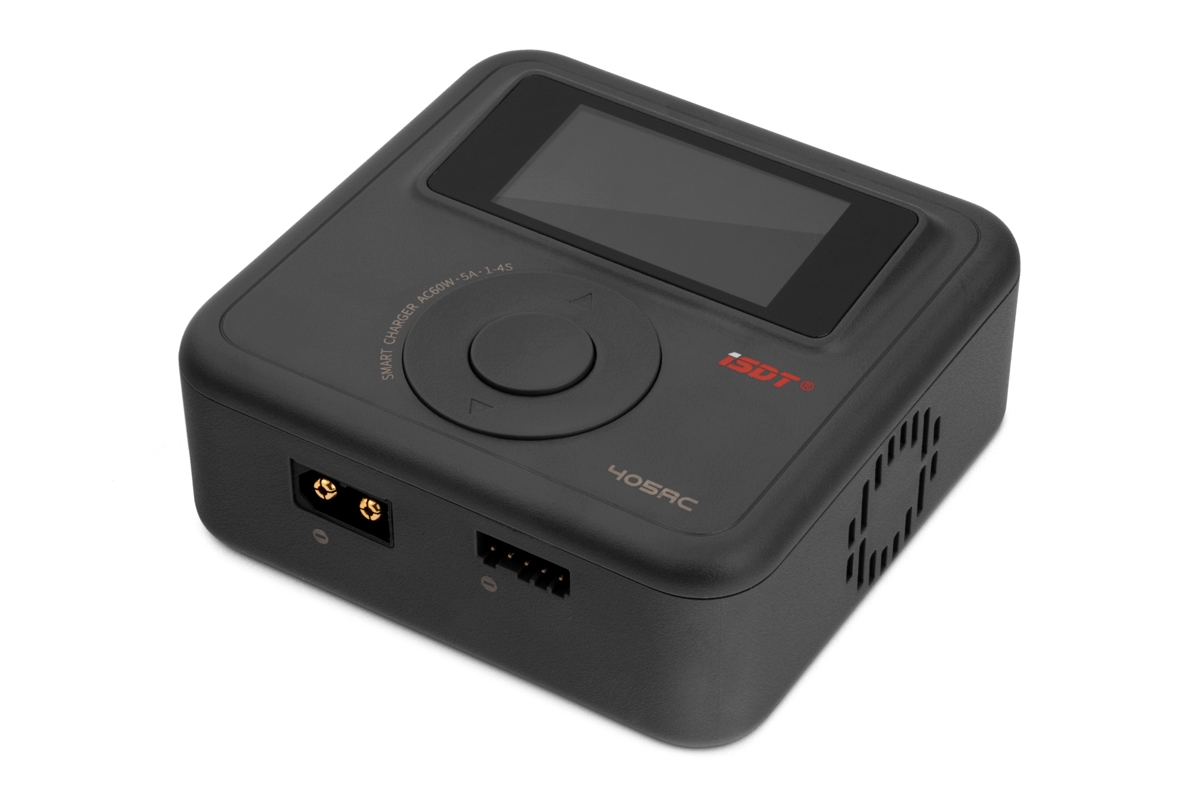

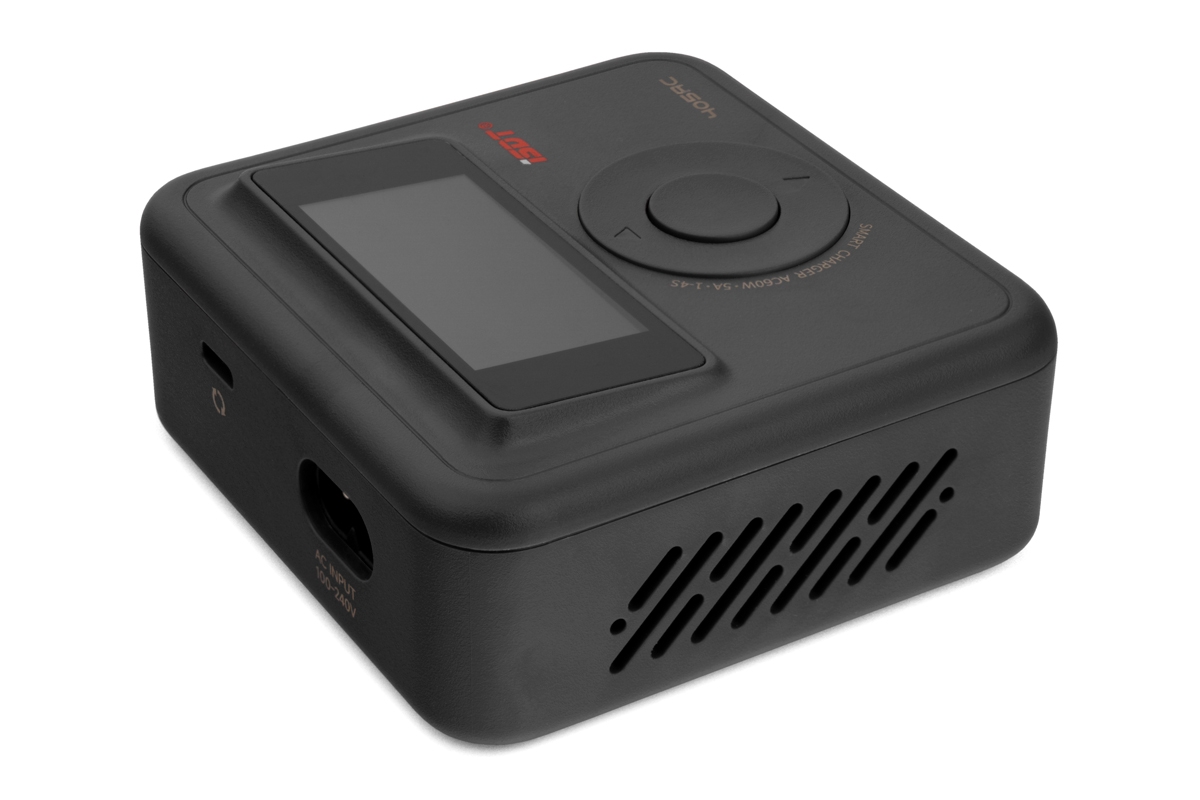

iSDT charger 405AC

The ISDT 405AC 60W miniature charger is an intelligent charger with a mains power supply and very simple and intuitive operation. The 405AC allows you to charge and discharge common types of cells (NiMH, LiPo, LiHV/ULiHV, LiFe, Li-ion, Pb) and is equipped with a built-in four-channel balancer that ensures safe charging of lithium batteries. The charger is equipped with a colour LCD and three programming buttons that allow you to conveniently and clearly set parameters, or control and monitor the charging process.

In addition to its miniature dimensions and intuitive operation, the following features are worth mentioning:

• program for new types of "high-voltage" LiHV lithium batteries with a charging cut-off voltage of up to 4.35 V and ULiHV with a cut-off voltage of 4.45 V (cut-off voltage adjustable in the range of 4.25–4.50 V)
• adjustable end voltage for charging lithium batteries (allows gentler charging, which is preferred by pilots, or, conversely, brutal overcharging favoured by car enthusiasts)
• adjustable end voltage for charging lead-acid batteries (2.30–2.45 V/cell; allows charging of all types of lead-acid batteries)
• option to set, start, and monitor charging via Bluetooth in the ISD Link mobile app (Android and iOS)

• Mains power supply 100–240 V/50–60 Hz
• For charging 2–12 NiMH cells, 1–4 LiPo/LiFe/Li-ion/LiHV/ULiHV cells or 2–14V lead-acid batteries
• Adjustable charging current 0.1–5.0 A (max. 60 W)
• Adjustable discharge current 0.1–1.0 A (max. 5 W)
• Automatic delta-peak charging termination for NiMH batteries
• Lithium and Pb batteries are charged using the "constant current/constant voltage" method
• Three operating modes: charging, discharging (with or without balancer for lithium batteries), storage charging
• Adjustable delta-peak detection sensitivity for NiMH batteries
• Adjustable end voltage for charging lithium and lead-acid batteries
• Easy firmware update via USB-C port

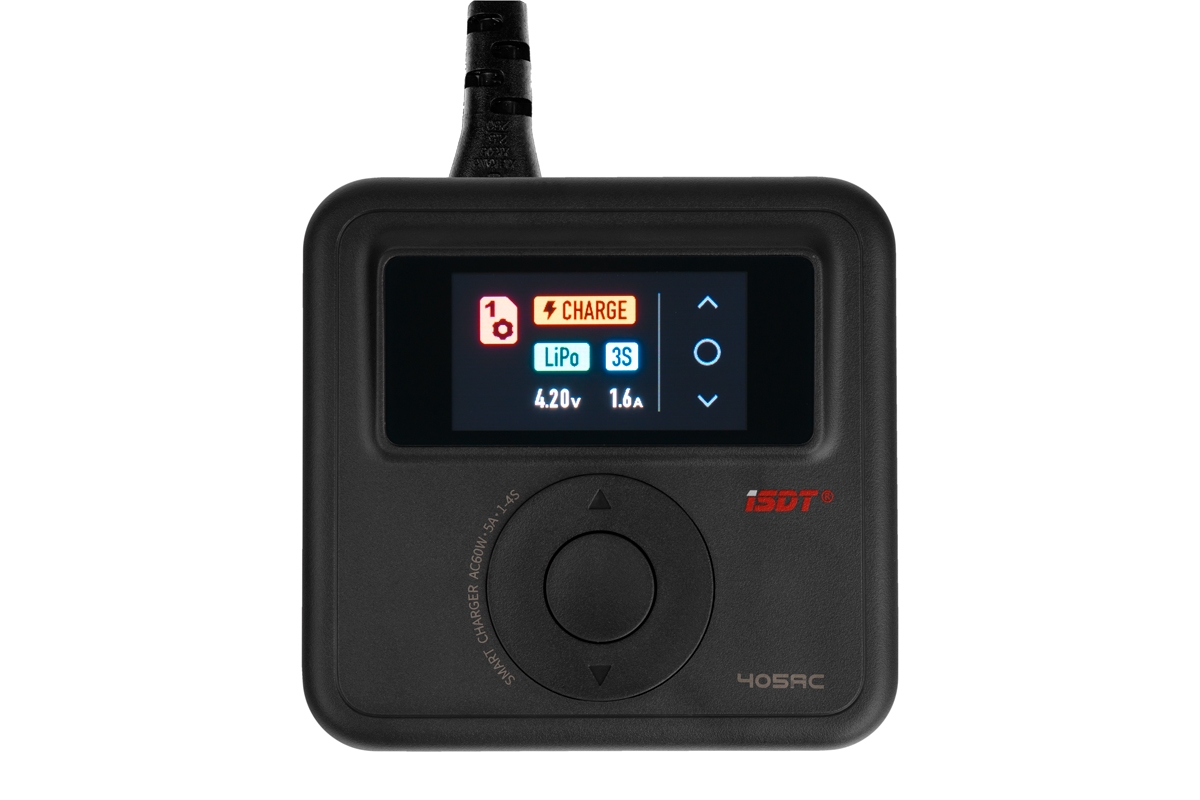

• Backlit colour LCD with simple and clear menu and parameter display during charging
• Programming buttons for easy and clear setting and control of the charger
• Several warning messages contribute to safe operation (incorrect battery type/voltage, drop in supply voltage, etc.)
• Fan for forced cooling.
• Compact plastic case, miniature dimensions

The charger is equipped with an XT60 output socket and a universal socket for JST-XH service connectors, allowing direct connection of battery power cables and JST-XH service connectors sets 1–4S - if you use sets with XT60 and JST-XH connectors, you can do without charging cables and adapters.

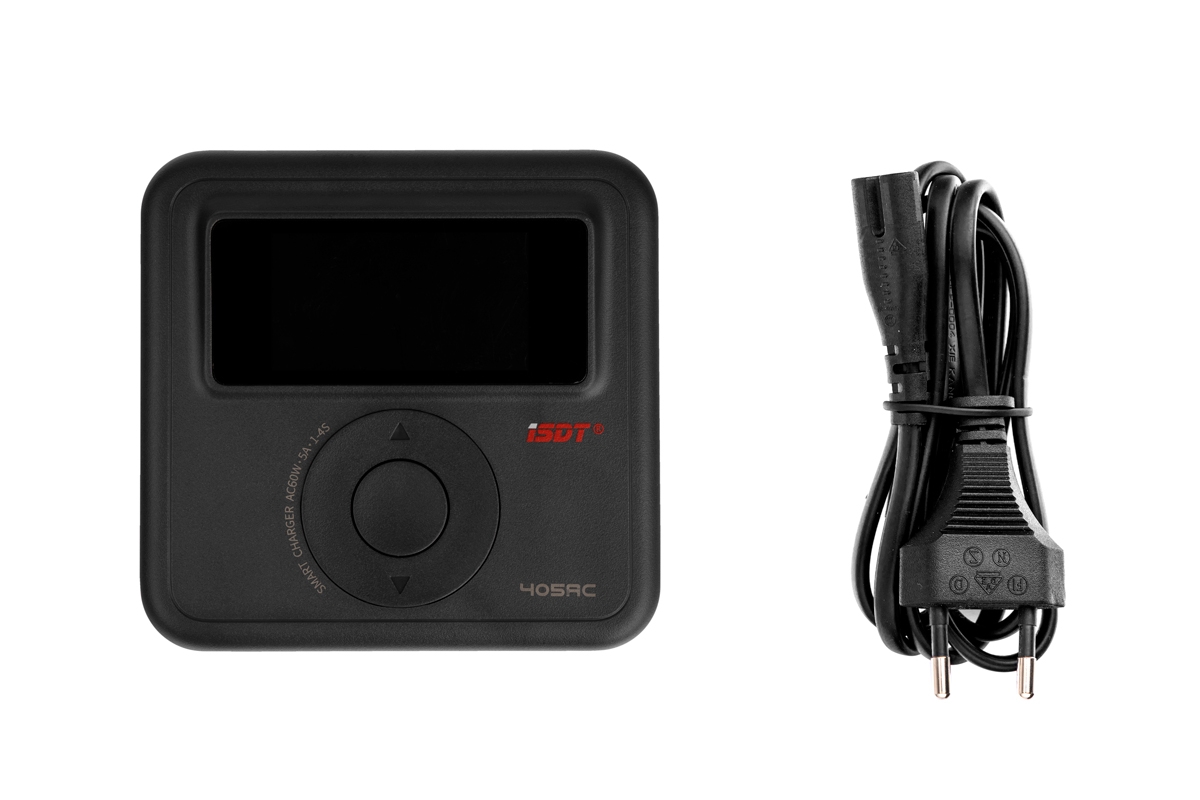

The charger set includes: ISDT 405AC charger, instructions.
