iSDT 608PD charger

Palm-size channel DC fast charger with balancers for 1–16 cells NiMH, 1–6 cells Li-Po/Li-Fe/LiHV, 2–24V Pb with current 0.5–10A (max. 240W). Power supply 5–30V DC. Internal resistance measurement, USB-C port for update, Bluetooth for setting in the ISD Link app. You can also use it as a USB-C/PD2.0-3.1 charger with model battery pack.
This item is not available in you region (United States)
Description

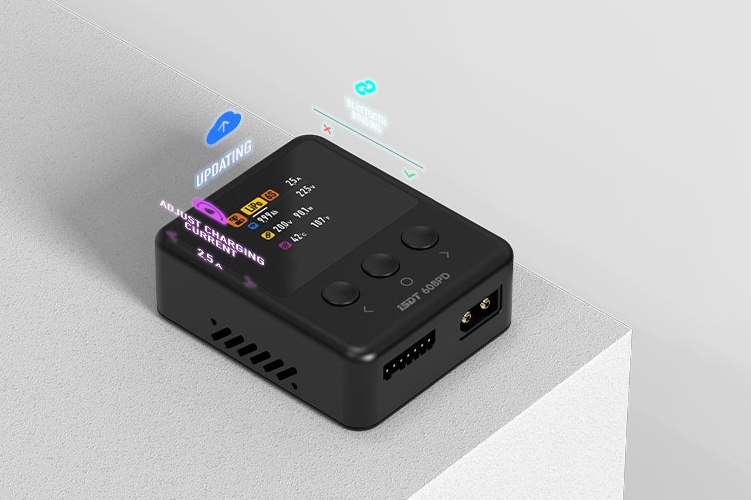

The ISDT 608PD 240 W miniature charger is a powerful smart charger powered by a car battery, stabilised power supply or USB-C power supply with very simple and intuitive operation. The 608PD can charge common cell types (NiMH, Li-Po, LiHV/ULiHV, LiFe, Pb), plus it features built-in six-channel balancers to ensure safe charging of lithium batteries. The charger is equipped with a colour LCD and three programming buttons, which offer you more comfortable and straightforward parameter setting, control and monitoring of the charging process.

In addition to the "palm-size" design with high performance and intuitive operation, worth a special mention is:

  • Program for new high-voltage lithium batteries LiHV with an output voltage for charging of up to 4.35 V and ULiHV with an output voltage for charging of up to 4.45 V (voltage adjustable from 4.25–4.50 V)
  • Adjustable end voltage for charging lithium batteries (allows more gentle charging that pilots like, or brutal over-charging suitable for car guys)
  • Adjustable end voltage for lead-acid battery charging (2.00–2.45 V; allows charging of all types of lead-acid batteries)

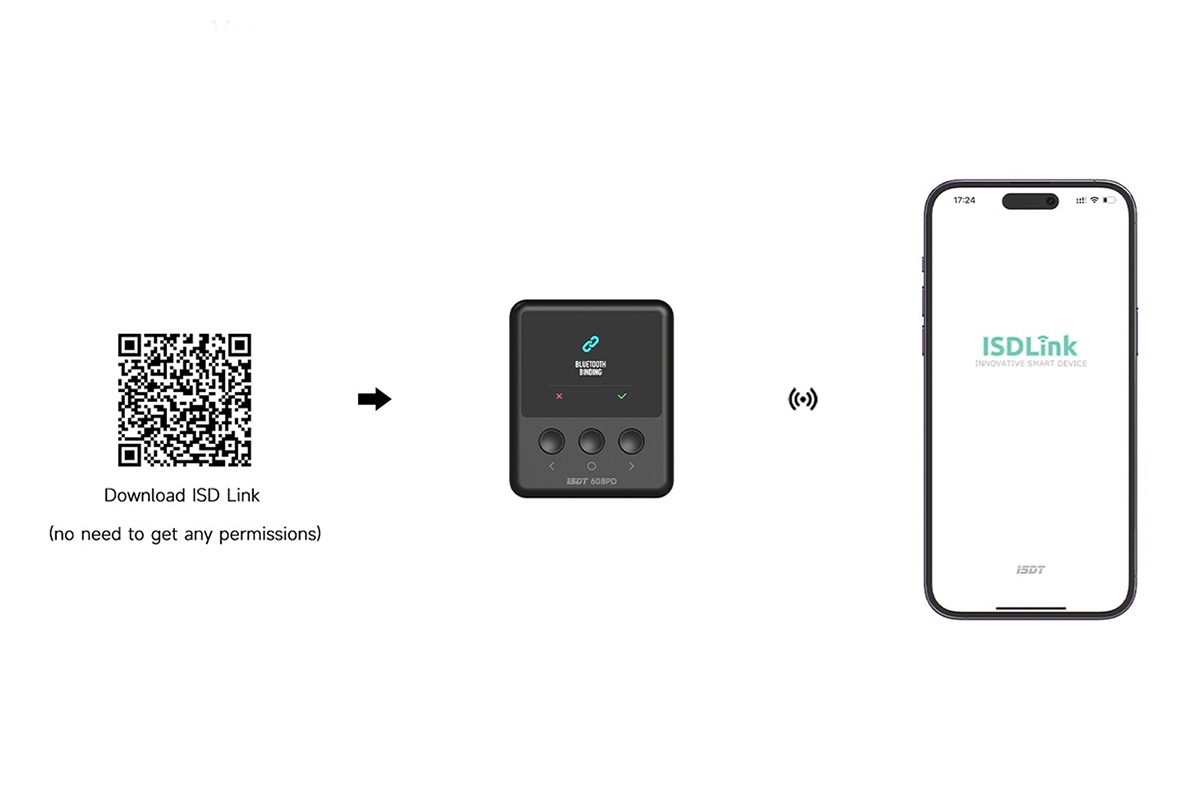

  • Bluetooth in the ISD Link mobile app (Android and iOS): ability to set up, start and charge tracking

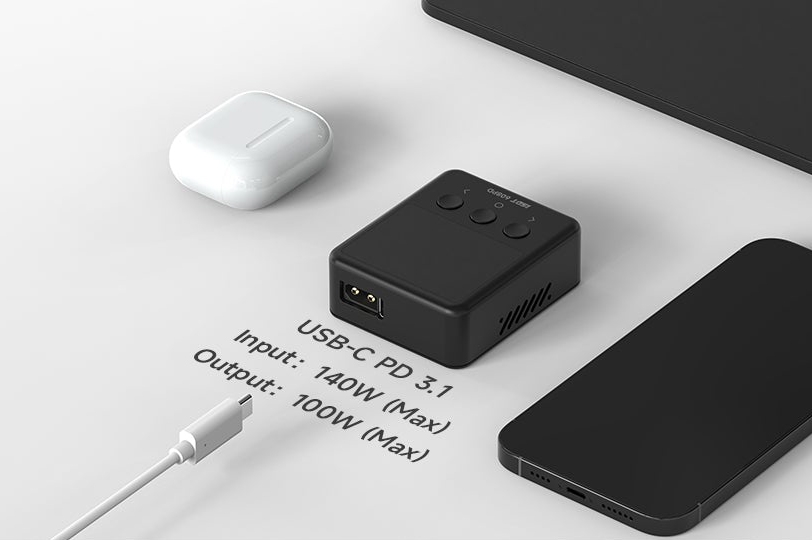

  • Can be used as a USB-C/PD2.0/3.0/3.1 charger for smartphones, tablets and similar devices

Basic features and parameters overview:

  • Power supply 10–30 V DC (XT60 port) or USB-C (5–28 V)
  • For charging 1–16 NiMH cells, 1–6 Li-Po/Li-Fe/LiHV cells or 2–24 V lead-acid batteries
  • Adjustable charging current 0.5–10.0 A (max. 240 W) - the power supply must have a voltage of at least 24 V to fully utilize the power of the charger
  • Charging termination via delta-peak automation for NiMH batteries
  • Lithium and lead-acid batteries are charged via the "constant current/constant voltage" (CCCV) method
  • Adjustable delta-peak detection sensitivity for NiMH batteries
  • Adjustable end voltage for lithium and lead-acid battery charging
  • The charger can work as a USB-C/PD2.0/PD3.0/PD3.1 charger for smartphones, tablets and similar devices when powered by a 5–30V model battery pack (with adjustable voltage limit to prevent deep discharge)
  • Simple firmware update via USB-C port

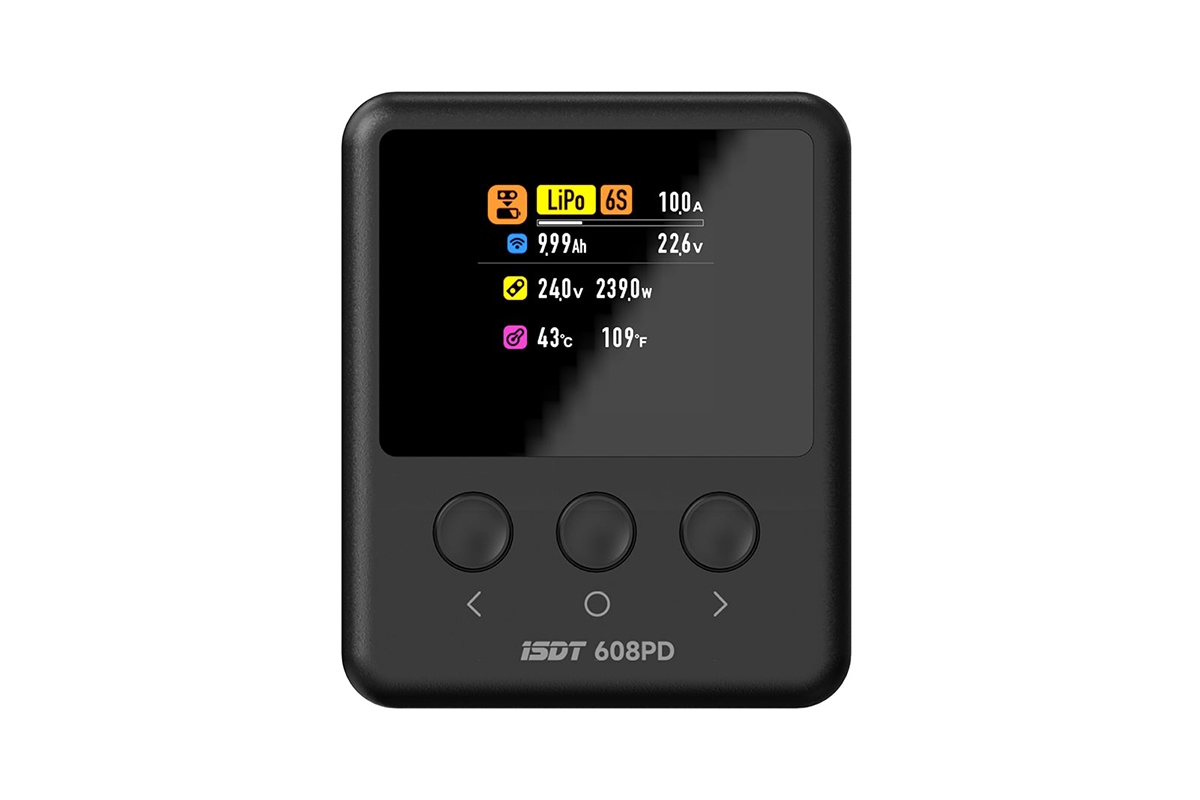

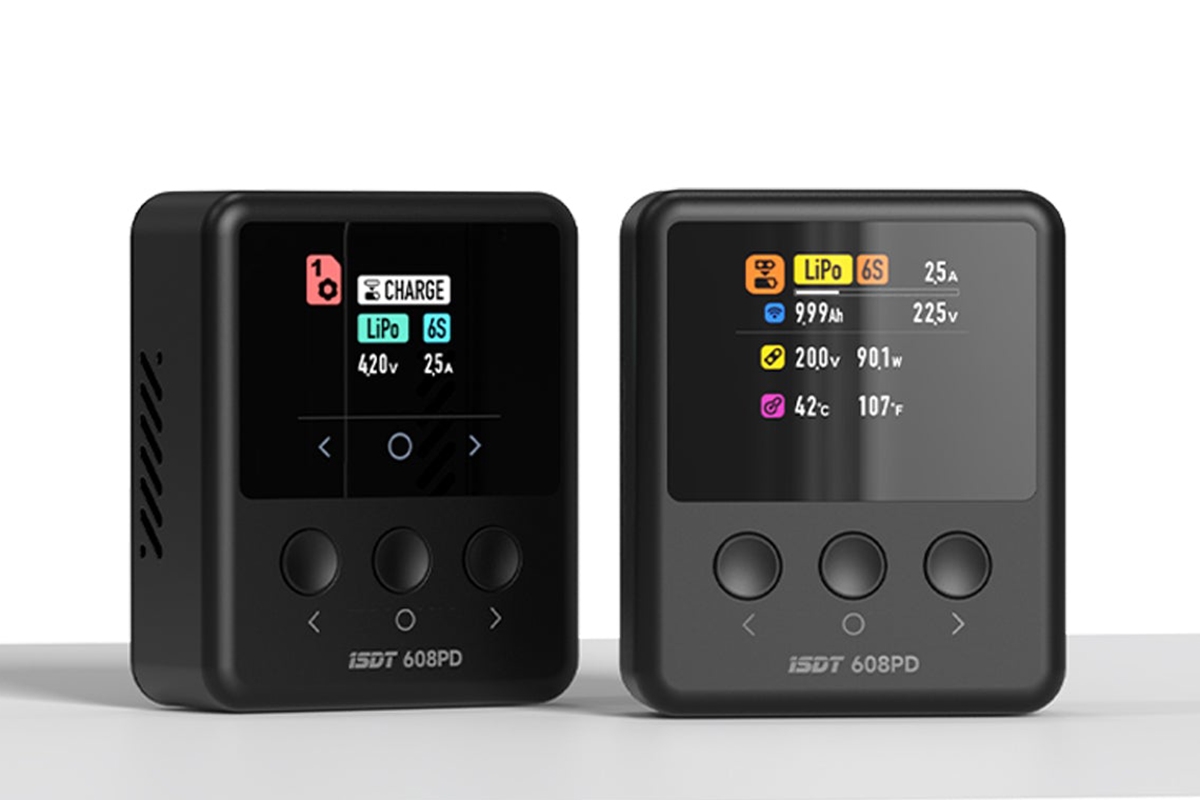

  • Back-lit LCD with a clear and simple menu and parameter monitoring during charging
  • Programming buttons for simple setting and operation of the charger
  • Safety is ensured by several warnings (incorrect battery type/voltage, drop in supply voltage, etc.)

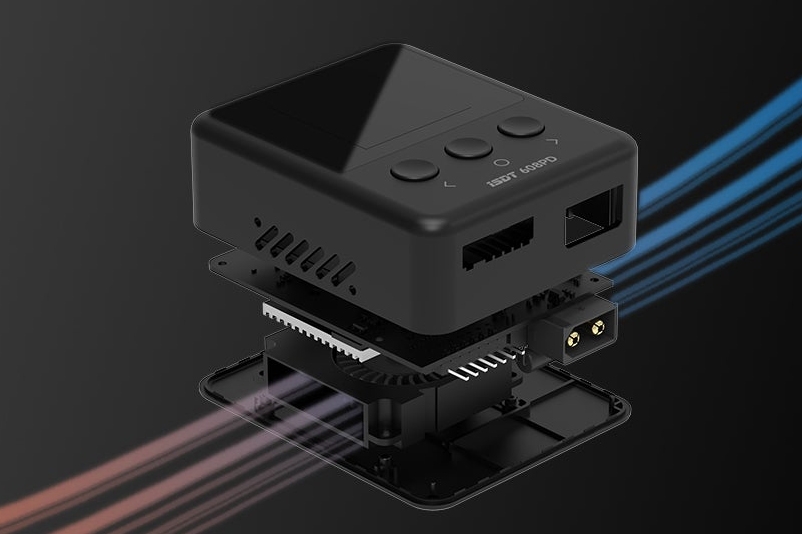

  • Fan for forced cooling
  • Compact plastic case, very small dimensions

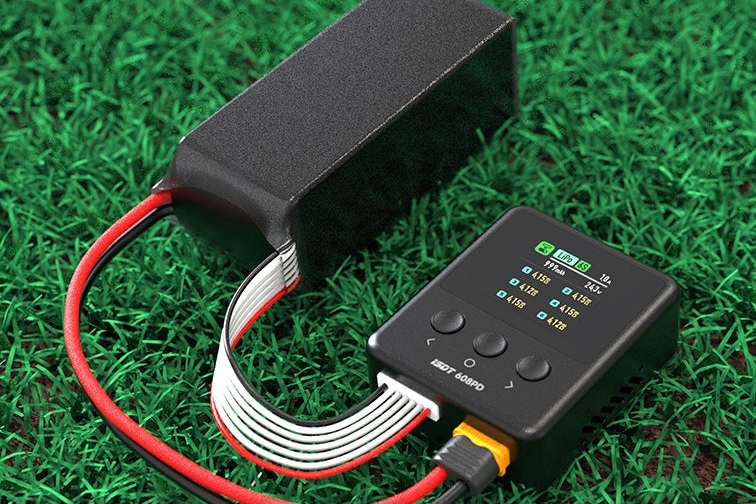

The charger is equipped with an XT60 socket and universal JST-XH socket for service connectors, allowing direct connection of power cables and JST-XH service connectors of 2–6S packs. If you are using packs with XT60 and JST-XH connectors, you don't need any charging cables or adapters. To connect service cables of a different system you can use standard adapters Sky RC or KAVAN.

The set contains: ISDT 608PD charger, user manual.

Input voltage (autobaterie - DC) [V]5 - 30
Charging current [A]0.5 - 10
Charging power [W]240
Channels1
NiMH [čl.]1 - 16
Li-Po [čl.]1 - 6
Li-Fe [čl.]1 - 6
Li-HV [čl.]1 - 6
Pb [čl.]1 - 12
BalancerYes
Balancer current [mA]800
Length [mm]72.5
Width [mm]60
Height [mm]26.6
Weight [g]85
