Code:1HI31621

Barcode:0669962394857

Brand:Hitec

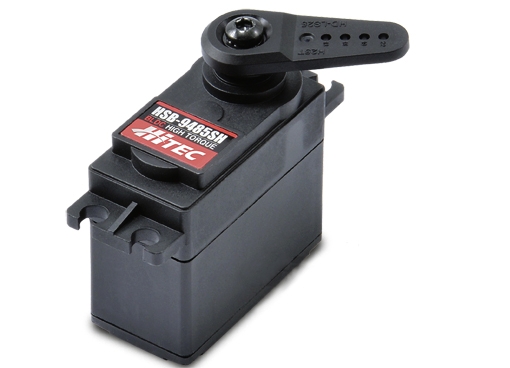

HSB-9485SH HV (26kg ; 0,15s)

This item is not available in you region (United States)

Servo dimensions	Standard
Servo type	Digital
Thrust at 6.0V [kg/cm]	26
Thrust at 7.4V [kg/cm]	26
Speed at 6.0V [s/60st.]	0.18
Speed at 7.4V [s/60st.]	0.15
Servo gears	Metal
Ball bearings	2×
High-voltage	Yes
Power supply [V]	6 - 7.4
Length [mm]	40
Width [mm]	20
Height [mm]	37
Weight [g]	62
Intended for	Aeroplanes,Helicopters,On-road cars,Off-road cars,Boats
Splined shaft teeth	25

Accessories (35)

Extension Cable Twisted 30cm JR with lock

Extension Cable Twisted 60cm JR with lock

Extension Cable Twisted 90cm JR with lock

Extension Cable 10cm JR with lock

Extension Cable 15cm JR with lock

Extension Cable 30cm JR with lock

Extension Cable 45cm JR with lock

Extension Cable 60cm JR with lock

Extension Cable 90cm JR with lock

Extension Cable 15cm JR

Extension Cable 30cm JR

Extension Cable 60cm JR

Extension Cable 90cm JR

DPC-11 Universal Programming Interface for Hitec Programmable Servos

5733 H25T heavy duty horn and hardware set

5732 H25T heavy duty horn and hardware set

Servo hold-down washer (8pcs)

Side Servo Mount V2

Servoscrew M3x6 10pcs

Servo arm 32mm (1,25") 25teeth M2

Servo arm 25mm (1") 25teeth M3

Servo arm 32mm (1,25") 25teeth M3

Servo arm 38mm (1,5") 25teeth M3

Servo arm 45mm (1,75") 25teeth M3

Servo arm 51mm (2") 25teeth M3

Servo arm Double 64mm (2,5") 25teeth M3

Servo arm Double 89mm (3,5") 25teeth M3

Servo arm Double 114mm (4,5") 25teeth M3

Carbon control horn 110 x 22mm

Carbon control horn 60 x 22,5mm

Carbon control horn 40x21mm

Carbon control horn 110 x 31mm

Carbon control horn 53 x 20

Spare parts (2)

5366 Metal Gear set HS-8335SH,HSB-9485SH

5014 First Gear Hitec 3pcs
