Code:1HI3125

Barcode:0669962326469

Brand:Hitec

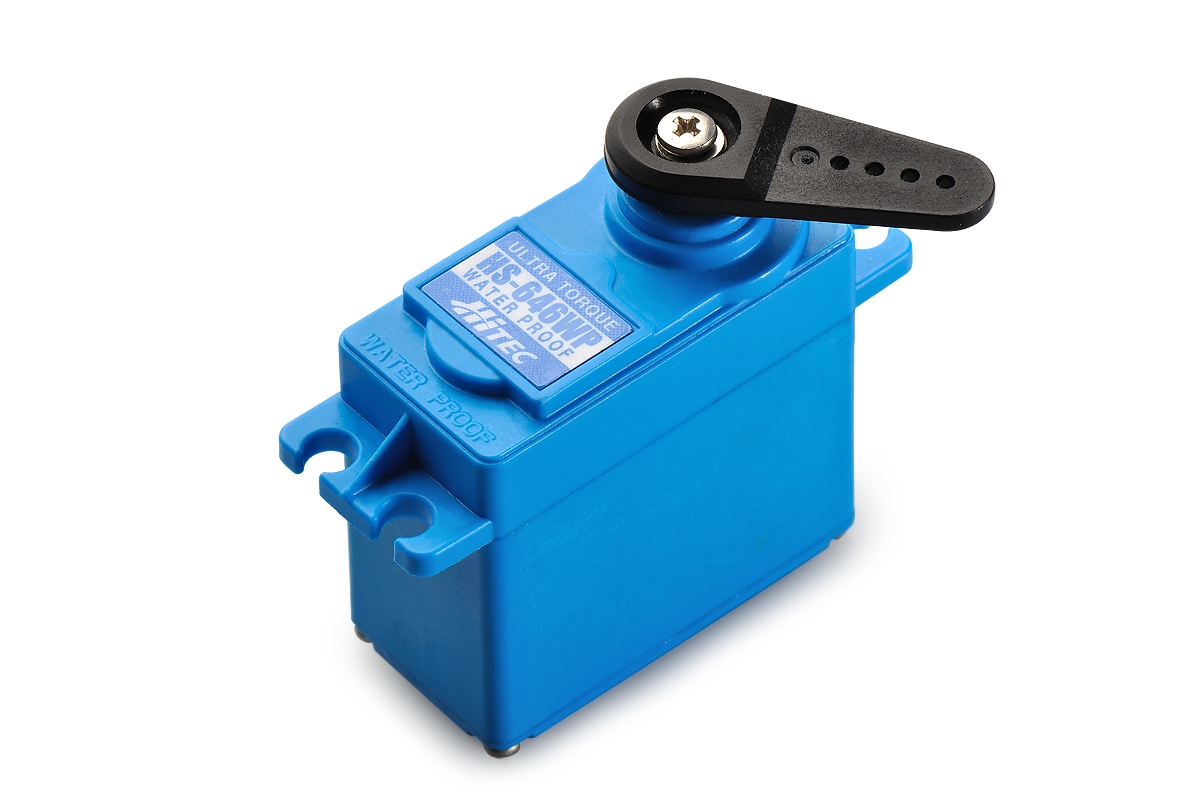

HS-646WP HV Waterproof (11,6kg ; 0,22s)

This item is not available in you region (United States)

Servo dimensions	Standard
Servo type	Analog
Thrust at 6.0V [kg/cm]	9.6
Thrust at 7.4V [kg/cm]	11.6
Speed at 6.0V [s/60st.]	0.2
Speed at 7.4V [s/60st.]	0.17
Servo gears	Metal
Ball bearings	2×
High-voltage	Yes
Power supply [V]	6 - 7.4
Length [mm]	41.8
Width [mm]	21
Height [mm]	40
Weight [g]	60
Intended for	Aeroplanes,Off-road cars,Sailing boats,Boats

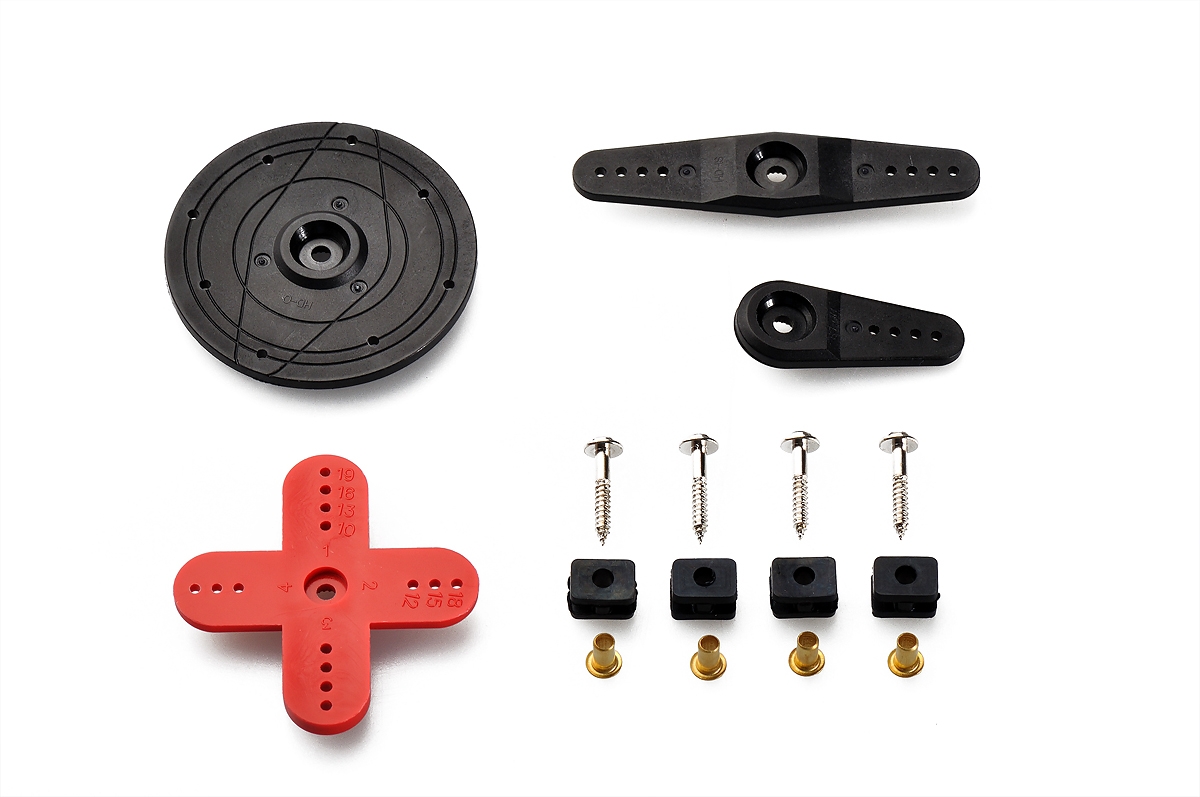

Accessories (15)

Servoscrew M3x6 10pcs

Servo arm 32mm (1,25") 25teeth M2

Servo arm 25mm (1") 25teeth M3

Servo arm 32mm (1,25") 25teeth M3

Servo arm 38mm (1,5") 25teeth M3

Servo arm 45mm (1,75") 25teeth M3

Servo arm 51mm (2") 25teeth M3

Servo arm Double 64mm (2,5") 25teeth M3

Servo arm Double 89mm (3,5") 25teeth M3

Servo arm Double 114mm (4,5") 25teeth M3

Carbon control horn 110 x 22mm

Carbon control horn 60 x 22,5mm

Carbon control horn 40x21mm

Carbon control horn 110 x 31mm

Carbon control horn 53 x 20

Spare parts (1)

5305 Gear set 5646WP/HS-646WP

Download

Hitec servo manual

20.03.2012
