Code:1HI3120

Barcode:8595241342023

Brand:Hitec

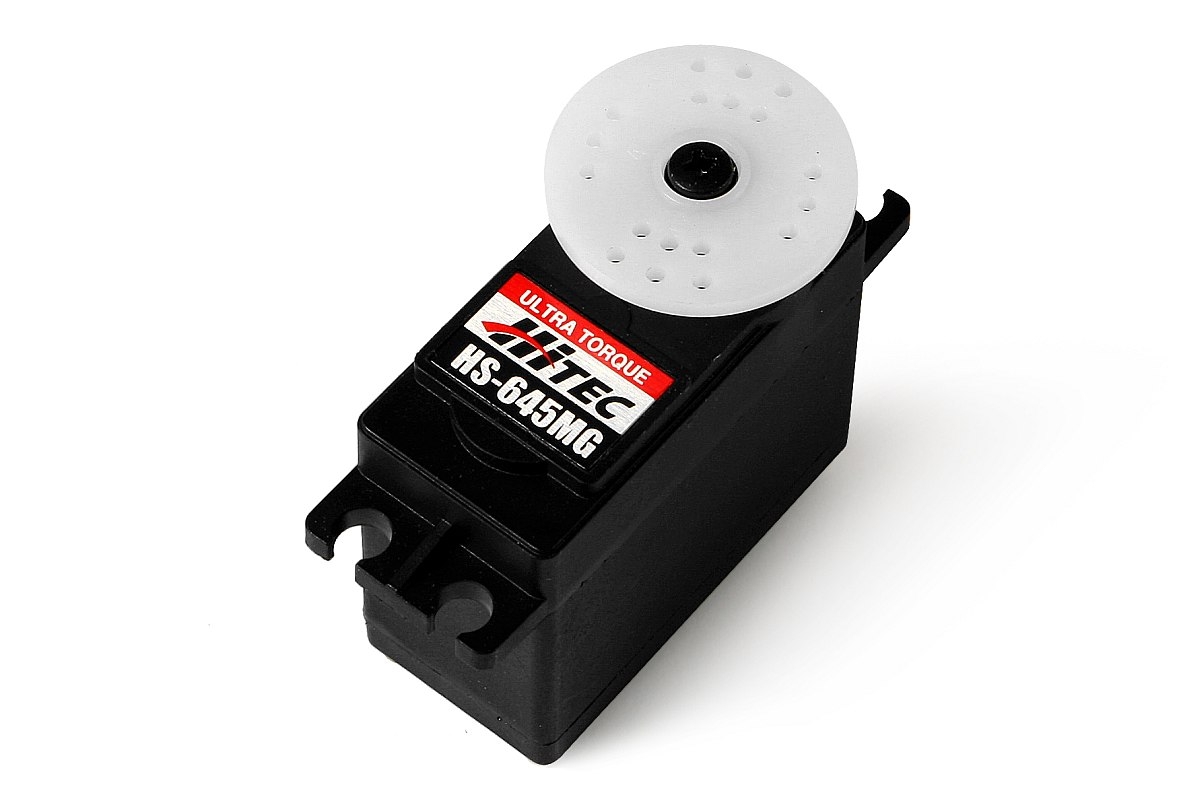

HS-645MG (9,6kg ; 0,20s) Bulk

In Stock

€35.96

Servo dimensions	Standard
Servo type	Analog
Thrust at 4.8V [kg/cm]	7.7
Thrust at 6.0V [kg/cm]	9.6
Speed at 4.8V [s/60st.]	0.24
Speed at 6.0V [s/60st.]	0.2
Servo gears	Metal
Ball bearings	2×
High-voltage	No
Power supply [V]	4.8 - 6
Length [mm]	40.6
Width [mm]	19.8
Height [mm]	37.8
Weight [g]	55.2
Intended for	Aeroplanes,Helicopters,On-road cars,Off-road cars,Sailing boats,Boats

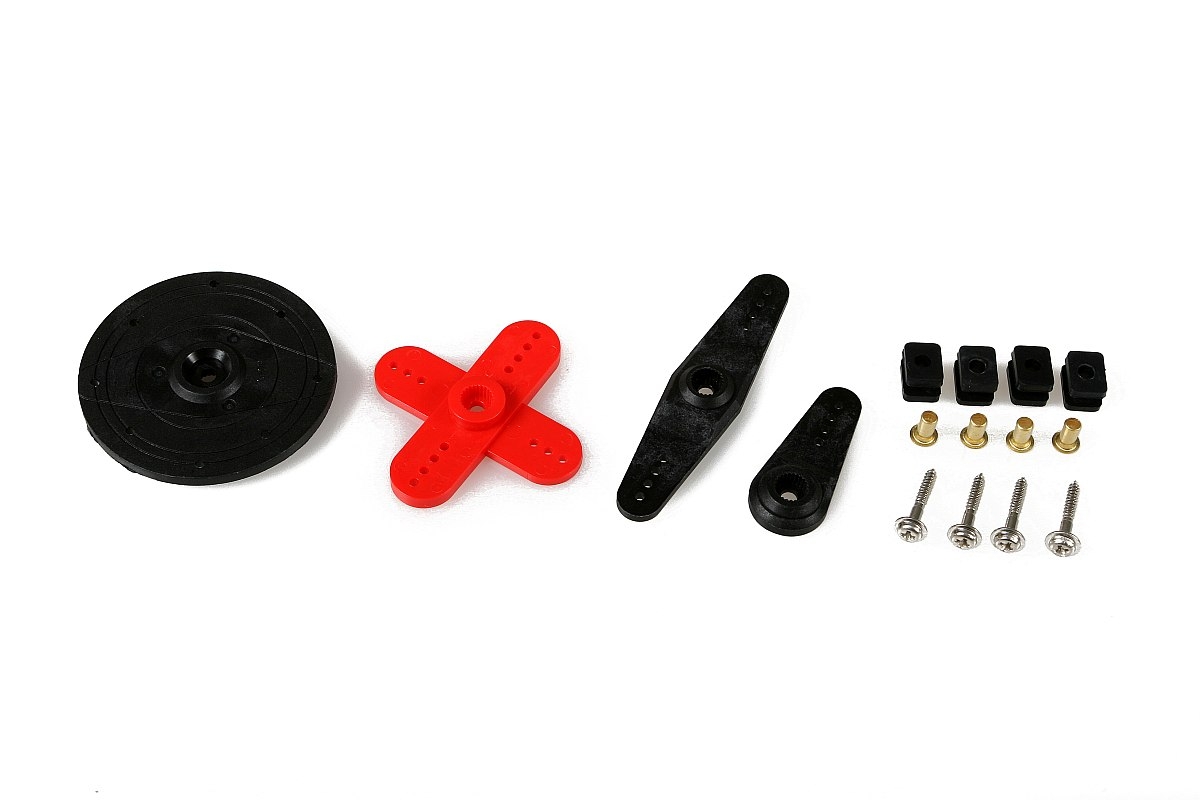

Accessories (16)

Servo arm 32mm (1,25") 25teeth M2

Servo arm 25mm (1") 25teeth M3

Servo arm 32mm (1,25") 25teeth M3

Servo arm 38mm (1,5") 25teeth M3

Servo arm 45mm (1,75") 25teeth M3

Servo arm 51mm (2") 25teeth M3

Servo arm Double 64mm (2,5") 25teeth M3

Servo arm Double 89mm (3,5") 25teeth M3

Servo arm Double 114mm (4,5") 25teeth M3

Carbon control horn 110 x 22mm

Carbon control horn 60 x 22,5mm

Carbon control horn 66 x 22,5mm

Carbon control horn 40x21mm

Carbon control horn 110 x 31mm

Carbon control horn 53 x 20mm

Servoscrew M3x6 10pcs

Download

Hitec servo manual

20.03.2012
