Code:KAV20.54MG
Barcode:8596450068049
Brand:KAVAN

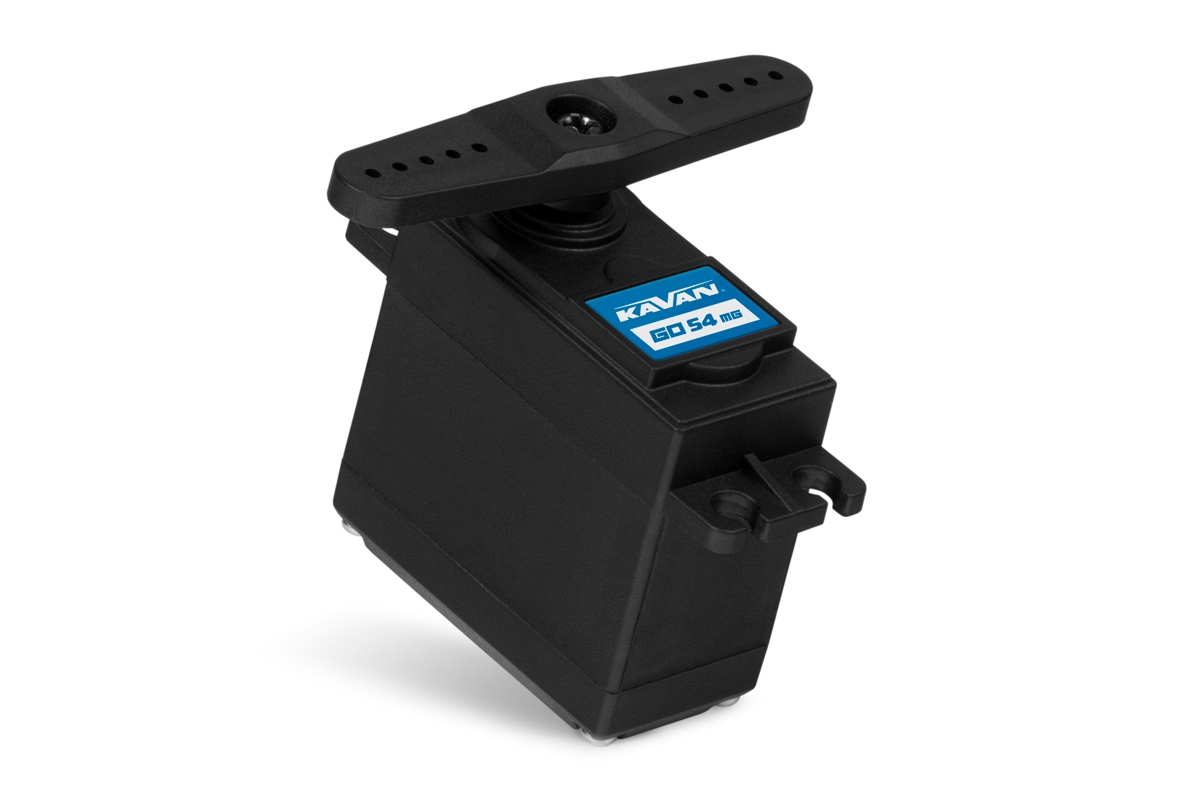

GO-54MG (0.22s/60°, 11,5kg.cm)
A high torque digital standard servo 52g with metal gear and input voltage range 4.8-6.0V, 2xBB, ideal for model aircraft, 1:10 RC cars, boats etc. Torque 10.0kg.cm, speed 0.24s/60° at 4.8V, torque 11.5kg.cm, speed 0.22s/60° at 6.0V. Dimensions 40x20x40mm, weight 55g.
On Stock
Description
Spare parts
A high torque standard digital servo with metal gear and double BB-ed output shaft for general use in all kind of RC models. A plastic case.
Non-programmable.
Standard input voltage 4.8-6.0 V (nominal).
5.92 mm/25T output shaft.
| Servo dimensions | Standard |
| Servo type | Digital |
| Programmable | No |
| Thrust at 4.8V [kg∙cm] | 10 |
| Thrust at 6.0V [kg∙cm] | 11.5 |
| Speed at 4.8V [s/60st.] | 0.24 |
| Speed at 6.0V [s/60st.] | 0.22 |
| Servo gears | Metal |
| Ball bearings | 2× |
| High-voltage | No |
| Power supply [V] | 4.8 - 6 |

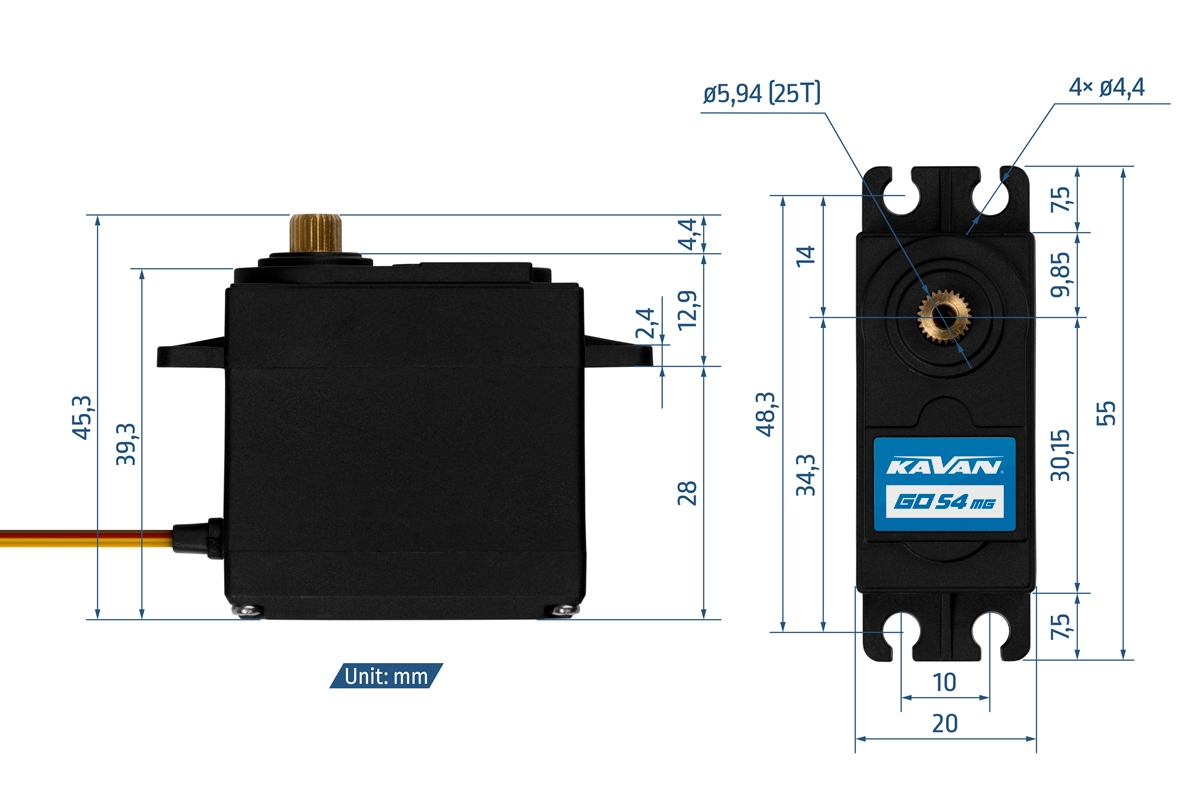

| Length [mm] | 40 |
| Width [mm] | 20 |
| Height [mm] | 40 |
| Weight [g] | 55 |
| Intended for | Aeroplanes,On-road cars,Off-road cars,Boats |

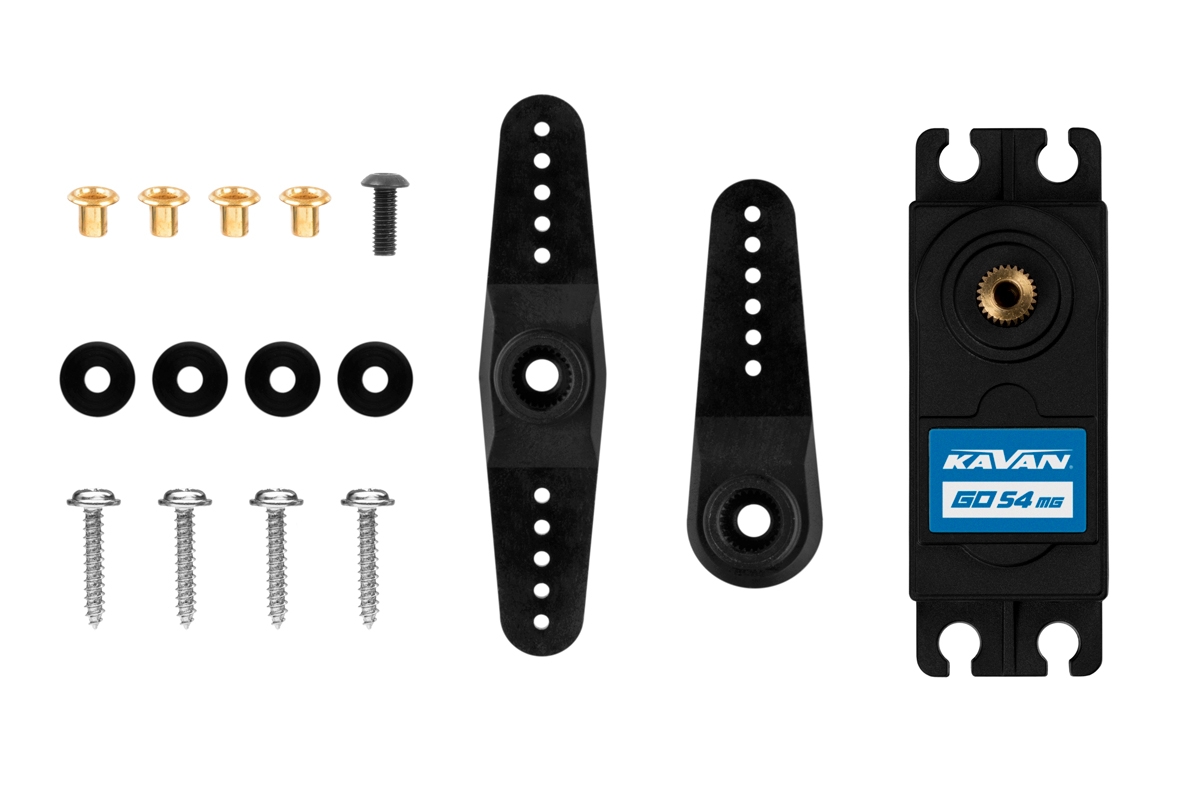

Accessories (1)
