Code:KAV20.52MG
Brand:KAVAN

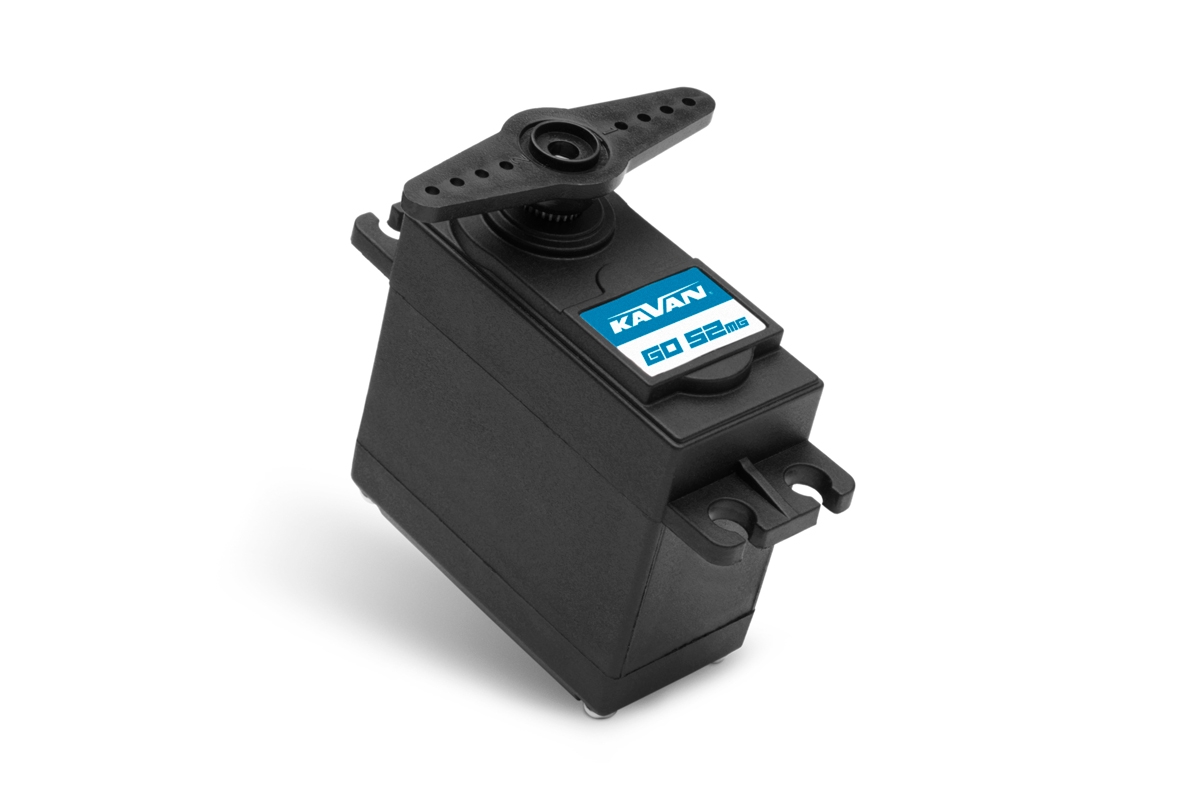

GO-52MG (0.21s/60°, 7.5kg.cm)
Digital standard servo 52g with metal gear and input voltage range 4.8-6.0V, 2xBB, ideal for model aircraft, 1:10 RC cars, boats etc. Torque 6.5kg.cm, speed 0.23s/60° at 4.8V, torque 7.5kg.cm, speed 0.21s/60° at 6.0V. Plastic case.
On Stock
Standard digital servo with metal gear aand double BB-ed output shaft for general use in all kind of RC models.
Non-programmable.
Standard input voltage 4.8-6.0 V (nominal).
25T output shaft.
| Servo dimensions | Standard |
| Servo type | Digital |
| Programmable | No |
| Thrust at 4.8V [kg/cm] | 6.5 |
| Thrust at 6.0V [kg/cm] | 7.5 |
| Speed at 4.8V [s/60st.] | 0.23 |
| Speed at 6.0V [s/60st.] | 0.21 |
| Servo gears | Metal |
| Ball bearings | 2× |
| High-voltage | No |
| Power supply [V] | 4.8 - 6 |

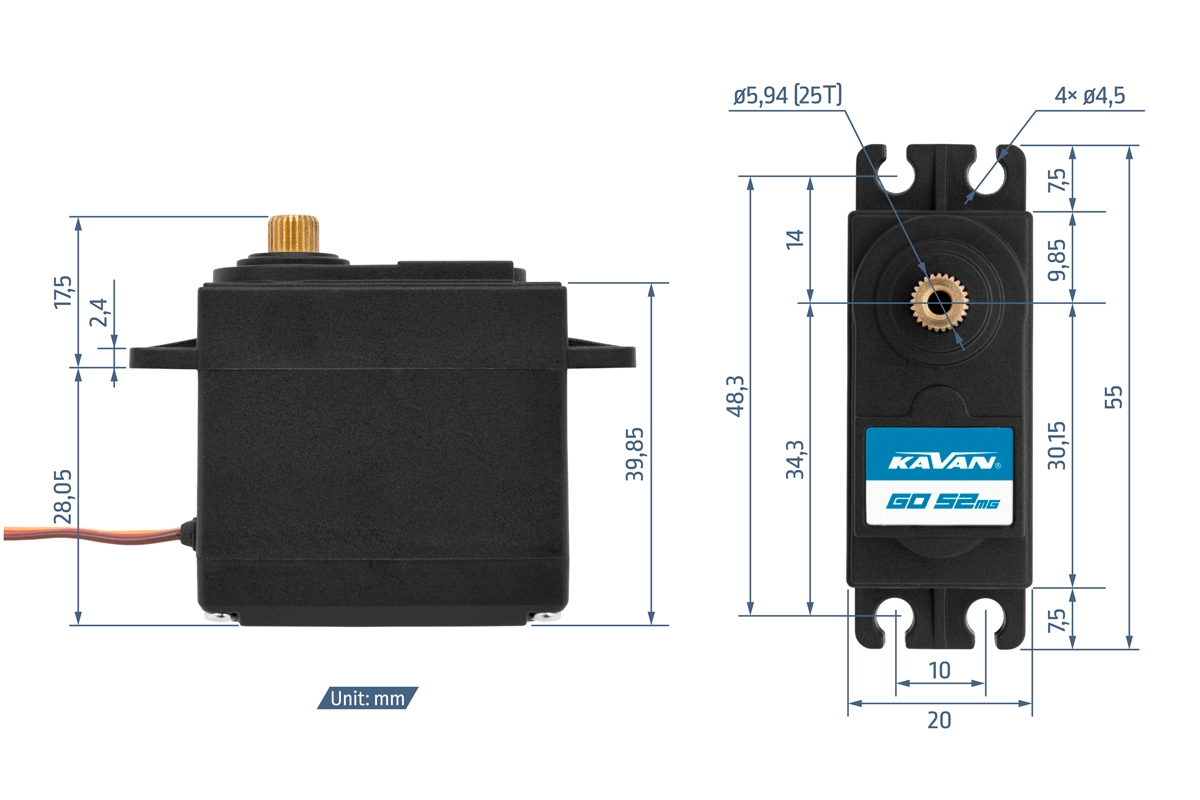

| Length [mm] | 40 |
| Width [mm] | 20 |
| Height [mm] | 40 |
| Weight [g] | 52 |
| Intended for | Aeroplanes,On-road cars,Off-road cars,Boats |

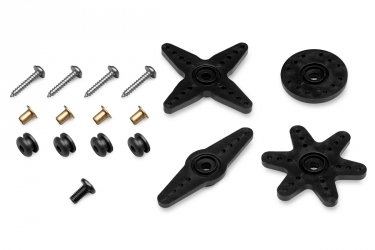

Accessories (15)

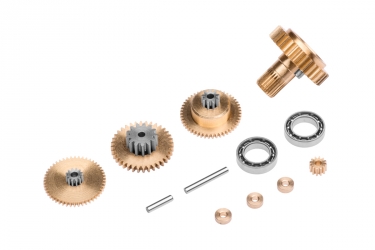

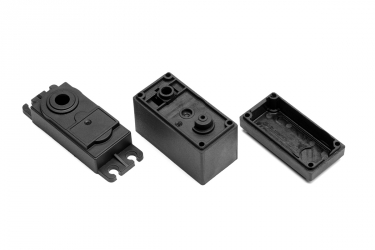

Spare parts (3)
