Code:KAV20.013
Brand:KAVAN

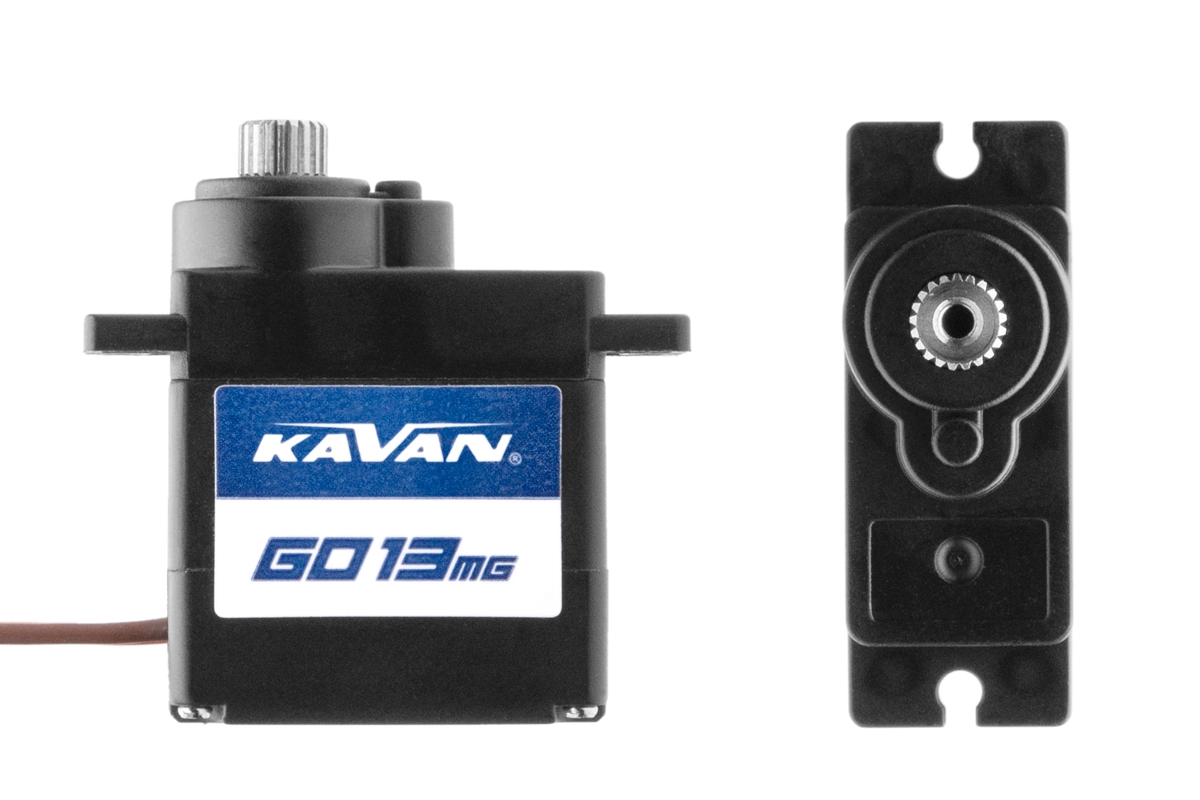

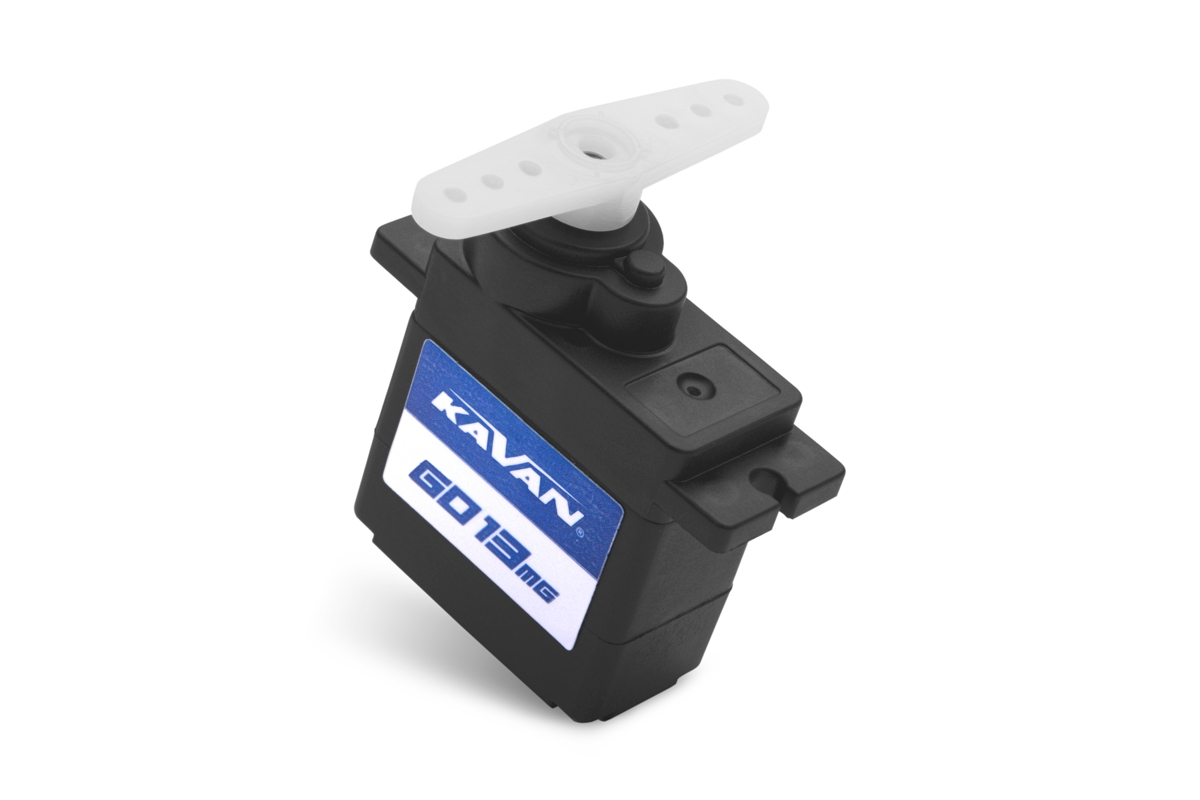

GO-13MG servo 13g (0.12s/60°, 2.8kg.cm)

Powerful 13g micro servo with metal gears and 1 ball bearing for small electrolytes and gliders. 1xBB, draft 2,0 kg / cm, speed 0,14s / 60st at 4,8 V, dimensions 23,5x12,0x28,7 mm, power supply 4,8-6V.
On Stock
€11.49
Description

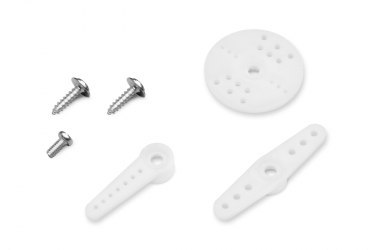

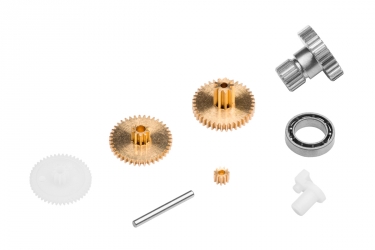

Spare parts

Servo size: Micro ; Servo type: analog ; Torque at 4.8V [kg/cm]: 2 ; Torque at 6.0V [kg/cm]: 2.2 ; Speed at 4.8V [s/60st.]: 0.14 ; Speed at 6.0V [s/60st.]: 0.12 ; Servo gears: metal ; Ball bearings: 1xBB ; Highvoltage: no ; Supply voltage [V]: 4.8 - 6 ; Lenght [mm]: 23.5 ; Width [mm]: 12 ; Height [mm]: 28.7 ; Weight [g]: 13 ; Intended for pro: airplanes,silniční auta,teréní auta,plachetnice,lodě

Servo dimensionsMicro
Servo typeAnalog
Thrust at 4.8V [kg/cm]2
Thrust at 6.0V [kg/cm]2.2
Speed at 4.8V [s/60st.]0.14
Speed at 6.0V [s/60st.]0.12
Servo gearsMetal
Ball bearings
High-voltageNo
Power supply [V]4.8 - 6
Length [mm]23.5
Width [mm]12
Height [mm]28.7
Weight [g]13
Intended forAeroplanes,On-road cars,Off-road cars,Sailing boats,Boats
