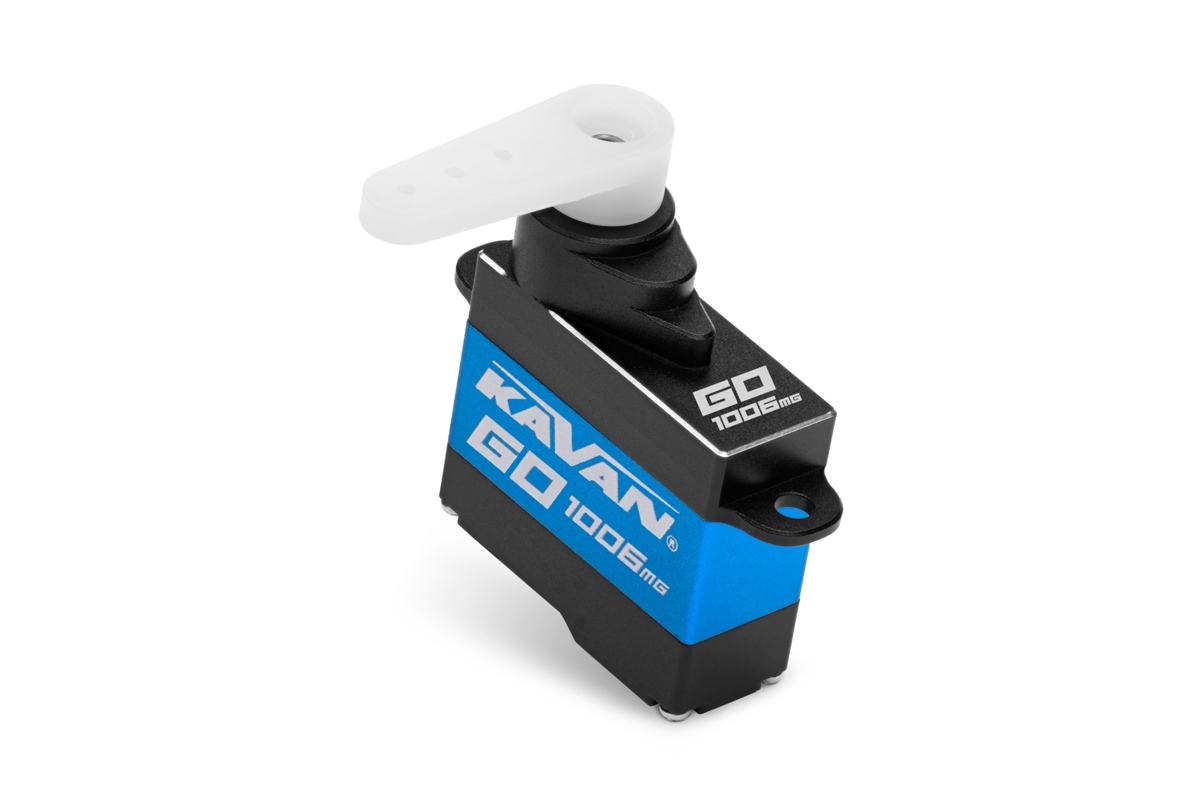

GO-1006MG (0.052s/60°, 3.0kg.cm)
High speed&torque programmable digital nano servo 7g with titanium gear and wide input voltage range 4.8-8.4V, 2xBB, ideal for small model aircraft, mini-Z and other 1:18-1:24 RC cars etc. Torque 1.8kg.cm, speed 0.075s/60° at 4.8V, torque 3.0kg.cm, speed 0.052s/60° at 8.4V. Aluminium case for perfect cooling under high load.
On Stock
€51.59
Description

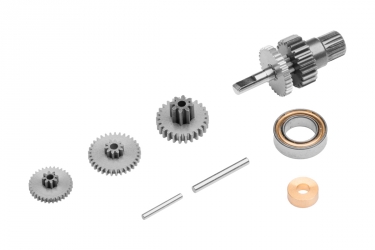

Spare parts
Video
High speed&torque programmable digital nano servo with titanium gear and single BB-ed output shaft for small RC model planes, micro helicopters, mini-Z and other 1:18-1:28 RC cars etc. Plastic case with middle aluminium heatsink for perfect cooling under high load.
GO-1006MG is programmable using the KAVAN GO servo USB programmer/interface and PC software.
Programmable Functions
- Servo Angle: Maximal servo rotation angle range setting. The default range is ca 120° within the regular RC signal pulse width range (900~2100 µs); ca 180° within the max. signal pulse width range (500~2500 µs).
- Servo Neutral: Servo neutral (centre) position setting.
- Damping Factor: Servo damping setting – adjust the characteristics of the servo when stopping.
- PWM Power: Adjusts the servo output power. The higher the power, the higher the speed and torque of the servo – indeed also the current consumption will be higher.
- Sensitivity: Servo sensitivity (Dead Band) setting. The higher sensitivity the narrower the dead band – servo moves only if the change of the signal pulse width is bigger than the dead band width. Too high setting may cause servo jitter in some applications. Range: Ultra High (ca 1 µs dead band) – High (ca 2 µs) – Medium (ca 3 µs) – Low (ca 4 µs)
- Soft Start: Turns on/off the soft start feature. If ON, the servo goes slowly to the initial position corresponding to the servo signal once the power is switched on.
- Reverse: Reverses the servo movement direction.
- Narrow Band: FUTABA SR Mode – only for use with FUTABA radio channels working in the SR mode. Do not turn the option on if you are using a different setting of your FUTABA radio or any other radio.
- SANWA SSR: SANWA SSR Mode - only for use with SANWA radio channels working in the SSR mode. Do not turn the option on if you are using a different setting of your SANWA radio or any other radio.
- Lost PPM Protection (Fail-Safe): In the case the control signal from the receiver is lost completely or cannot be decoded correctly (due to interference) the servo can use choose one of three fail-safe modes:
- (a) Release: No fail-safe protection.
- (b) Keep Position: Keeps the position corresponding to the last correct control signal.
- (c) Go Neutral Position: The servo returns to the neutral (1500 µs pulse width) position.
- Over Load protection: Enables or disables overload protection of the servo in three levels – once the overload conditions last for the pre-set time (in seconds), the output power of the servo is reduced to the corresponding pre-set level (% of the max. power).
- Default: Restores the factory default setting of the connected servo.
Wide input voltage range 4.8-7.4 V (nominal).
20T/4.0 mm output shaft.
Servo dimensions | Micro |
Servo type | Digital |
Programmable | Yes |
Thrust at 4.8V [kg/cm] | 1.8 |
Thrust at 6.0V [kg/cm] | 2.2 |
Thrust at 8.4V [kg/cm] | 3 |
Speed at 4.8V [s/60st.] | 0.075 |
Speed at 6.0V [s/60st.] | 0.066 |
Speed at 8.4V [s/60st.] | 0.052 |
Servo gears | Titanium |
Ball bearings | 1× |
High-voltage | Yes |
Power supply [V] | 4.8 - 8.4 |

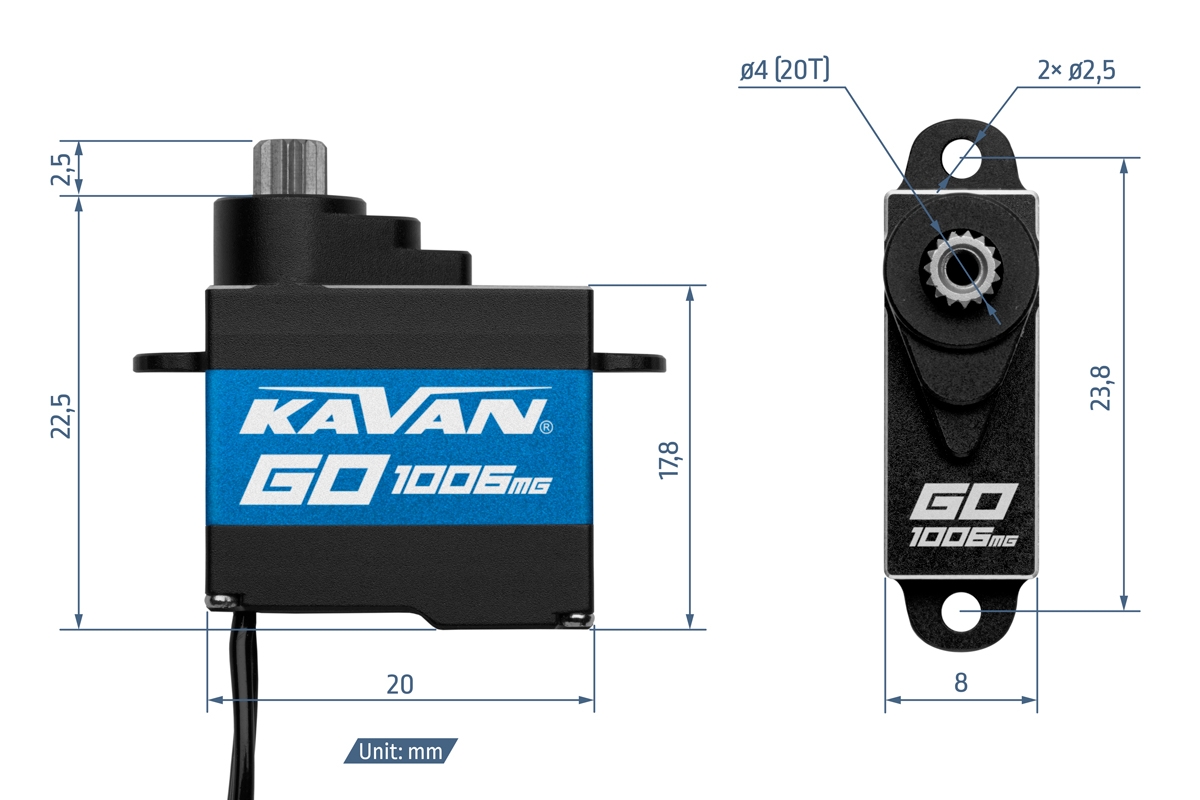

Length [mm] | 20 |
Width [mm] | 8 |
Height [mm] | 17.8 |
Weight [g] | 7 |
Intended for | Aeroplanes,Helicopters,On-road cars,Off-road cars,Boats |

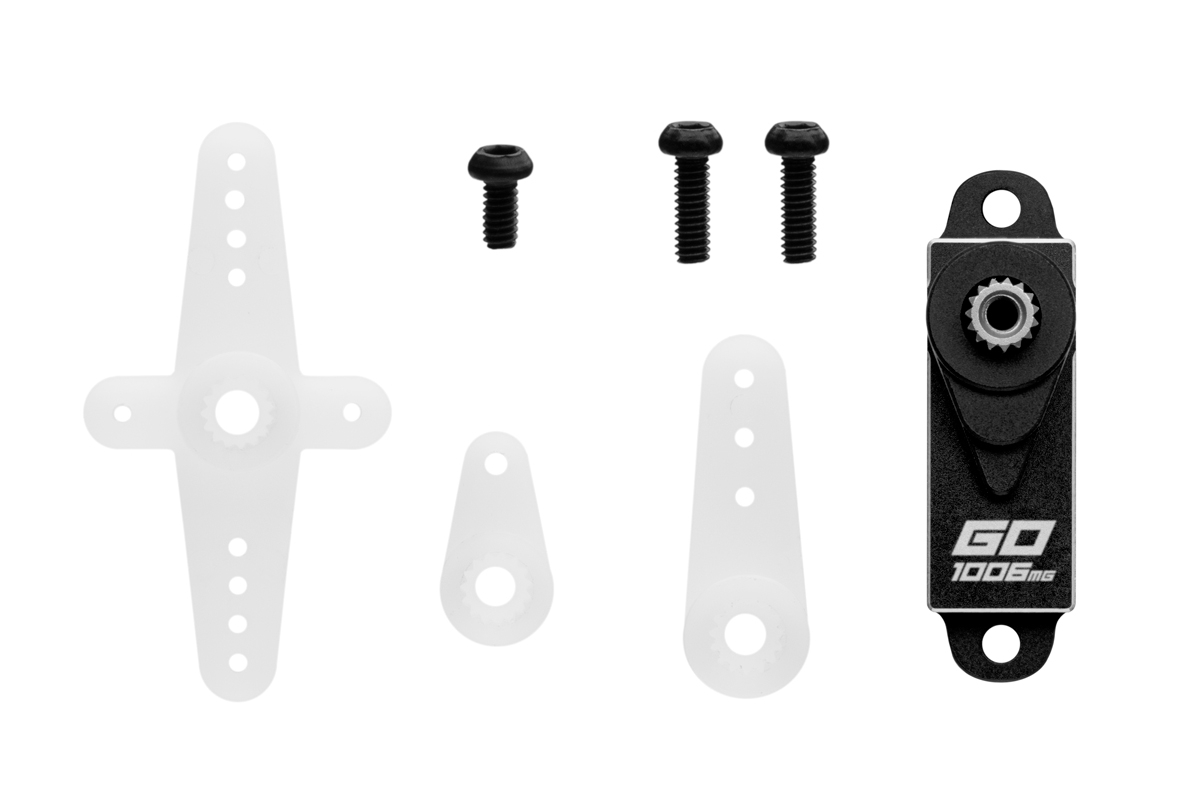

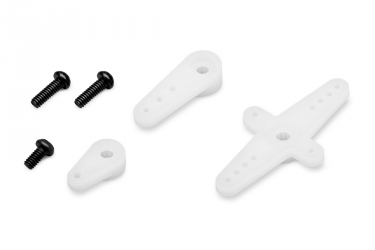

Accessories (1)
