Code:KAV20.004
Barcode:8596450068018
Brand:KAVAN

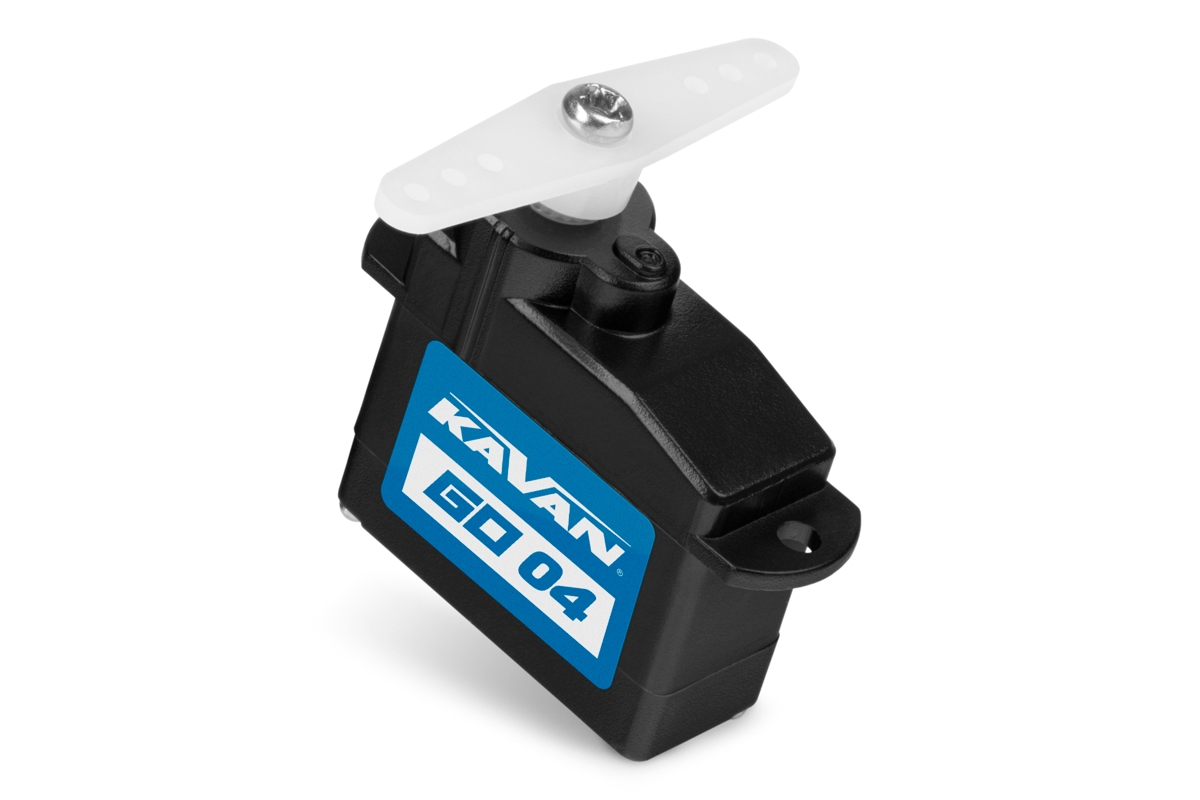

GO-04 Digital Servo (0.06s/60°, 0.55kg.cm)

A high speed digital 3.8g micro servo with plastic gears for small and light electric planes and gliders. Torque 0.45 kg.cm, speed 0.08s/60° at 4.8 V, torque 0.55 kg.cm, speed 0.06s/60° at 4.8 V, dimensions 20.2x8.5x17.3 mm, weight 3.8g, input voltage 3.6–6.0 V.
On Stock
€7.96
Description

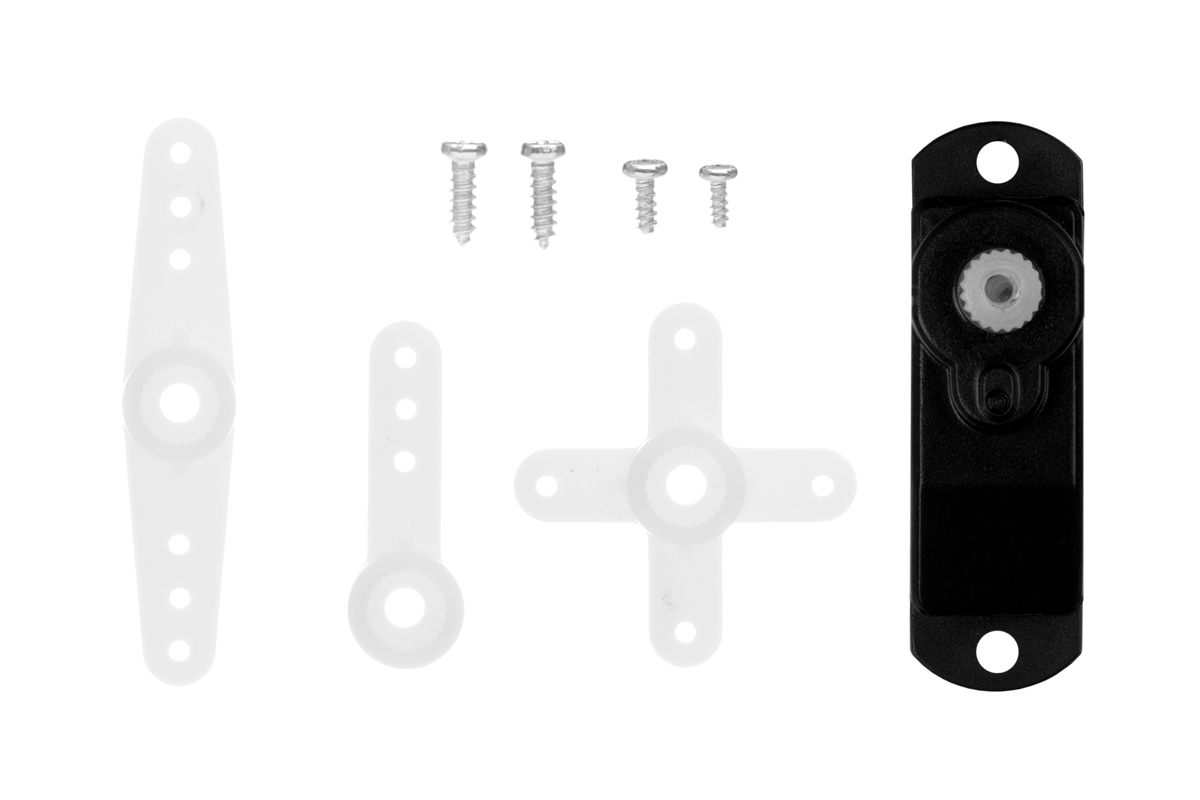

Spare parts

A high speed digital micro servo with plastic gear for small and light RC model planes, micro helicopters, 1:35 RC cars, small boats etc. Plastic case.

Non-programmable.

Standard input voltage range 3.6-6.0 V (nominal) - can be operated reliably on 1S LiPo battery.

Servo dimensionsMicro
Servo typeDigital
ProgrammableNo
Thrust at 4.8V [kg∙cm]0.45
Thrust at 6.0V [kg∙cm]0.55
Speed at 4.8V [s/60st.]0.08
Speed at 6.0V [s/60st.]0.06
Servo gearsPlastic
Ball bearingsNone
High-voltageNo
Power supply [V]3.6 - 6

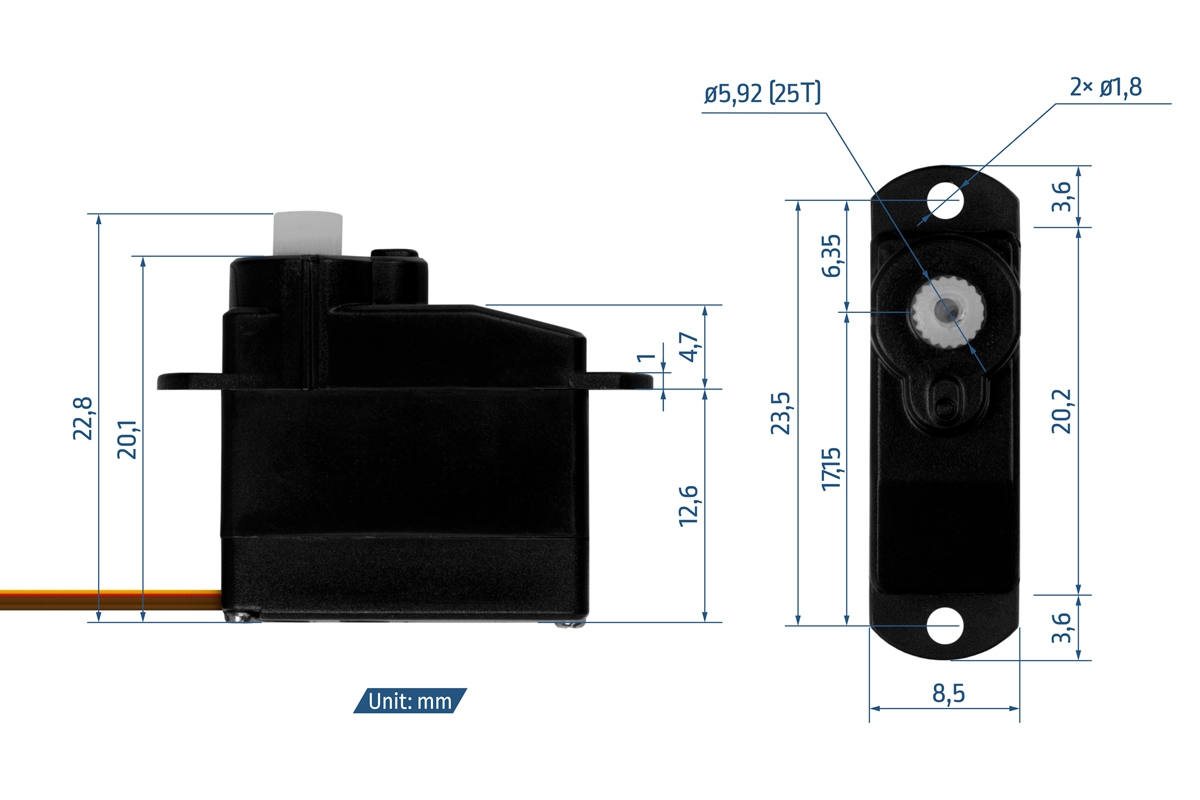

Length [mm]20
Width [mm]8.5
Height [mm]17.3
Weight [g]3.8
Intended forAeroplanes,Helicopters,On-road cars,Boats
