Code:OS3A010
Barcode:4531028025493
Brand:OS MAX

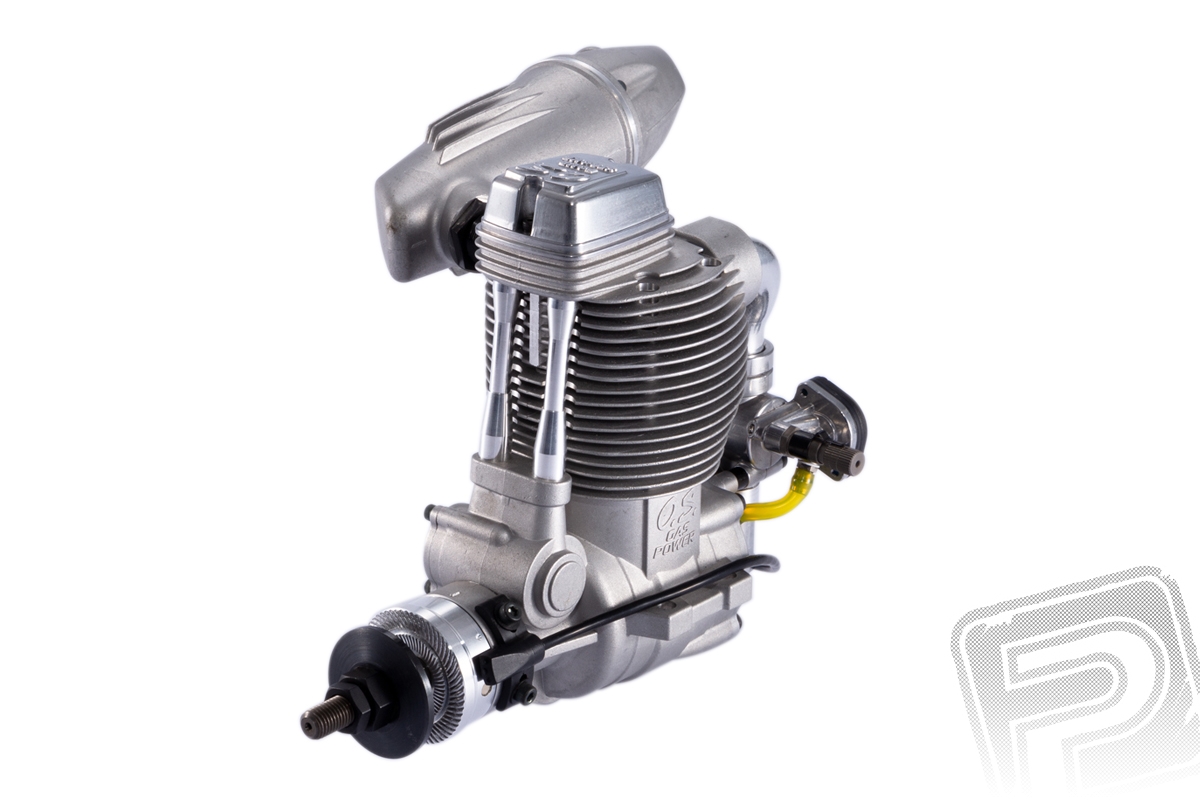

GF30 II W/F-6040 silincer

This item is not available in you region (United States)
Description
Spare parts
Video
Displacement [ccm]29.94
Cylinder count1
Bore [mm]38
Stroke length [mm]26.4
Operating RPM [ot./min]1800 - 9000
Motor power (při 8600 ot./min) [kW]2.06
Power (při 8600 ot./min) [HP]2.8
Weight (motor) [g]1010
Weight (tlumič) [g]113
Weight (zapalování) [g]95
Recommended spark plugRcexl 1/4-32
Recommended tank volume [ml]220 - 300
Propeller nut threadUNF 5/16-24
Accessories (13) Spare parts (75)
Throttle Lever Retaining Screw
Fuel Inlet (Nipple No.1)
Set-screw
Ratchet Spring
Needle valve holder assy 20C.60U.70D.40J
Throttle Lever Assembly
CRANK PIN STOP SCREW GT22
Needle Valve Assembly
"O" Ring (S) (2pcs.)
"O" Ring (L) (2pcs.)
Needle Assembly
Propeller Washer
Lock nut set GT33.GF30

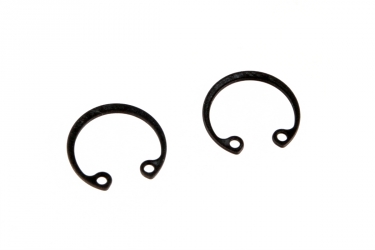

Piston pin retainer GT33.GT22
BALL BEARING(R) 61-91F.FX.FR
Cover Gasket
Crankshaft Ball Bearing (Front)
Crankcase Plug
"O" Ring
Rocker Arm (1pc.)
Cam Cover
"O" Ring
Piston Ring
Head Gasket (2pc.)
Rocker Cover Gasket
Silencer Gasket (2pcs.)
Exhaust header pipe assy FS-200S, GF30
Exhaust header nut FS-200S, GF30
Tappet Adjusting Screw (1pair)
Camshaft
Cam Follower (2pcs.)
Camshaft Ball Bearing (1pc.)
Woodruff Key
Thrust Washer
Split Cotter (2pcs.)
Push Rod Cover "O" Ring (2pcs.)
Roter Guide Screw
Rocker Arm Retainer (2pcs.)
PCV Valve Set
F-6040 Silencer Assembly
Silencer Body
Intake Valve (1pc.)
Exhaust Valve (1pc.)
Valve Spring (1pc.)
Valve Spring Retainer (1pc.)
Rocker Support
Push Rod Cover (1pc.)
Crankcase
Crankshaft
Cylinder Liner
Piston
Cylinder Head (W/Gasket)
Rocker Cover
Connecting Rod
Piston Pin
Drive Hub
Intake Manifold Gasket (2pcs.)
Push Rod (2pcs.)
Intake Manifold
Thermo Insulator (2pcs.)
Carburetor Rotor 70T2
Carburetor Gasket (2pcs.)
Mixture Control Valve Assembly
Carburetor Body
Spark plug 1/4-32 (RCE)
Pump Unit PD-09
Rotation sensor GT22-33-60
Rotation Sensor Retaining Screw Set (2pcs.)
Ignition module (IG-07) GF30
M2.6x7
M2.6x10
Silencer Assembly Screw (4pcs.)
M3.5x20 Cap Screw Set (10pcs.)
Cover Plate Retaining Screw (4pcs.)
Rocker Support Retaining Screw (1pc.)
