Servo dimensions | Micro |
Servo type | Analog |
Thrust at 4.8V [kg/cm] | 1.5 |
Thrust at 6.0V [kg/cm] | 1.7 |
Speed at 4.8V [s/60st.] | 0.1 |
Speed at 6.0V [s/60st.] | 0.09 |

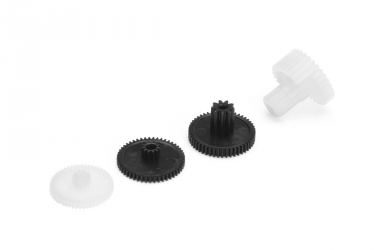

Servo gears | Plastic |
Ball bearings | None |
High-voltage | No |
Power supply [V] | 4.8 - 6 |
Length [mm] | 22 |
Width [mm] | 11 |
Height [mm] | 20 |
Weight [g] | 7.8 |
Intended for | Aeroplanes,Helicopters,Boats |
S.BUS | No |
S.BUS2 | No |
SR mode | No |
