Code:FUT510272
Barcode:4513886038020
Brand:Futaba

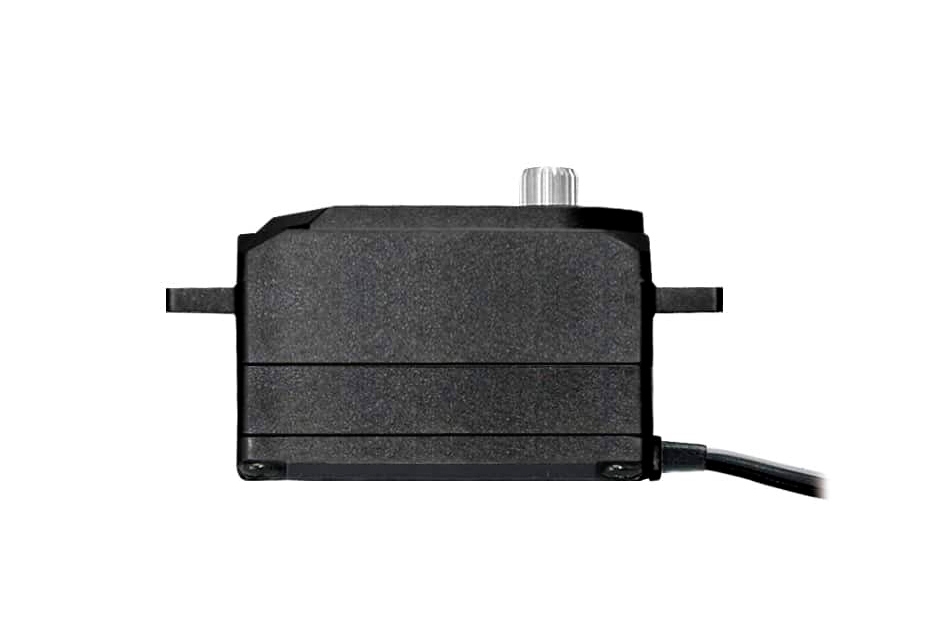

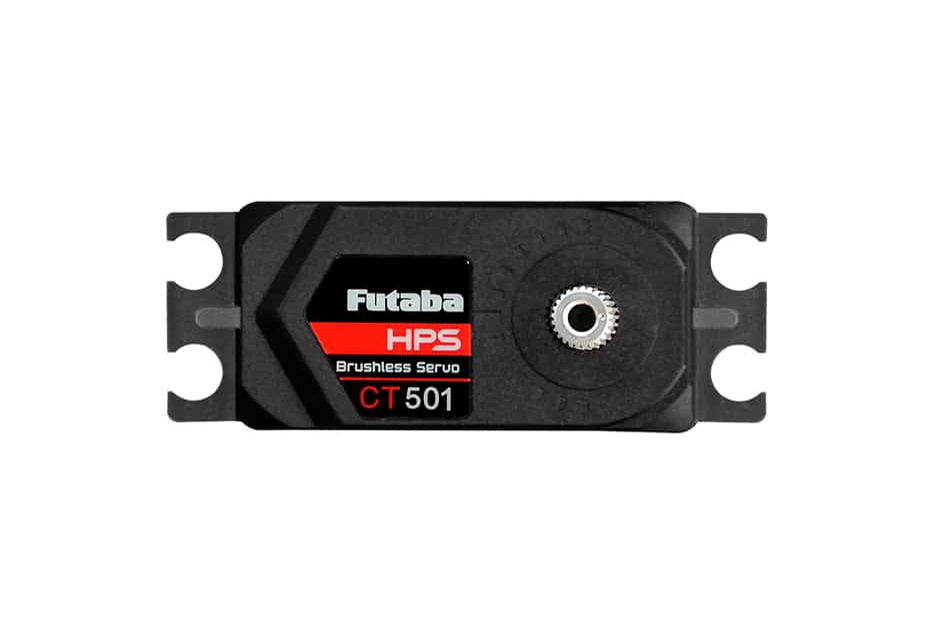

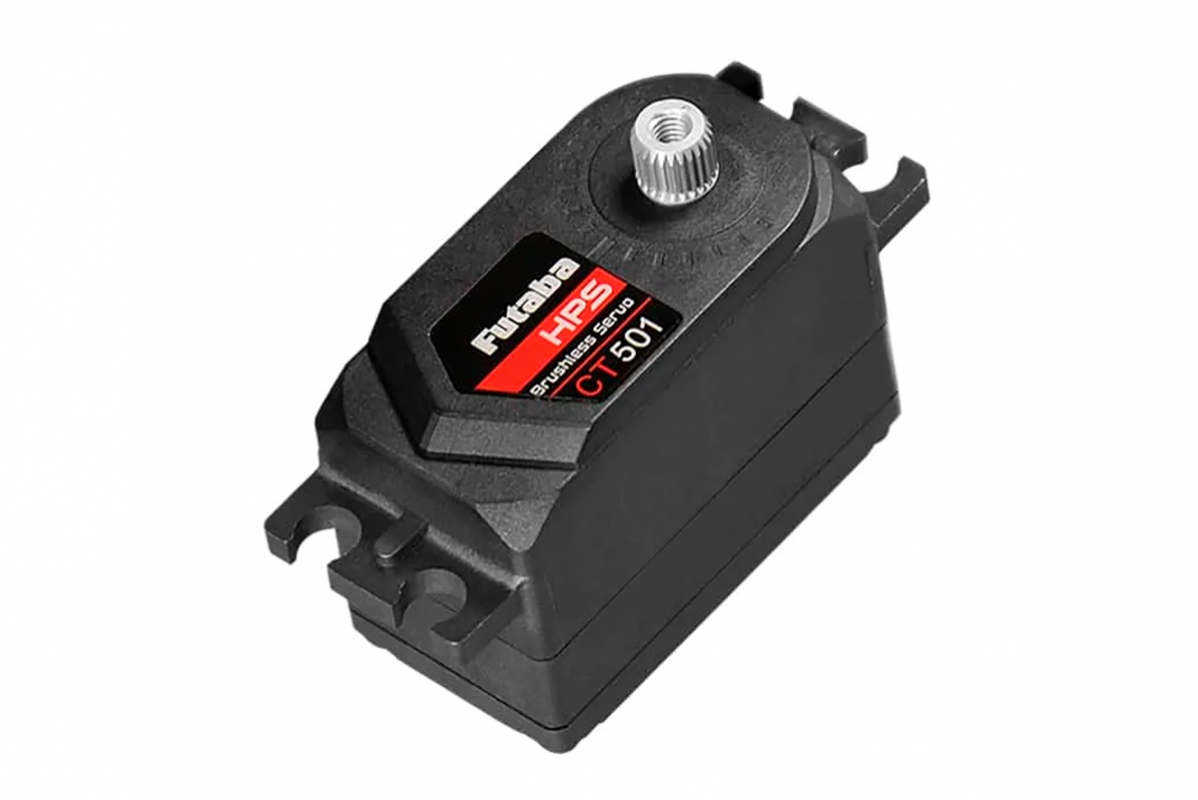

Futaba HPS-CT501 (21,1kg 0,060s/60°)
This item is not available in you region (United States)
Description
Spare parts
| Servo dimensions | Standard |
| Servo type | Digital |
| Torque at 6.0V [kg∙cm] | 17.1 |
| Torque at 7.4V [kg∙cm] | 21 |
| Speed at 6.0V [s/60st.] | 0.07 |
| Speed at 7.4V [s/60st.] | 0.06 |
| Servo gears | Metal |
| Ball bearings | 2× |
| High-voltage | Yes |
| Power supply [V] | 4.8 - 8.4 |
| Length [mm] | 40.5 |
| Width [mm] | 21 |
| Height [mm] | 26.9 |
| Weight [g] | 44 |
| Intended for | On-road cars,Off-road cars |
| S.BUS | Yes |
| S.BUS2 | Yes |
| SR mode | Yes |
| UR Mode | Yes |
