Futaba FX-36, RX R7208SB

This item is not available in you region (United States)

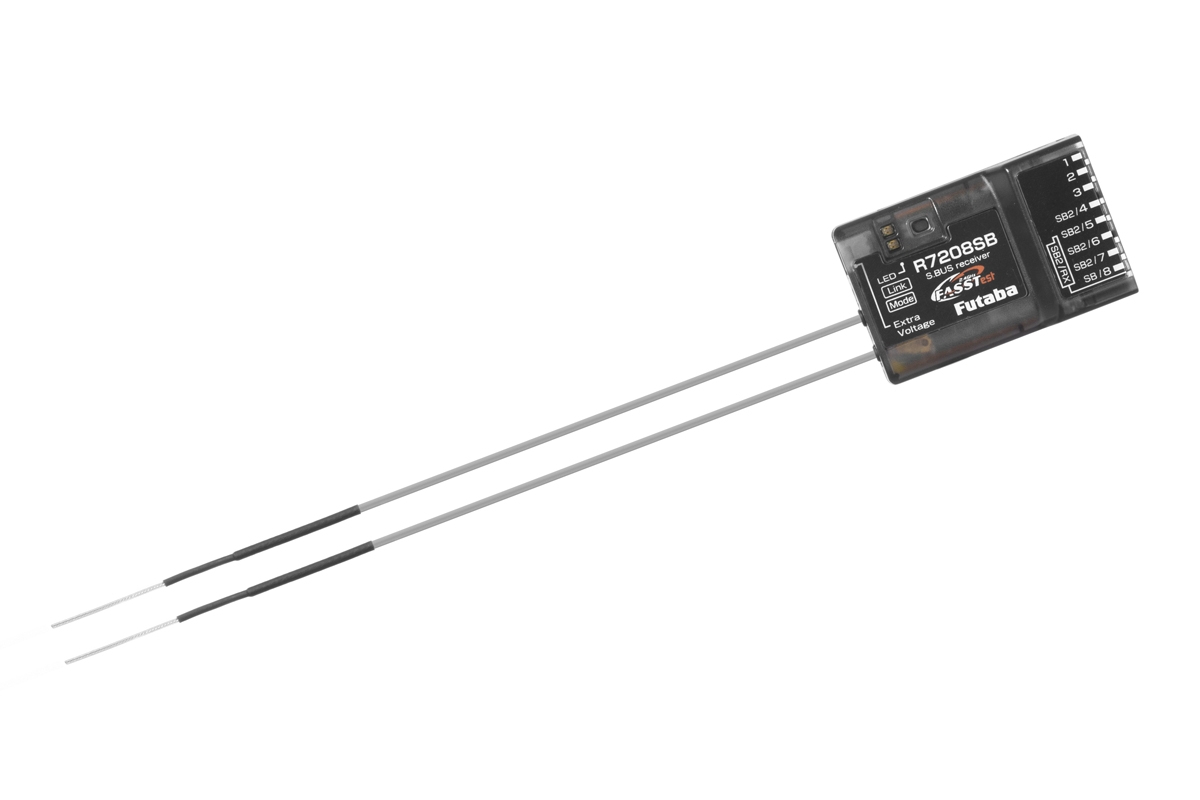

Advanced 18-channel tray-style RC set using FASSTest-2.4GHz telemetry transmission system for sport and advanced recreational modellers and their simple, complex and giant models. The transmitter can also be switched to T-FHSS Air (also telemetry), FASST Multi/7ch and S-FHSS transmission modes to use the full range of Futaba aircraft receivers with and without telemetry. With the R7208SB receiver included in the kit, you have 8 PWM channels for conventional servos (or 16 channels when using the 2-receiver mode) or the full 18 channels via the S.BUS and S.BUS2 buses; as well as telemetry data on receiver supply voltage, the voltage of an additional external (e.g. drive) battery and signal strength received by the receiver. Additional telemetry data can be obtained from additional telemetry sensors connected to the S.BUS2 bus.

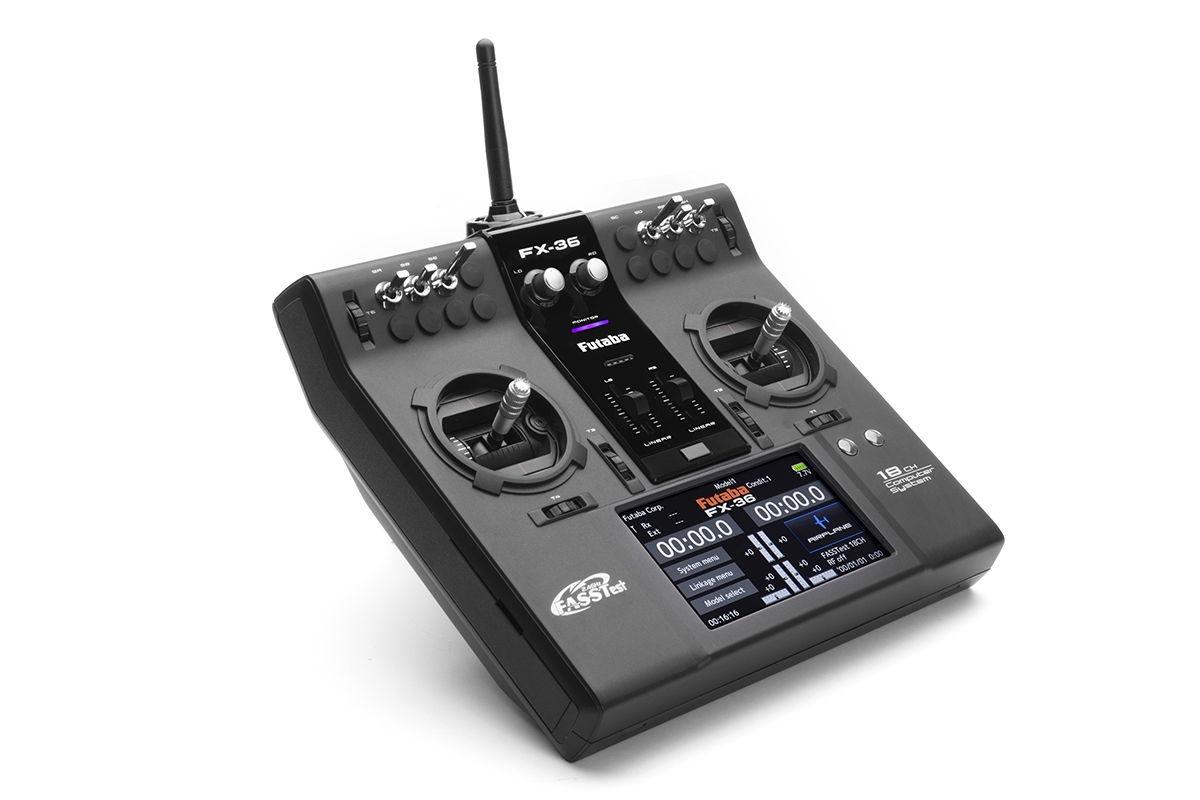

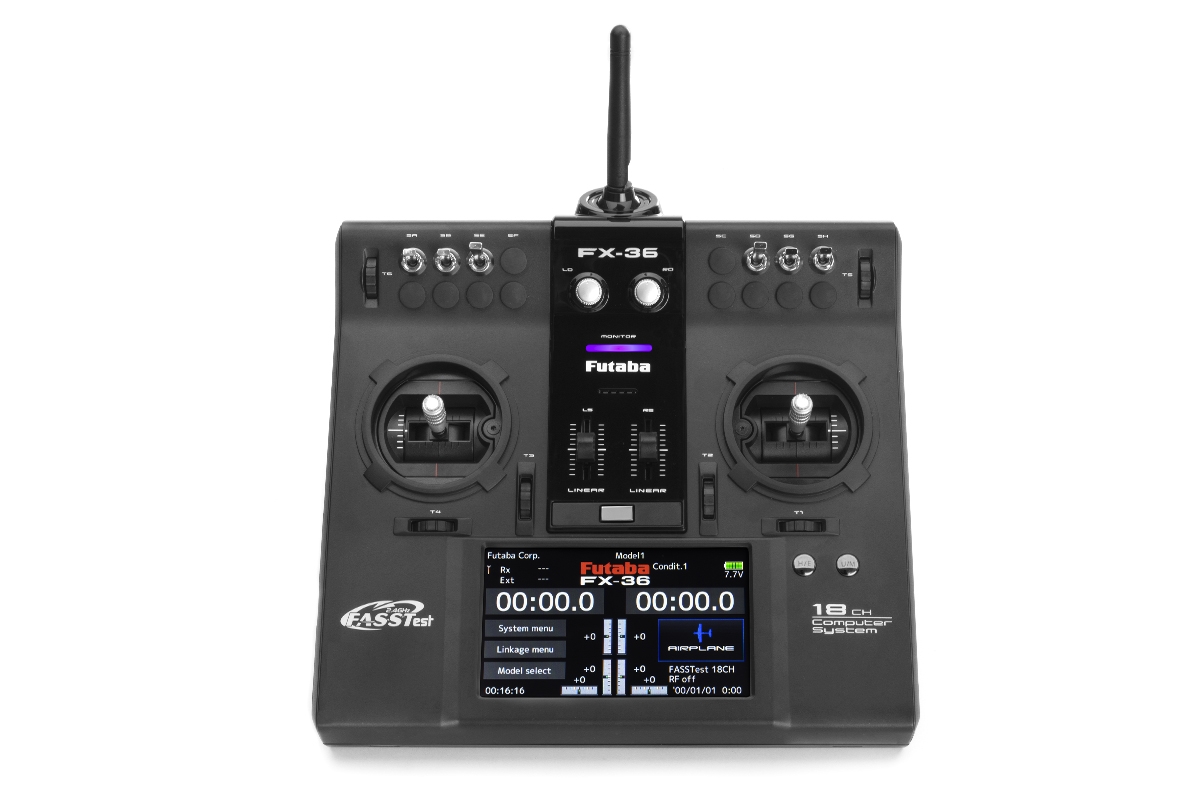

The FX-36 transmitter in a perfect tray-fit features precision sticks with adjustable ratchet/self-centring, 6 toggle switches, 2 slide switches, 6 digital dial trims and 2 proportional dials. The transmitter offers the option of installing additional lever switches or switches in the sticks. A pair of push buttons and a large backlit colour LCD touchscreen for easy orientation in the intuitive menu are used for programming. The FX-36 has a memory for 30 models unlimitedly expandable via SD card, and has a wide range of advanced mix functions for aerobatic aircraft, gliders, helicopters and multicopters. In addition to displaying telemetry data on the screen, there is a voice output of telemetry in the headphone socket (not included in the kit). The FX-36 is equipped with a trainer socket and allows programming and setting of S.BUS servos.

A 6-cell 1800 mAh NiMH battery or a 2S 2200 mAh LiFe battery (sold separately) can be used for power.

FEATURES

Transmission system FASSTest 18CH with telemetry (16 proportional + 2 switched channels), superfast FASSTest 12CH (12 channels, telemetry only receiver supply voltage), FASST MULTI (16+2 channels without telemetry, FASST 7CH (7 channels), T-FHSS Air with telemetry, S-FHSS 2.4GHz without telemetry
Colour backlit 4.3" LCD touch screen for quick and easy programming
Up to 8 flight modes for perfect control of your model in all conditions
Full telemetry with data transfer from a wide range of sensors with the ability to write to an SD card
Memory for up to 30 models infinitely expandable via SD card
Power: NiMH transmitter battery 7.2 V 1800 mAh or 2S LiFe 6.6 V 2200 mAh
Telemetry voice output through a 3.5 mm jack
Updateable software
Freely assignable 2 slide and 2 rotary dials, 6 switches, 6 digital rotary trims
Expansion options: 2x toggle switches (2- or 3-position), 2x toggle switches for sticks (2- or 3-position, push button)
Precision sticks on 4 ball bearings
Trainer socket
Socket for programming S.BUS servos
Model names with up to 15 characters
Subtrims
Reversing of the servo operation direction
Setting endpoints and rate limiters
Servo speed setting
Resetting data
Emergency fail-safe rates
Servo speed settings
Dual rates
Set the rate progression along 2 exponential curves or 17-point curves.
Freely programmable mixes (10 mixes for each flight mode)
Engine shutdown
Safe idling
Logically linked switches
User menu (allows selection of only a few of the most used programming functions for clarity)
Servo monitor and servo tester
Two timers (stopwatch or timer)
Model operating time
Transmitter operating time
Throttle stick position indication when switched on
Adjustable display backlight
Calibration of sticks
Warning signal - sound and vibration
Range control
2-receiver operation mode setting
