FOXY G3 Brushless Motor C2208-1000

The FOXY G3 motors are brushless 14-pole rotary casing electric motors with excellent electrical properties, a very sophisticated design and high-end manufacturing. Hardened steel shafts and high-quality bearings ensure a long service life, while the quality of materials used to make the stator on the rotor also guarantee excellent performance at a high efficiency. They are low-speed, high-torque engines that handle large diameter propellers and pitches without the need for gearboxes.

The FOXY G2 C2208-1000 is a miniature brushless motor designed to drive small models of up to 450 g in weight, powered by a 2-cell or 3-cell Li-po battery. With his help you can successfully "electrify" such as large rubber boots from Guillow's or Dumas kits with a span of about 800-1200 mm, is also great for Dumas park-flyers.

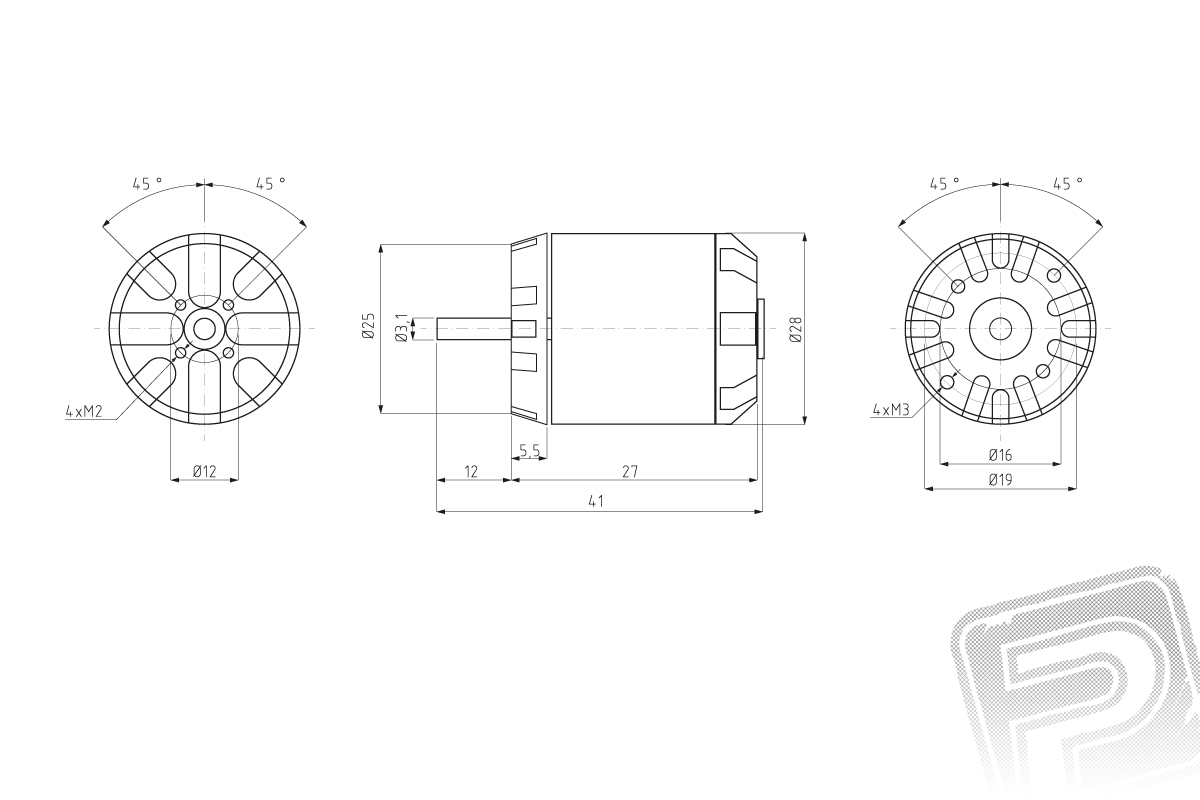

Engine Mounting: The FOXY G3 C2208-1000 is designed for both front and rear mounting. For front mounting at the front of the motor, use at least two (opposite) or four M3 bolts that extend into the front of the motor within 3 - 4 mm. The pairs of mounting screw holes in the motor front are regularly spaced 180 ° on 16 and 19 mm diameter circles. The engine bulkhead should be made of 2 mm aviation plywood. The rear mounting kit (mounting cross, tail propeller) is supplied with the engine.

Engine set includes: FOXY G3 C2208-1000 engine with 3.5mm gold-plated soldered cables, rear mounting kit, instruction manual.

Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 1000 ; Max. power (30 s/3S LiPo) [W]: 120 ; No load current (2S) [mA]: 400 ; Max. peak current (30 s) [A]: 14 ; Diameter [mm]: 27.8 ; Length [mm]: 28 ; Shaft diameter [mm]: 3.175 ; Weight [g]: 51 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 18 - 20 ; Sailplane up to Weight [g]: 450 ; Trainer up to Weight [g]: 450 ; Acrobat up to Weight [g]: 400 ; 3d up to Weight [g]: 330
