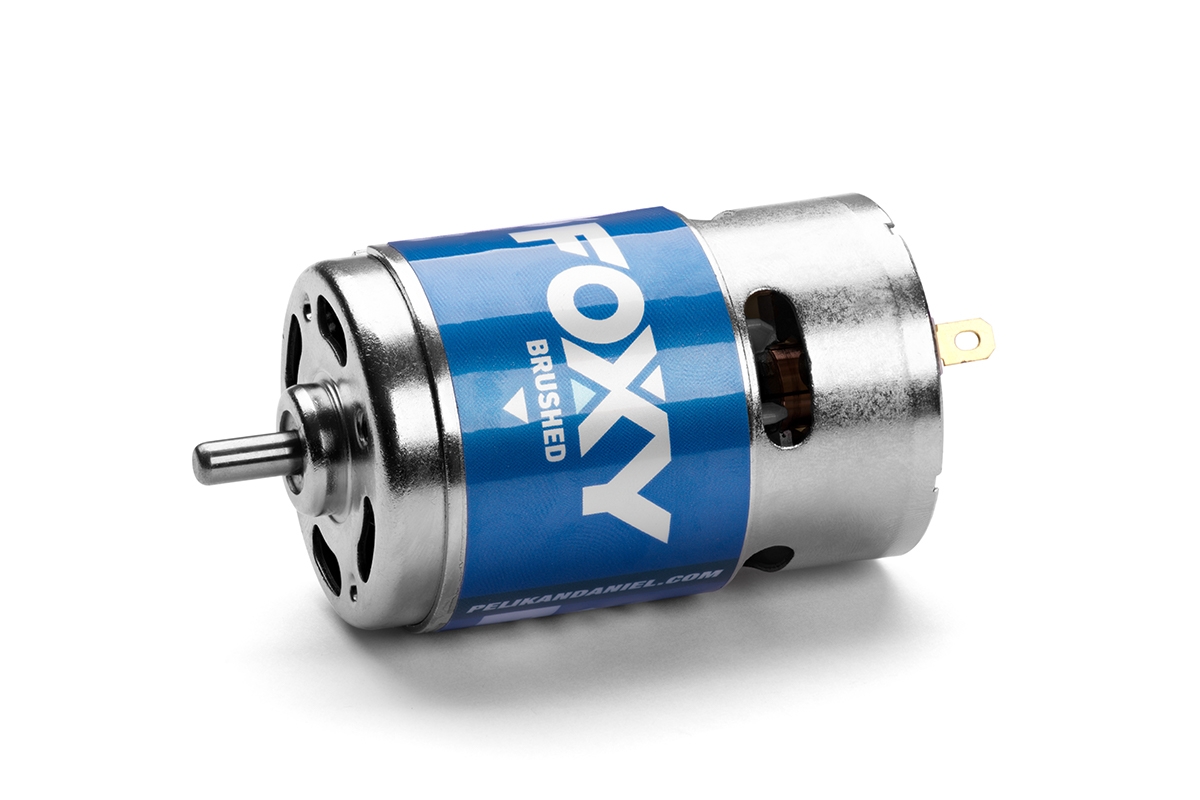

FOXY 700 Race 9.6V brushed motor

Brushed electric motors of „FOXY Brushed“ range are perfect for a whole lot of model builder's applications - for powering aircraft, boat, car, tank and other ground vehicle models either with direct drive or with a  gearbox.
When connecting and installing foxy motors, pay attention to the allowed voltage and load current limit.

Motor cooling: operating temperature of the housing shouldn't exceed 80°C. The model should always have sufficient air intake and air-flow around the motor. For boat models, we recommend using water cooling.  High motor loads are possible only for short periods. After every driving/riding/flying session, you should let the motor cool down to a room temperature before the next ride/flight/drive.

FOXY 700 Race 9.6V is a brushed electric motor size "700" with a shaft with a diameter 5.0mm and plain bearings. It is suitable for powering aircraft models with direct drive (9x4" propeller) or with a gearbox for a small car and boat models (35–40mm propeller).

For controlling the RPM, you will need an ESC with a load capacity of 60–80A.

FOXY 700 Race 9.6V is a suitable replacement for a motor SPEED 700 Race 9.6V (product number 6318).

Set contains:

• Brushed electric motor FOXY 700 Race 9.6V
• User manual
