Electric Fuel Pump 24V
On Stock
Geared Electric Fuel Pump
The KAVAN pump has a special seal that resists petroleum substances such as petrol, alcohol, kerosene, etc. Of course, you can use distilled water and other non-aggressive substances.
For intermittent use pumping model glow fuel, water and in commercial/ industrial applications. This high-quality pump is self-priming and very versatile. It can pump in forward or reverse direction; hook the pump to a power panel switch or use a DPDT (double pole-double throw) switch.
The lapped brass gears ensure the durability of the pump. For optimal performance, mount the pump vertically (as shown in the picture). This ensures that the gears remain moist.

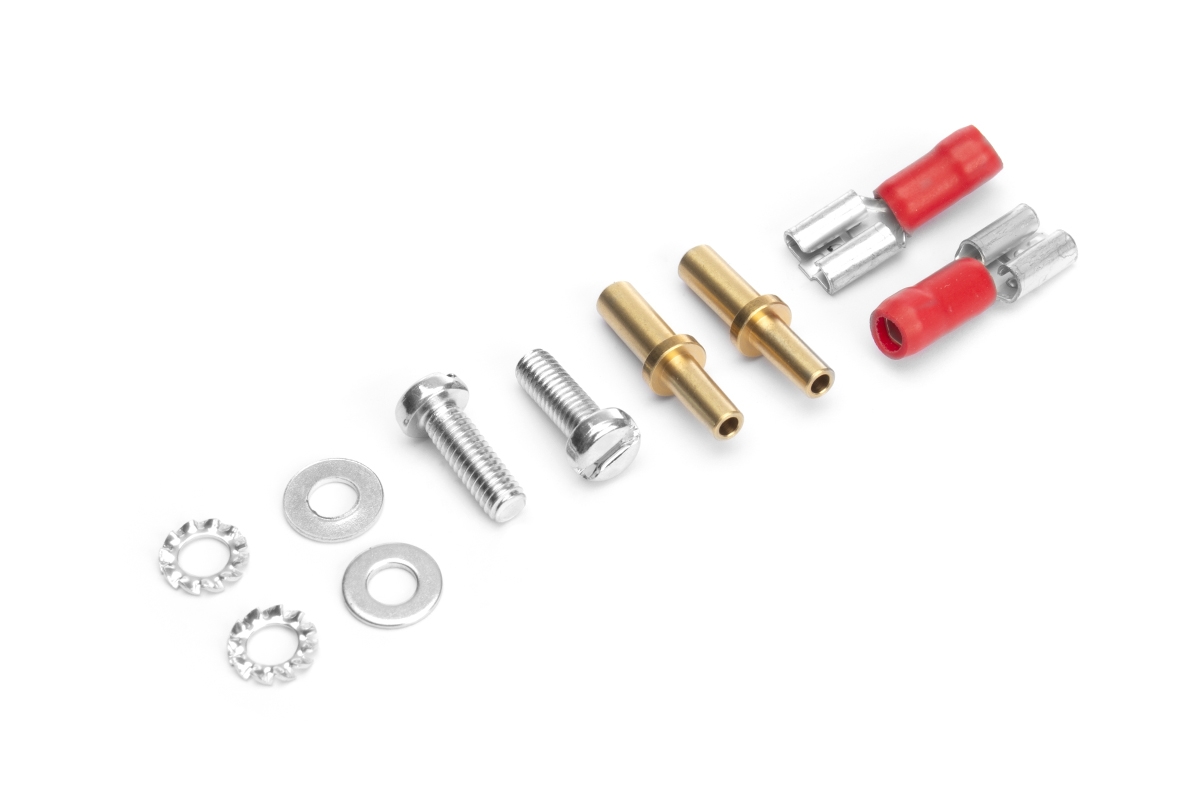

Includes: metal fastening bracket with mounting bolts and hardware pack with electrical connectors and 2x brass reducing nipples. 24 V pump is supplied without the hardware pack.
Technical parameters:
- Power supply: 21,6-30V
- Consumption: 1.5 - 3.5 Amp / h
- Pump capacity: 1.8 liters / Minute
- Maximum pressure: 3.8 bar
- Dimensions: 73 x 46 x 60 mm
- operating temperature: -15 ° to 65 ° C
