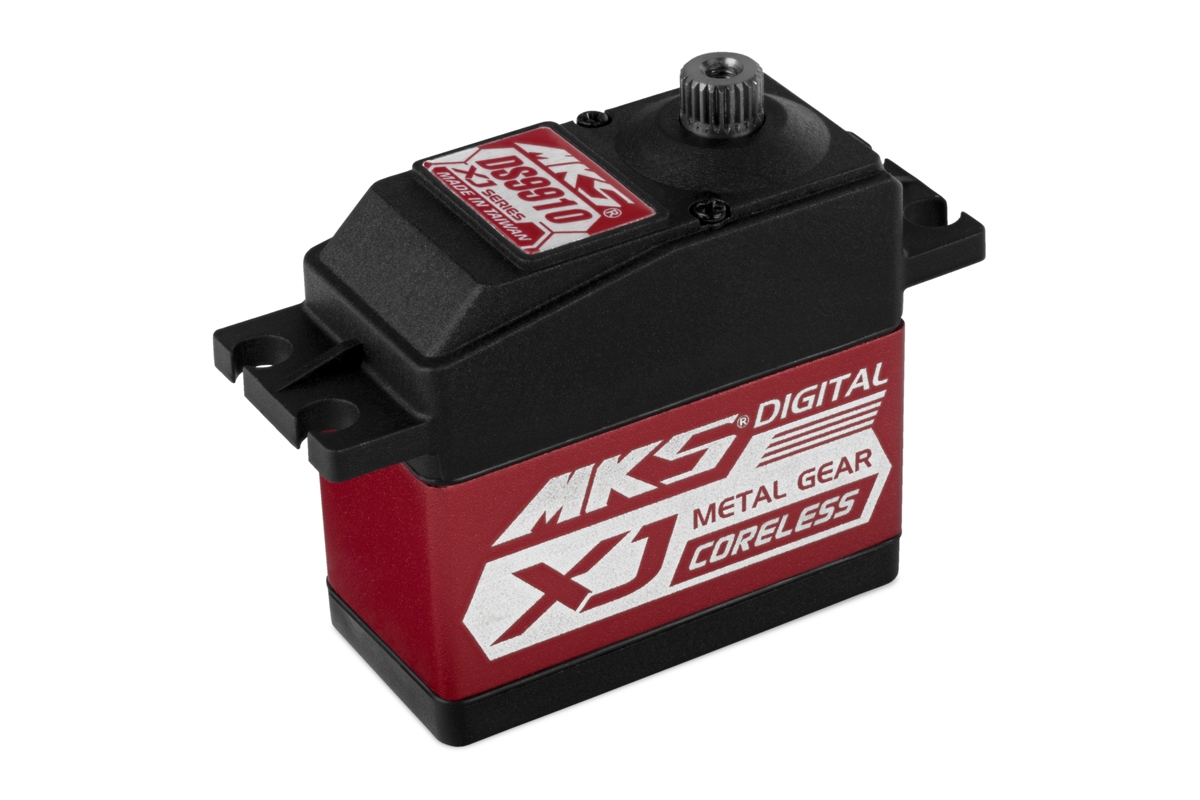

DS9910 (0.159s/60°, 26.0kg.cm)

High torque 58g digital standard servo w. metal gears; input voltage 4.8-6.0V, 2xBB. Fo general use, larger model aeroplanes. Torque 21kg.cm, speed 0.198s/60° at 4.8V, torque 26kg.cm, speed 0.159s/60° at 6.0V. Aluminium mid case for perfect heat dissipation. Dimensions 40x20x37mm, weight 58g. Non-programmable.

This item is not available in you region (United States)

High torque digital standard servo with metal gears and twin ballraced output shaft for general use, larger model aeroplanes as well as RC cars and boats. A waterproof/dustproof aluminium mid case for perfect cooling even under high loads. This servo is not programmable.

Input voltage range 4.8-6.0 V (nominal), 4.8-7.0 V operational.

Servo dimensions	Standard
Servo type	Digital
Programmable	No
Torque at 4.8V [kg∙cm]	21
Torque at 6.0V [kg∙cm]	26
Speed at 4.8V [s/60st.]	0.198
Speed at 6.0V [s/60st.]	0.159
Control pulse width in neutral [µs]	1520
Frame Rate [Hz]	333
Deadband [ms]	0.0007

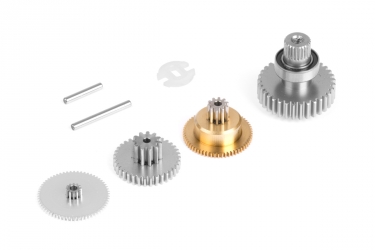

Servo gears	Metal
Ball bearings	2×
High-voltage	Yes
Power supply [V]	4.8 - 7

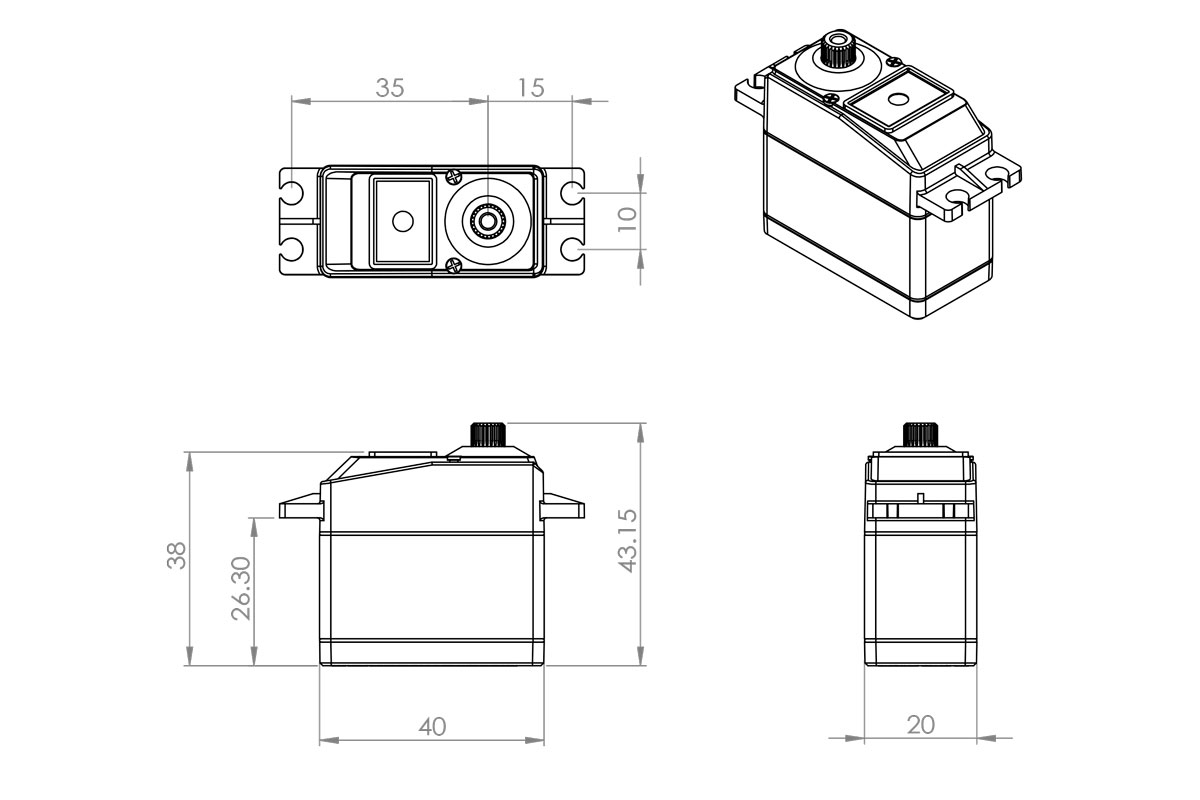

Length [mm]	40
Width [mm]	20
Height [mm]	37
Weight [g]	58
Intended for	Aeroplanes
Servo motor type	Coreless
