Code:MKS12002
Barcode:4710150350219
Brand:MKS

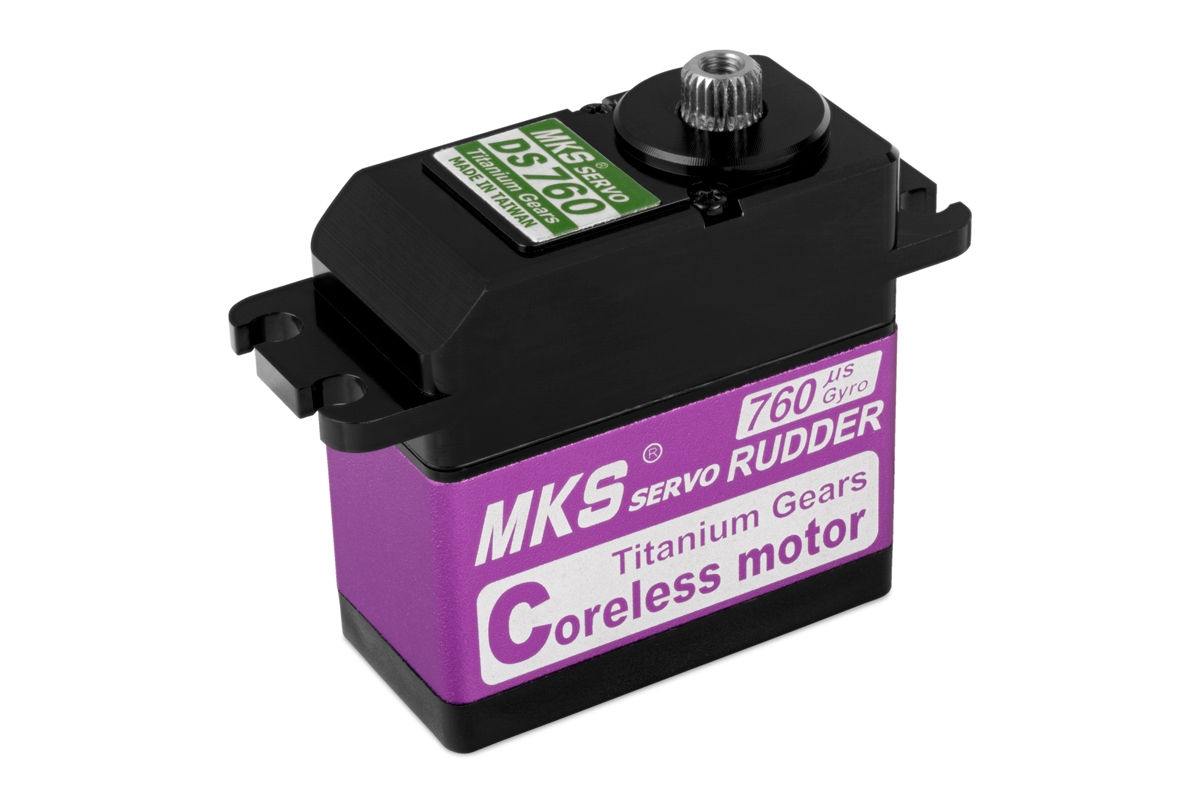

DS760 (0.027s/60°, 4.9kg.cm)
Ultra high speed 75g digital narrowband (760µs) standard servo w. metal gears; input voltage 4.8-6.0V, 2xBB. Ideal for tail rotors of 600 class helicopters, compatible with most of 760µs gyro and flybarless systems. Torque 3.9kg.cm, speed 0.034s/60° at 4.8V, torque 4.9kg.cm, speed 0.027s/60° at 6.0V. Aluminium mid case for perfect heat dissipation. Dimensions 40x20x40mm, weight 75g. Non-programmable.
This item is not available in you region (United States)
Description
Spare parts
Download
Ultra high speed narrowband (760µs) digital standard servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 600 class helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium mid case for perfect cooling even under high loads. This servo is not programmable.
Input voltage range 4.8-6.6 V (nominal), 4.8-7.0 V operational.
| Servo dimensions | Standard |
| Servo type | Digital |
| Programmable | No |
| Torque at 4.8V [kg∙cm] | 3.9 |
| Torque at 6.0V [kg∙cm] | 4.9 |
| Speed at 4.8V [s/60st.] | 0.034 |
| Speed at 6.0V [s/60st.] | 0.027 |
| Control pulse width in neutral [µs] | 760 |
| Frame Rate [Hz] | 560 |
| Deadband [ms] | 0.0004 |
| Servo gears | Metal |
| Ball bearings | 2× |
| High-voltage | Yes |
| Power supply [V] | 4.8 - 6 |

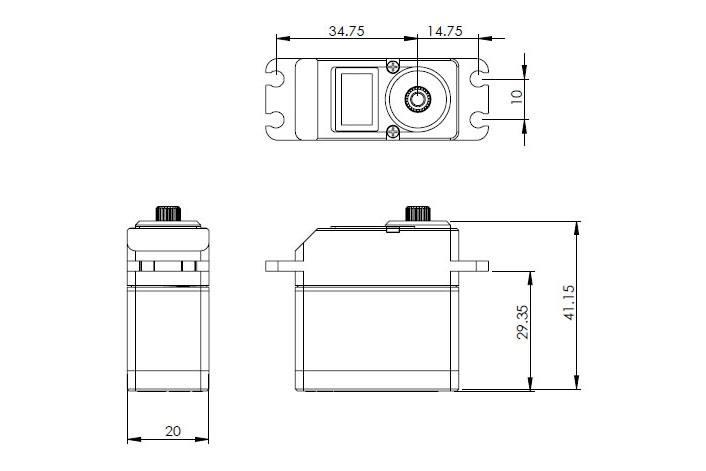

| Length [mm] | 40 |
| Width [mm] | 20 |
| Height [mm] | 40 |
| Weight [g] | 75 |
| Intended for | Helicopters |
| Servo motor type | Coreless |
Download
 |
Instruction Manual | 17.01.2024 |
