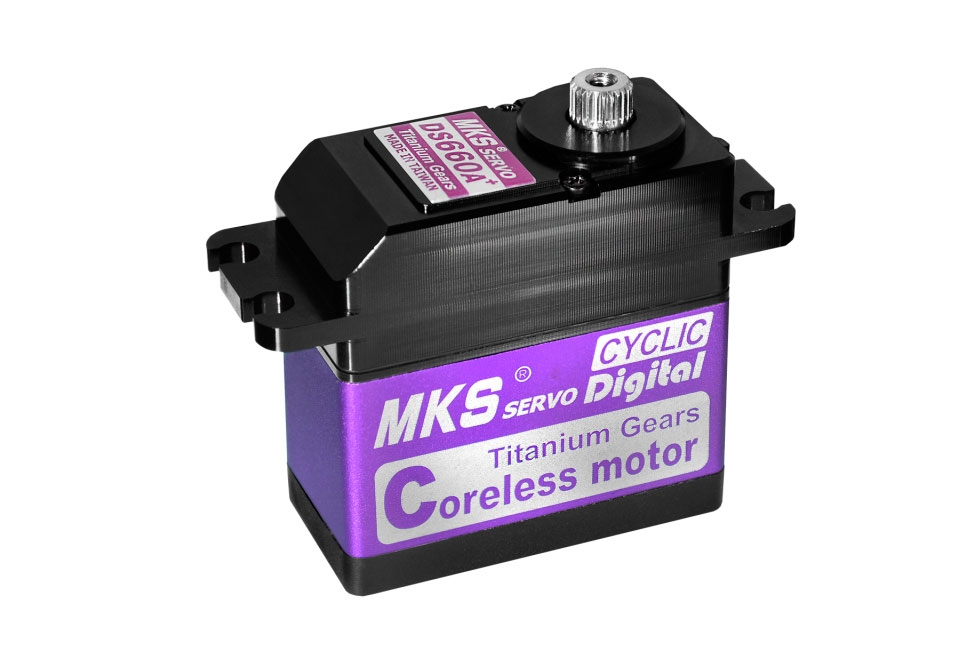

DS660A+ (0.14s/60°, 26.3kg.cm)

High torque 75g digital standard servo w. metal gears; input voltage 4.8-6.0V, 2xBB. Fo general use, large model aeroplanes. Torque 21.05kg.cm, speed 0.186s/60° at 4.8V, torque 26.3kg.cm, speed 0.149s/60° at 6.0V. Aluminium mid case for perfect heat dissipation. Dimensions 40x20x40mm, weight 75g. Non-programmable.

This item is not available in you region (United States)

High torque digital standard servo with metal gears and twin ballraced output shaft for general use, larger model aeroplanes as well as RC cars and boats. An aluminium mid case for perfect cooling even under high loads. This servo is not programmable

Input voltage range 4.8-6.0 V (nominal), 4.8-7.0 V operational.

Servo dimensions	Standard
Servo type	Digital
Programmable	No
Torque at 4.8V [kg∙cm]	21.05
Torque at 6.0V [kg∙cm]	26.3
Speed at 4.8V [s/60st.]	0.186
Speed at 6.0V [s/60st.]	0.149
Control pulse width in neutral [µs]	1520
Frame Rate [Hz]	333
Deadband [ms]	0.001
Servo gears	Metal
Ball bearings	2×
High-voltage	Yes
Power supply [V]	4.8 - 6

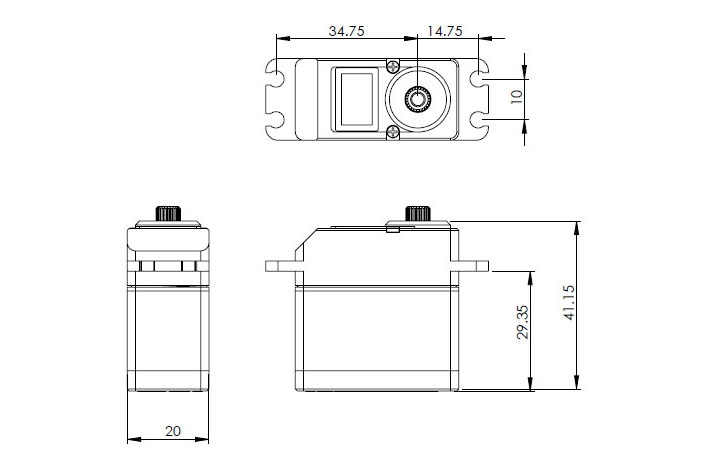

Length [mm]	40
Width [mm]	20
Height [mm]	40
Weight [g]	75
Intended for	Aeroplanes
Servo motor type	Coreless
