Code:2DLA0116
Brand:DLA

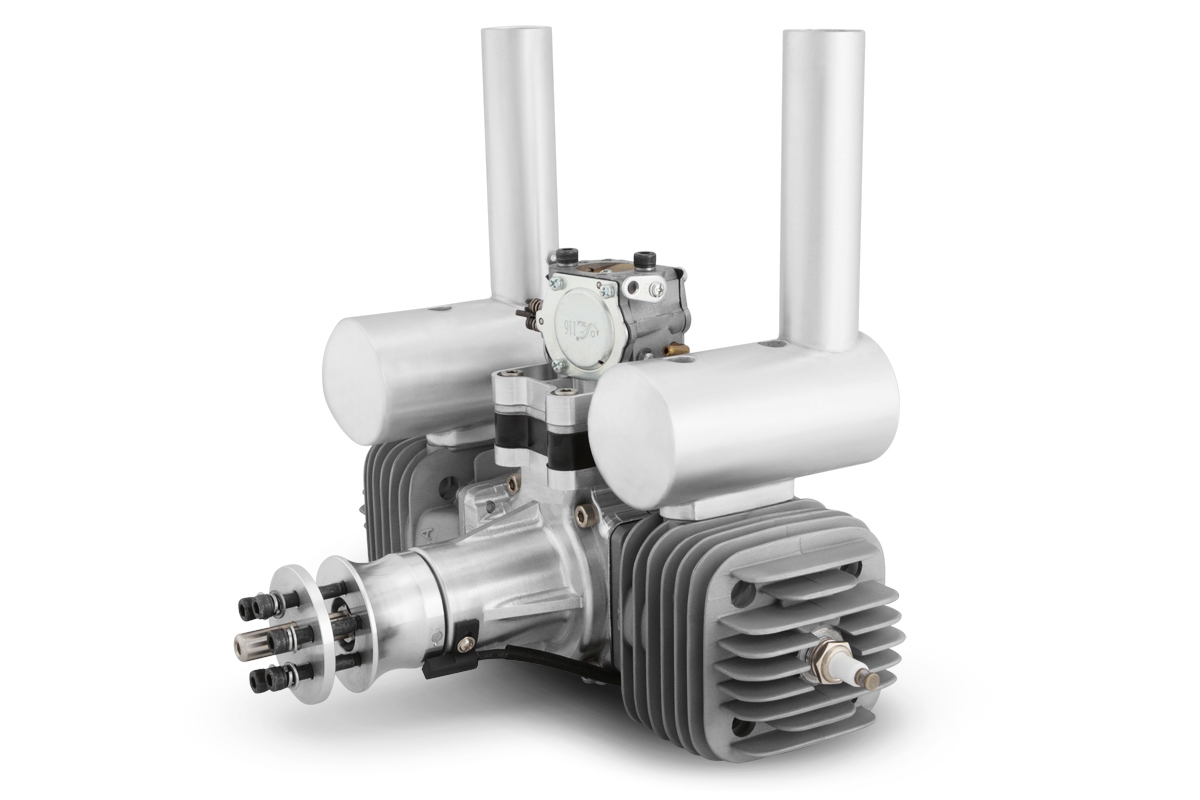

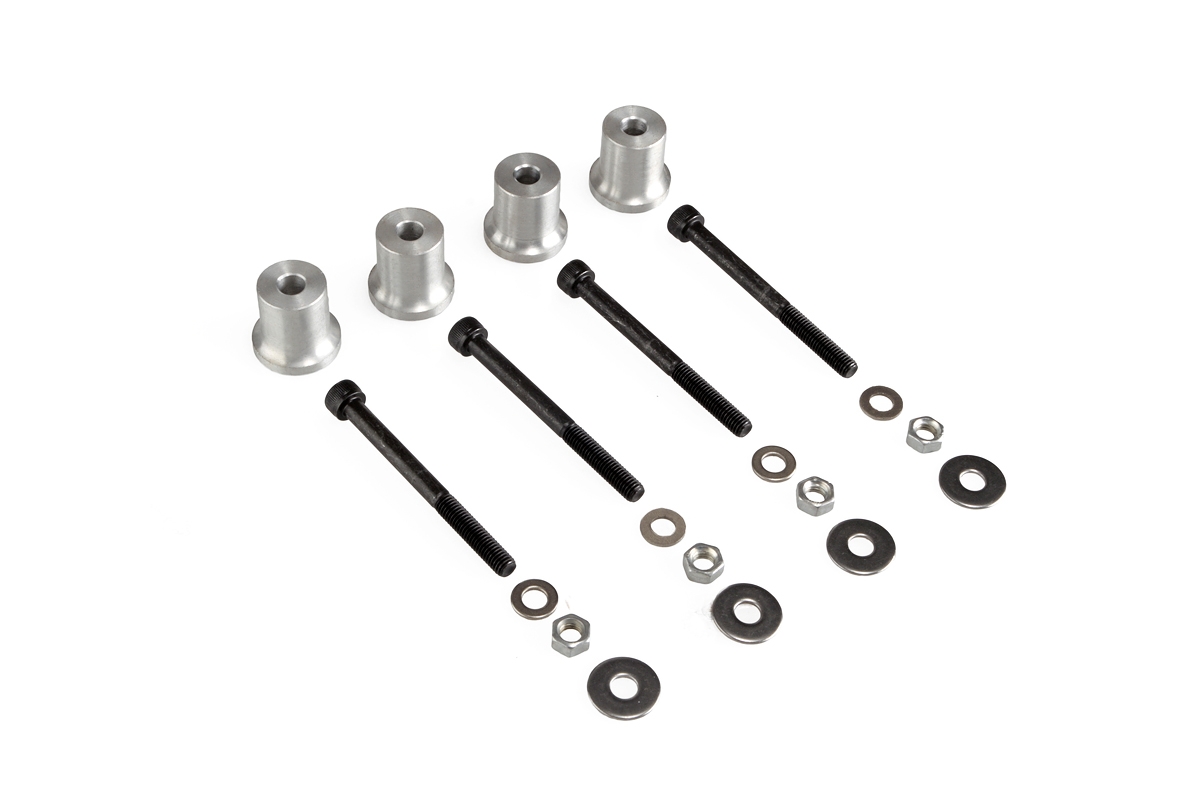

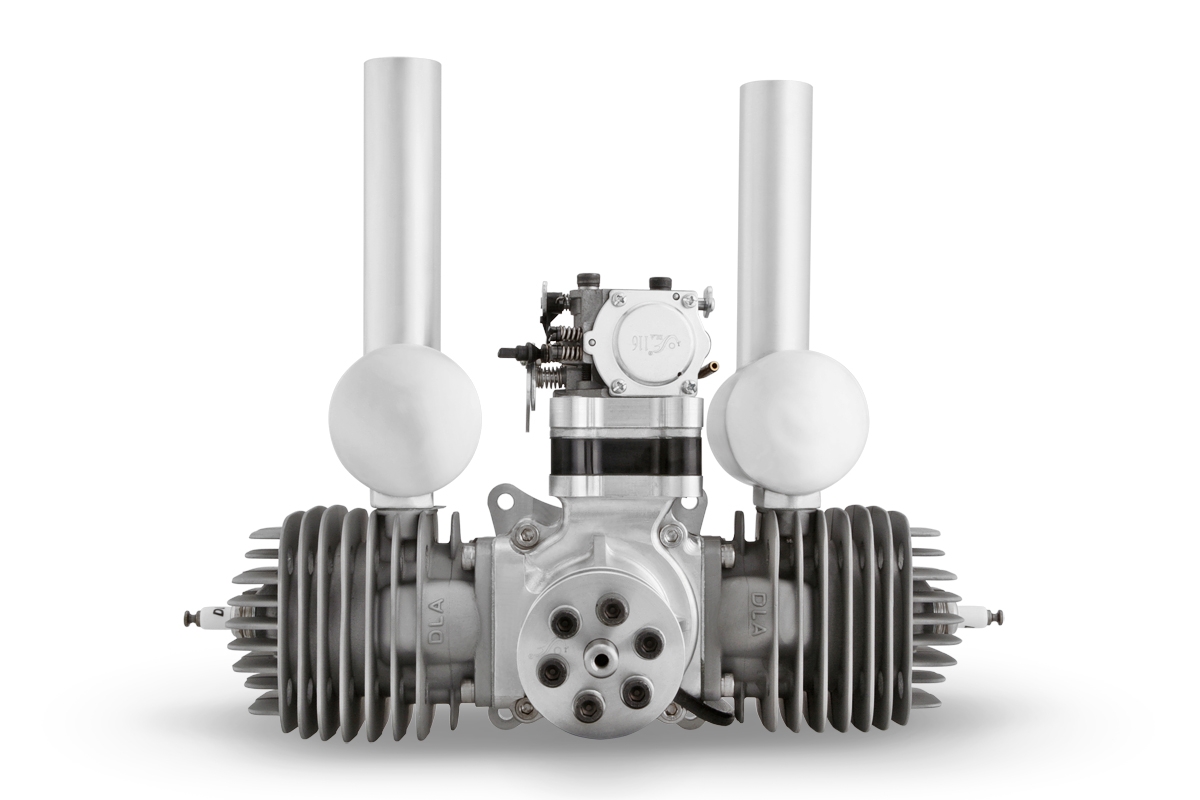

DLA engine 116ccm including muffler,all accessories
Only on request
| Displacement [ccm] | 116 |
| Cylinder count | 2 |
| Bore [mm] | 46 |
| Stroke length [mm] | 35 |
| Operating RPM [ot./min] | 1300 - 7500 |
| Motor power (při 7500 ot./min) [kW] | 8.7 |
| Power (při 7500 ot./min) [HP] | 11.8 |
| Weight (motor) [g] | 2600 |
| Weight (tlumič 2x) [g] | 115 |

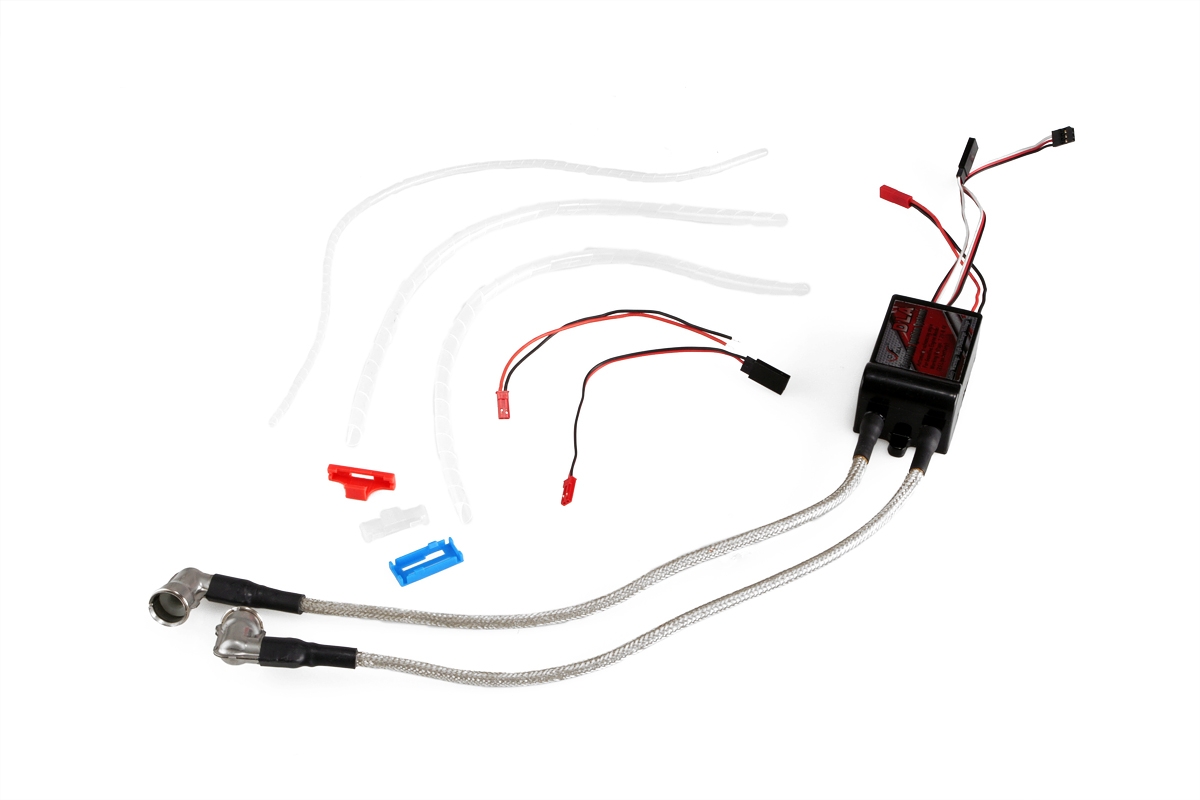

| Weight (zapalování) [g] | 180 |
| Recommended spark plug | CM-6 |
| Recommended tank volume [ml] | 800 - 1000 |
| Propeller nut thread | 6×M5 |
Download
 |
Rozměrový a explozívní výkres DLA116 | 24.11.2014 |
