Servo dimensions | Standard |
Servo type | Digital |
Torque at 6.0V [kg∙cm] | 38 |
Torque at 7.4V [kg∙cm] | 38 |
Speed at 6.0V [s/60st.] | 0.12 |
Speed at 7.4V [s/60st.] | 0.1 |
Ball bearings | 2× |
High-voltage | Yes |
Power supply [V] | 6 - 7.4 |

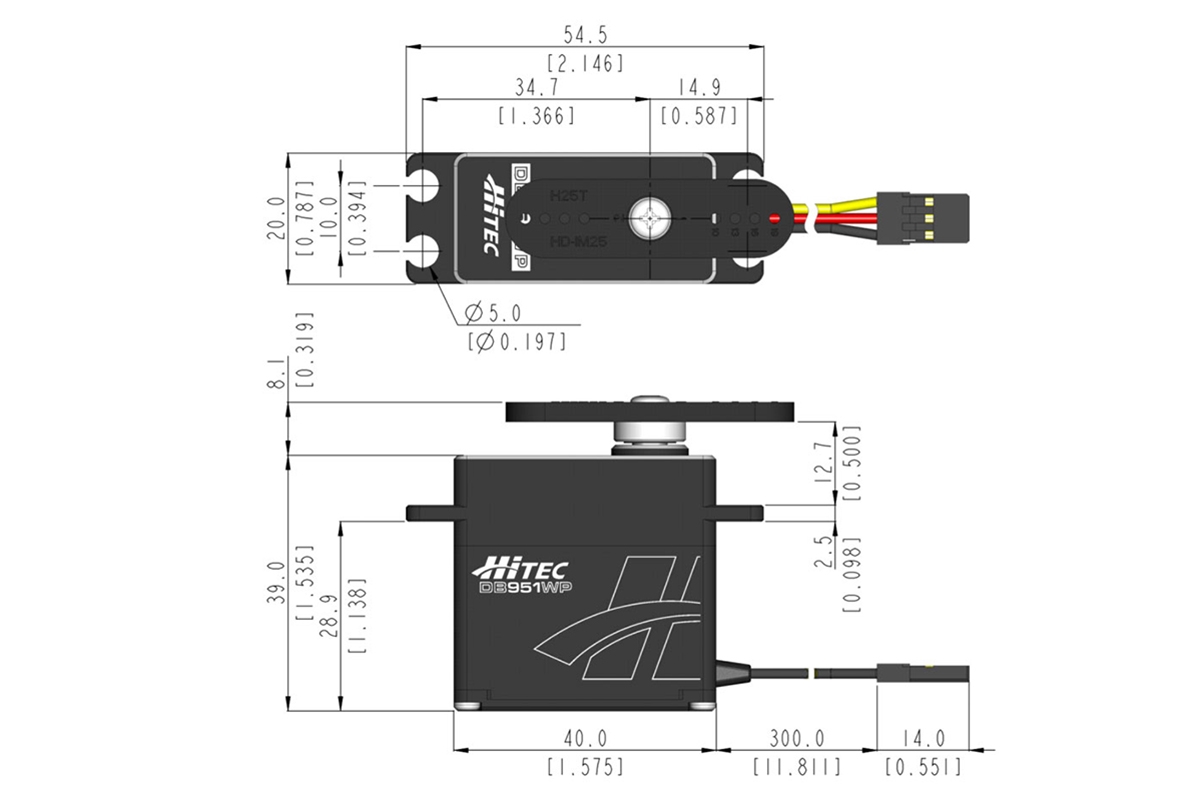

Length [mm] | 40 |
Width [mm] | 20 |
Height [mm] | 39 |
Weight [g] | 90 |
Intended for | Aeroplanes,Helicopters,On-road cars,Off-road cars,Boats |
Gears | Metal |
Splined shaft teeth | 25 |
