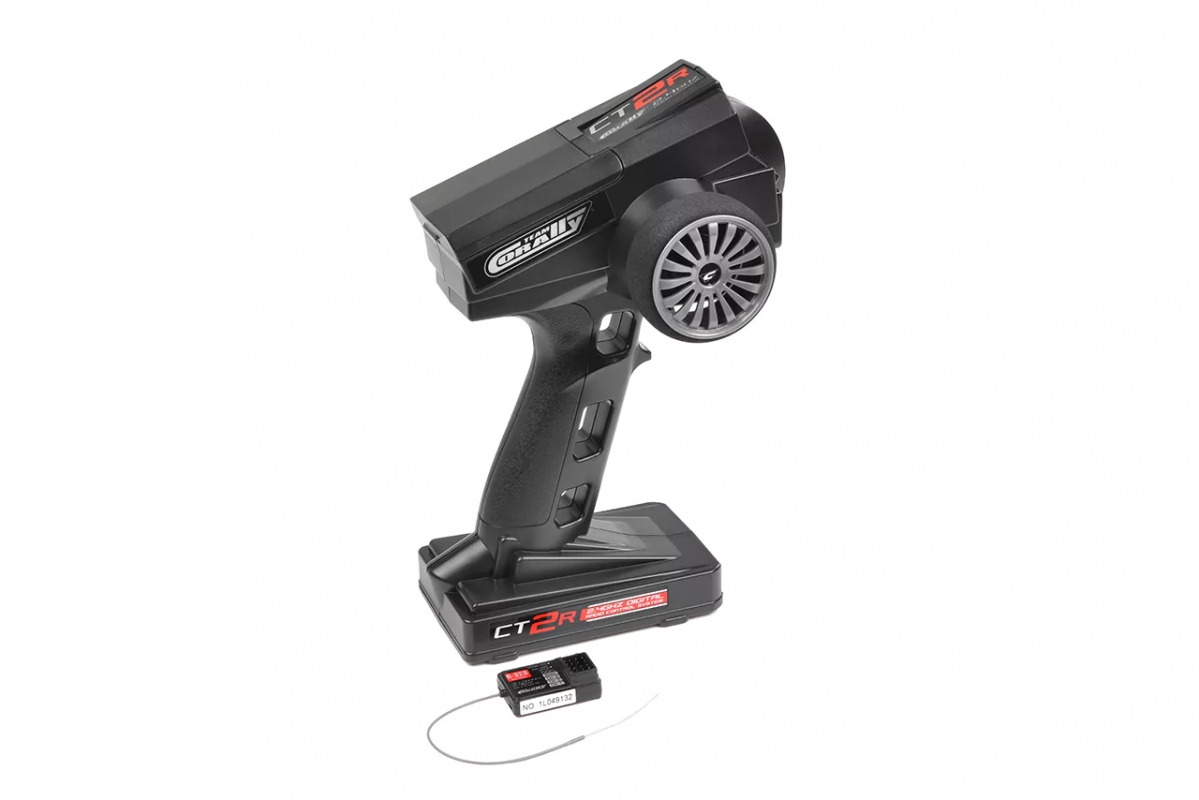

CT2R 2-Channel 2.4GHZ Digital Radio Control System

Team Corally - CT2R 2-Channel 2.4GHZ Digital Radio Control System

Specification

• 2CH Transmitter with 3-channel receiver.
• The device has an integrated 2.4GHz antenna.
• Steering DUAL RATE (D/R).
• Steering and throttle Trims.
• Steering and throttle Reverse
• Fail Safe

Transmitter CT2R

• Model Type: Car/Boat
• RF power: <20dBm
• Modulation: GFSK
• Sensitivity: 1024
• Low Voltage Warning: <4,5V
• Power: 6 VDC (1.5V AA x4)
• Range: 400m
• Size: 220 x 150 x 100 mm
• Weight: 328 g
• Certificate: CE0678 - FCC

Receiver R-323

• Channels: 3
• Model type: Car/Boat
• Frequency band: 2.4 GHz
• Modulation: GFSK
• Sensitivit y: 1024
• RF receiver sensitivity: -100 dbm
• Power: 4.5–7.2 vdc
• Weight: 5 g
• ANT length: 26 mm
• Size: 37.6 x 22.3 x 13 mm
• Certificate: CE0678 FCC
