Code:HW38020381
Barcode:6938994416917
Brand:HOBBYWING

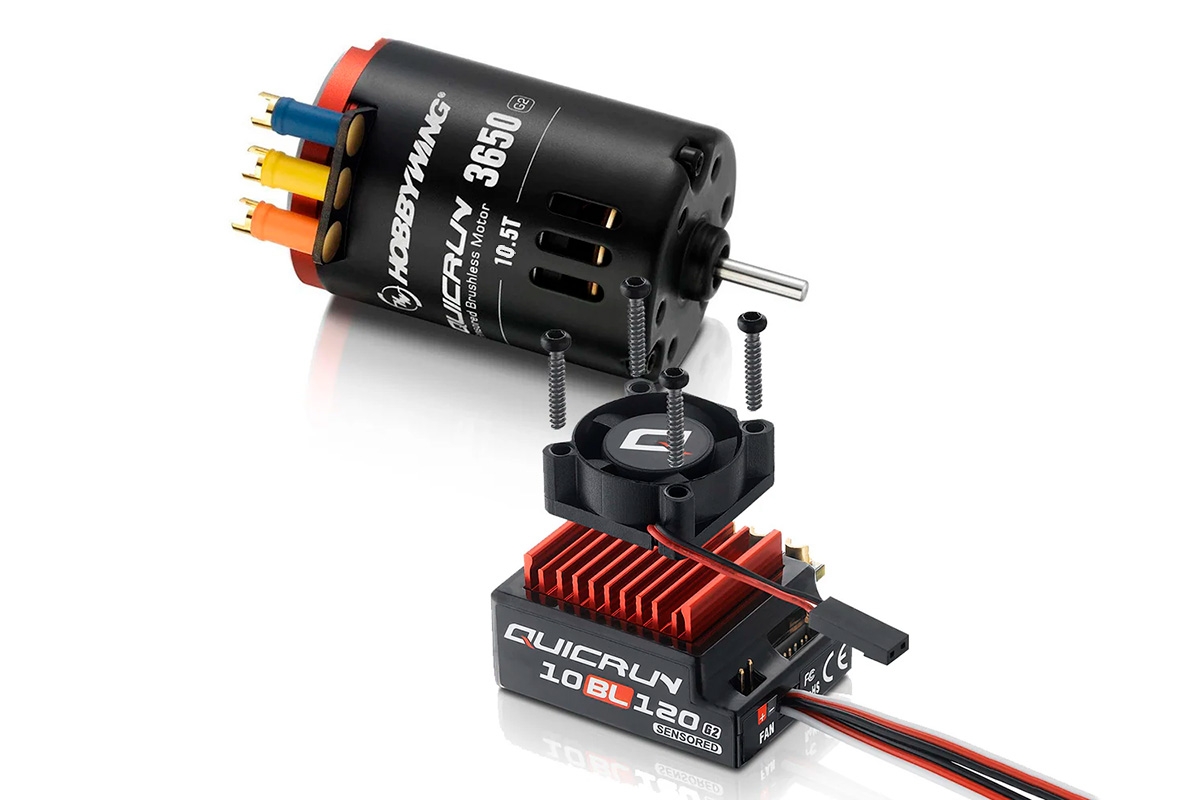

Combo QuicRun10BL120 SD G2 QR3650SD 10.5t G2
This item is not available in you region (United States)
Description
Spare parts
| Motor type | AC |
| RPM/V [ot./min/V] | 3600 |
| Li-Po [čl.] | 2 - 3 |
| Open-circuit current [A] | 2.8 |
| Poles count | 2 |
| Diameter [mm] | 36 |
| Length skříně motoru [mm] | 52.8 |
| Shaft diameter [mm] | 3.175 |
| Length volné hřídele [mm] | 15 |
| Weight [g] | 186 |
| Timing [°] | 0 |
| Hall sensor | Yes |
| Used for | Car |
| Type | AC |
| Constant current [A] | 120 |
| Max. peak current [A] | 760 |
| Li-Po [čl.] | 2 - 3 |
| BEC voltage [V] | 6 - 7.4 |
| BEC current (max.) [A] | 4 |
| Length [mm] | 44 |
| Width [mm] | 36.8 |
| Height [mm] | 32.3 |
| Weight [g] | 101.5 |
| Control | two-way |
| Sensor imputs | Yes |
| Programmable | Yes |
| Water resistance | No |
