COMBO BRUSHLESS RS8 Elite + motor K8 4268 1900 Kv

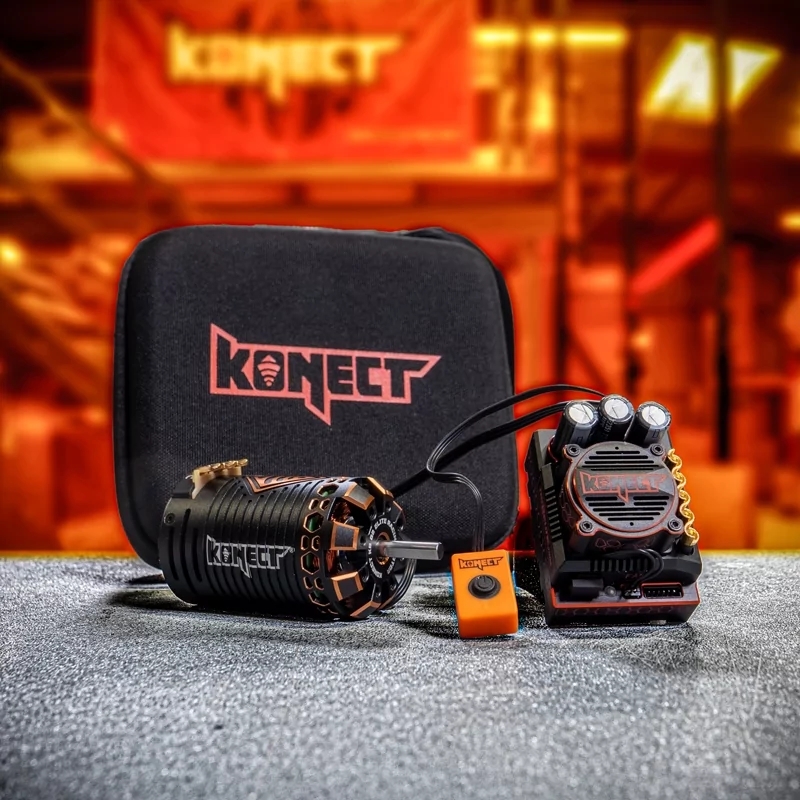

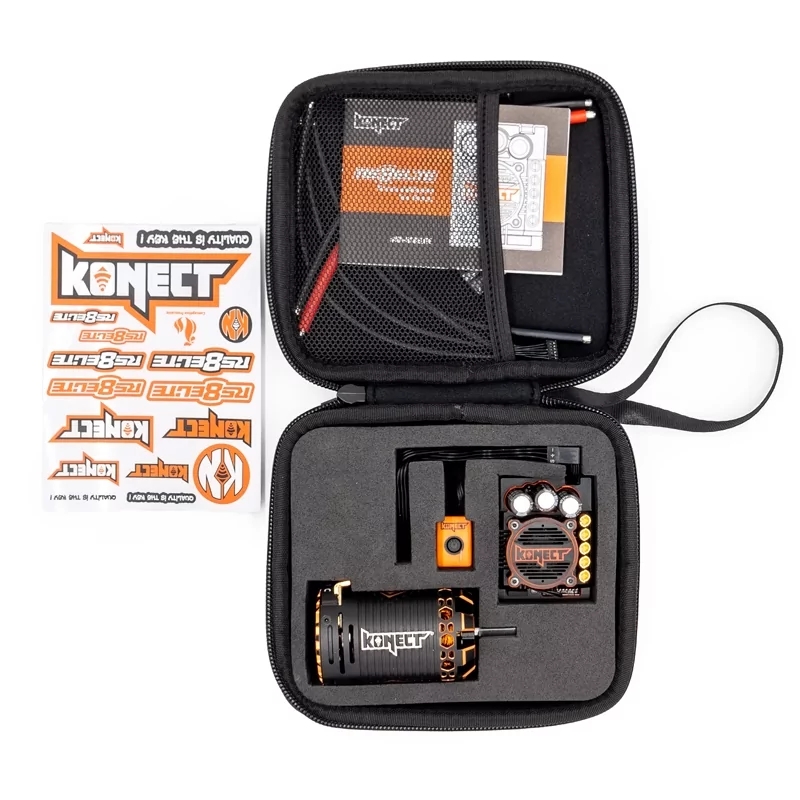

Sensored brushless racing combo for 1/8 scale models. 200A programmable ESC + 1900 KV motor. Incl. transport case.
This item is not available in you region (United States)
Description
Spare parts

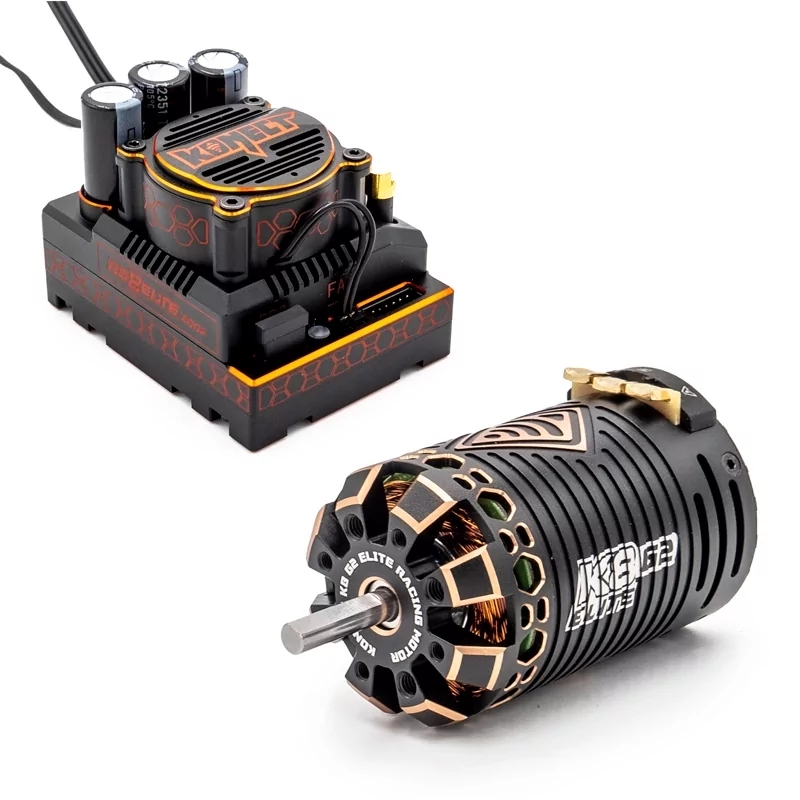

Introducing the brushless sensored KONECT RS8 Elite racing combo with K8 ELITE G2 1900 KV motor, designed for 1/8th scale competition, packed with advanced features to elevate your RC experience.

Take full control with 33 adjustable parameters and 3 built-in modes tailored for both on-road and off-road racing. Boost your performance with a Super 48-degree boost and turbo timing, delivering unmatched speed and acceleration.

Equipped with a powerful 8A BEC (12A peak) and adjustable voltage from 6 to 7.4V, you’ll have precise control over your servos and electronics. The ESC also features data recording, allowing you to retrieve crucial info like temperature and max speed post-race via the programming box.

For added convenience, there’s a remote ESC stop function for quick and safe shutdowns. Plus, a 30x30mm high-speed aluminum fan ensures efficient cooling, even during intense runs.

This ESC also offers numerous protections to keep your system safe, including low voltage, overheating, and polarity reversal safeguards.

This ESC is the ultimate choice for serious racers who demand precision, power, and reliability!

ESC technical data:

  • Continuous/peak current: 200A/1080A
  • For batteries: 2-4S LiPo
  • BEC voltage: Adjustable 6-7.4V
  • BEC current: 8A (12A peak)
  • Dimensions: 56.3 x 42.3 x 39.6 mm
  • Weight: 115 g (without cables)
  • Programming: LCD program card (KN-RS-PROG)

ESC features:

  • 33 adjustable parameters and 3 built-in modes for 1/8th competition (On-Road and Off-Road)
  • Super 48 degree boost and turbo timing
  • Powerful 8A BEC (12A peak) and adjustable BEC voltage from 6 to 7.4V
  • Data recording (temperature and max speed) recoverable after the run via the programming box
  • Remote ESC stop function
  • 30x30mm high speed aluminum fan
  • Numerous protections: low voltage, overheating and polarity reversal

Motor technical data:

  • RPM per volt (KV): 1900
  • Power: 2400 W
  • Max. current: 90 A
  • Number of poles: 4
  • Max. RPM: 50000
  • For LiPo battery: 2-6S
  • Timing setting: 10 - 50 deg.
  • Length: 69.6 mm
  • Diameter: 42 mm
  • Weight: 320 g
  • Shaft diameter: 5 mm
