Code:KN-BRUSH40-CRAWBT
Barcode:3700624541923
Brand:KONECT

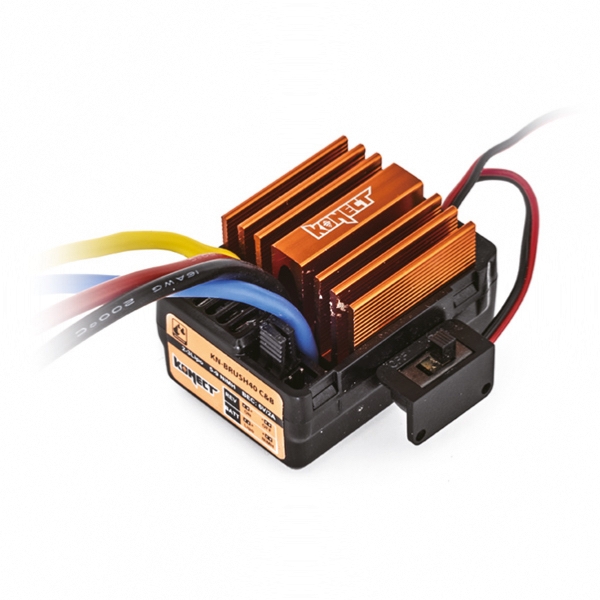

Brushed ESC WP-40A Crawler
Bidirectional waterproof controller for RC crawler cars 40A, short-term 180A (burst), power supply 2-3S LiPo or 5-9 NiCd / NiMH, BEC stabilizer 6V / 2A, dimensions 46.5x37.5x27.5mm, weight 67g, internal resistance 0.002 Ohm, T-Dean connector.
This item is not available in you region (United States)
Brushed controller for 1/10 crawler vehicles
Konect is your reliable partner when it comes to getting the maximum performance out of your RC car.
The 40A continuous load regulator is waterproof and has a BEC which provides 6V with 2A power and is therefore sufficient for all common applications in this scale. It is easy to switch between LiPo and NiMH operation via a jumper, no time-consuming programming is required. Reverse can also be easily deactivated if required, which can be particularly advantageous in racing mode.
Last but not least, the controller also has a number of safety systems to protect the electronics such as the LiPo battery and controller from damage due to overheating or undervoltage, for example.
FEATURES:
Ideal speed control for almost all 1/10 scale Crowler and Expedition vehicles, with AUTOMATIC STOP BRAKE With the Konect 40A WP electronic brushed speed control you will have maximum driving fun, mega performance and zero problems.
- Waterproof & dustproof speed control
- Powerful 6V BEC with 2A
- Aluminum heat sink for optimal cooling during operation
- On/Off switch
- Proportional throttle & brake for sensitive handling
- Deactivatable reverse gear
- Automatic roll-off brake
- LiPo battery suitable
- Completely ready for connection for battery & motor (plug & play) no more soldering necessary
TECHNICAL DATA
- Continuous current: 40A
- Peak current: 180A
- Input voltage:
- 2-3S LiPo batteries
- 5-9 cells NiMH / NiCd batteries
- BEC output power: 6V/2A Internal resistance: 0.002 Ohm
Motor limits: 2S LiPo / 6Z. NiMH = more than 12 turns, 550 & 540 size motor rpm less than 30,000 @ 7.2V, 3S LiPo / 9Z. NiMH = more than 18 turns, 550 & 540 size motor rpm less than 20,000 @ 7.2V- Type: Brush motors (no brushless)
- Connector system: Battery side: T-Dean connector
- ESC / motor: 4mm gold contact sockets
- Receiver: JR / Graupner
- Approx. dimensions: 46.5 x 34 x 28.5mm
- Weight: approx. 65g
RECOMMENDED APPLICATION- 1/10 Crawler
- 1/10 Expedition
