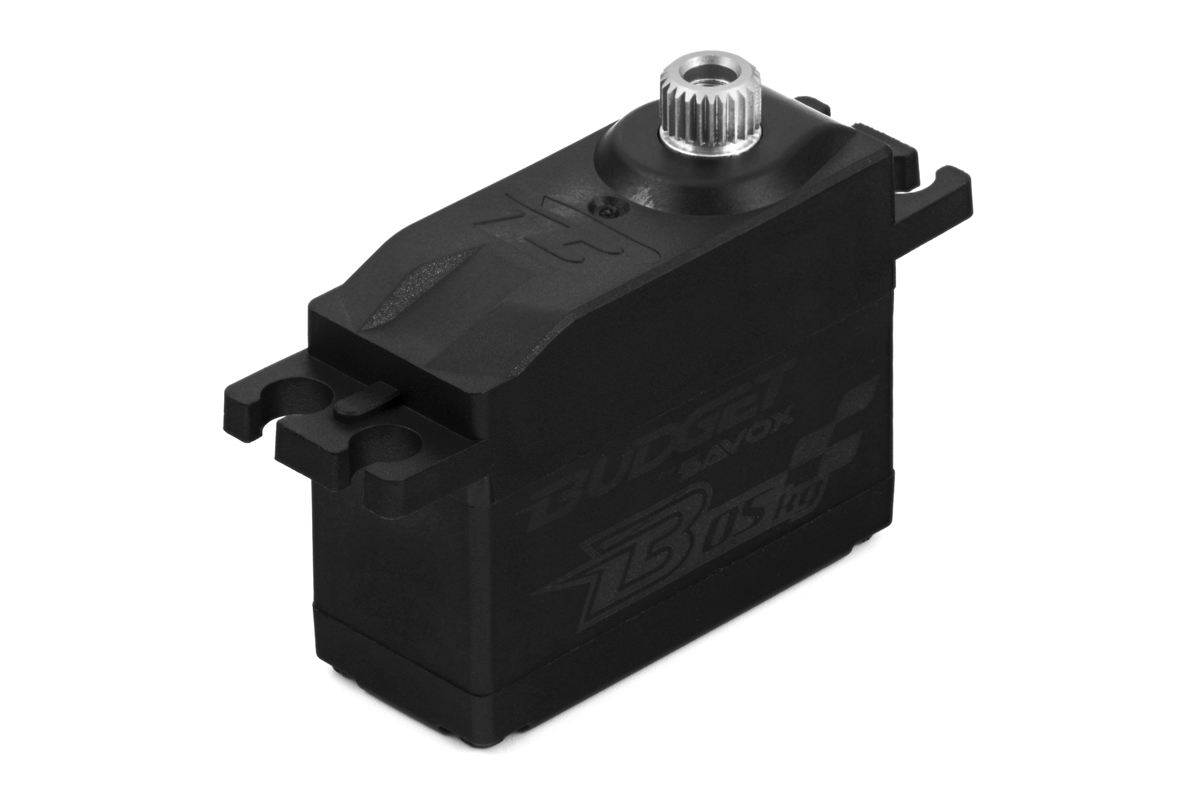

B-05 MG ANALOG servo (5kg-0,16s/60°)

"Budget by Savox" analog servos offer the same level of quality as the digital servo line, but at a much lower price, making them a great value!

Specifications:

• Torque @ 4.8v - 4.0kg
• Torque @ 6v - 5.0kg
• Speed @ 4.8v - 0.18 sec/60 deg
• Speed @ 6v - 0.16 sec/60 deg
• Dimensions L x W x H (mm): 35,8x15,0x27,2mm
• Weight: g

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Wire Length: 250 +/- 10mm
• Output Gear Spline: 25 Tooth
• Bearings: BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 700 → 2100 µ second
• Maximum Travel: Appx 130° (700 → 2100 µ second)
• Refresh Rate:  333Hz
• Motor Type: Brushed
