Code:3EL105643V2
Barcode:8595247302083
Brand:AXI

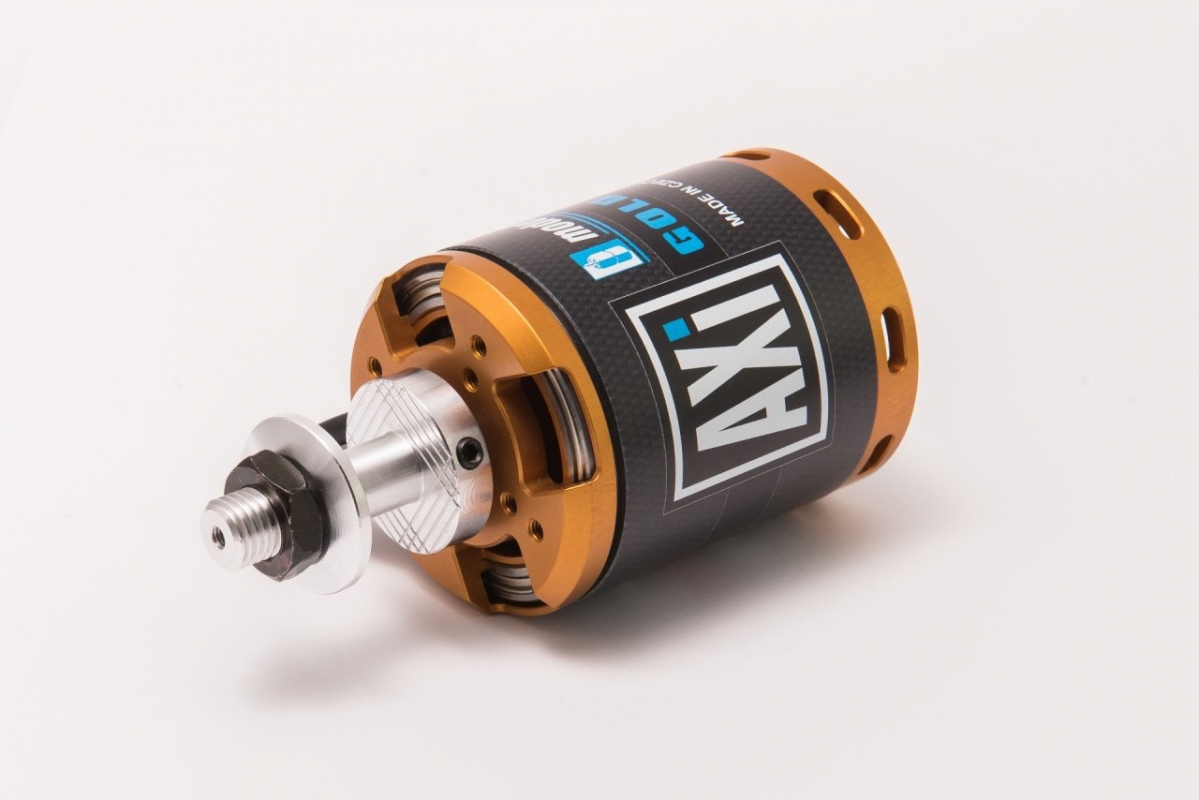

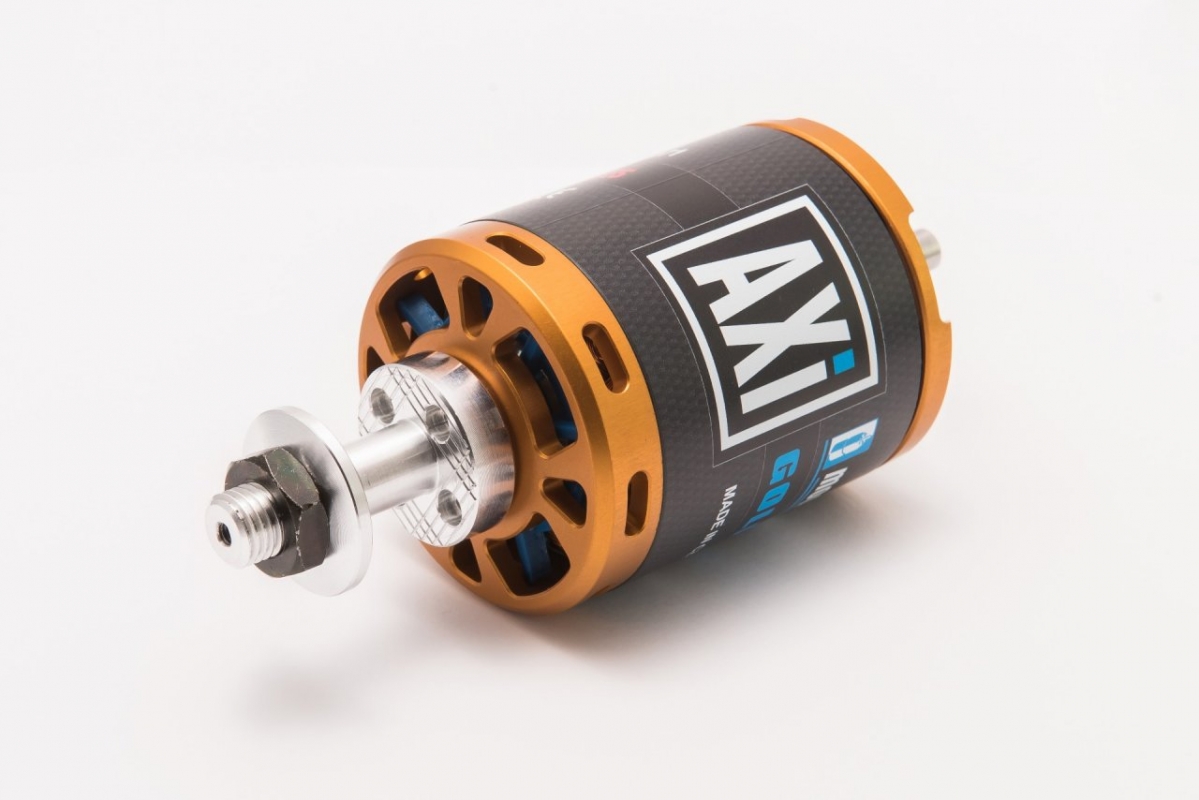

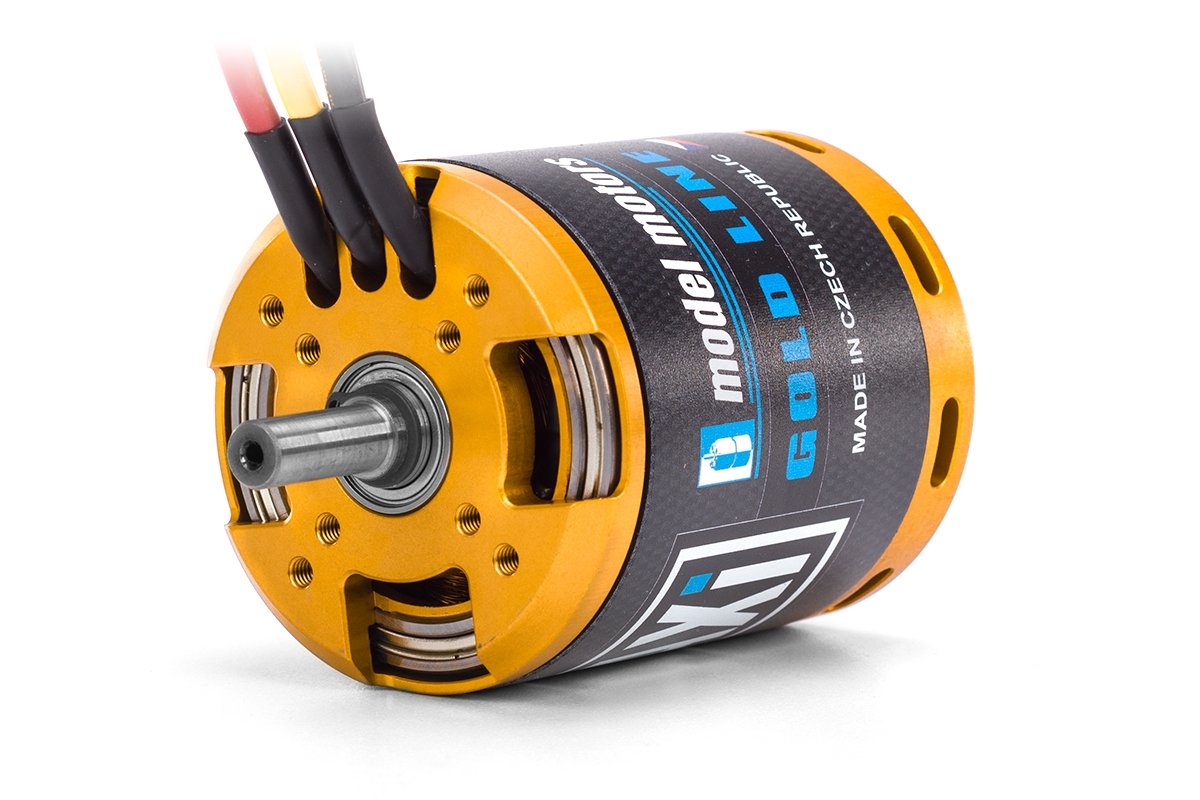

AXI 5345/14 HD V2 Brushless
This item is not available in you region (United States)
Description
Spare parts
Supply voltage LiXX cells: 8 - 10 ; RPM/V [RPM/min/V]: 225 ; Internal resistance [mOhm]: 27 ; No load current [A]: 2.5 ; max. effenciency [%]: 94 ; Max. efficiency current (η>85%) [A]: 36 - 84 ; Max. peak current (60 s) [A]: 112 ; Max. power [W]: 4200 ; Diameter [mm]: 63 ; Lenght [mm]: 84.3 ; Shaft diameter [mm]: 8 ; Weight [g]: 995 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 120 - 160 ; Sailplane up to Weight [g]: 16000 ; Trainer up to Weight [g]: 11000 ; Acrobat up to Weight [g]: 8500 ; 3d up to Weight [g]: 7500
| Powering LiXX cells | 8 - 10 |
| RPM/V [ot./min/V] | 225 |
| Internal resistance [mOhm] | 27 |
| Open-circuit current [A] | 2.5 |
| Max. efficiency [%] | 94 |
| Max. efficiency current (η>85%) [A] | 36 - 84 |
| Max. peak current (60 s) [A] | 112 |
| Max. power [W] | 4200 |
| Diameter [mm] | 63 |
| Length [mm] | 84.3 |
| Shaft diameter [mm] | 8 |
| Weight [g] | 995 |
| Poles count | 14 |
| Timing [°] | 15 - 25 |
| ESC [A] | 120 - 160 |
| Weight of glider (up-to) [g] | 16000 |
| Weight of trainer (up-to) [g] | 11000 |
| Weight of acrobat (up-to) [g] | 8500 |
| Weight of 3D (up-to) [g] | 7500 |
Spare parts (1)
