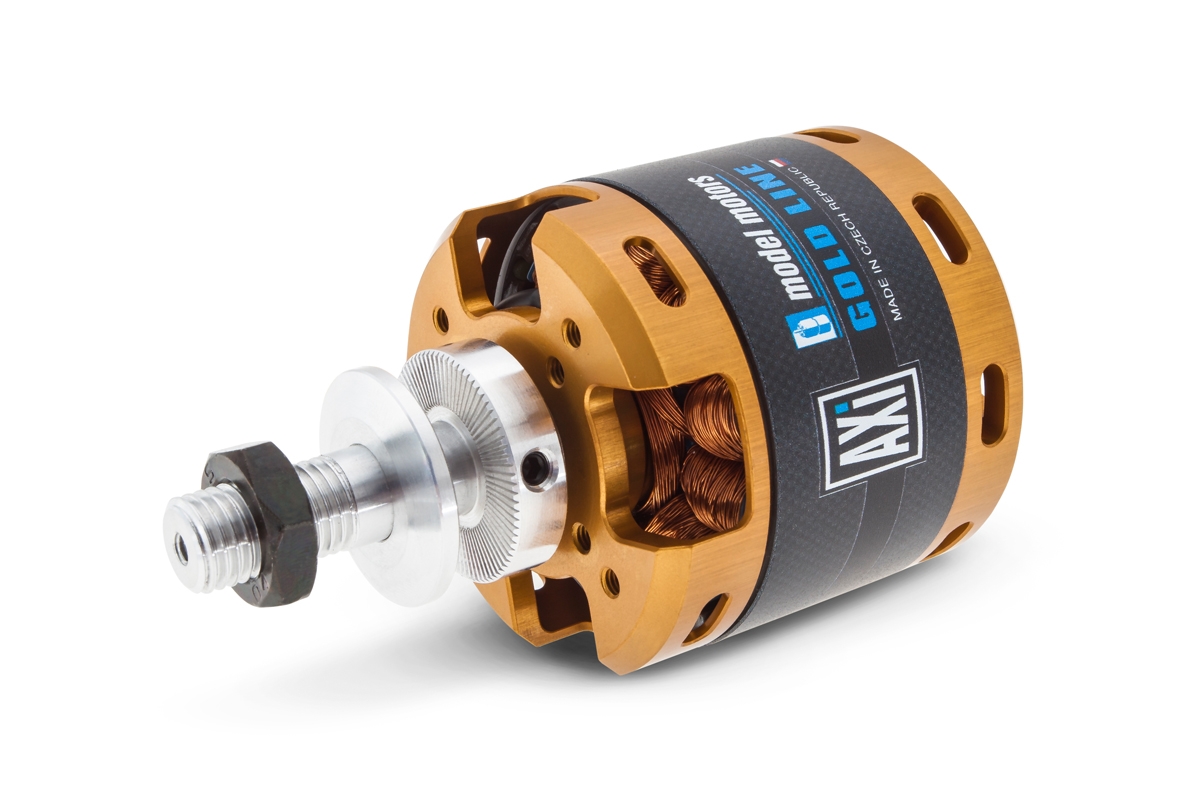

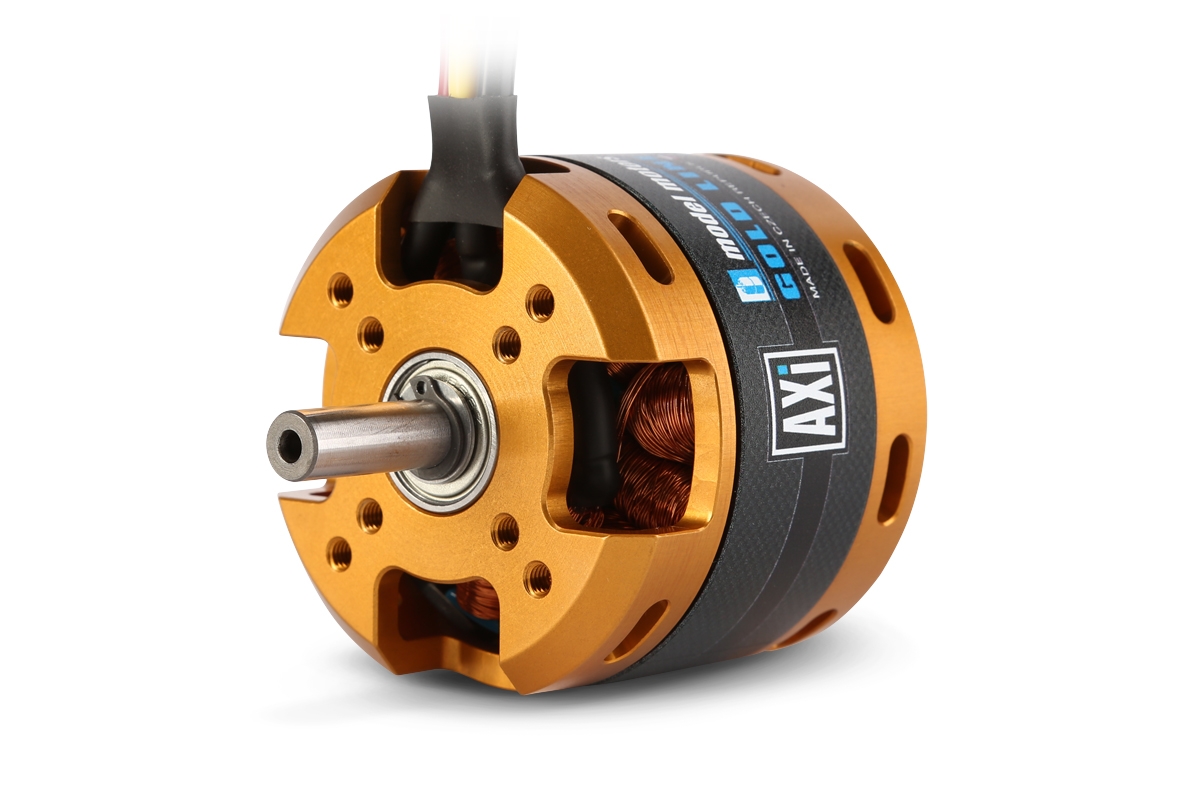

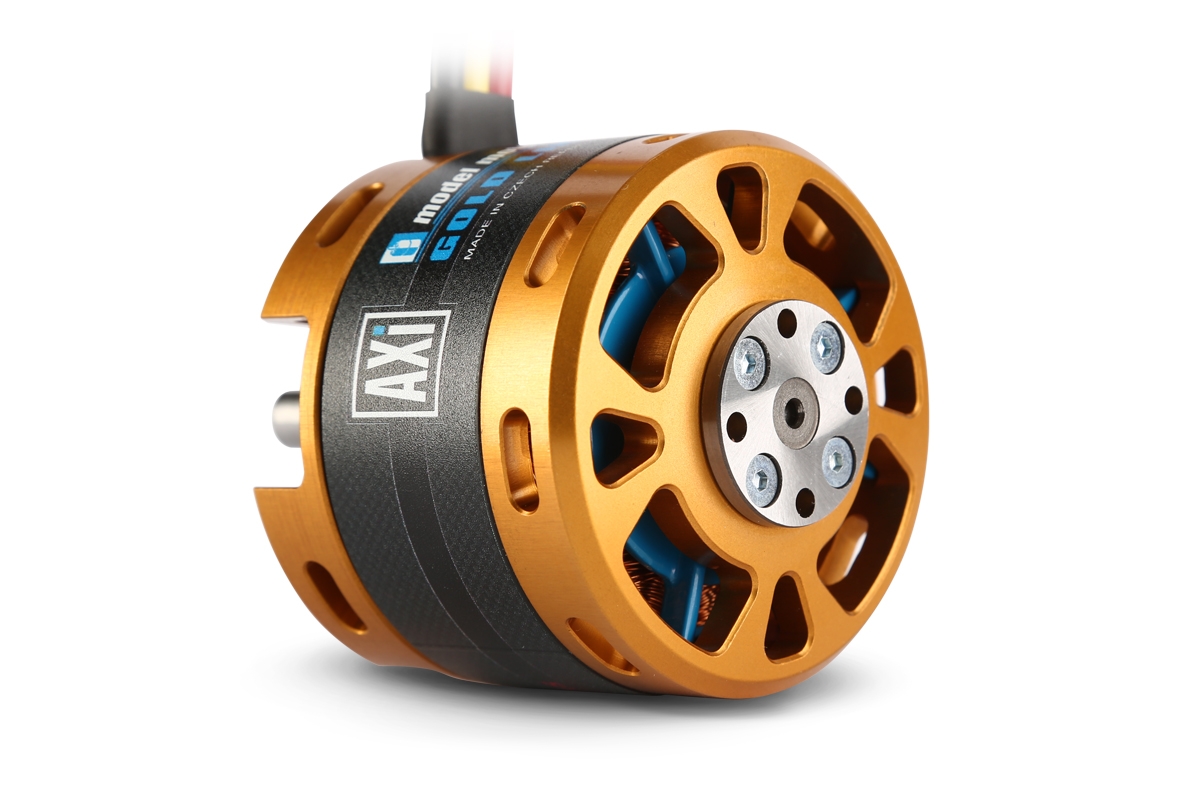

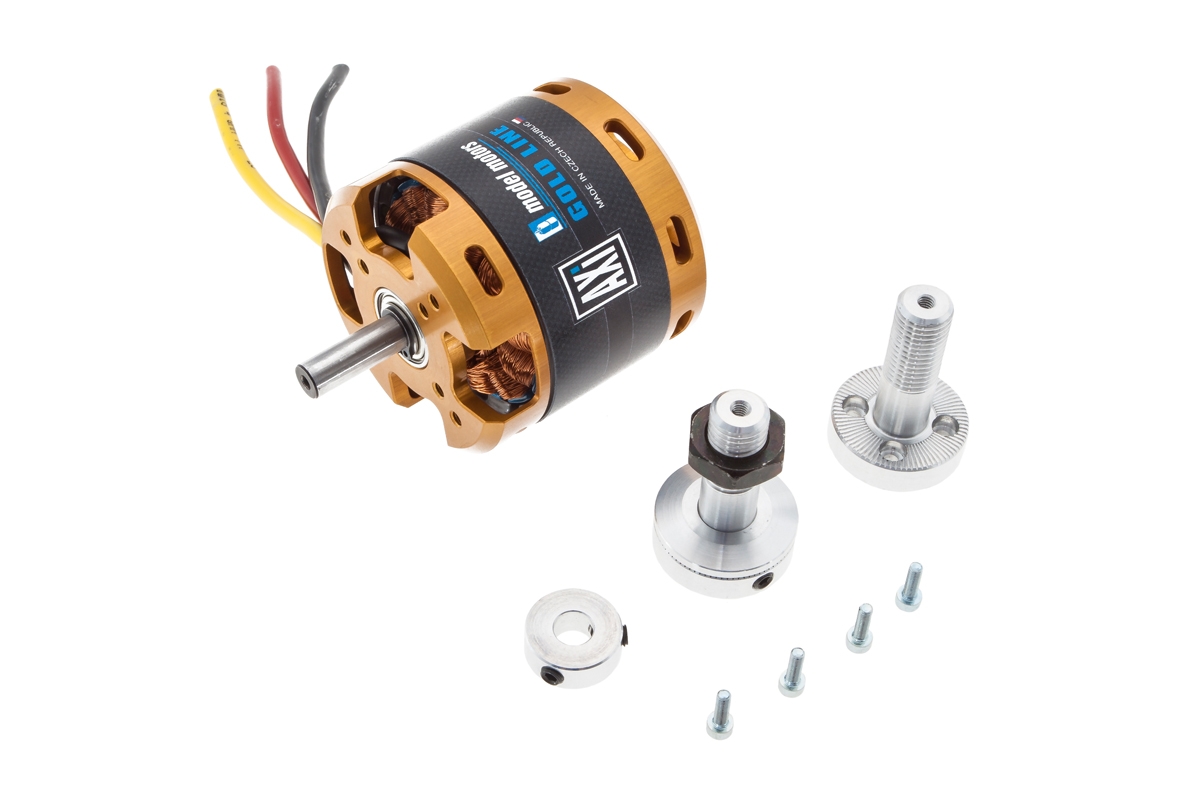

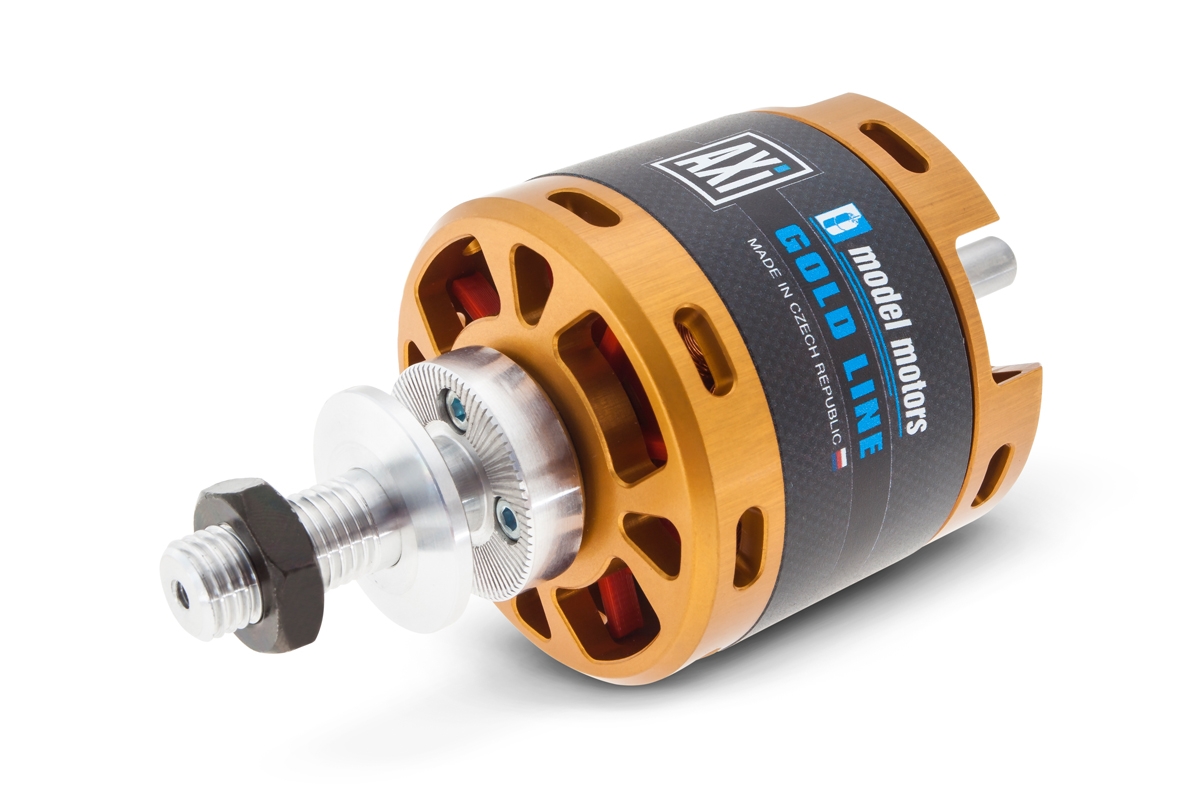

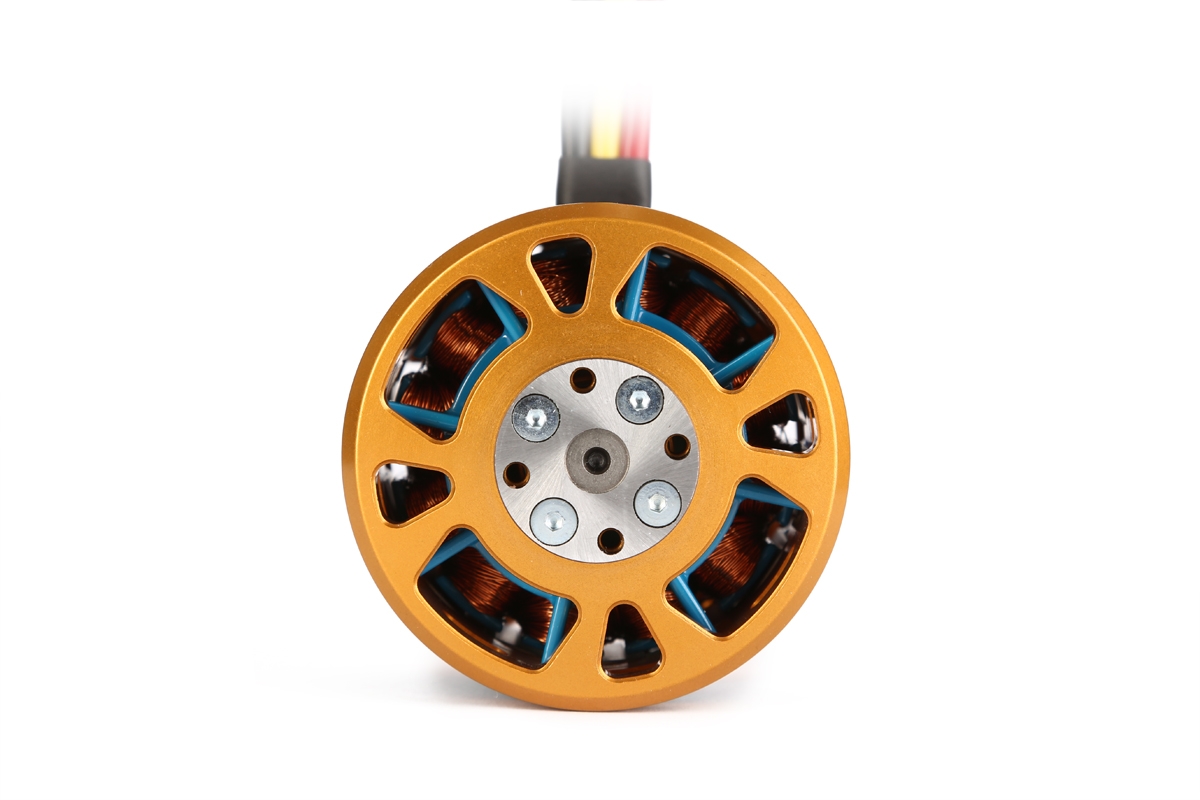

AXI 5320/34 V2 brushless

This item is not available in you region (United States)

Supply voltage LiXX cells: 8 - 10 ; RPM/V [RPM/min/V]: 206 ; Nr. of turns: 28 ; Internal resistance [mOhm]: 84 ; No load current [A]: 1.1 ; max. effenciency [%]: 95 ; Max. efficiency current (η>85%) [A]: 8 - 32 ; Max. peak current (60 s) [A]: 47 ; Max. power [W]: 1850 ; Diameter [mm]: 63 ; Lenght [mm]: 55.2 ; Shaft diameter [mm]: 8 ; Weight [g]: 515 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 70 - 90 ; Sailplane up to Weight [g]: 7500 ; Trainer up to Weight [g]: 6000 ; Acrobat up to Weight [g]: 5300 ; 3d up to Weight [g]: 4000

Powering LiXX cells	8 - 10
RPM/V [ot./min/V]	206
Turn count	28
Internal resistance [mOhm]	84
Open-circuit current [A]	1.1
Max. efficiency [%]	95
Max. efficiency current (η>85%) [A]	8 - 32
Max. peak current (60 s) [A]	47
Max. power [W]	1850
Diameter [mm]	63
Length [mm]	55.2
Shaft diameter [mm]	8
Weight [g]	515
Poles count	14
Timing [°]	15 - 25
ESC [A]	70 - 90
Weight of glider (up-to) [g]	7500
Weight of trainer (up-to) [g]	6000
Weight of acrobat (up-to) [g]	5300
Weight of 3D (up-to) [g]	4000
