Code:3EL105611V2
Barcode:8595247302298
Brand:AXI

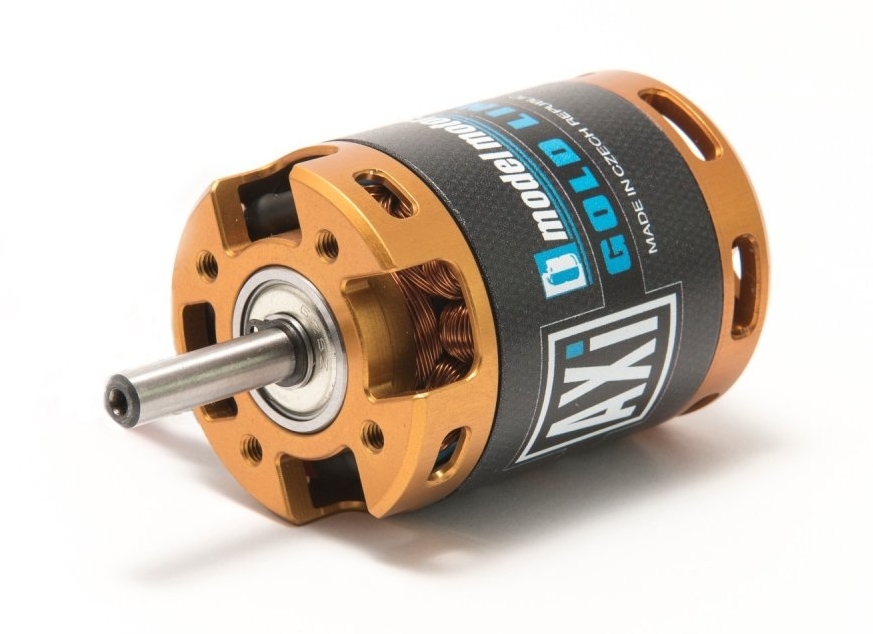

AXI 2826/8 V2 Brushless
This item is not available in you region (United States)
Description
Spare parts
Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 1130 ; Nr. of turns: 8 ; Internal resistance [mOhm]: 30 ; No load current [A]: 2.9 ; max. effenciency [%]: 85 ; Max. efficiency current (η>75%) [A]: 35 - 37 ; Max. peak current (60 s) [A]: 56 ; Max. power [W]: 570 ; Diameter [mm]: 35 ; Lenght [mm]: 52 ; Shaft diameter [mm]: 5 ; Weight [g]: 177 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 60 - 70 ; Sailplane up to Weight [g]: 2500 ; Trainer up to Weight [g]: 2500 ; Acrobat up to Weight [g]: 2500
| Powering LiXX cells | 2 - 3 |
| RPM/V [ot./min/V] | 1130 |
| Turn count | 8 |
| Internal resistance [mOhm] | 30 |
| Open-circuit current [A] | 2.9 |
| Max. efficiency [%] | 85 |
| Max. efficiency current (η>75%) [A] | 35 - 37 |
| Max. peak current (60 s) [A] | 56 |
| Max. power [W] | 570 |
| Diameter [mm] | 35 |
| Length [mm] | 52 |
| Shaft diameter [mm] | 5 |
| Weight [g] | 177 |
| Poles count | 14 |
| Timing [°] | 15 - 25 |
| ESC [A] | 60 - 70 |
| Weight of glider (up-to) [g] | 2500 |
| Weight of trainer (up-to) [g] | 2500 |
| Weight of acrobat (up-to) [g] | 2500 |
