Code:3EL1056100V2L
Barcode:8595247302434
Brand:AXI

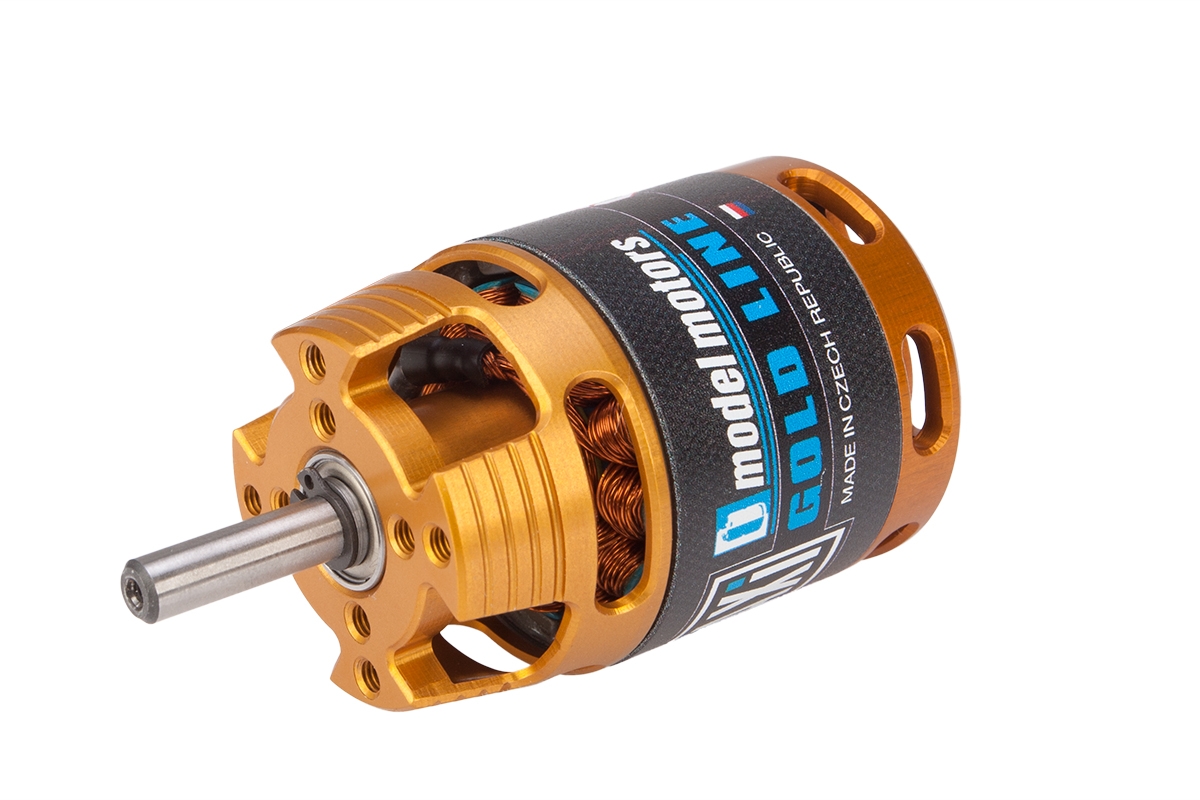

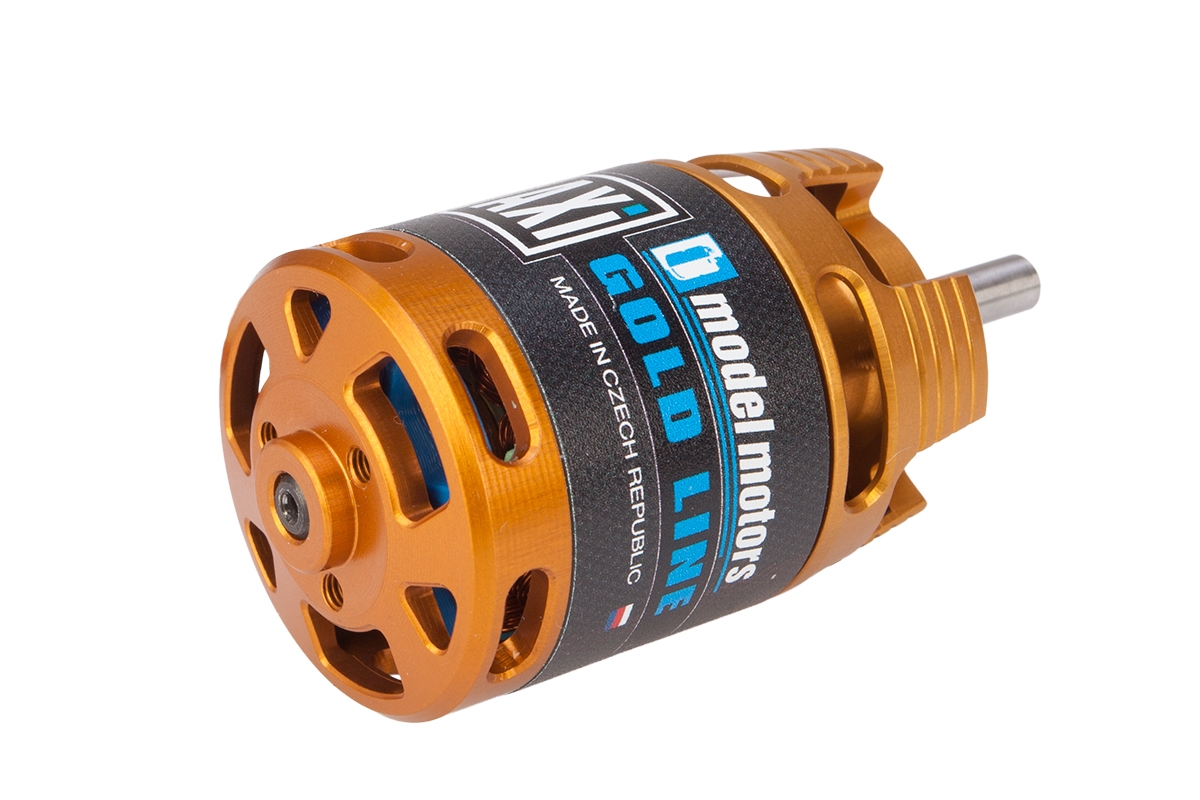

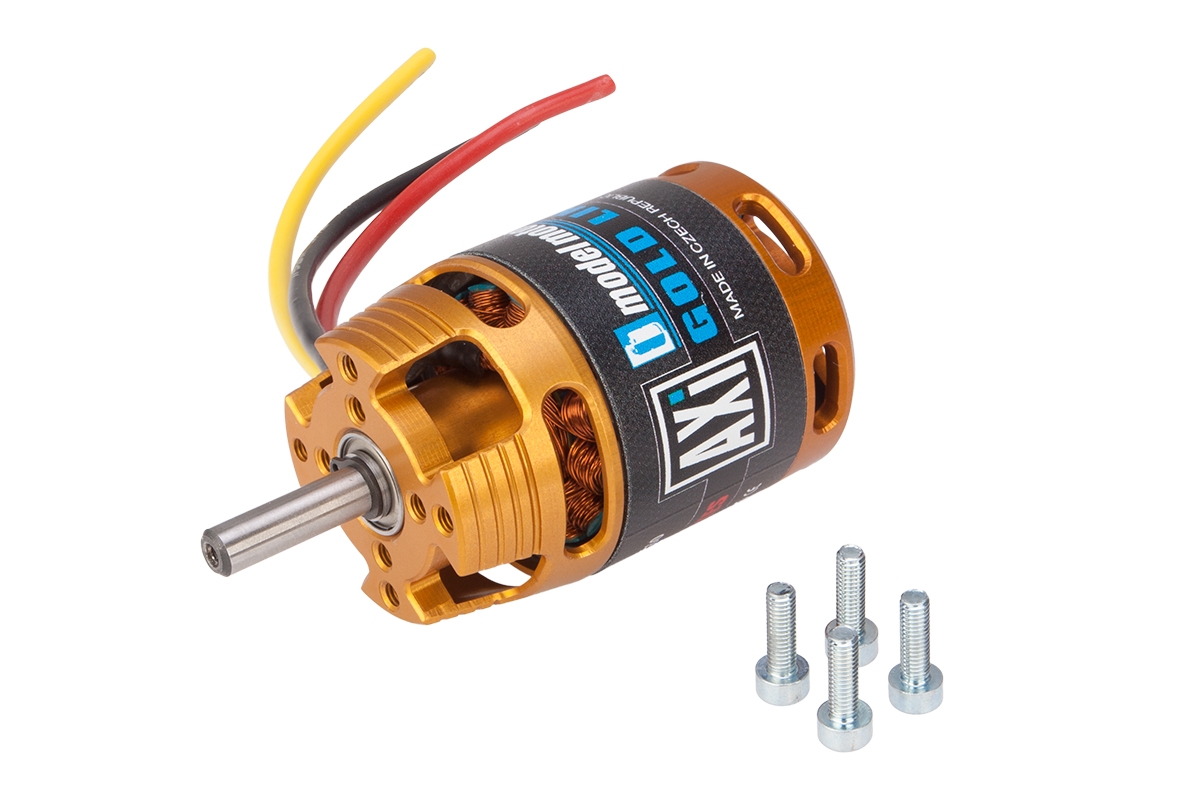

AXI 2826/6 V2 LONG Brushless
This item is not available in you region (United States)
Description
Spare parts
Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 1500 ; Nr. of turns: 6 ; Internal resistance [mOhm]: 25 ; No load current [A]: 3.4 ; max. effenciency [%]: 84 ; Max. efficiency current (η>75%) [A]: 30 - 40 ; Max. peak current (60 s) [A]: 67 ; Max. power [W]: 665 ; Diameter [mm]: 35 ; Lenght [mm]: 57.5 ; Shaft diameter [mm]: 5 ; Weight [g]: 187 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 70 - 90 ; Sailplane up to Weight [g]: 2500
| Powering LiXX cells | 2 - 3 |
| RPM/V [ot./min/V] | 1500 |
| Turn count | 6 |
| Internal resistance [mOhm] | 25 |
| Open-circuit current [A] | 3.4 |
| Max. efficiency [%] | 84 |
| Max. efficiency current (η>75%) [A] | 30 - 40 |
| Max. peak current (60 s) [A] | 67 |
| Max. power [W] | 665 |

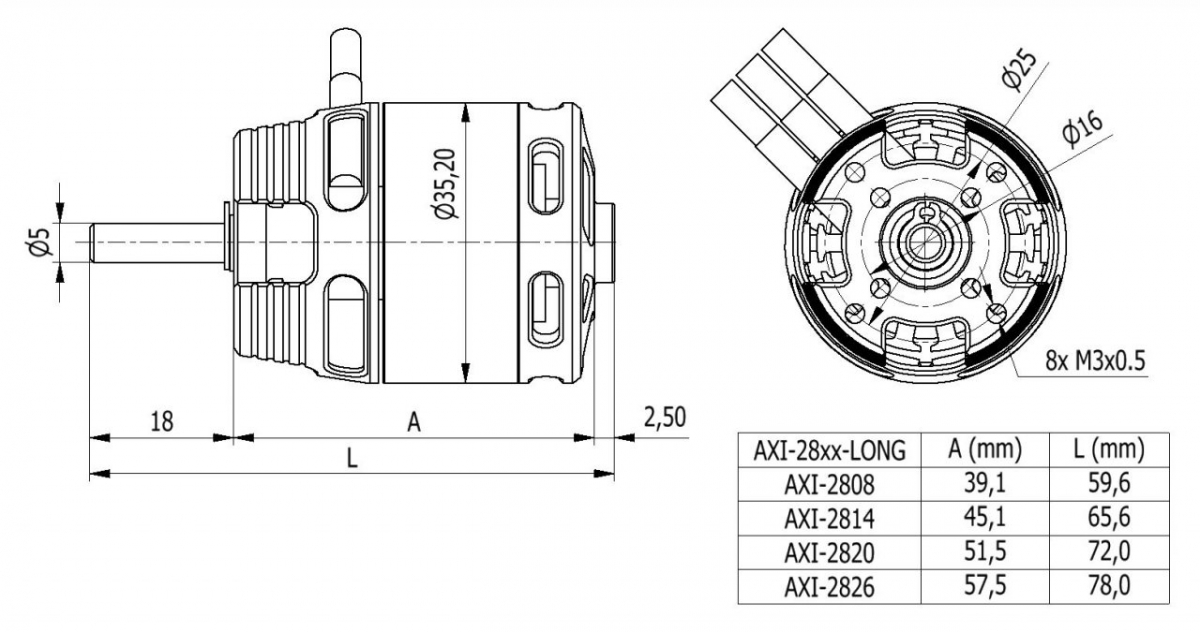

| Diameter [mm] | 35 |
| Length [mm] | 57.5 |
| Shaft diameter [mm] | 5 |
| Weight [g] | 187 |
| Poles count | 14 |
| Timing [°] | 15 - 25 |
| ESC [A] | 70 - 90 |
| Weight of glider (up-to) [g] | 2500 |
Accessories (2)
Spare parts (1)
